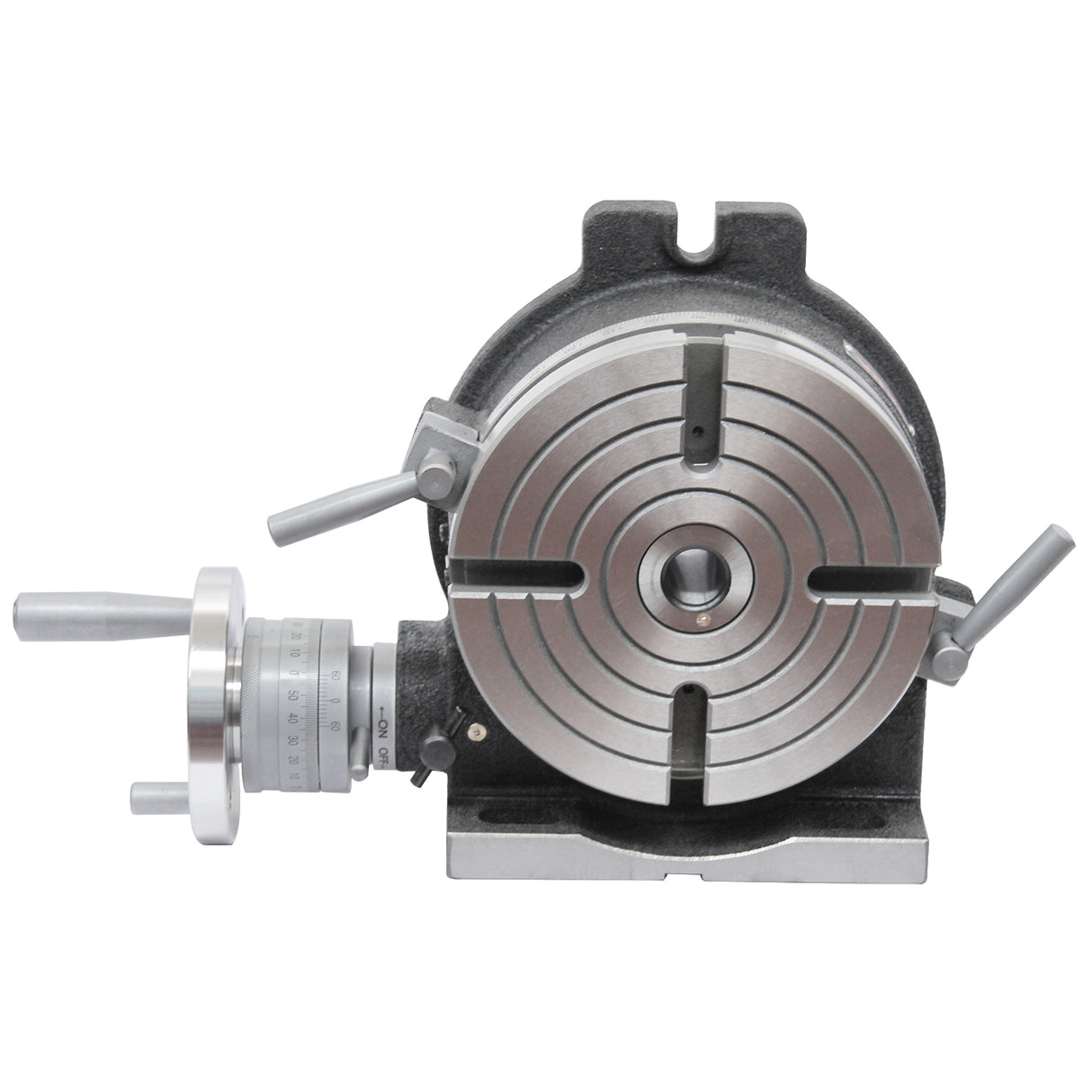

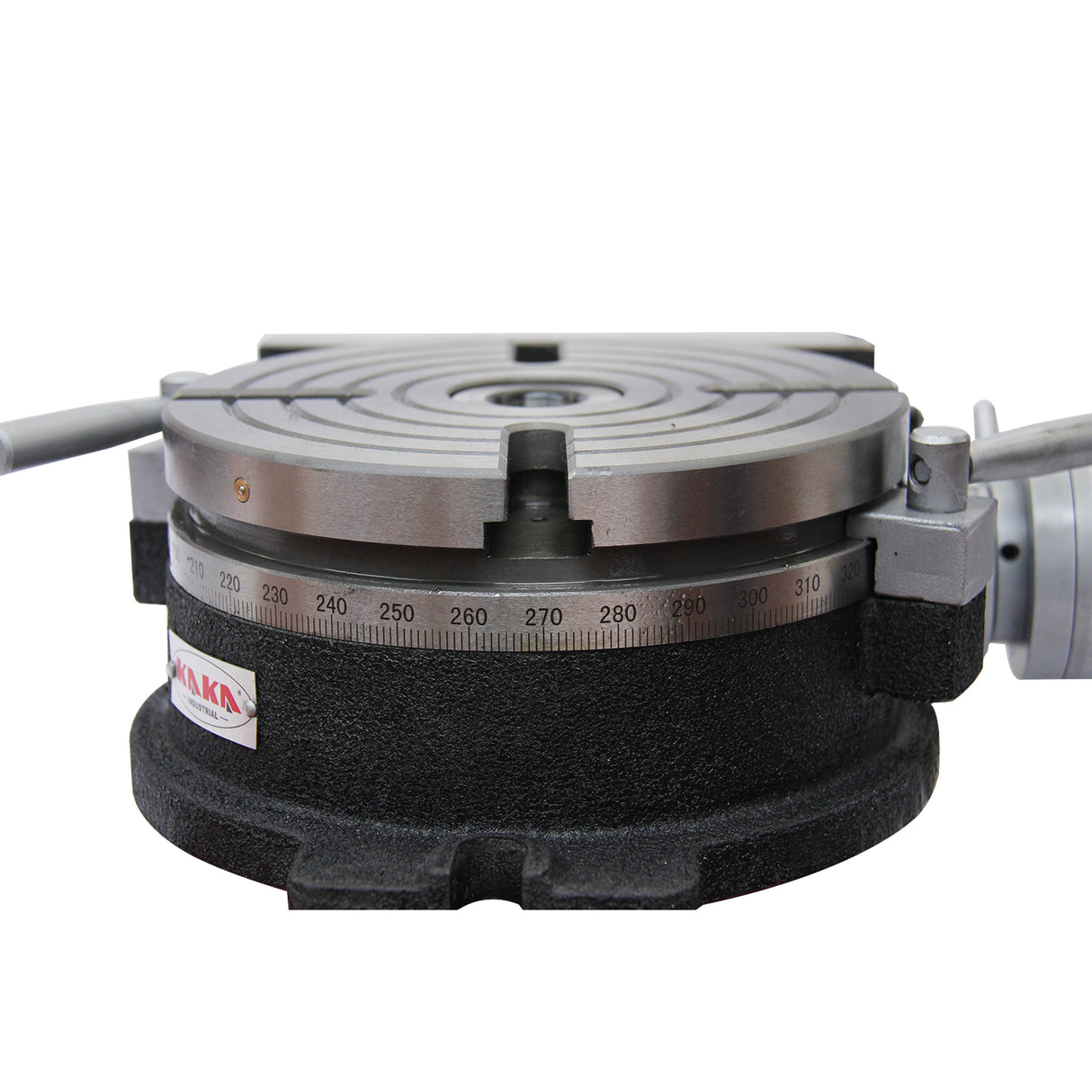

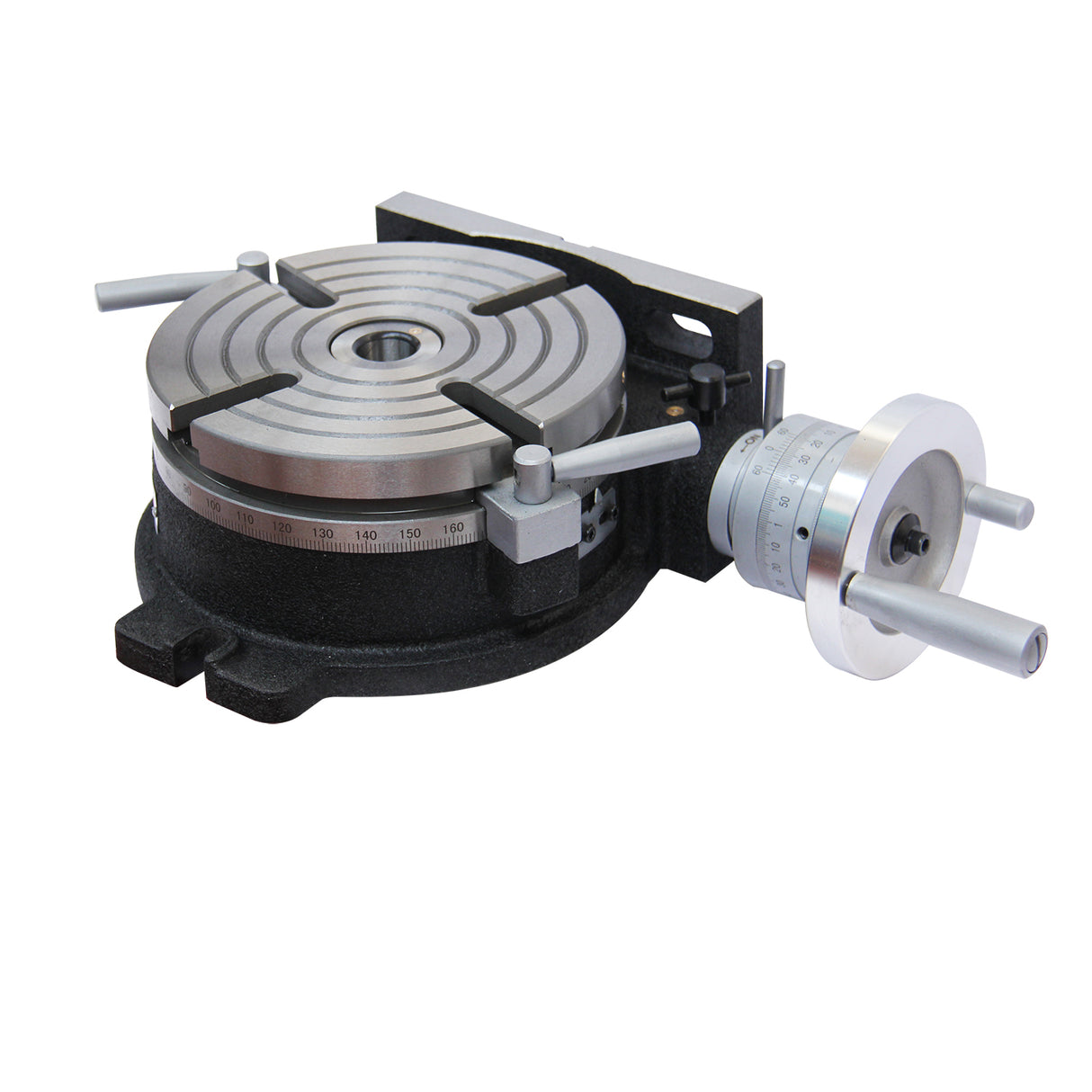

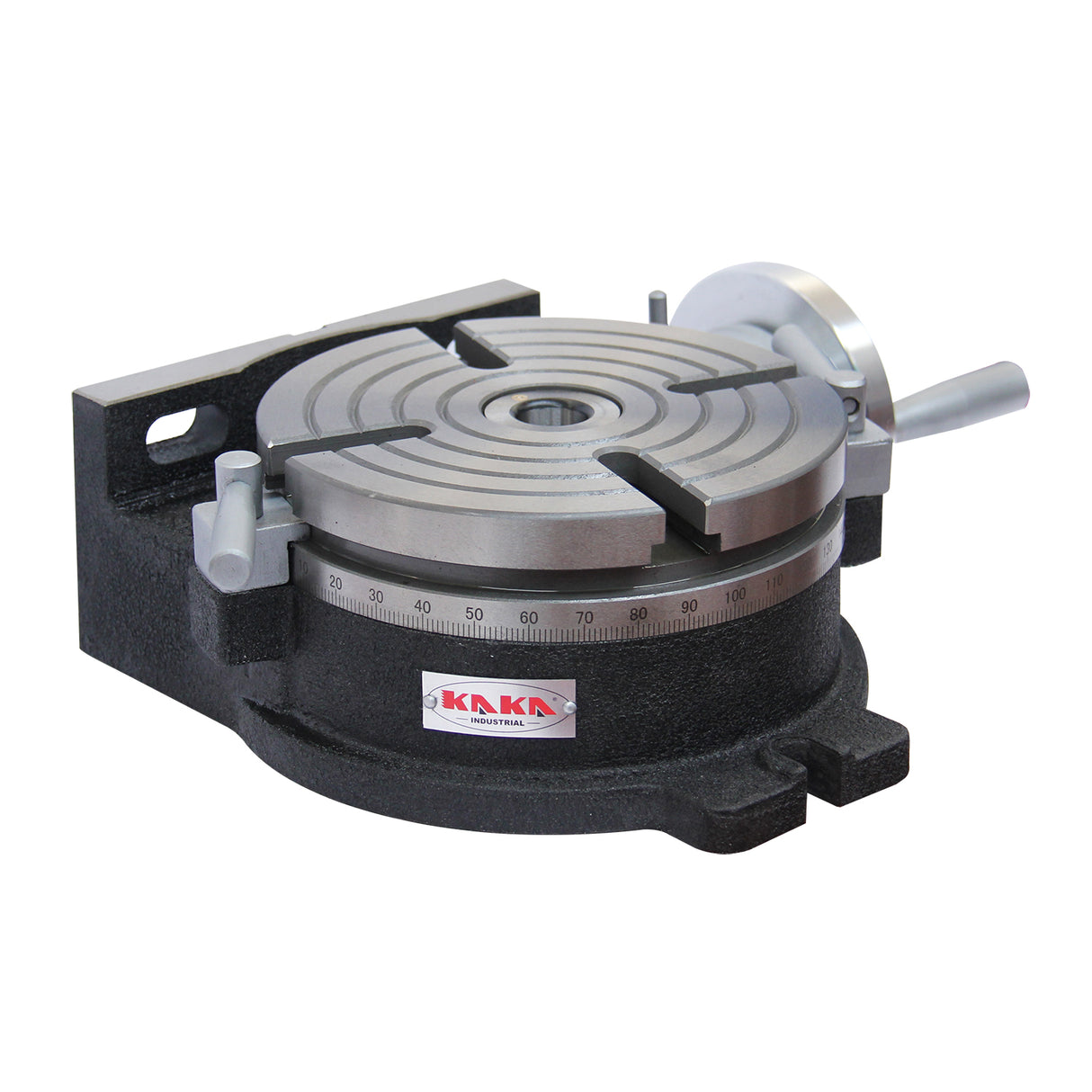

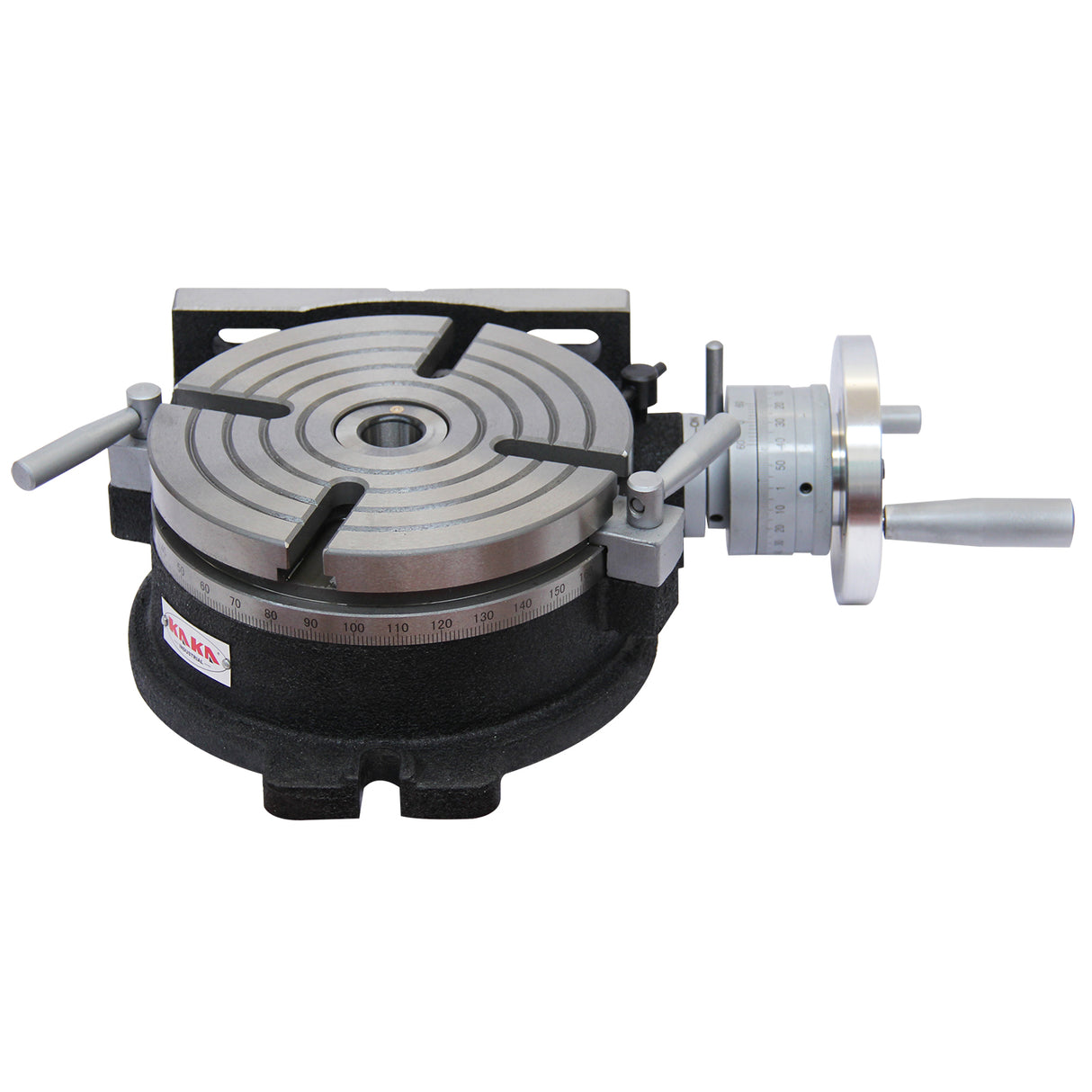

KANG INDUSTRIAL Rotary Table HV-8
The Rotary Table HV-8 is a premium, universal rotary table designed for precise angular positioning of workpieces during machining on milling machines or drill presses. It enables accurate operations on face or side surfaces, such as drilling bolt hole circles, milling curves, or other angular tasks. Workpieces are secured via the slotted setup table or compatible gripping devices (e.g., optional 3-jaw chuck or tailstock for extended support).
Compatibility Workpiece Holding with "Full-Sized" AU Milling Machines. While smaller tables suit benchtop "mini-mills," the HV-8 is perfectly sized for the standard Knee Mills commonly found in commercial workshops. Its weight and size provide the stability these larger machines demand.
Industrial-Scale MT3 Taper Rotary Table. The MT3 center bore on the HV-8 allows users to utilize the same heavy-duty collets and centers they likely already use in their milling spindles. This standardization reduces the need for "specialty" hobbyist tooling.
Superior Precision and Tight Tolerances Workpiece Holding Table. 10'' gradations, 60" division accuracy, and precise metrics provide repeatable, high-accuracy results for complex tasks like bolt circles or curved milling, minimizing errors in precision-focused engineering and prototyping work.
Features
High-density cast iron body
Vertical and horizontal position table
One rotation of the handle equals 4° on the collar
Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90
Ground surface areas on the table
Specifications
| Item No. | 161104 | 161106 | 161108 |
| Model | HV-4 | HV-6 | HV-8 |
| Dia. of table | 110 mm | 150 mm | 200 mm |
| Morse taper | MT2 | MT2 | MT3 |
| Width of T-slot | 12 mm | 12 mm | 14 mm |
| Adjacent angle of T slot | 120° | 90° | 90° |
| Transmission ratio of the worm gear | 1:72 | 1:90 | 1:90 |
| Minimum value of vernier | 10" | 10" | 10" |
| Max. loading with table horizontal | 40kg | 100kg | 150 kg |
| Max. loading with table Vertical | 20kg | 50kg | 75 kg |
| Packing size | 19x10x12 cm | 26x24x13 cm | 38x31x18 cm |
| N.W./G.W. | 9/11 kg | 13/15 kg | 31/38 kg |
