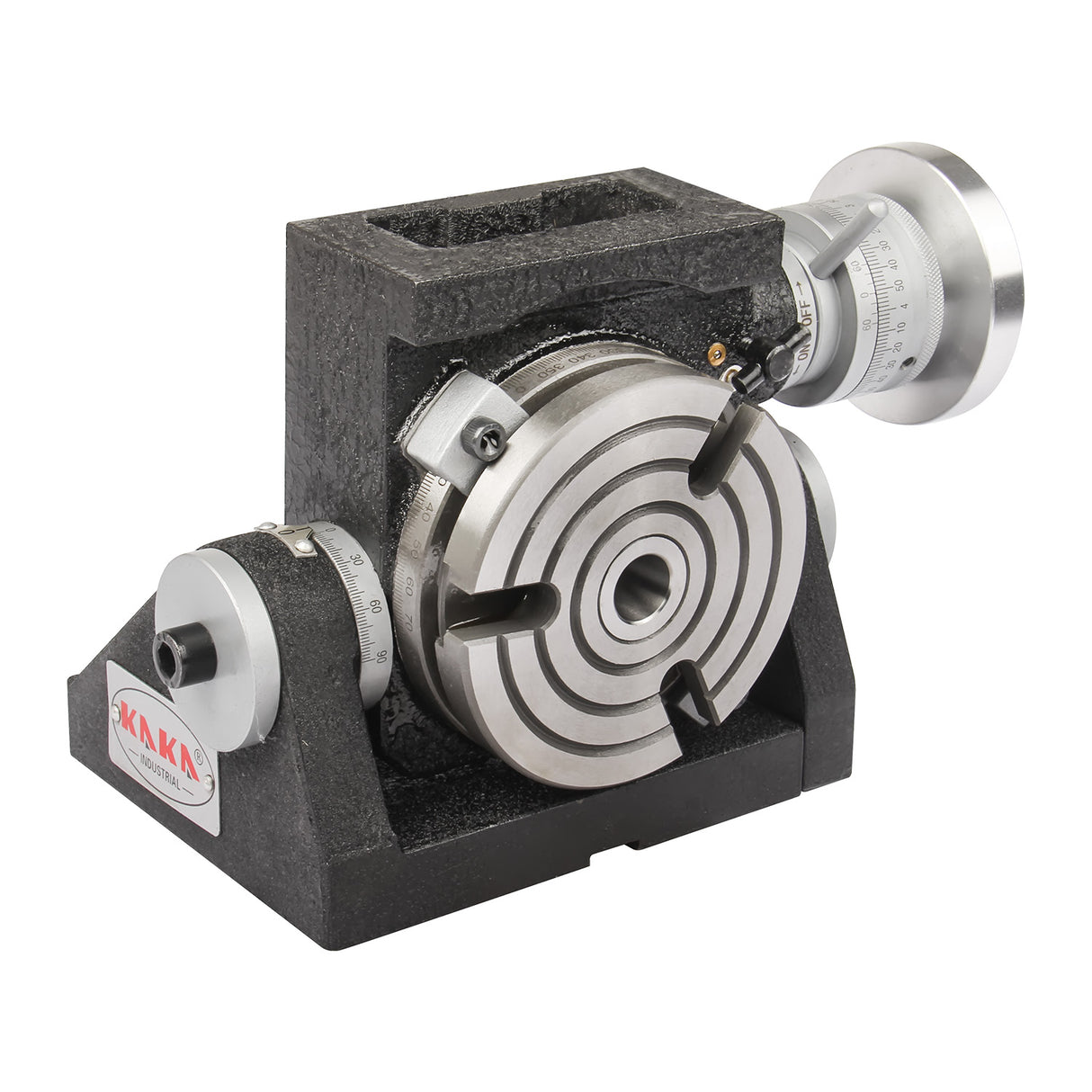

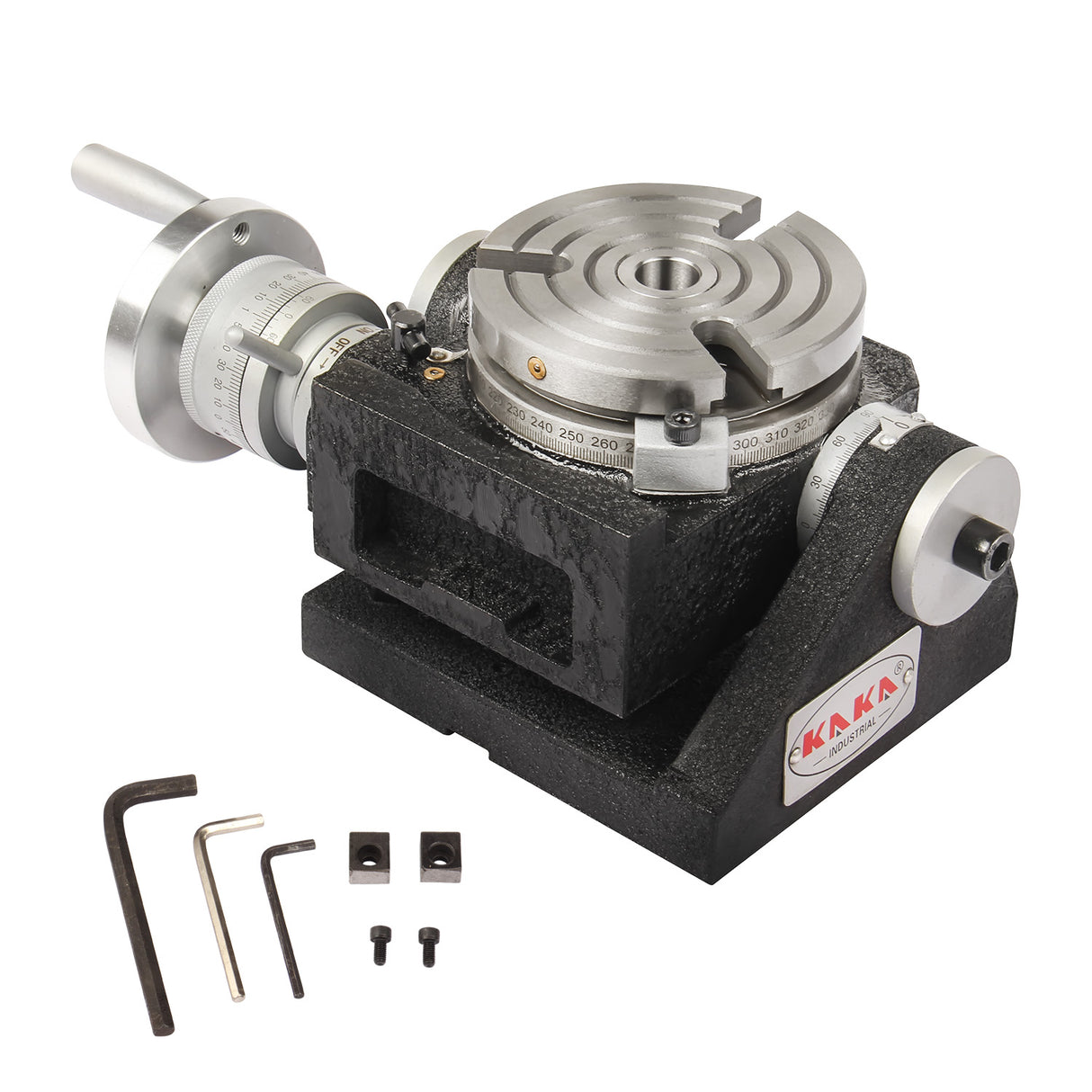

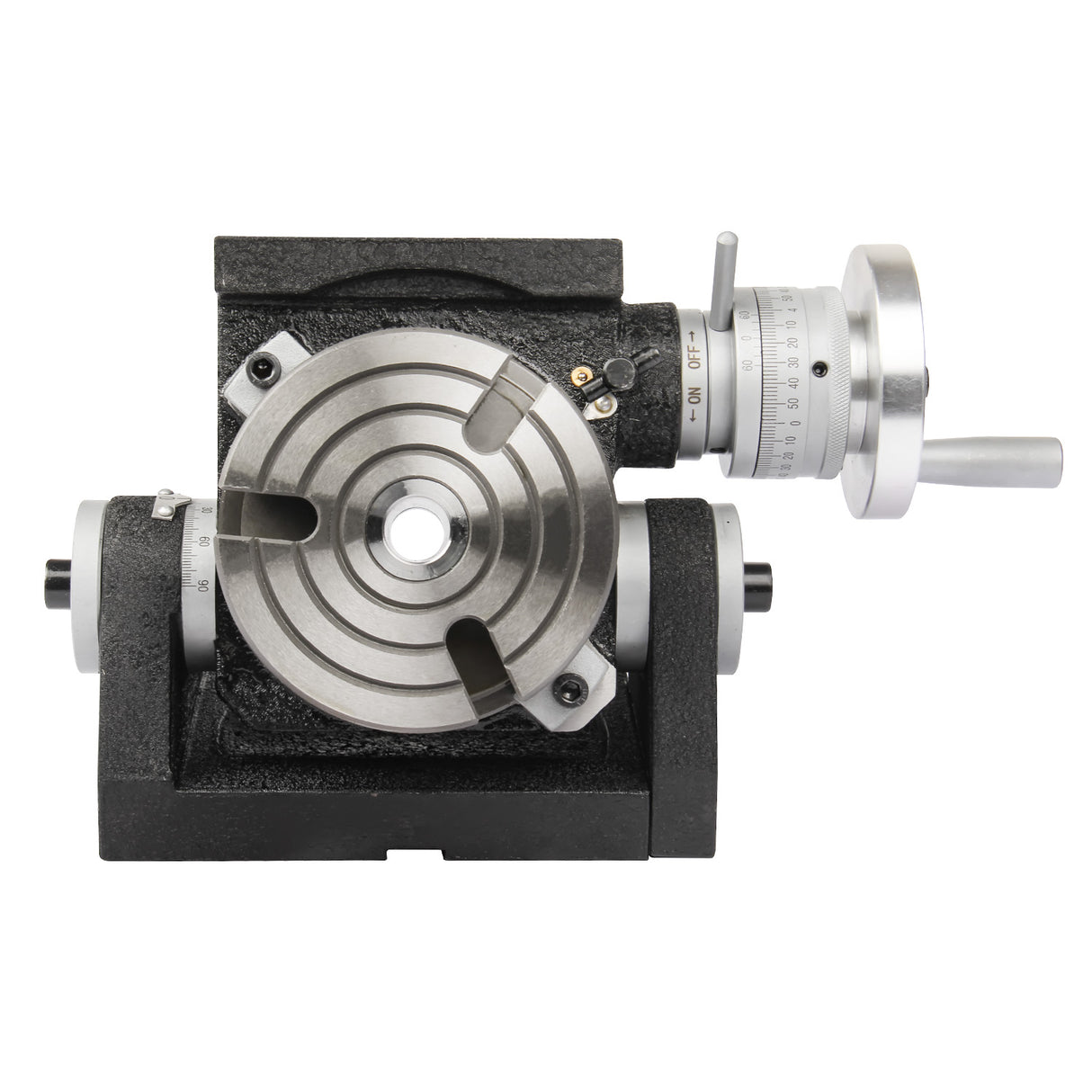

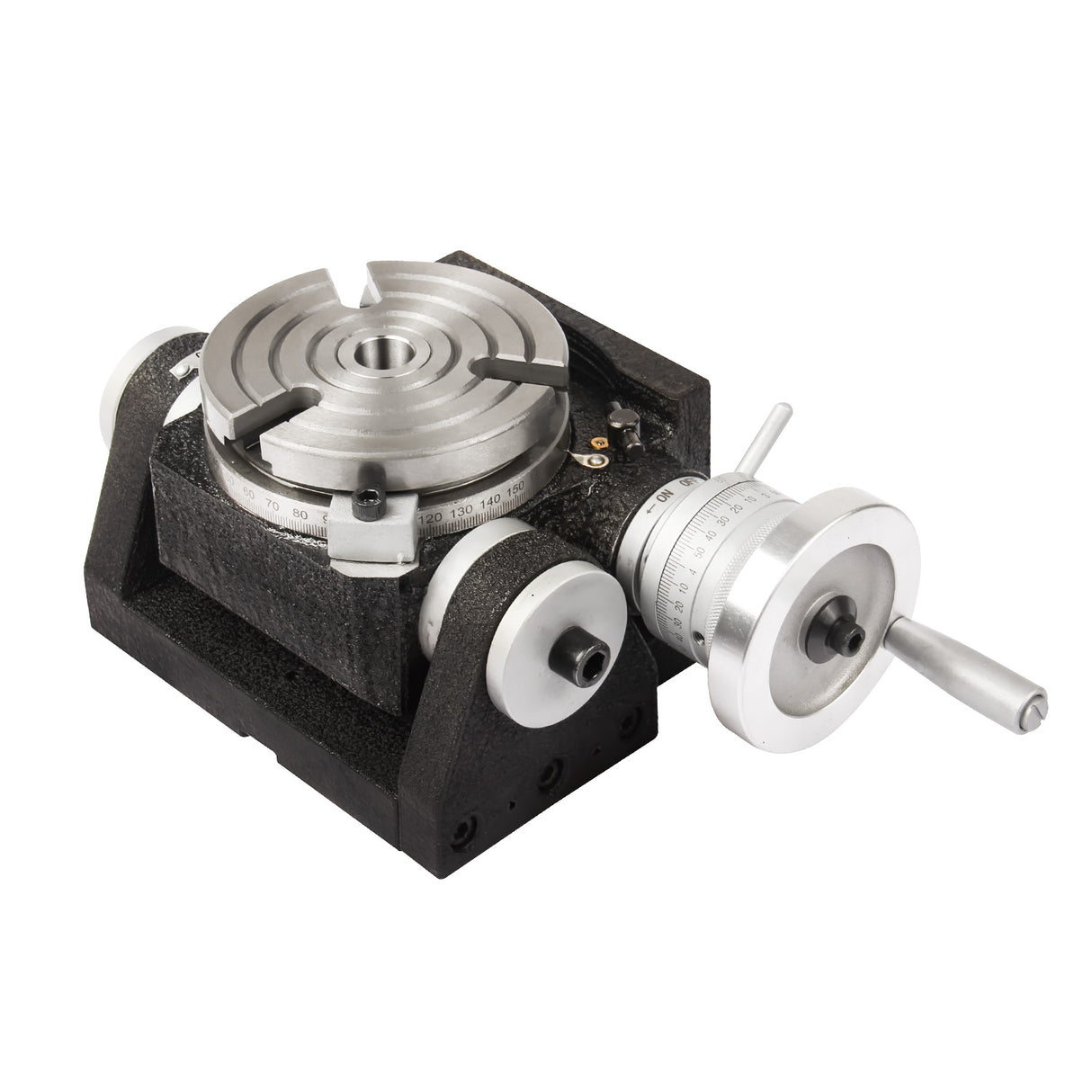

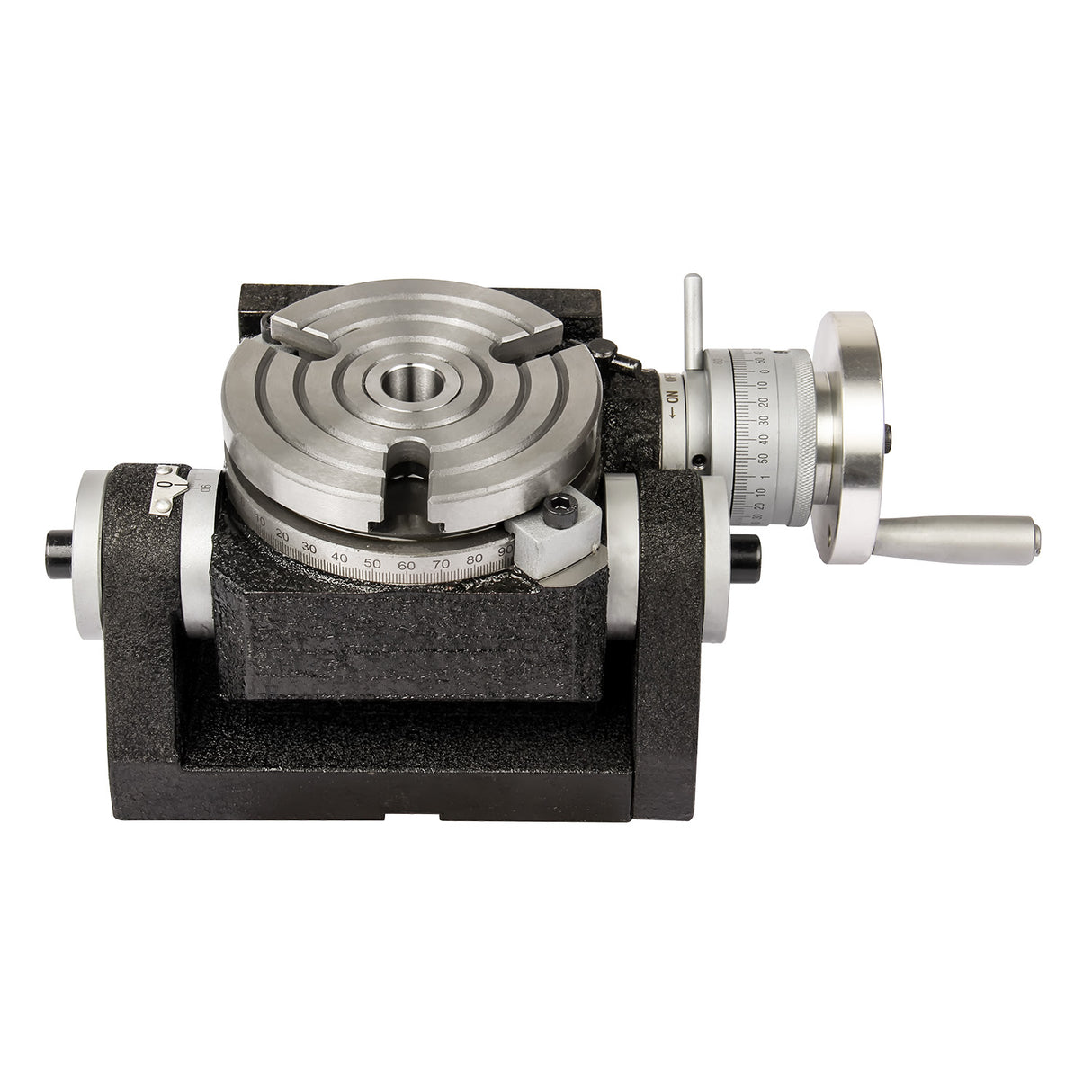

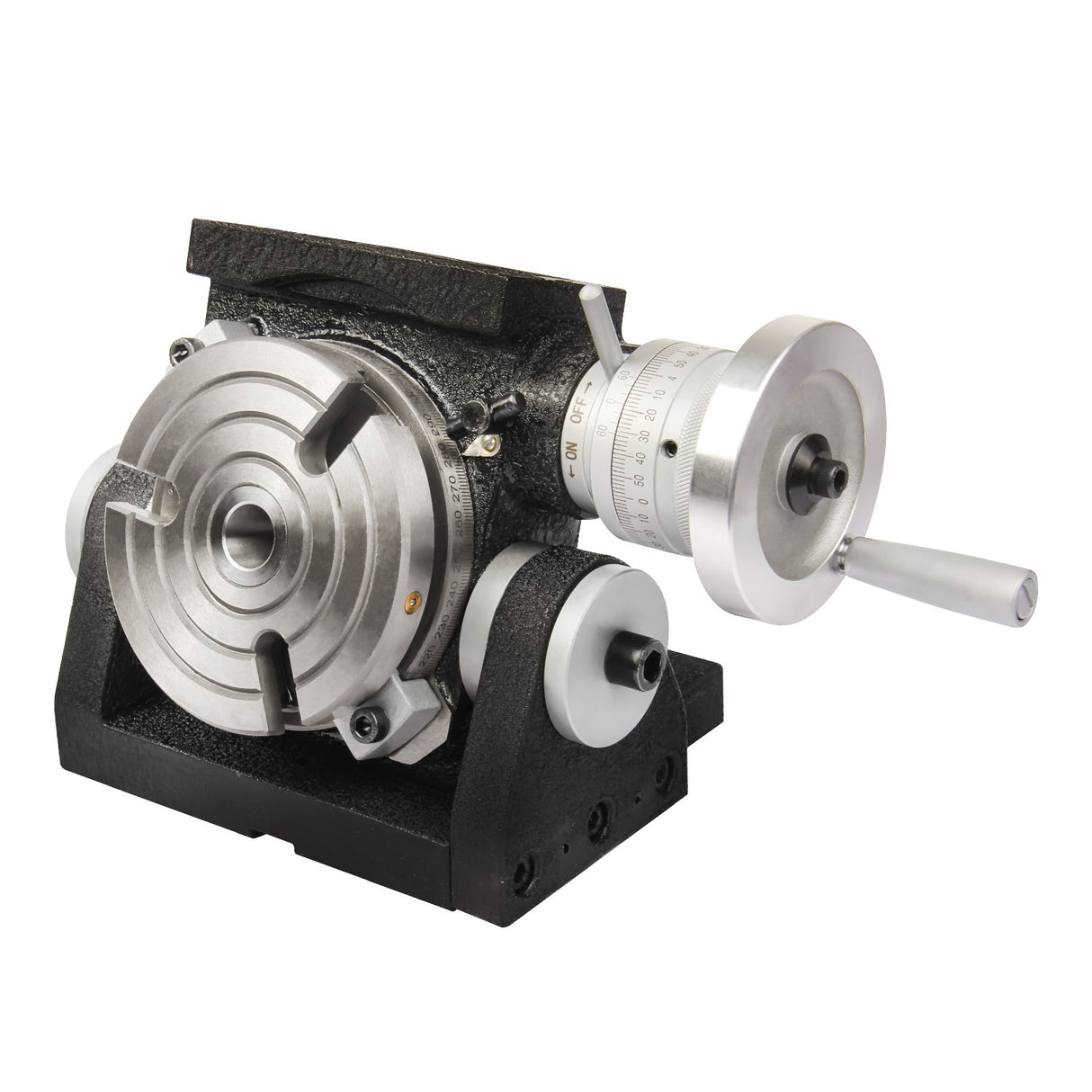

Kang Industrial Tilting Rotary Table TSK-4
The TSK-4 Tilting Rotary Table is engineered for complex milling, drilling, and boring tasks where precise angular positioning is required. Its construction is centered around a high-density cast iron body, vibration-dampening properties, and long-term stability.
Exceptional Precision and Adjustability Rotary Table. The 360-degree graduation, 2-minute micro collar, and 72:1 gear ratio provide fine control for accurate rotations and tilts, reducing errors in complex tasks like gear cutting or contouring.
Versatile Tilting Mechanism Tilting Table. With its rigid supports and strong clamping, it allows for easy angular setups, expanding its use in milling complex angles or contours—perfect for diverse manufacturing and hobby sectors
Minimal Setup Time Milling Accessory. Designed for efficiency, it streamlines operations, saving valuable time in fast-paced environments or for users balancing multiple projects.
Durable Build Quality Tools. Hardened components and a substantial weight ensure longevity and stability under heavy use.
Broad Application Accessory. Compatible with various machines for tasks requiring precise positioning, it's a versatile addition for professionals in industries like automotive or aerospace, as well as home machinists across the country
Features

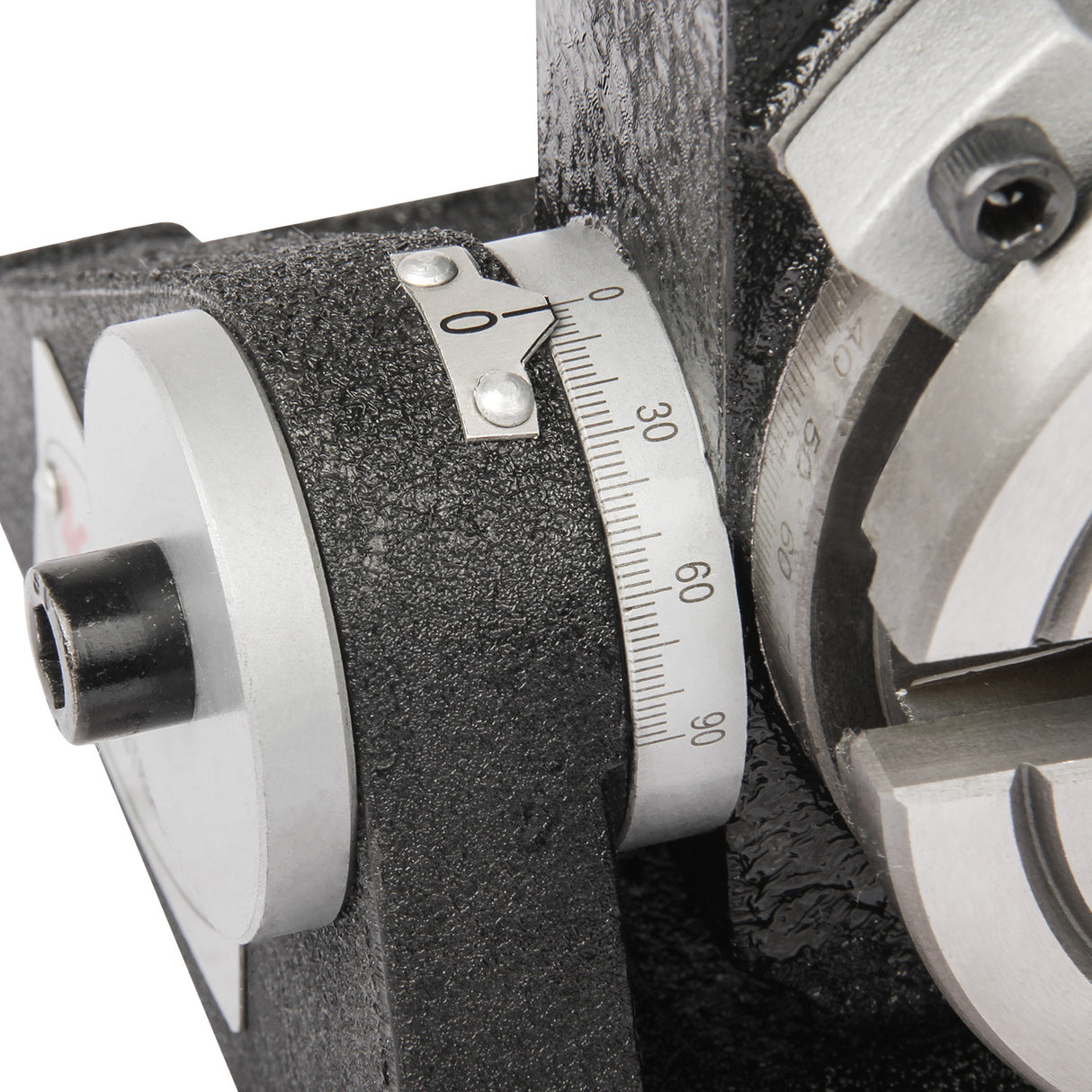

Tilting Mechanism: Features a tilting range of 0° to 90° (horizontal to vertical), allowing for angled cuts and hole patterns.

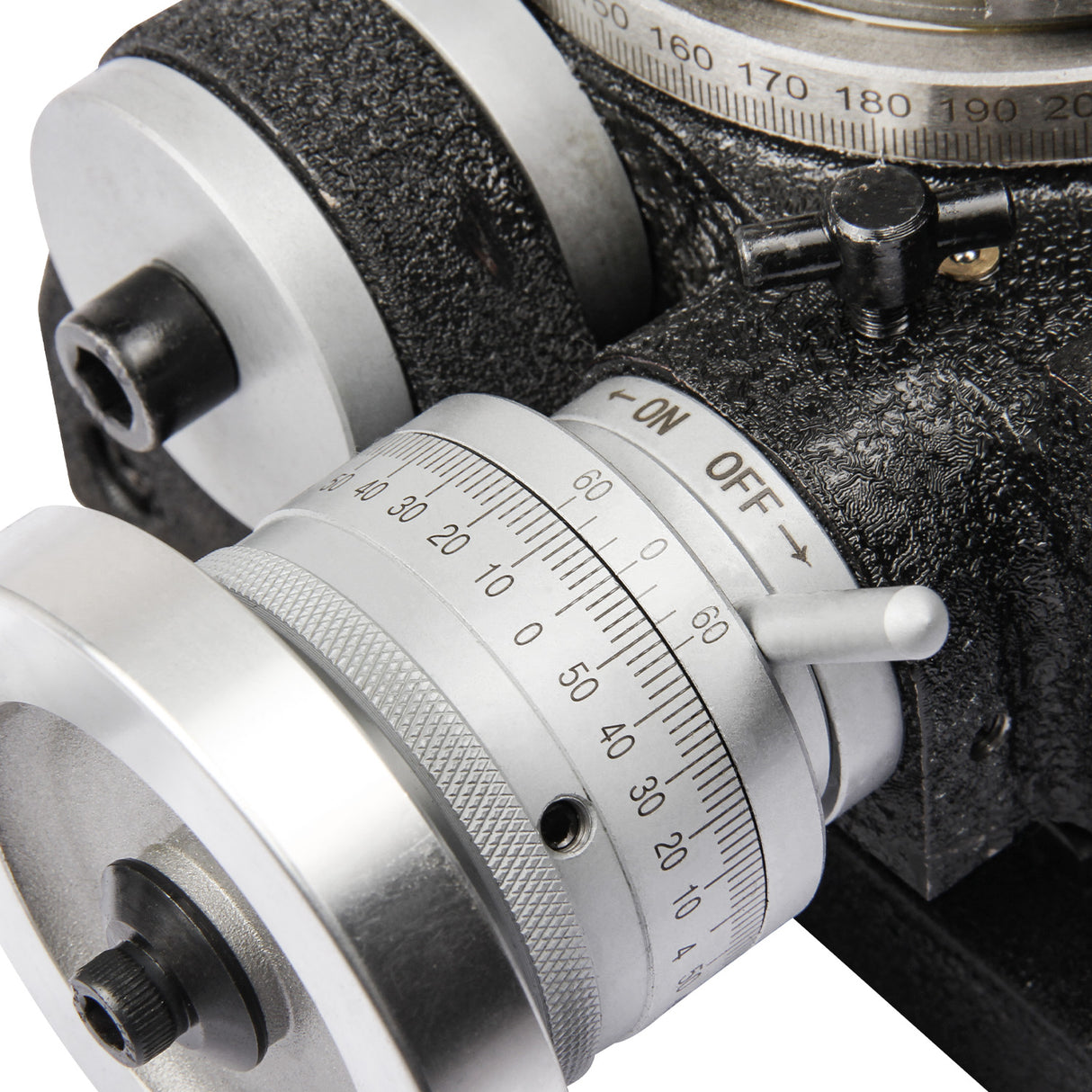

Indexing Precision: The worm gear ratio is 72:1. One full 360° turn of the handwheel rotates the table by 5°. The micro collar is graduated in 2-minute increments, and a vernier scale allows for readings down to 10 seconds.

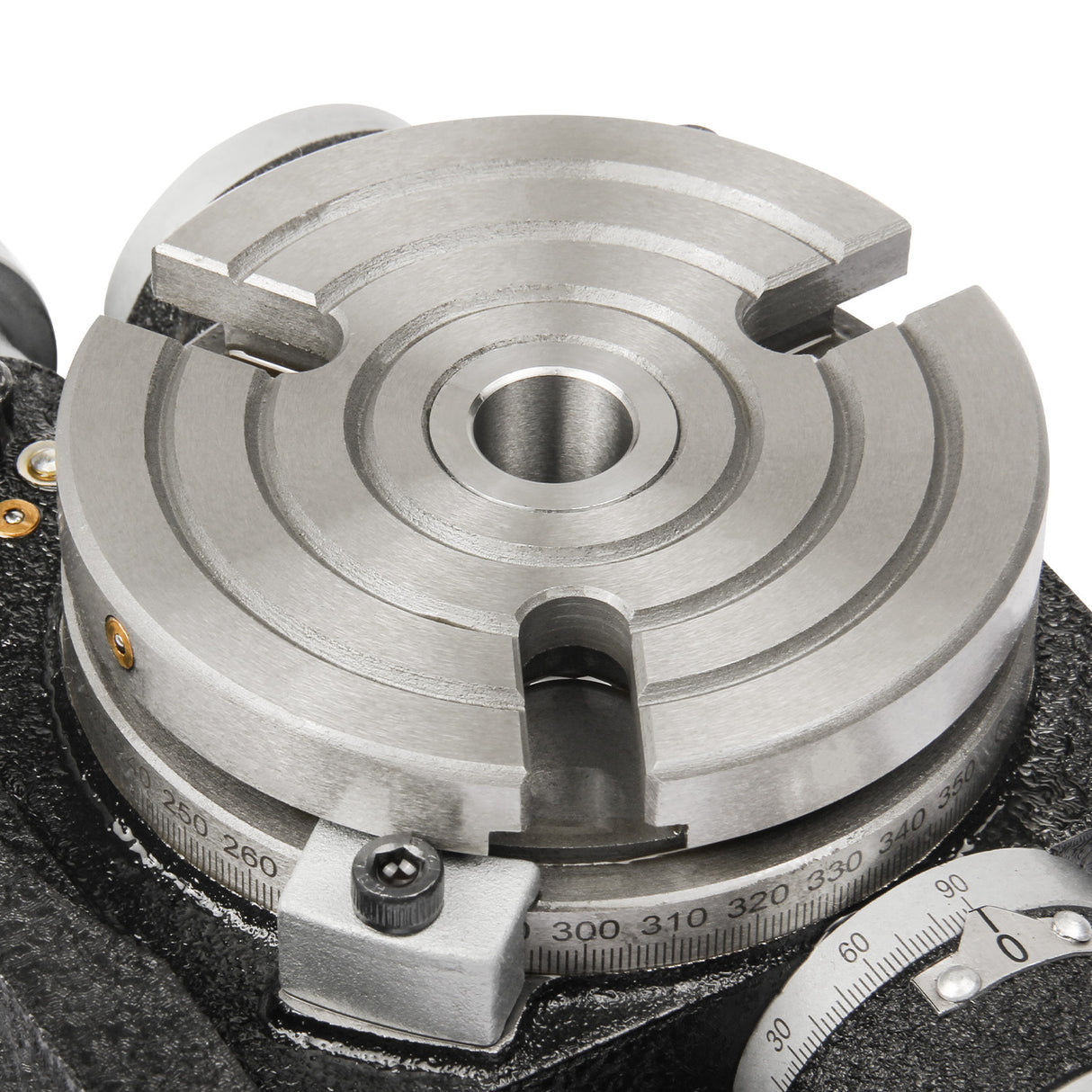

Capacity: The table diameter is 110mm (4 inches), featuring 3 T-slots for secure workholding.
Internal Taper: Comes with an MT2 (Morse Taper 2) center bore, enabling the use of standard collets or centers.
Different Sizes are Available: TSK-5 & TSK-6
Specifications
| SKU | 162314 |
| Model | TSK-4 |
| Table dia. | ø 110 mm |
| Morse taper of the center hole | MT2 |
| Width of T-slot | 12 mm |
| Modules of worm and worm gear | 1 |
| Width of the locating key | 16 mm |
| Adjacent angle of T-slot | 120° |
| Transmission ratio of the worm gear | 1:72 |
| Graduation of the table | 360° |
| Tilting angle | 0~90° |
| Readout of the handwheel | 1" |
| Min. value of vernier | 10" |
| Min. reading of tilting vernier | 1° |
| Indexing accuracy | 60" |
| Packing size | 32x12x19 cm |
| N.W./G.W. | 15/17 kg |
Installation sketch and dimensions
Unit: mm
| A | B | C | D | F | H | L | M |
P |
| 140 | 175 | 150 | 110 | 85 |
65 | 130 | MT2 | 50 |
