Description
Description

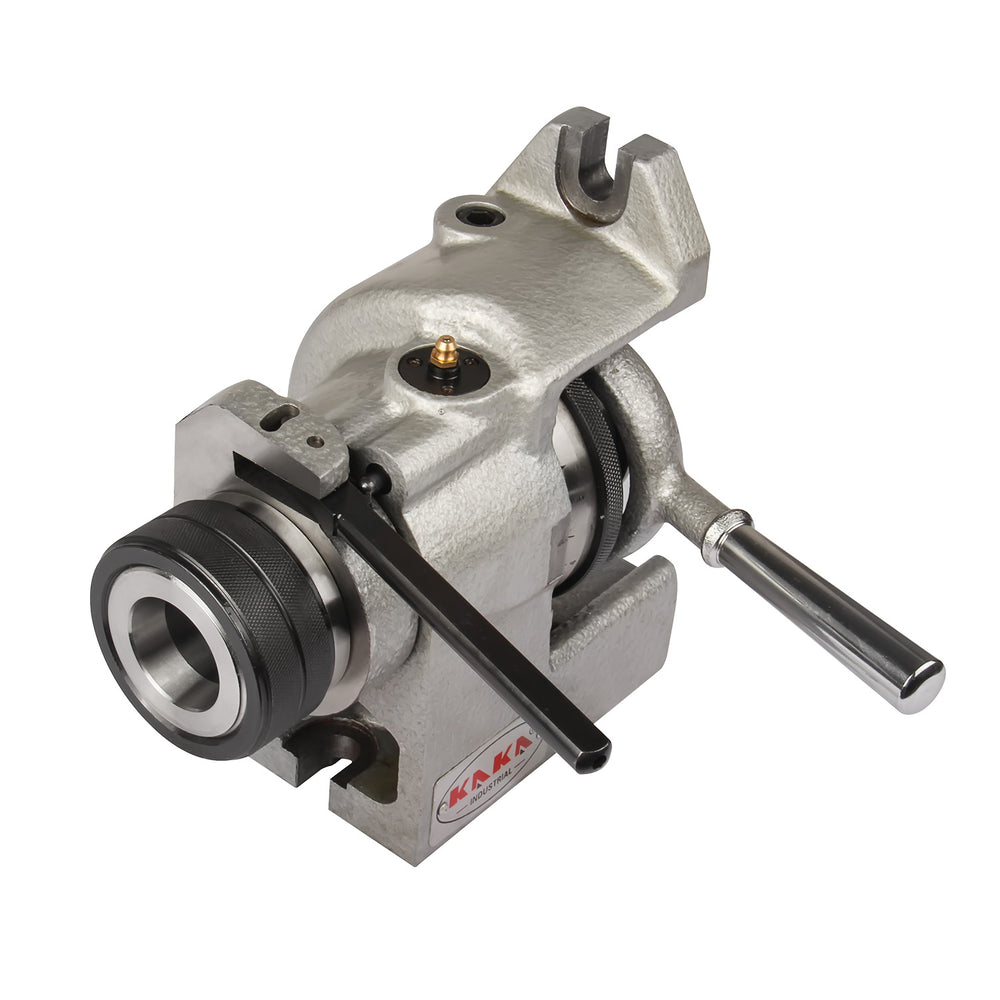

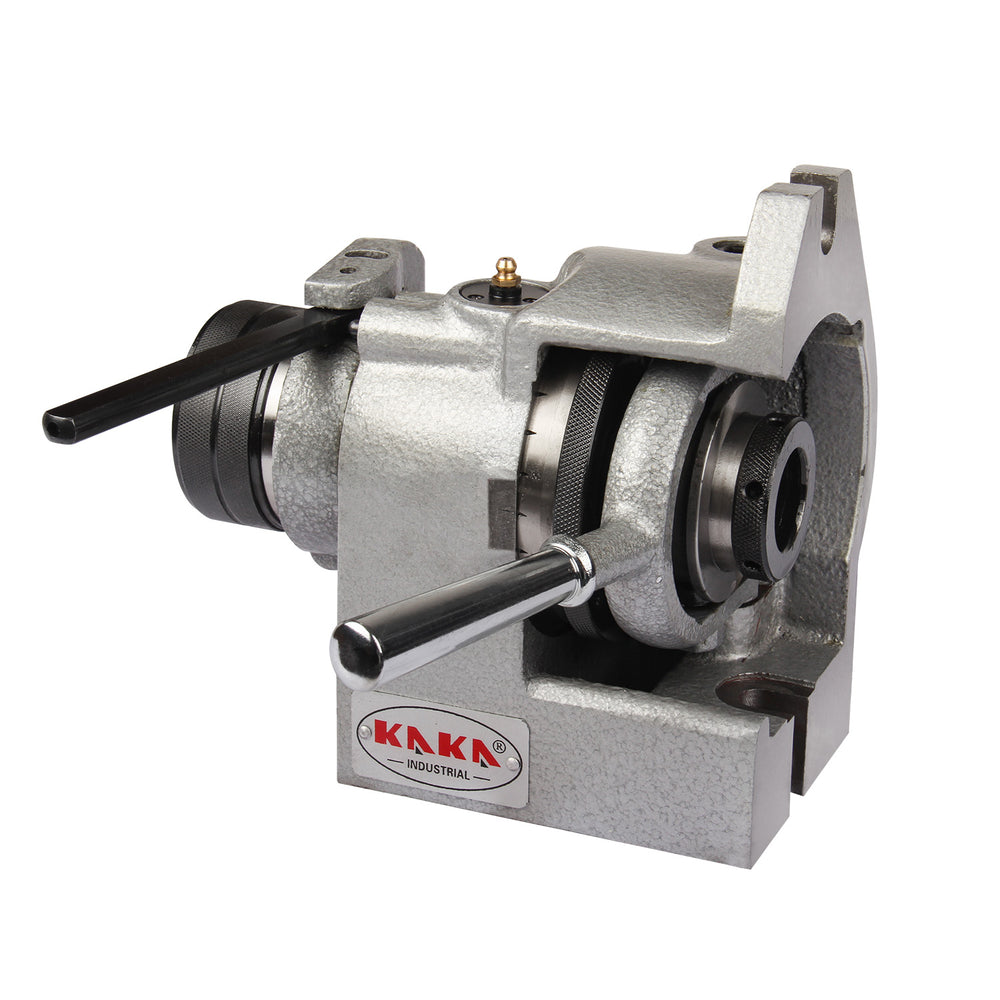

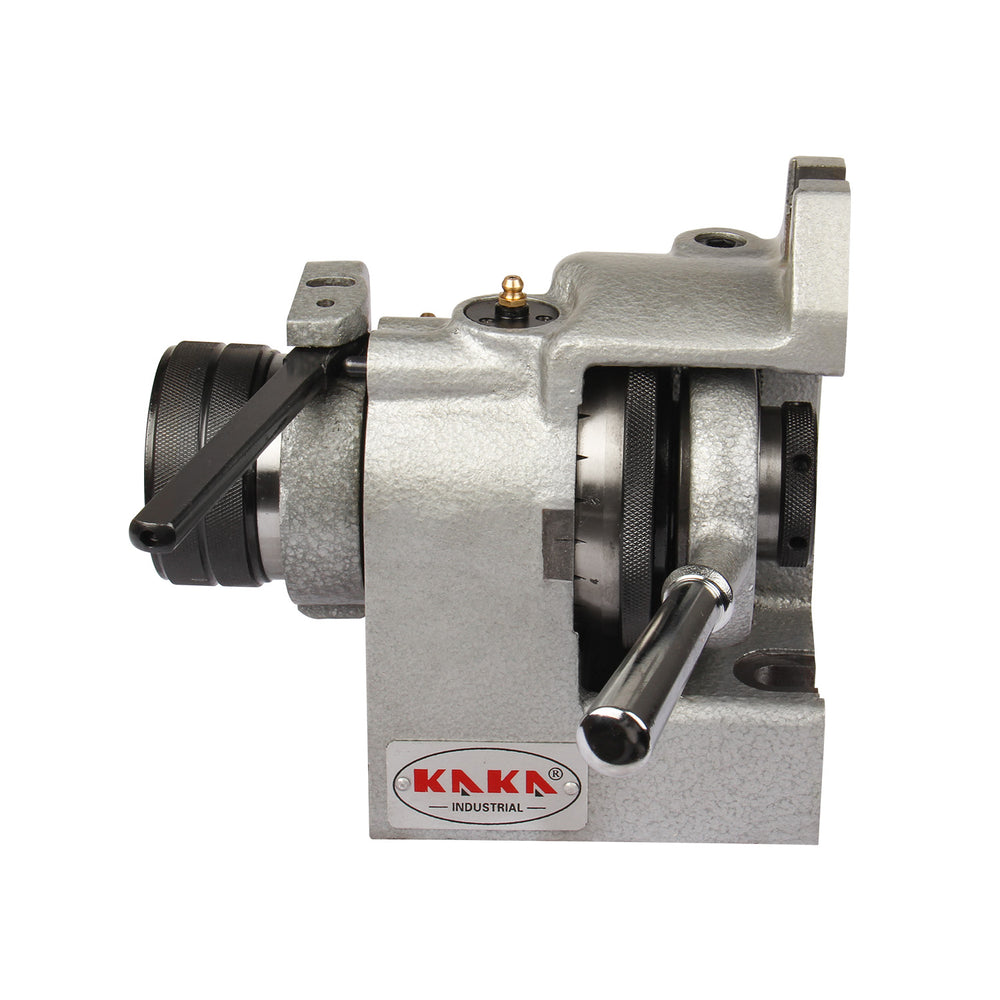

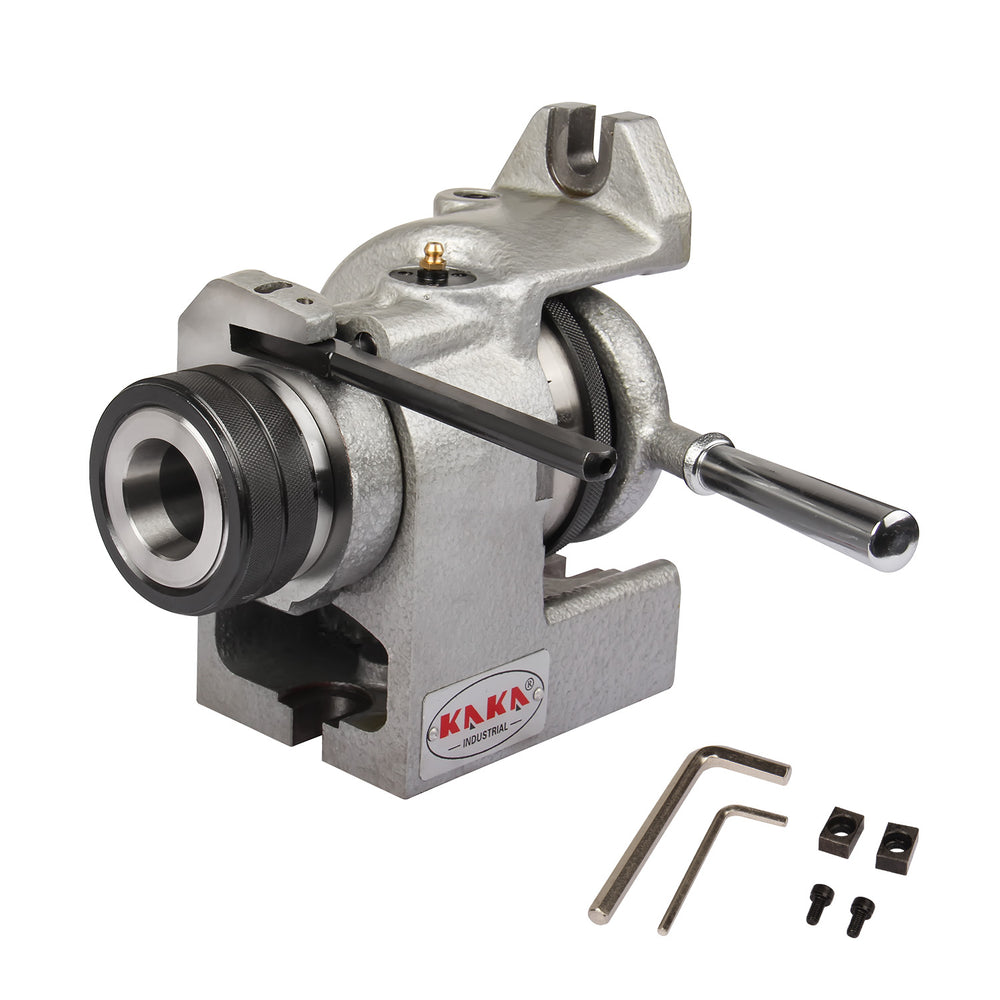

Kang Industrial Horizontal Vertical Collet Index
Indexable to 360 deg
Features

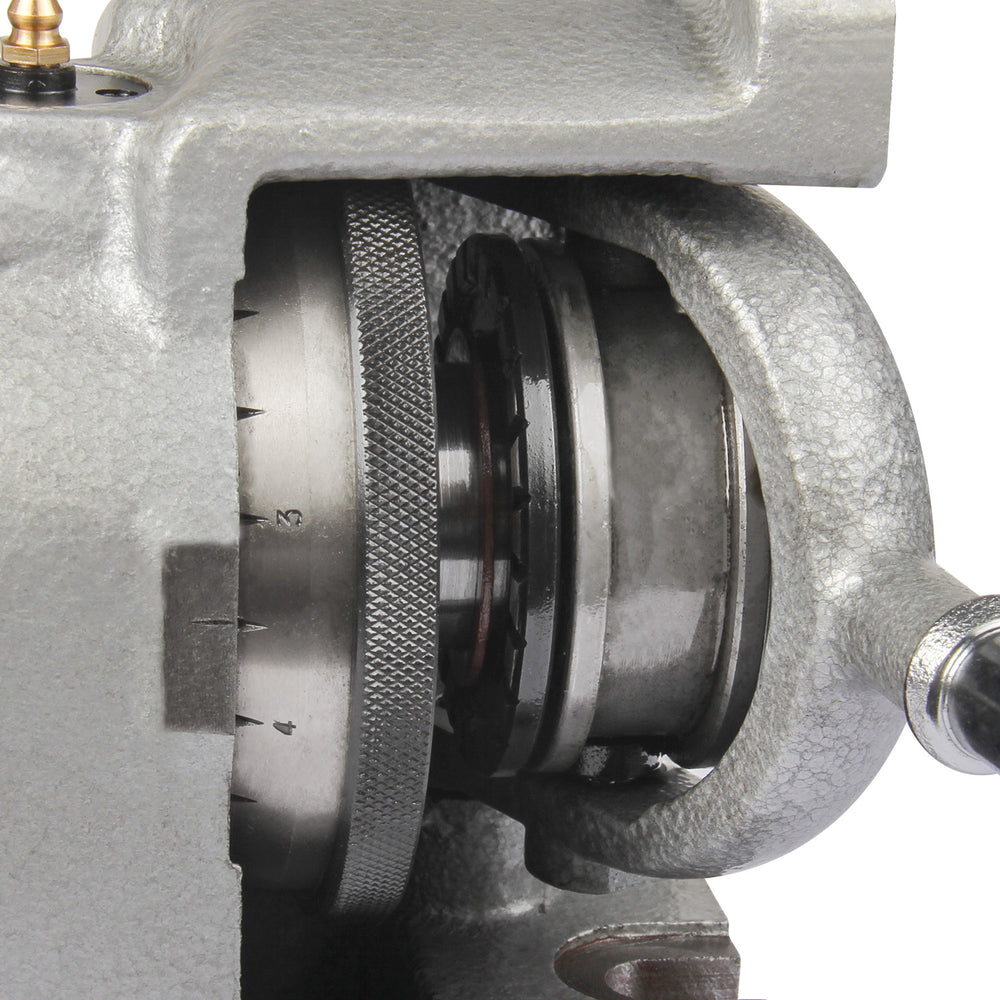

Furnished with a 24 space indexing plate, with indexing specifications of 2,3,4,6,8,12 and 24

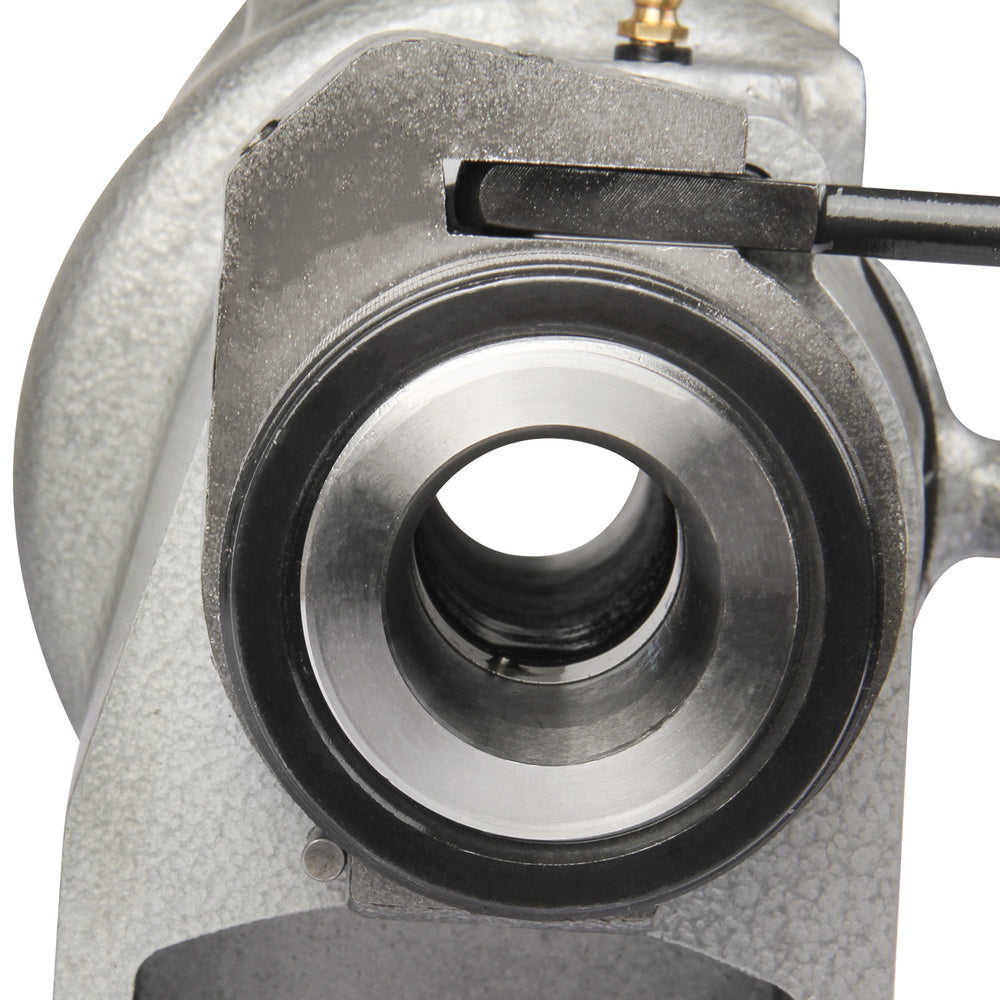

Utilize 5C collets
Single lever action activates the indexing mechanism
Convenient ratchet mounted on the front of the spindle provides rapid indexing
Specifications
SKU | 162325 |
Model | FNL100B |
Center height | 101.6 mm |
Min. ID of spindle | ø 31.75 mm |
Divisions | 2、3、4、6、8、12、24 |
Spindle screw | 2-1/4x8 |
Collet | 5C |
Dividing accuracy | ±3' |
Packing size | 29x26x26 cm |
N.W./G.W. | 12/15 kg |
