KANG INDUSTRIAL PTY LTD  |  SKU: 161205

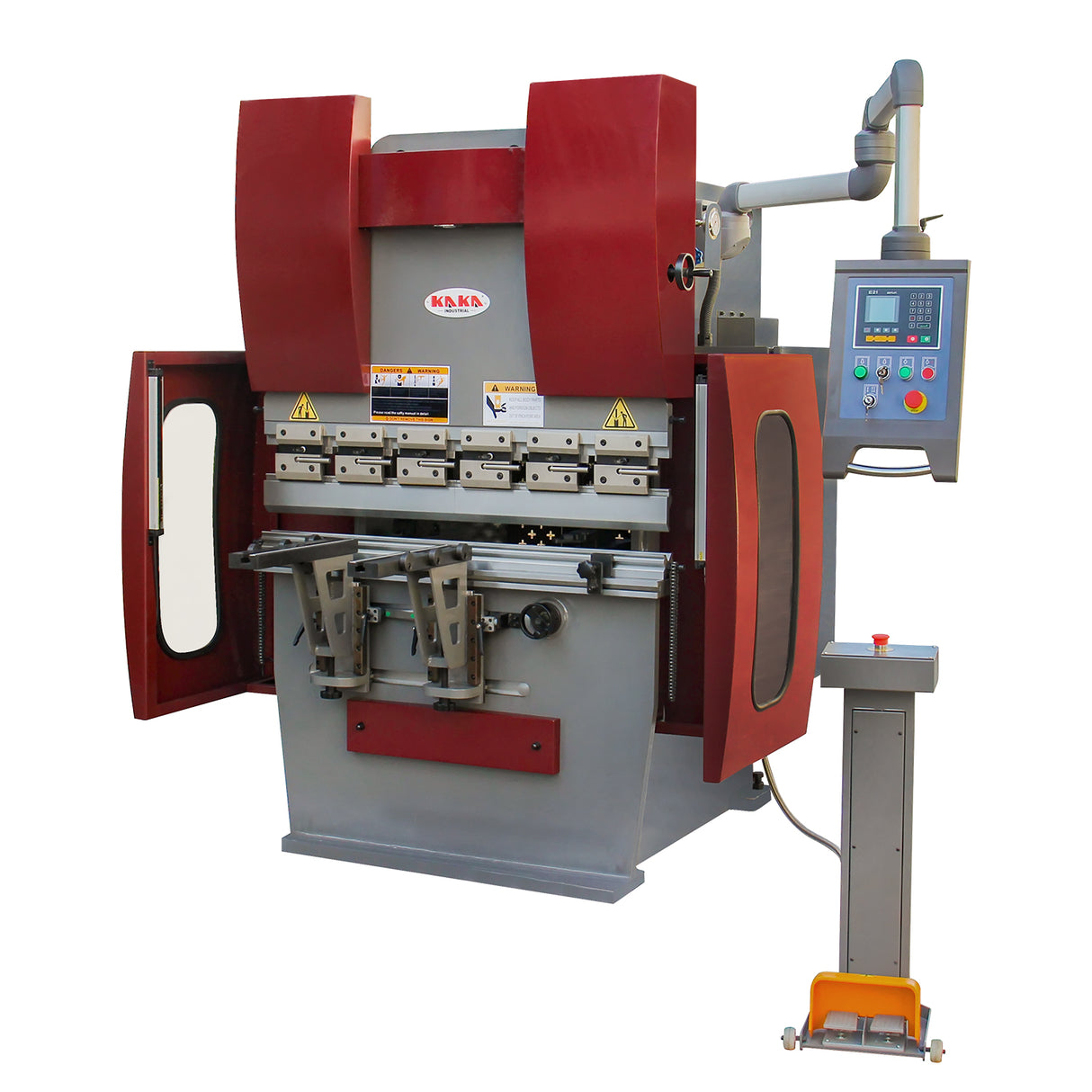

Pre-Order ! KANG INDUSTRIAL WC67Y-40/1250A, E21 System Vertical Press Brake, NC Type Press Brake with 40T Pressure, 415V Power

$28,512.00
Tax included Shipping calculated at checkout.

Care information

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description
Video
Manual
Warranty
Summary of Return Policy

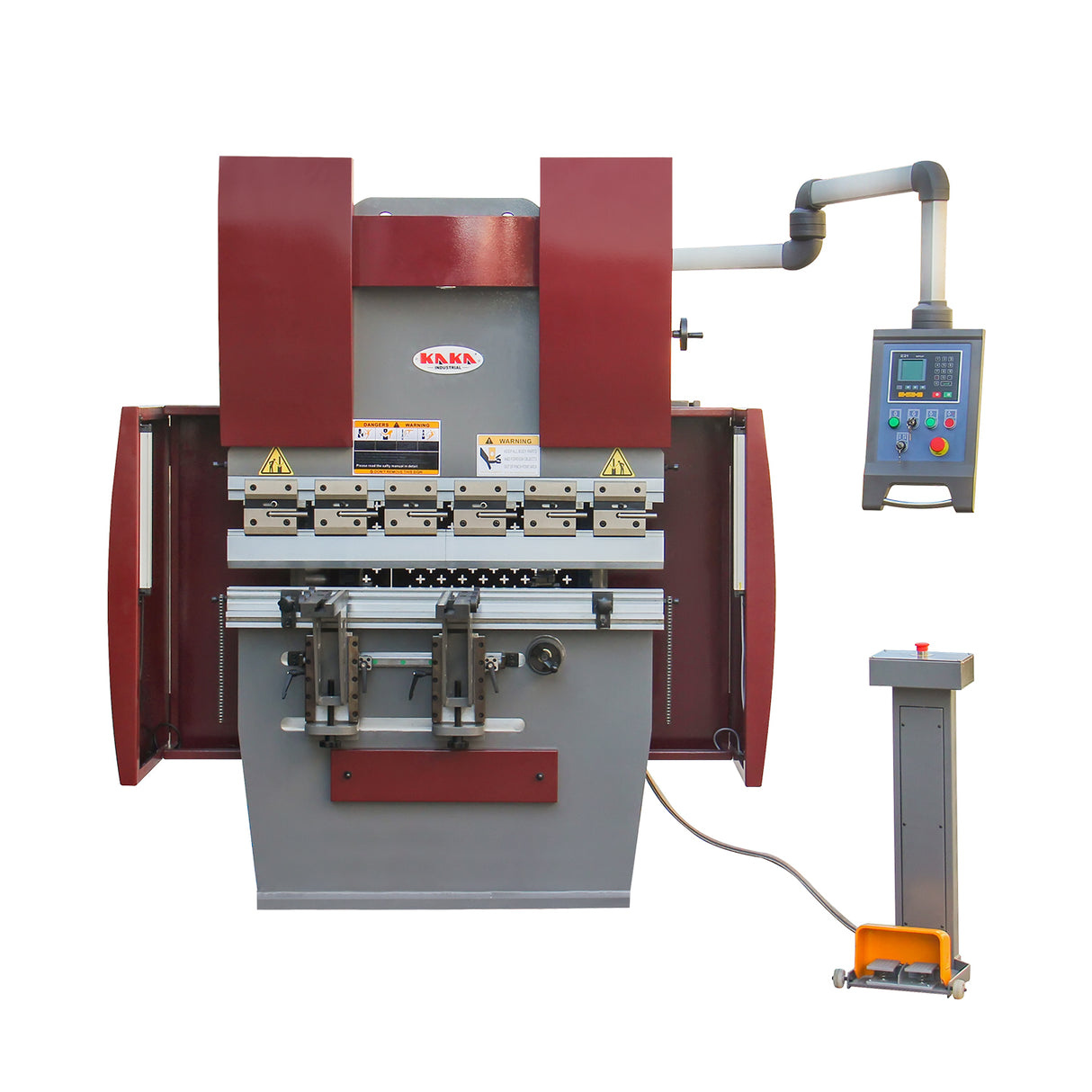

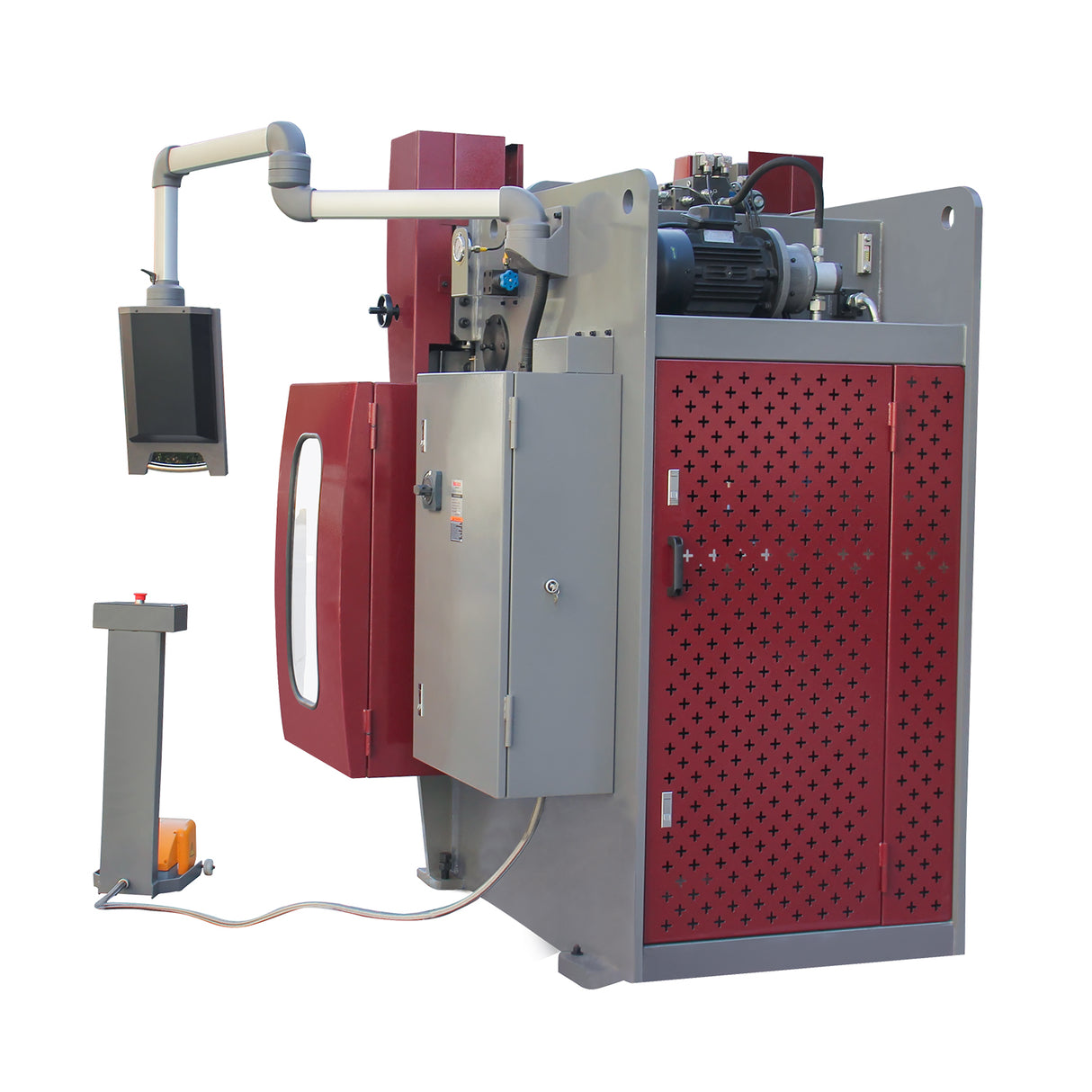

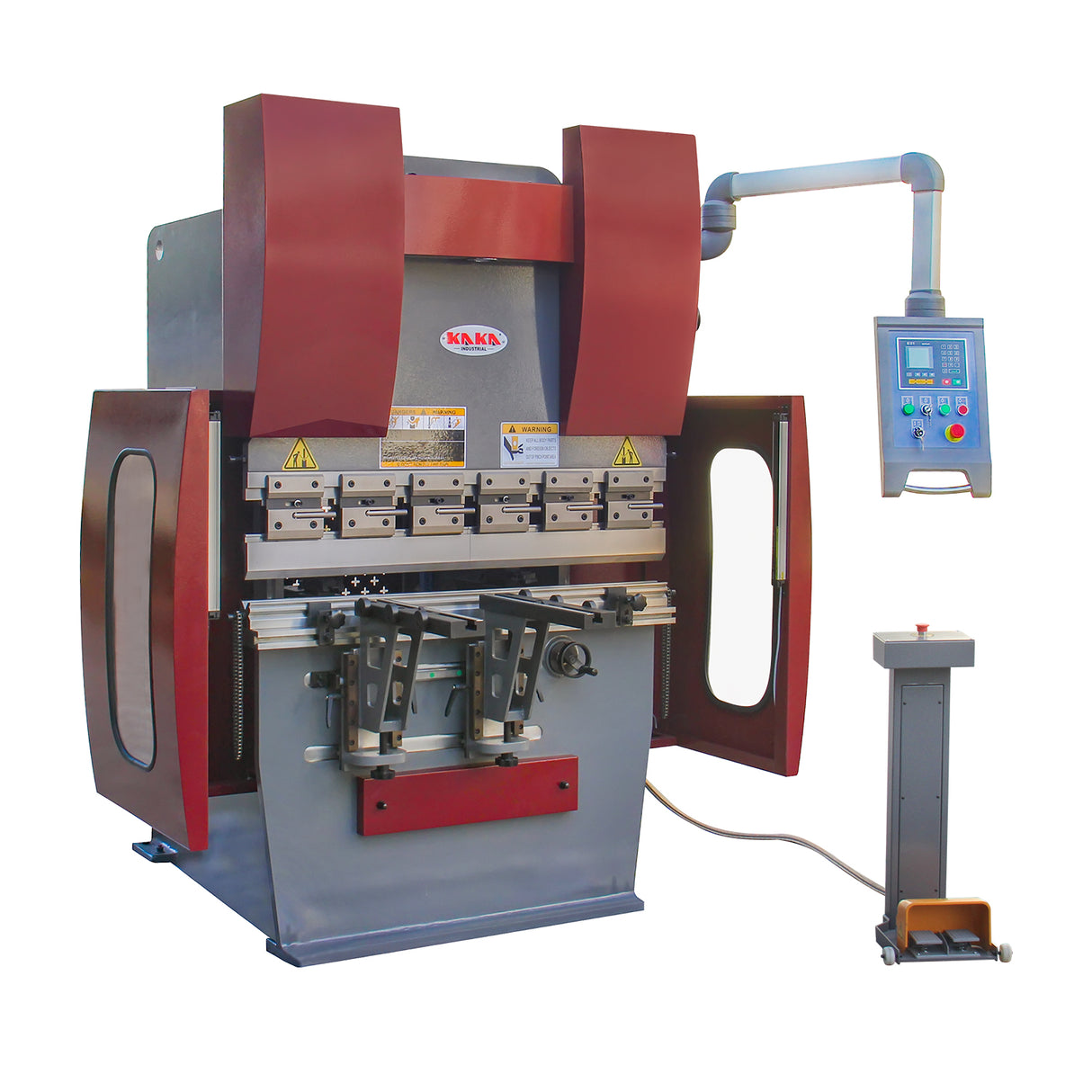

Kang Industrial Hydraulic Vertical Press Brake

E21 System NC type easy operation 2-Axis press brake, 40T Pressure, and 1250mm table width,



Features

WC67Y-40/1250A delivers 40 Ton pressure across the full width 1250mm table

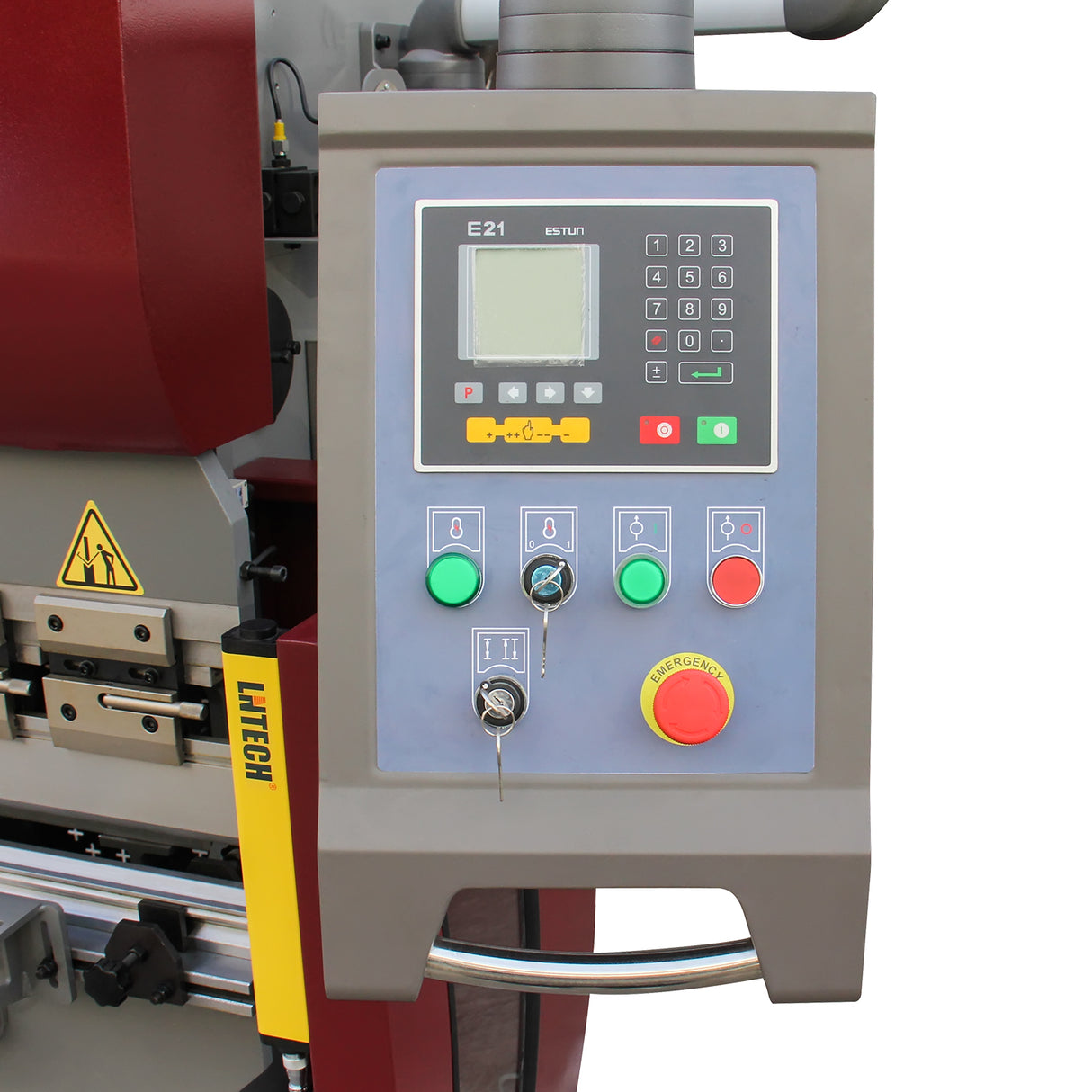

Easy to use programmable 2-axis Estun E21 controller, internal memory could hold 40 programs.

The controller will keep a piece count for large projects

Integrated safety light curtains help to prevent the accidents

Manual hydraulic crowning

The moveable foot pedal leaves your hands free to position the material

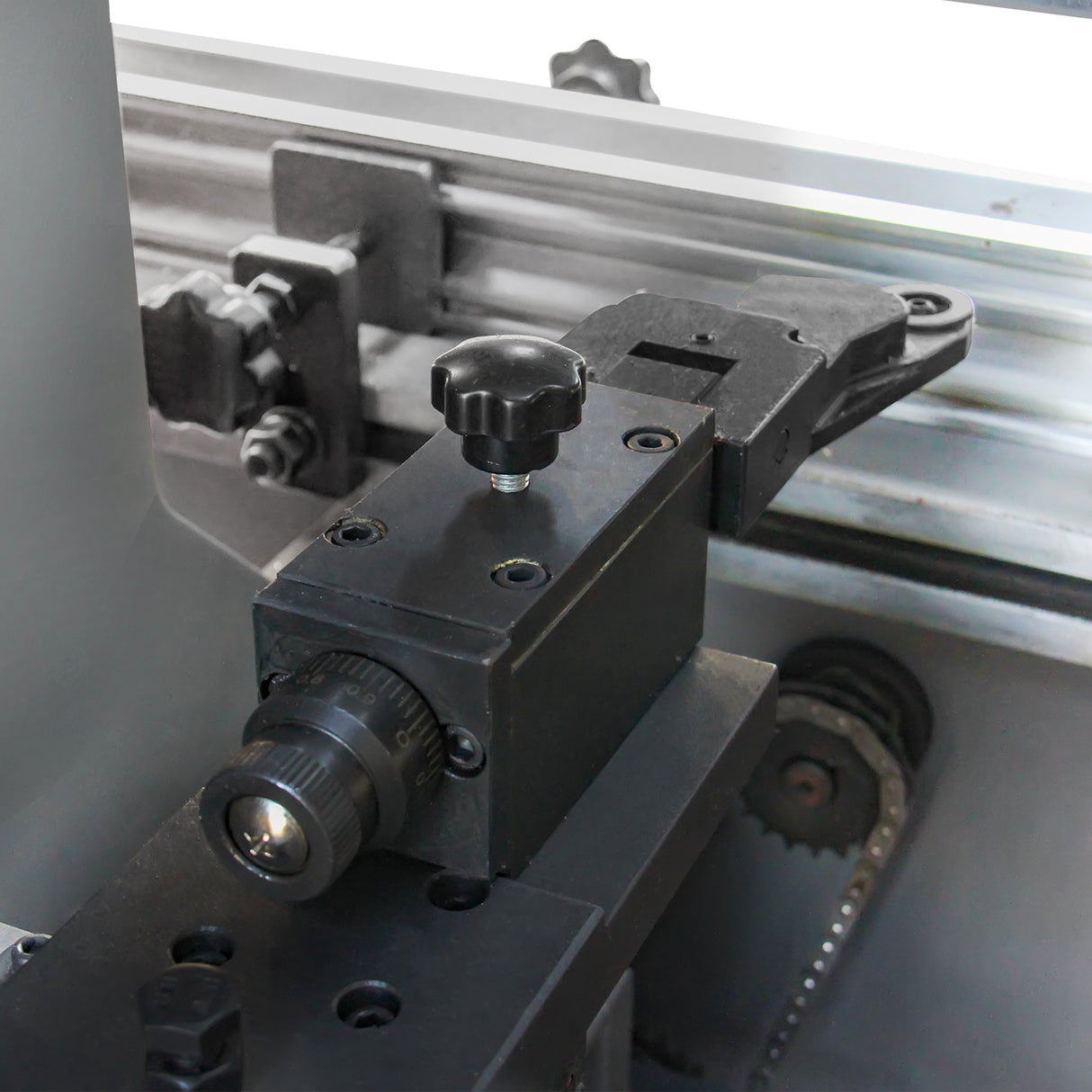

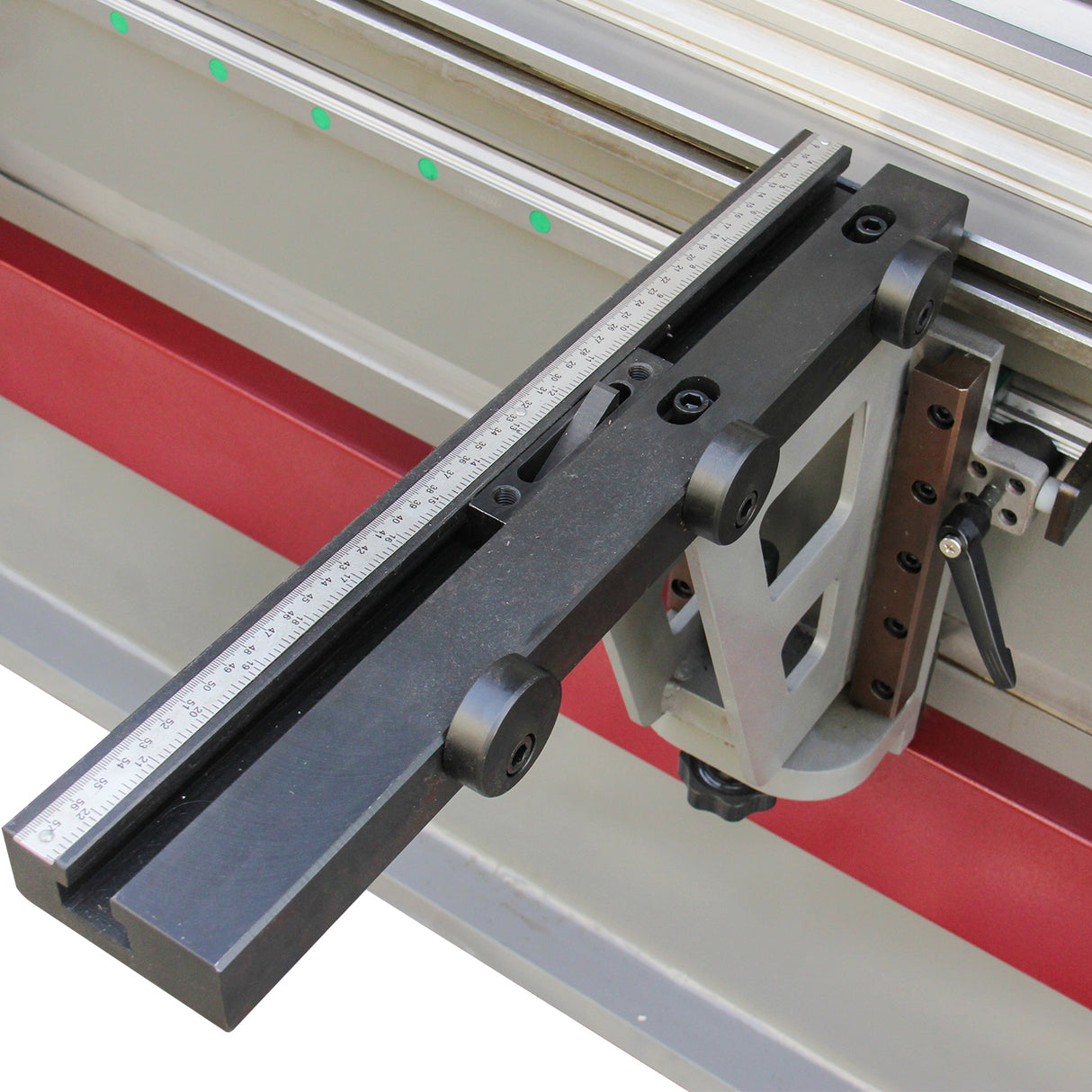

The motorized back gauge could show the position on the screen

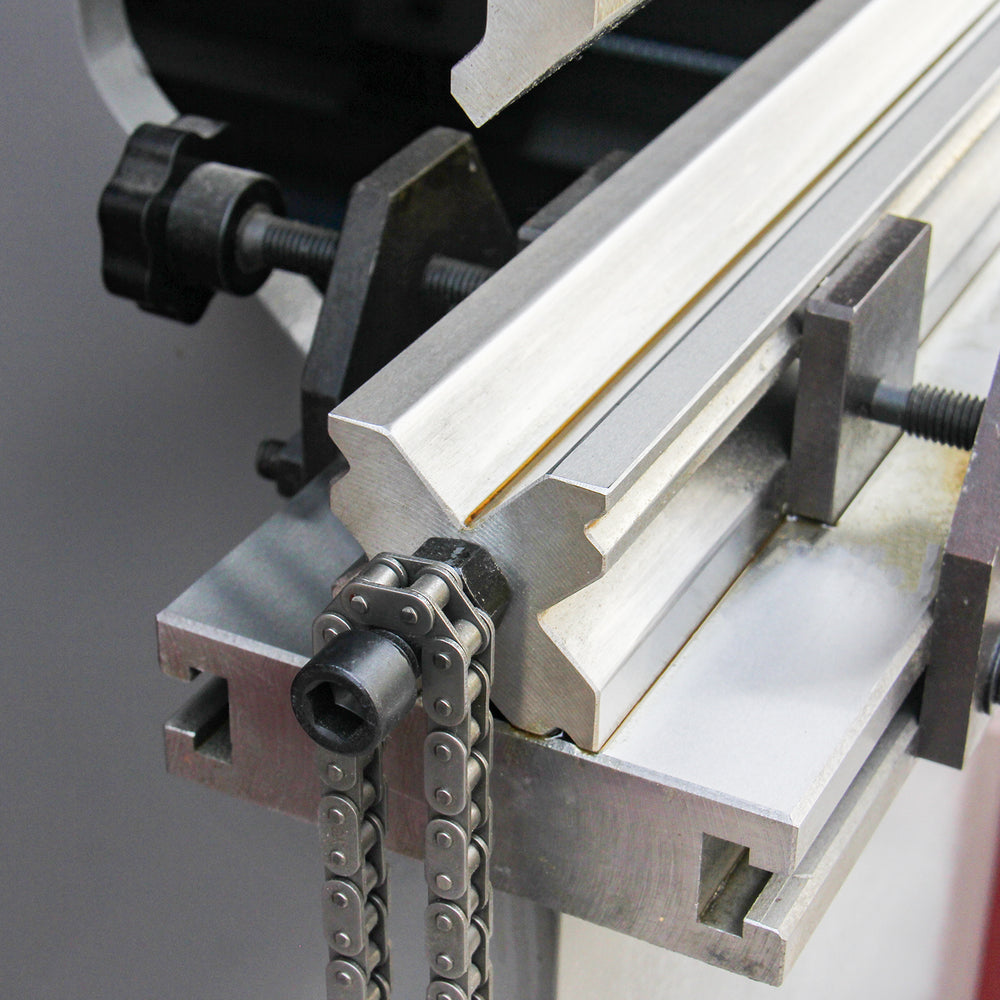

Multi V-groove bottom dies on four sides



Specifications



Item No. 161205
Model WC67Y-40x1250A
Normal pressure 400 KN
Max. working length 1250 mm
Distance between uprights 850 mm
Open height 330 mm
Throat depth 215 mm
Stroke 150 mm
Worktable height 900 mm
Main motor 4 kW
Hydraulic oil 94 L
Dimension 180x145x210 cm
Weight 2500 kg



1. The following chart is Regional Australia, if your location belongs to one of them will have extra cost for the freight, please contact us for the extra freight cost payment!

State Postal code
QLD 2372,2460-2484,2486-2490,4300-4449,4550-4699,9597-9799,4450-4499,4700-4899,9920-9999
SA 2888,5200-5749
WA 6215-6797
TAS 7155-7999
NT 0800-0887


2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

1. KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
