KANG INDUSTRIAL PTY LTD  |  SKU: 183013

KANG Industrial ZX5325C Drilling and milling machine, Gear Head Auto Feed Table Drilling and milling machine with 3 Axis DRO, 415V Motor

$11,990.00
Tax included Shipping calculated at checkout.

Care information

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description
Video
Manual
Warranty
Summary of Return Policy

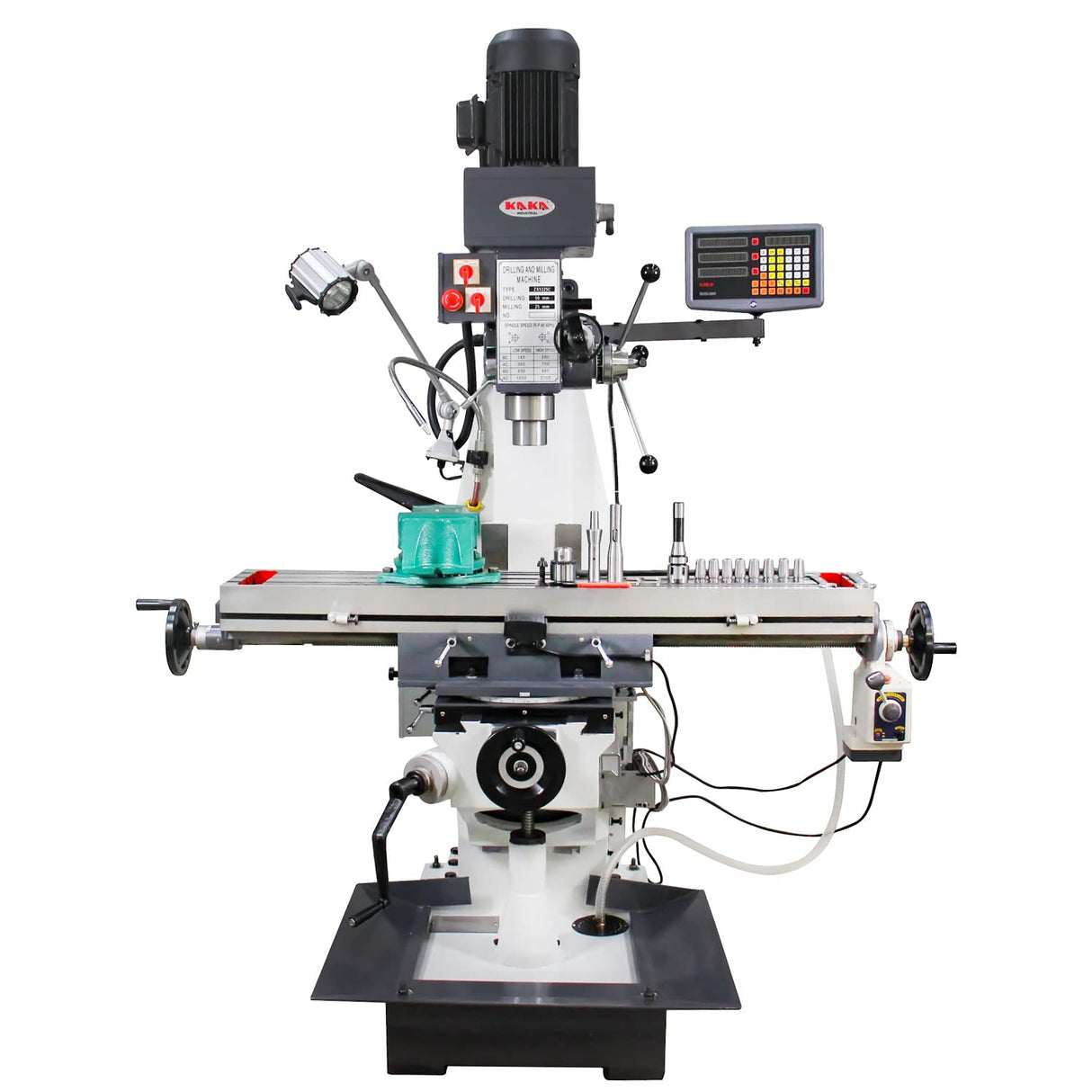

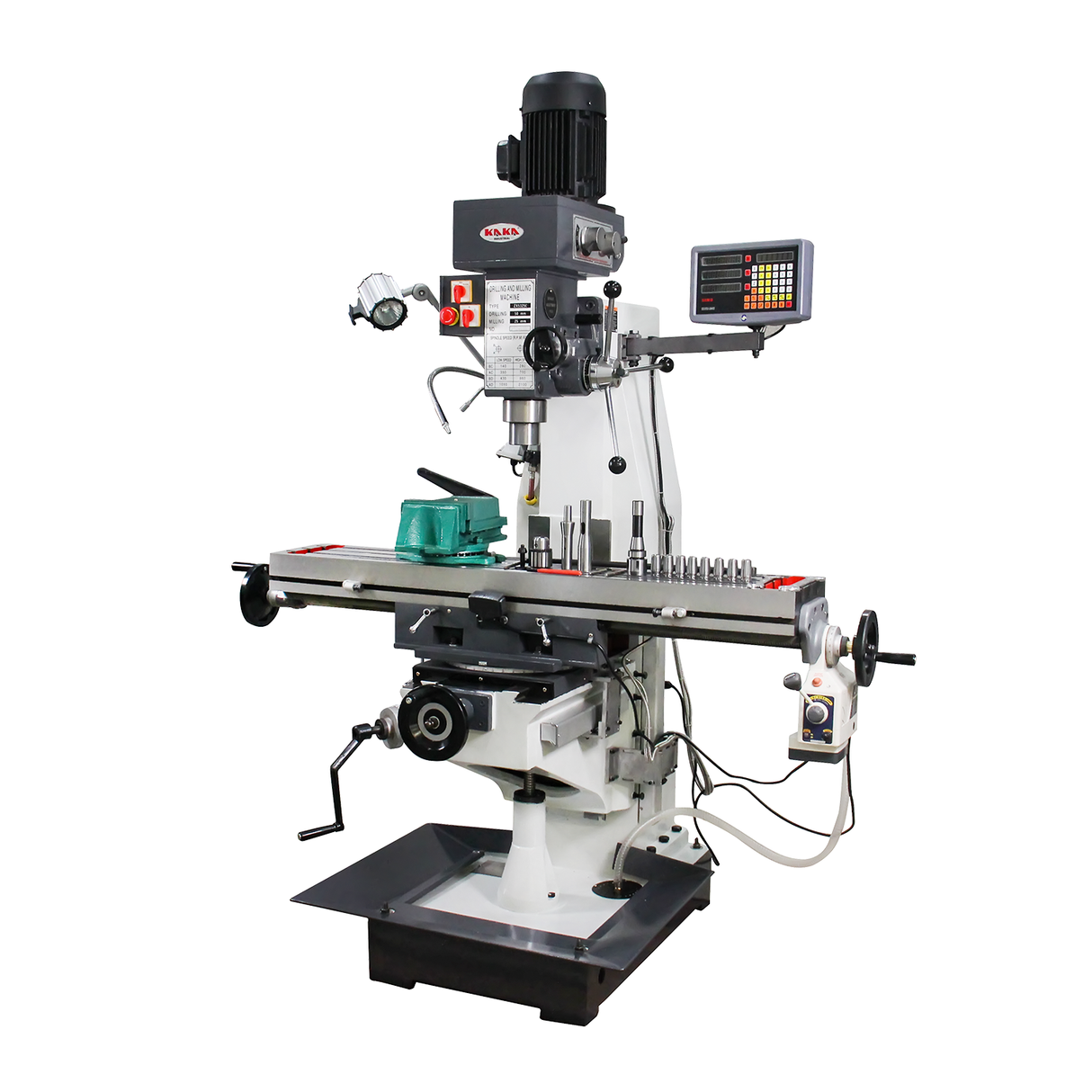

KANG INDUSTRIAL ZX5325C Drilling Milling Machine with 3-Axis DRO, Gear Milling Head

Table size 1270x260mm, table travel 450x280mm, ISO30 Spindle



Features

Runs on 415V power, double-speed motor

3 Axis digital readout system

Swivel table with guide scale

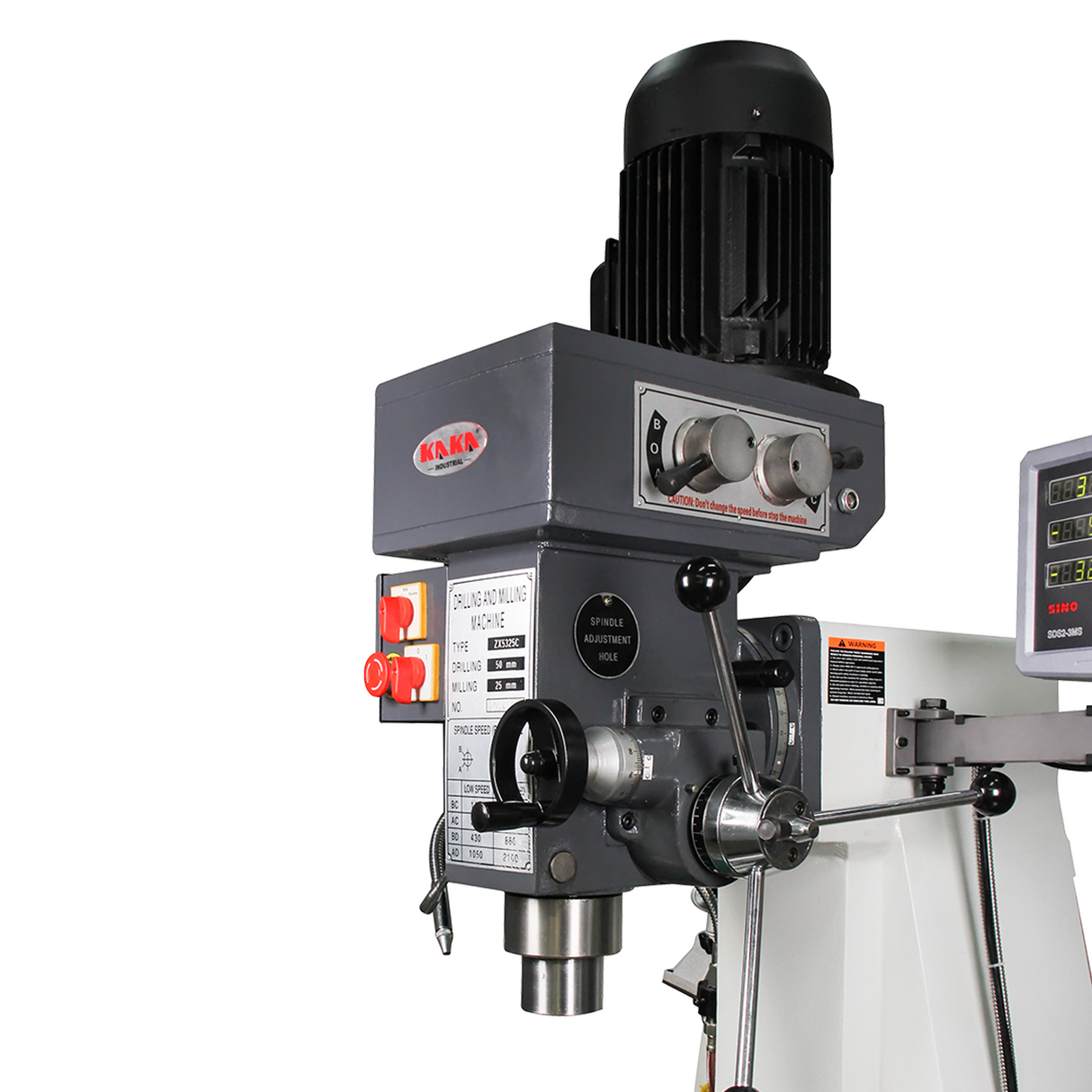

Tilt gear milling head, ±45°, left and right

ISO 30 Spindle taper

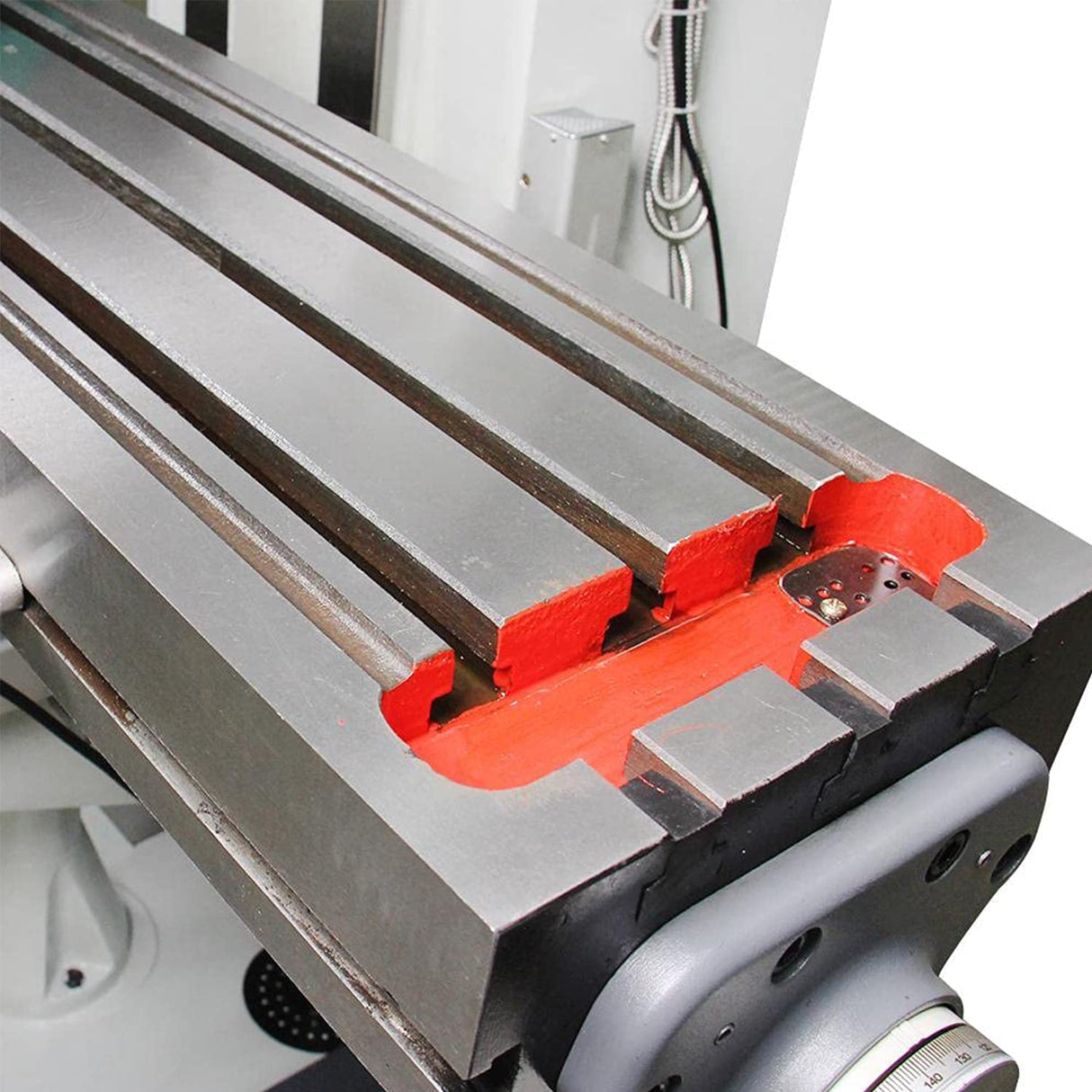

Fine grounded extra-large work table, 1270x260mm

Fine ground dovetail for table movement, travel 450x280x380mm

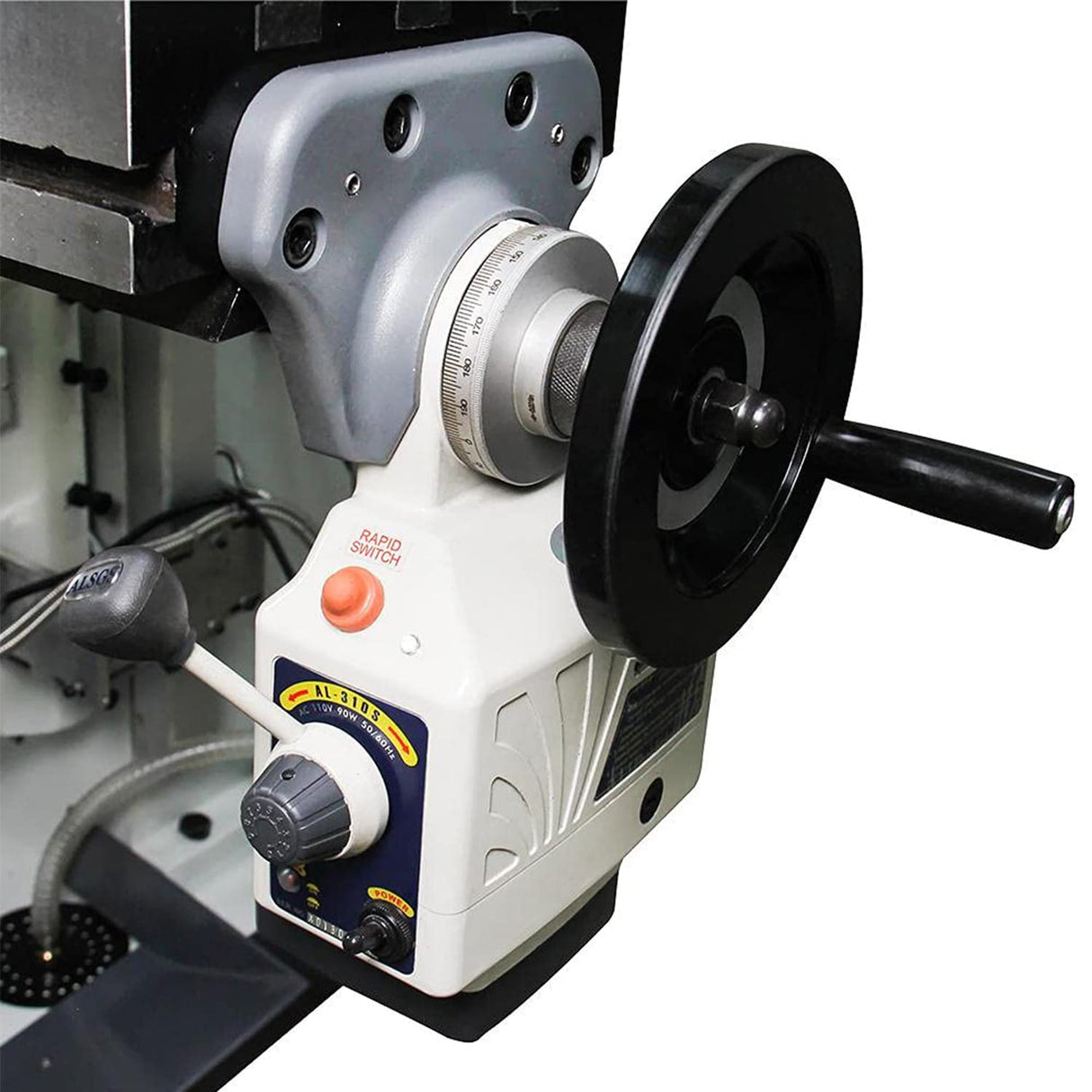

Power feed on X axis

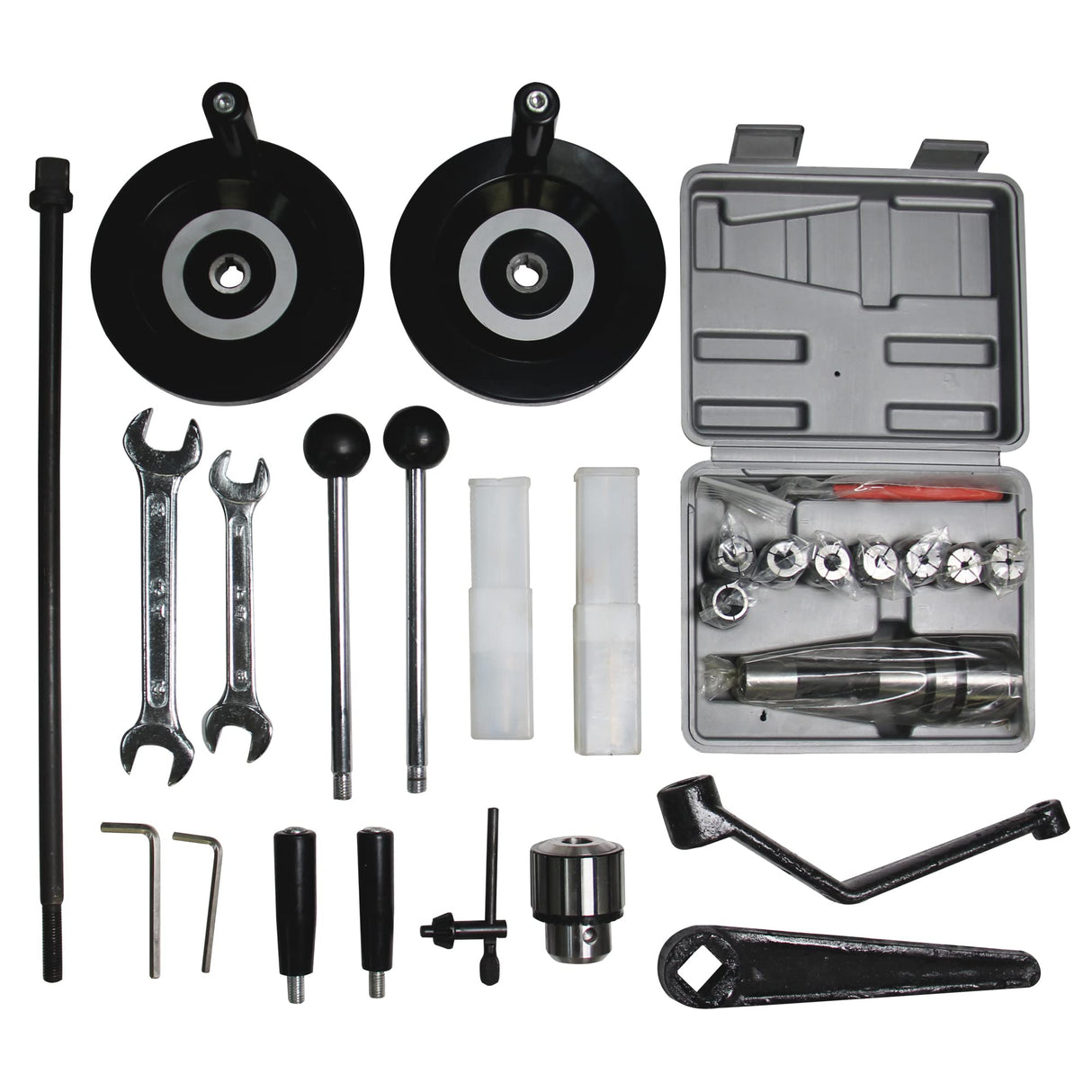

Standard machine vice, working light, coolant system



Specifications



SKU 183013
Model ZX5325C
Max. drilling dia. 50 mm
Max. end milling dia. 100 mm
Max. vertical milling dia. 32 mm
Max. tapping dia. M16
Spindle taper ISO30
Spindle speed 115-1750 rpm, 8 steps
Spindle travel 125 mm
Table size 1270x260 mm
Table travel 450x280x380 mm
Main motor power 0.85/1.5 kW
Drive Gear
Packing size 114x114x222 cm
N.W./G.W. 870/1070 kg


!! Please Note !!

1. The following chart is Regional Australia, if your location belongs to one of them will have extra cost for the freight, please contact us for the extra freight cost payment!

State Postal code
QLD 2372,2460-2484,2486-2490,4300-4449,4550-4699,9597-9799,4450-4499,4700-4899,9920-9999
SA 2888,5200-5749
WA 6215-6797
TAS 7155-7999
NT 0800-0887


2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

1. KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
