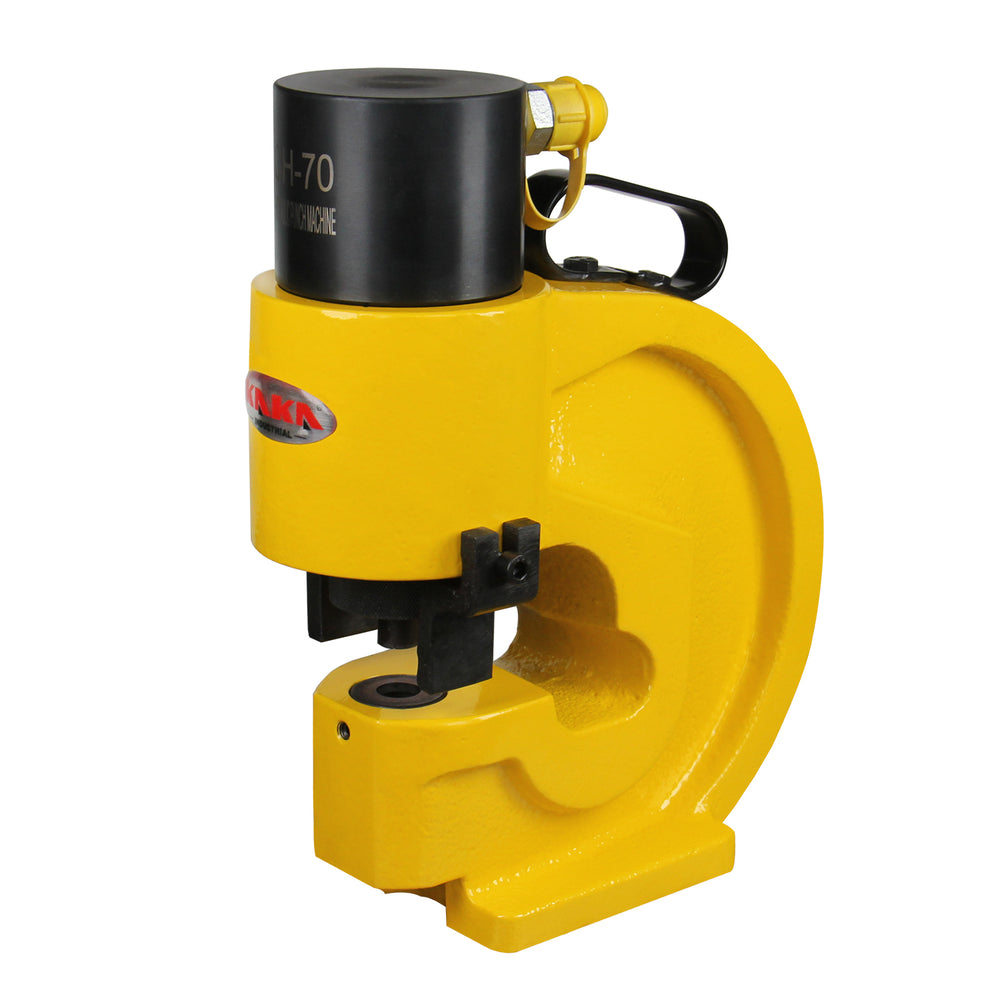

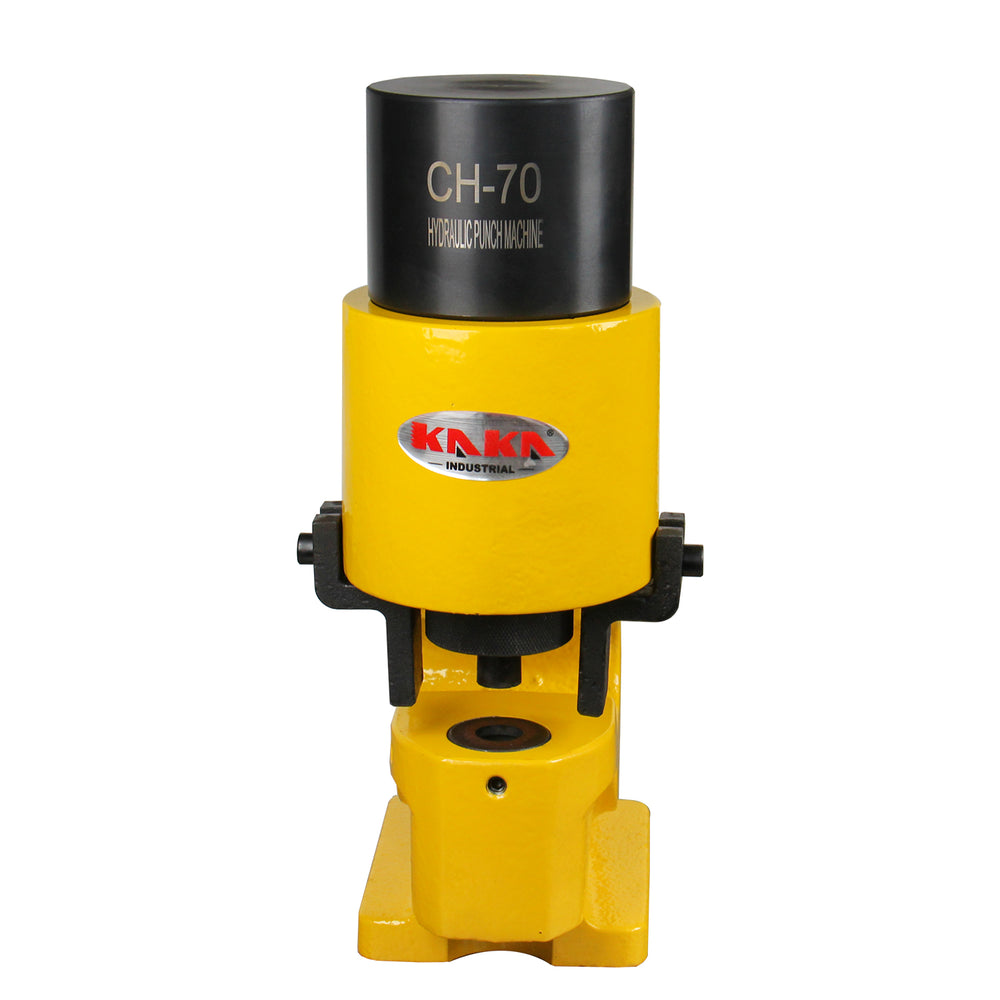

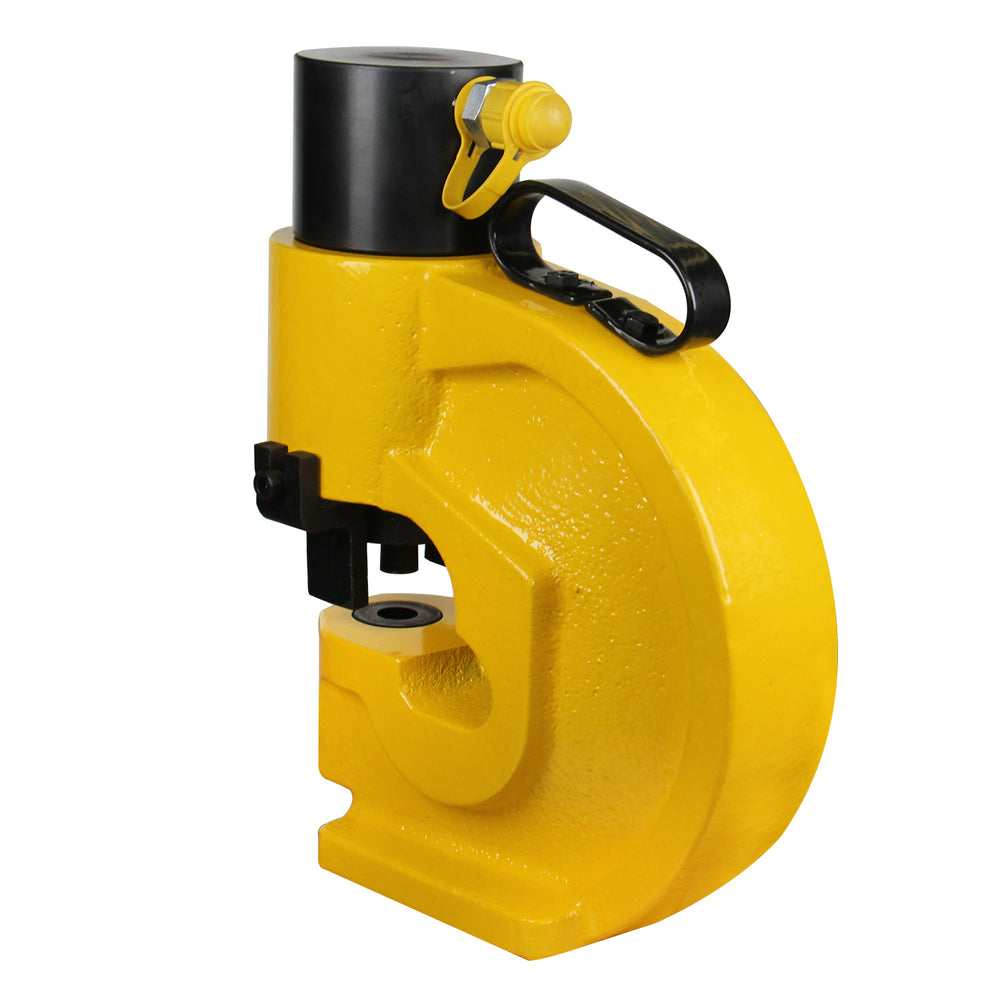

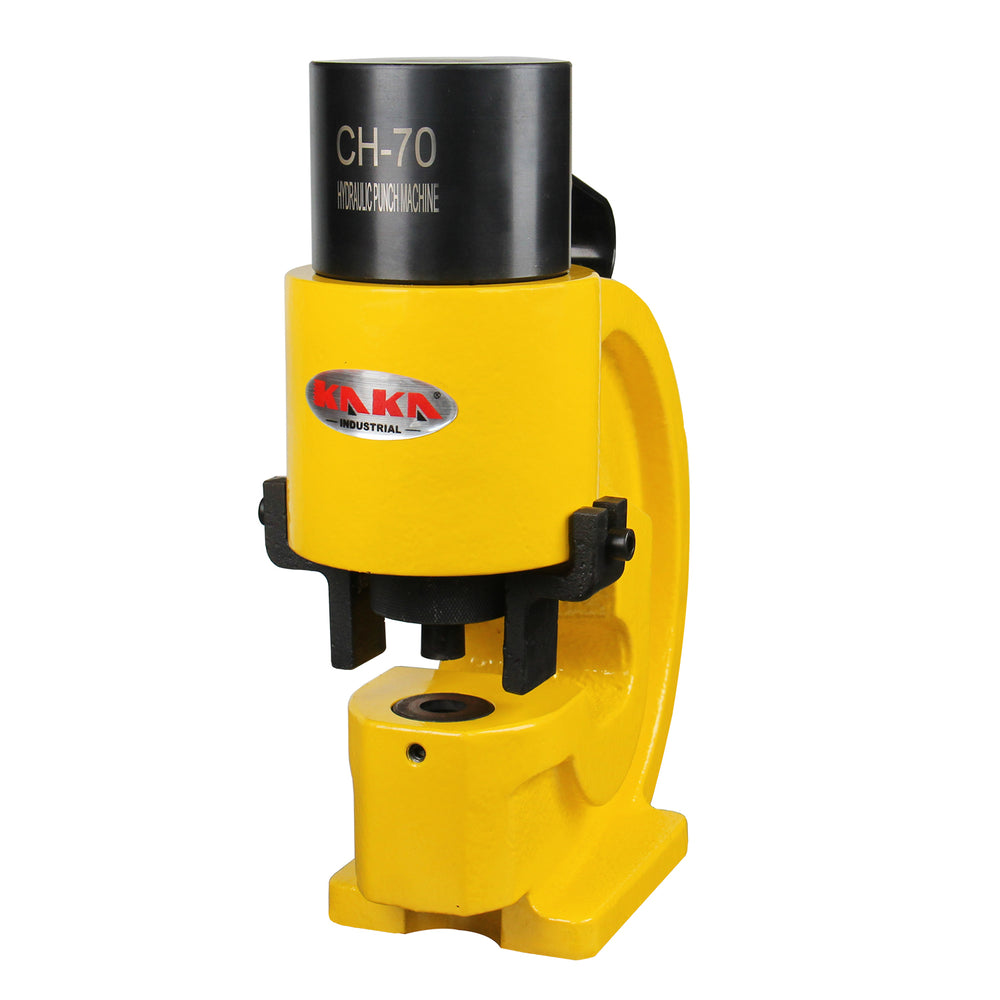

Hydraulic Busbar Puncher CH-70
The KANG CH-70 is a robust, professional-grade hydraulic puncher designed for fast and precise hole punching in electrical busbars, angle iron, steel plates, beams, and other metal sections commonly used in switchboard fabrication, power distribution, solar installations, and industrial maintenance
Powerful & Precise Punching. Creates clean, accurate holes up to 20.5 mm in 12 mm copper busbar, ideal for busbar hole punching in switchboards, control panels, and power distribution systems.

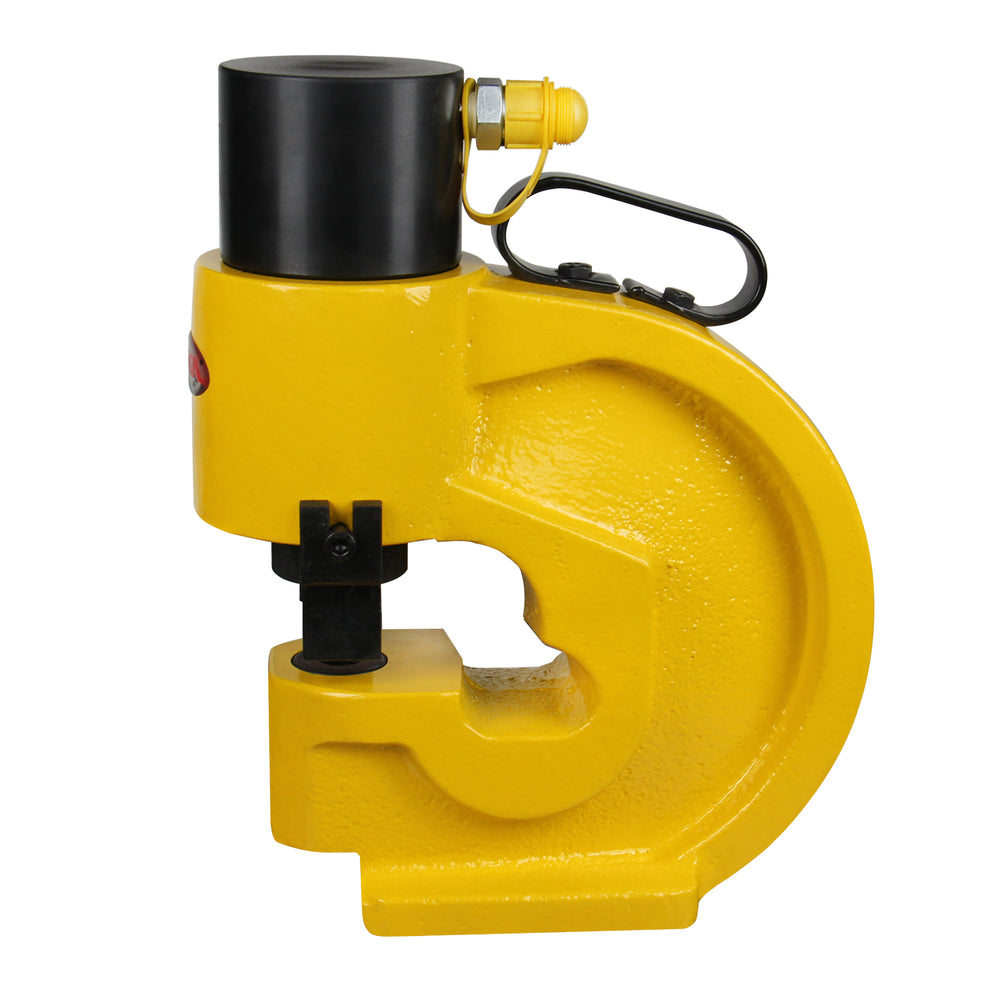

Wide 110 mm Throat Depth Puncher. Allows easy punching in the centre of wider busbars, angle iron, plates, and beams without repositioning.
Reduced Mess & Faster Cleanup. Single-action piston design minimises iron chippings, keeping your workspace cleaner and safer.
Forged C-head Durability. Heavy-duty forged construction stands up to daily professional use in tough conditions – construction sites, substations, solar farms, and industrial workshops.
Works with Your Existing Pump. C/W ZG3/8“ coupler, compatible with any standard 700 bar single-acting hydraulic pump, no need to buy a complete new system.
Versatile Die Pptions Punch Die Set. Comes with four round dies plus tools for quick changeover; square and oval dies available for different hole shapes required in electrical and structural work
Features
C-type frame body is made of high-strength alloy steel for a durable and long service life
Single-acting piston, spring return

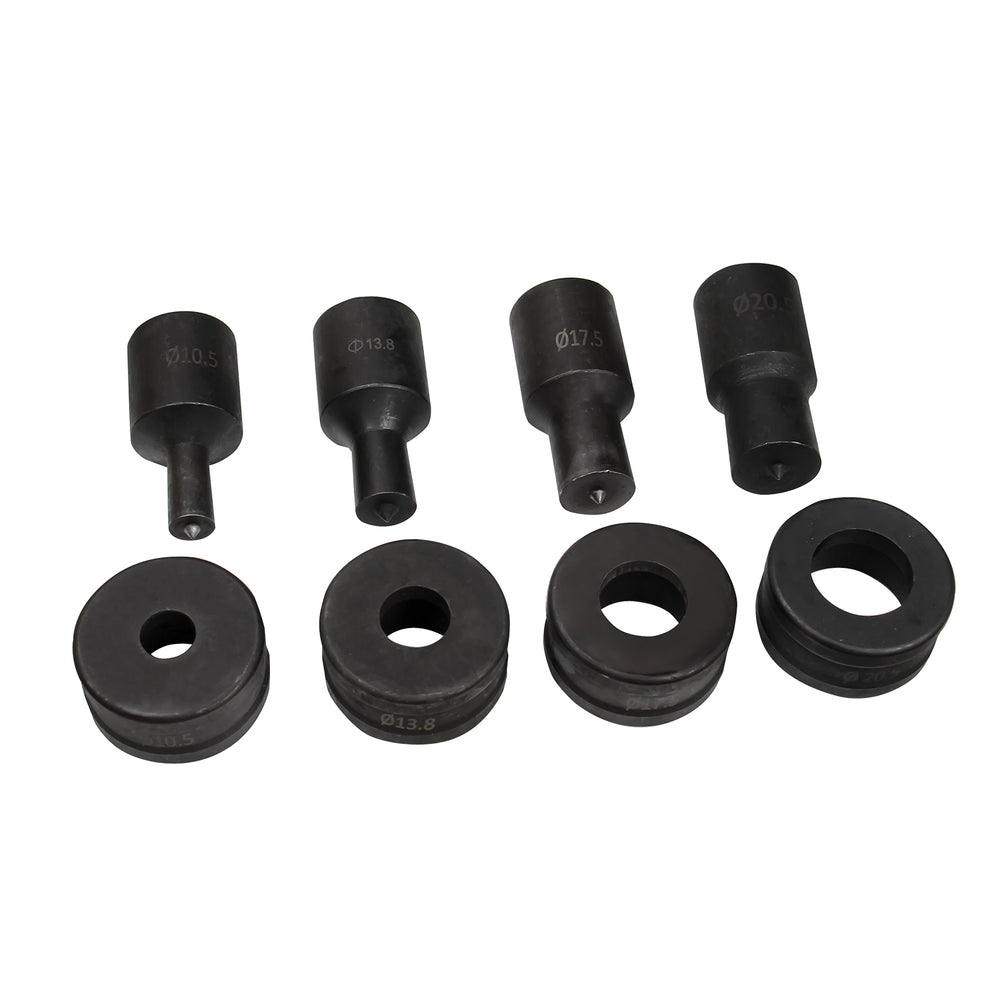

Comes standard with 4 sets of punch dies, 10.5, 13.8, 17.5 & 20.5mm, made of high-strength steel
Flat and clean hole edge
Carrying handle for easy transportation to the job site

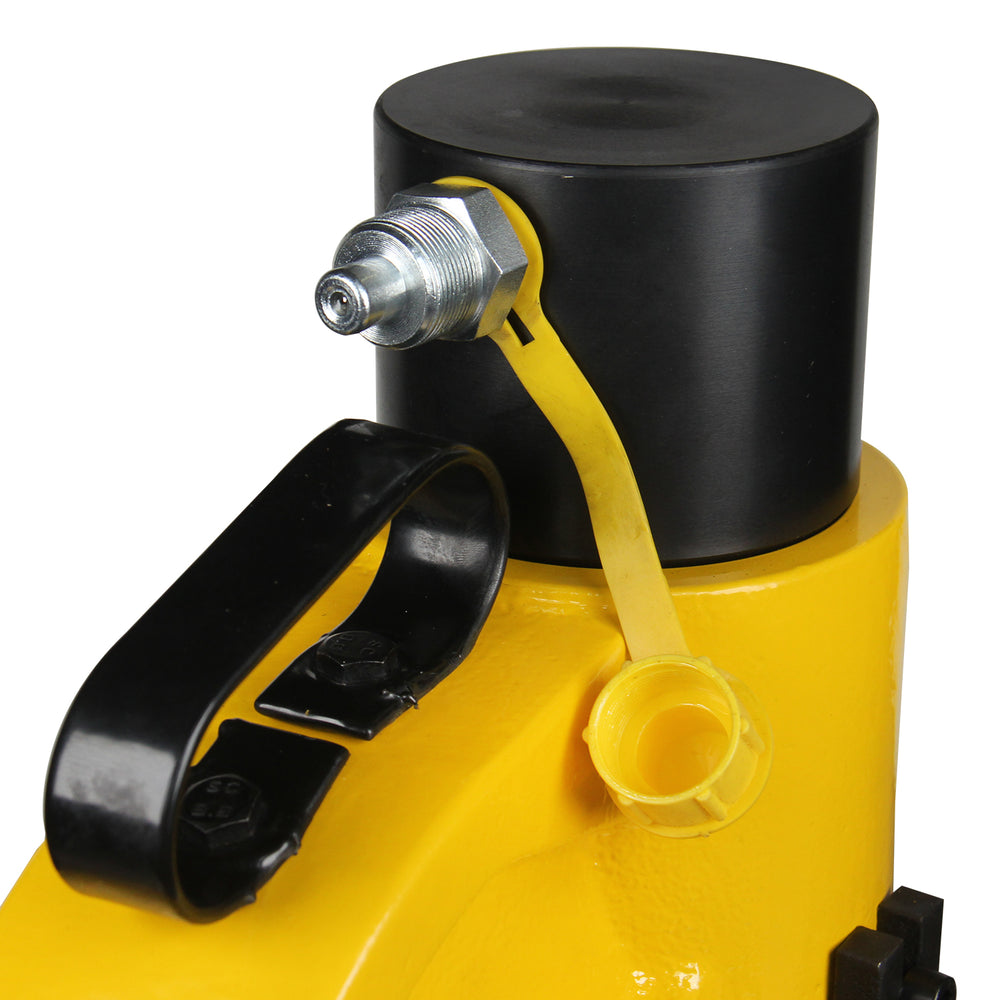

Supplied with a 3/8" male coupler and dust cap
Operated by a hydraulic pump with a rated pressure of 700 bar
Different punch die sets are available
Specifications
| SKU | 162204 |
| Model | CH-70 |
| Max. pressure | 35T |
| Throat | 110 mm |
| Max. thickness (steel) | 8 mm |
| Max. thickness (copper) | 12 mm |
| Punch dies | OD 10.5mm, 13.8mm, 17.5mm, 20.5mm |
| Packing size | 31x19x37cm |
| N.W./G.W. | 33/36 kg |
