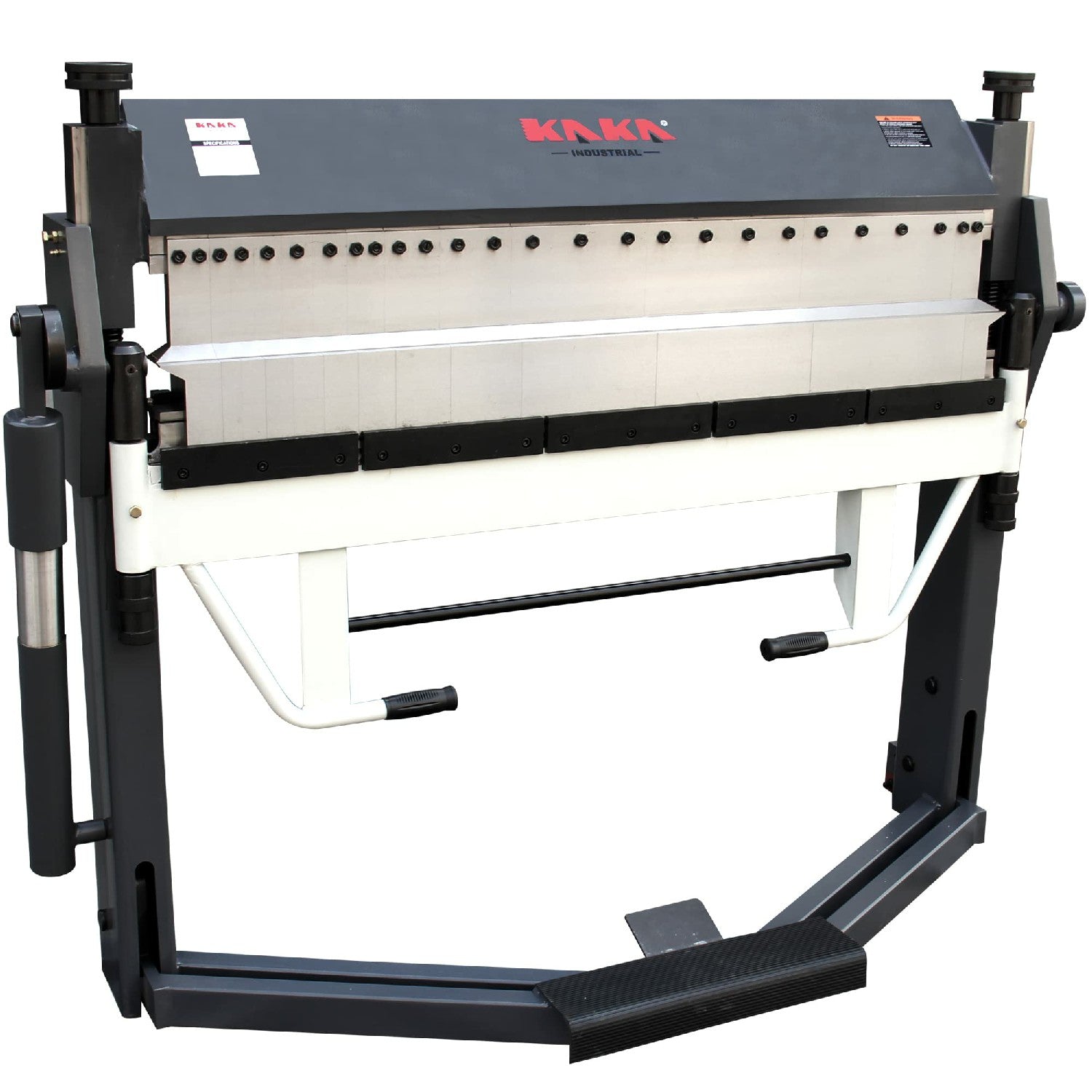

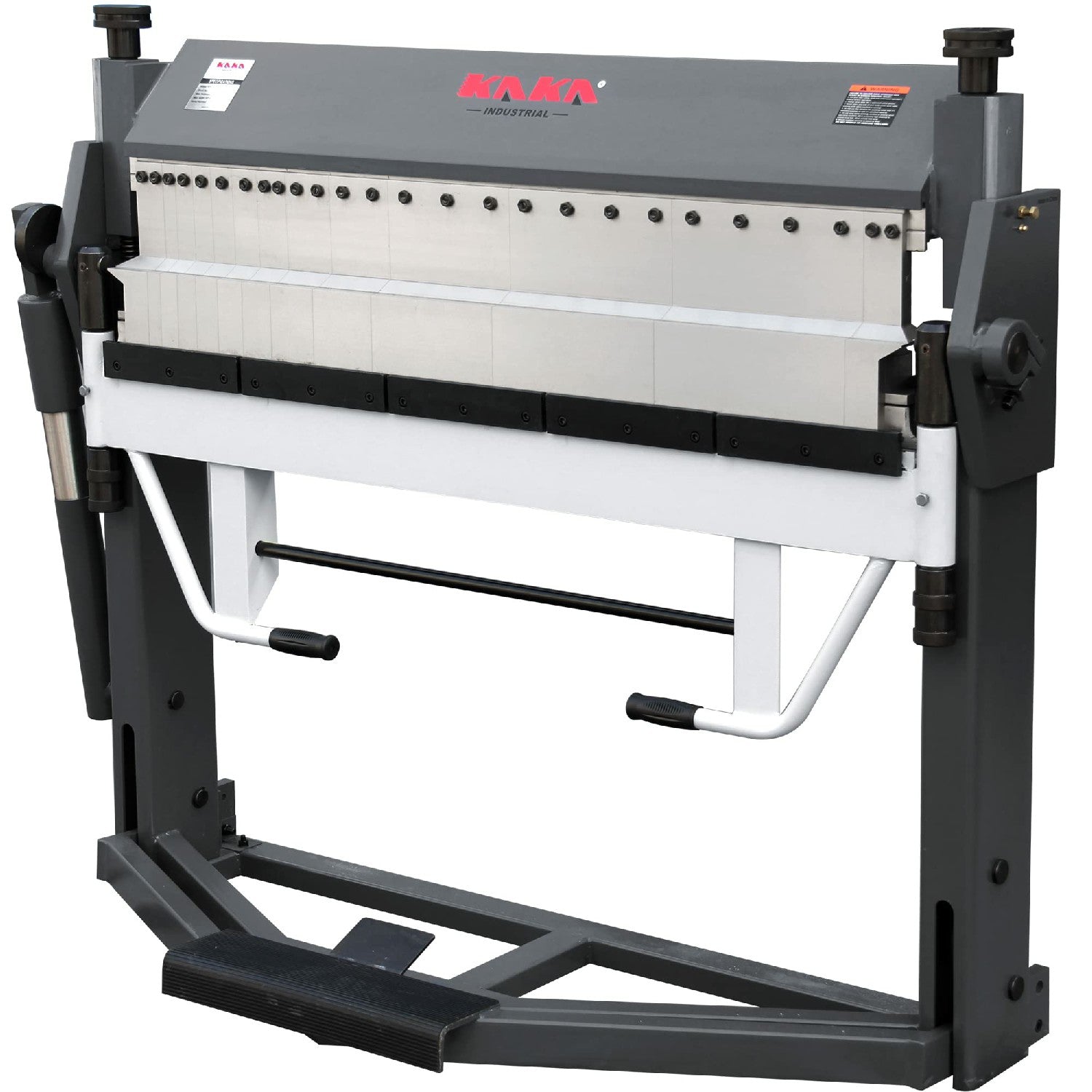

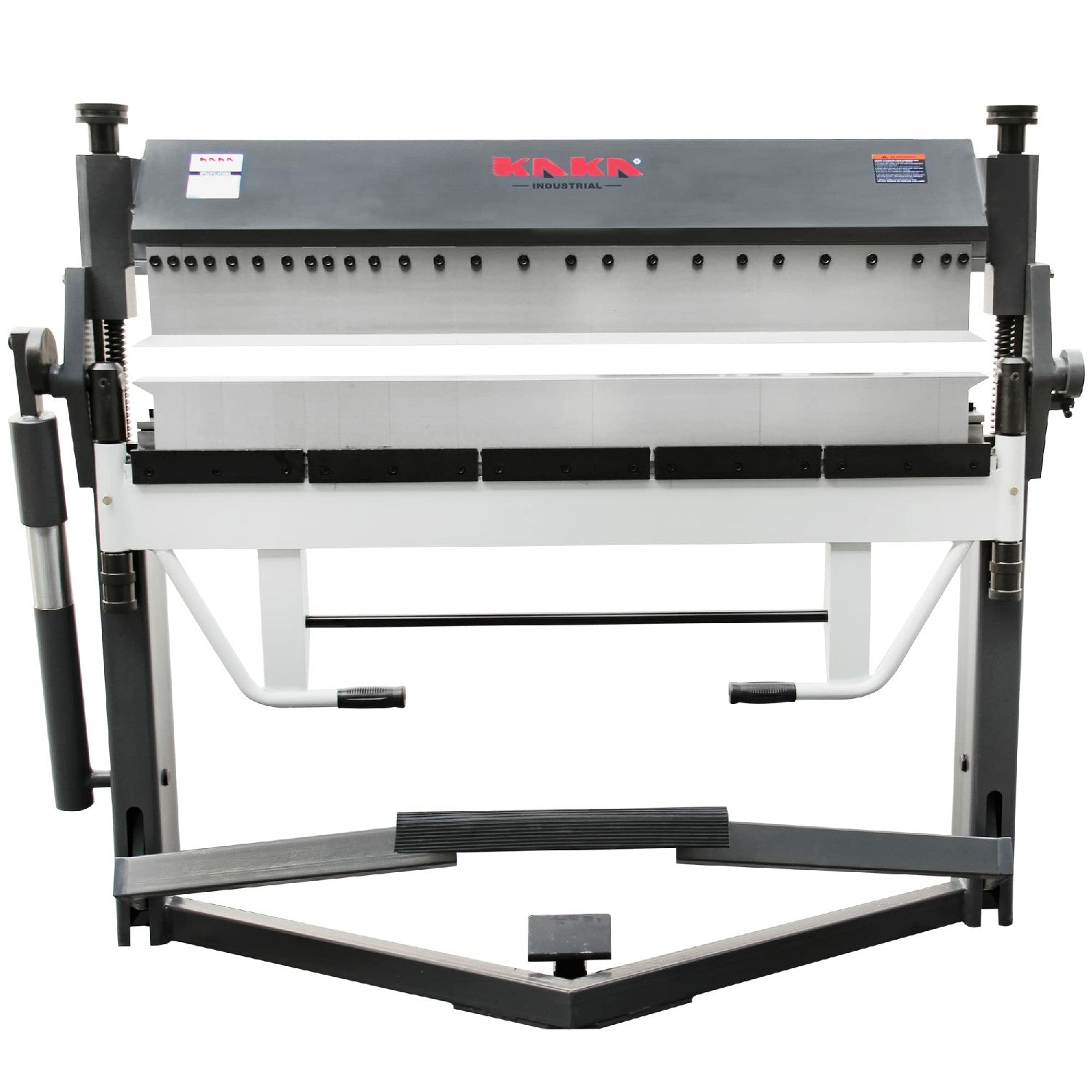

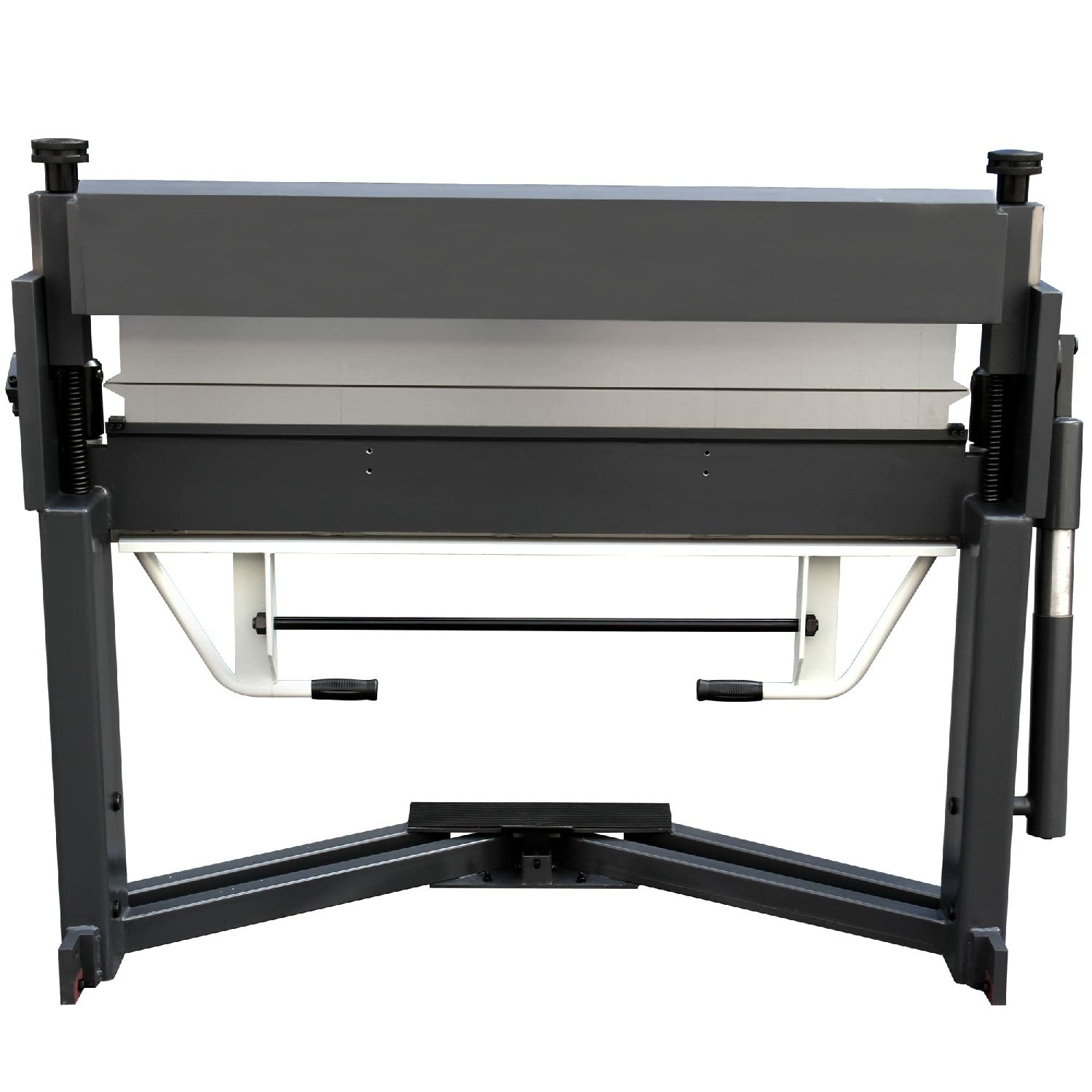

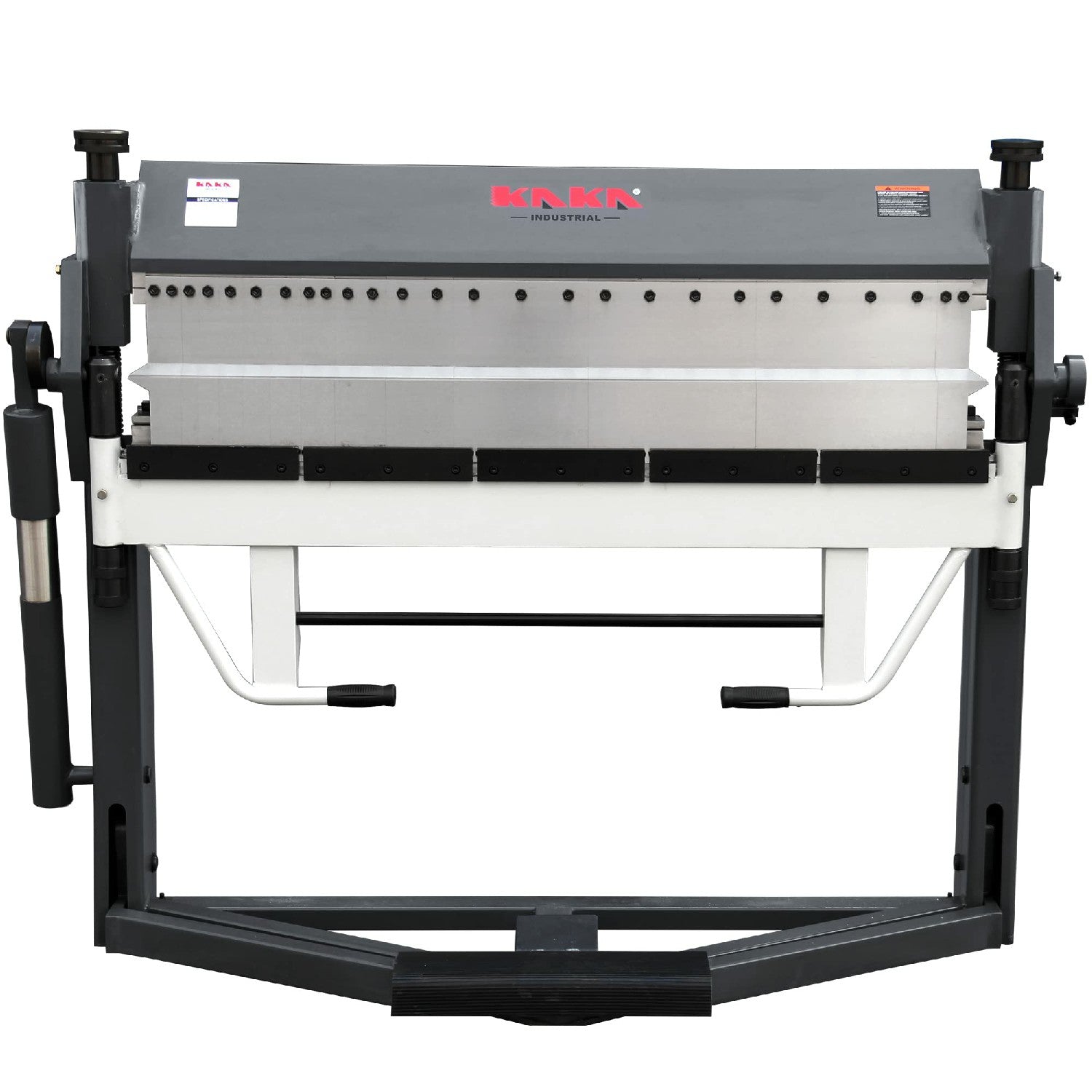

KANG Industrial Pan Brake Folder PBB-5016/3SH

The KANG PBB-5016/3SH is the ultimate manual panbrake folder for specialised sheet metal fabrication, featuring an exclusive Gooseneck Tooling configuration for extreme folding capability. It provides a generous working width of 1270 mm and a capacity of up to 1.5 mm in mild steel.

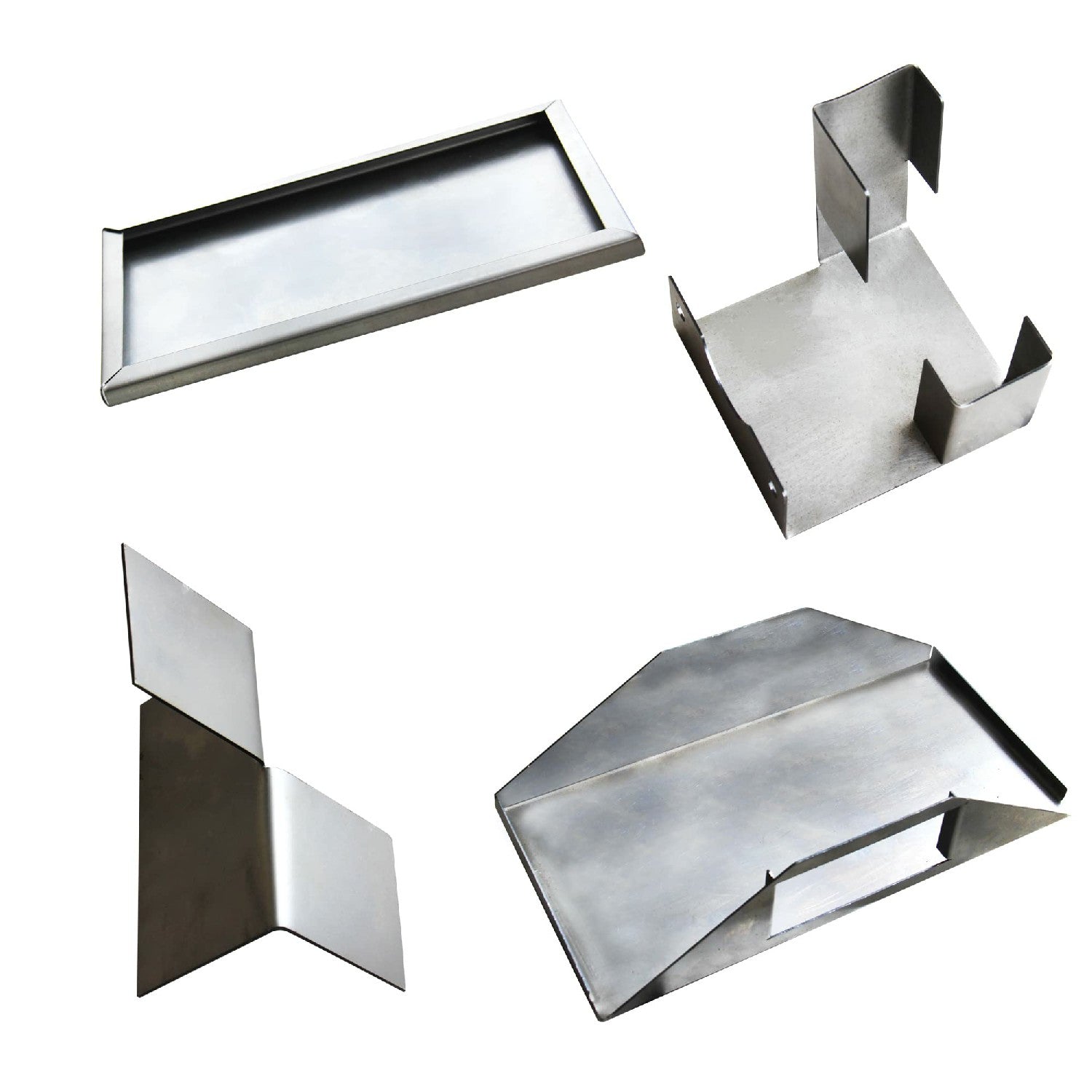

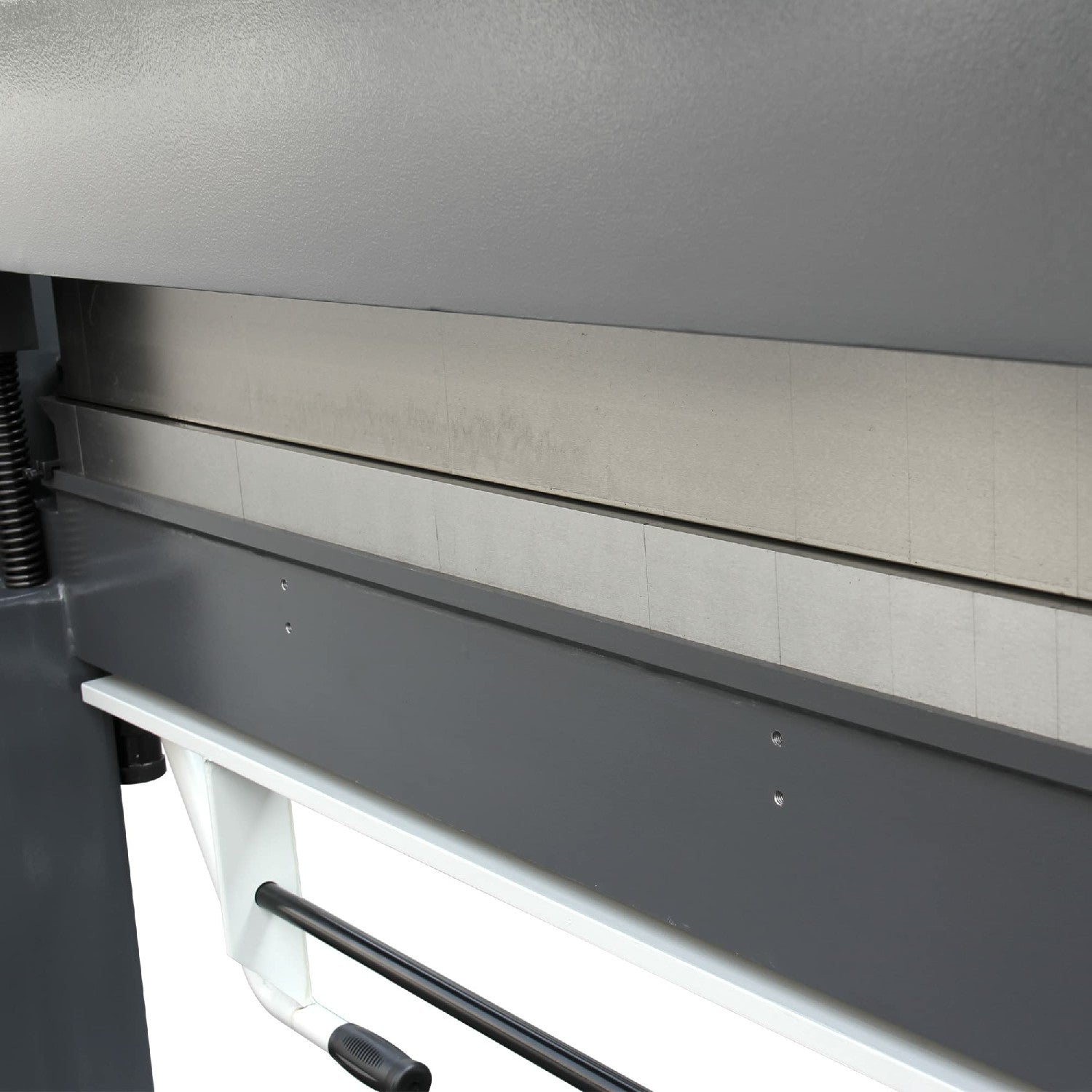

This Pan Brakes is equipped with a full set of segmented gooseneck tools, a segmented bending bar, and a segmented bed support. This combination allows fabricators to create high-sided, deep channels and profiles (like deep boxes, panelling, or window/door trim) that are impossible to achieve with standard segmented or straight bar folders.
The operation is made comfortable and efficient with a foot pedal-activated clamp for hands-free material control and a powerful auxiliary cylinder to assist in making powerful bends up to an impressive 150°.

Gooseneck Design for Superior Accessibility. Segmented gooseneck tools allow bending in confined areas and around obstacles, streamlining jobs like edge forming or return flanges—essential for space-constrained garages, mobile repair vans, or urban fabrication sites tackling intricate designs without repositioning.

Robust Capacity in a Compact Footprint. Handles 1.5 mm mild steel over 1270 mm widths with ease, plus stainless and aluminum variants—ideal for diverse regional trades from coastal ductwork to outback panel repairs, delivering pro results.

Hands-Free Safety and Precision. Foot pedal clamping frees both hands for material feeding, with thumbscrew-adjustable pressure and knurled screw for thickness—reducing risks and errors for solo operators in high-volume Down Under environments, while the 150° max angle supports deeper bends than standard 135° machines.

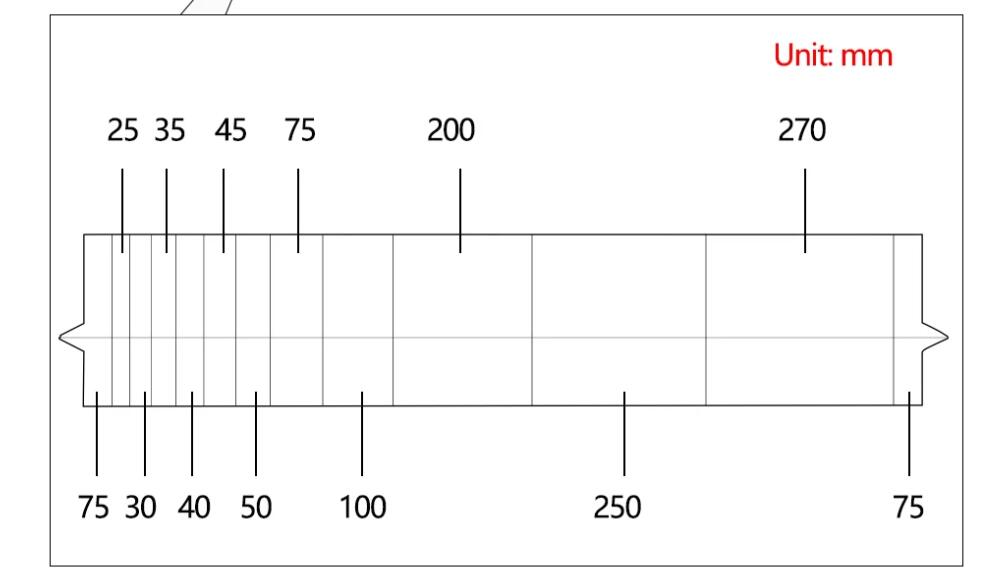

Versatile Segmentation for Custom Work. Includes 13 segments (75, 25, 30, 35, 40, 45, 50, 75, 100, 200, 250, 270, 75mm) plus continuous supports for infinite configurations and straight edges—saving on extra tooling costs and boosting efficiency in resource-limited Australian workshops for boxes, pans, or profiles.

Cylinder Assist. Reduces the operator effort required to swing the heavy bending beam, ensuring smooth and less strenuous forming of thick materials.

Features

1270x1.6mm mild steel bending capacity

Max. bending angle up to 150 degrees

Unique vertical bending

Weight compensation for top beam by a compression spring

Adjustable bending angle stop

Segmented top beam tools: 75, 25, 30, 35, 45, 50, 75,100,200,250,270, 75 mm
