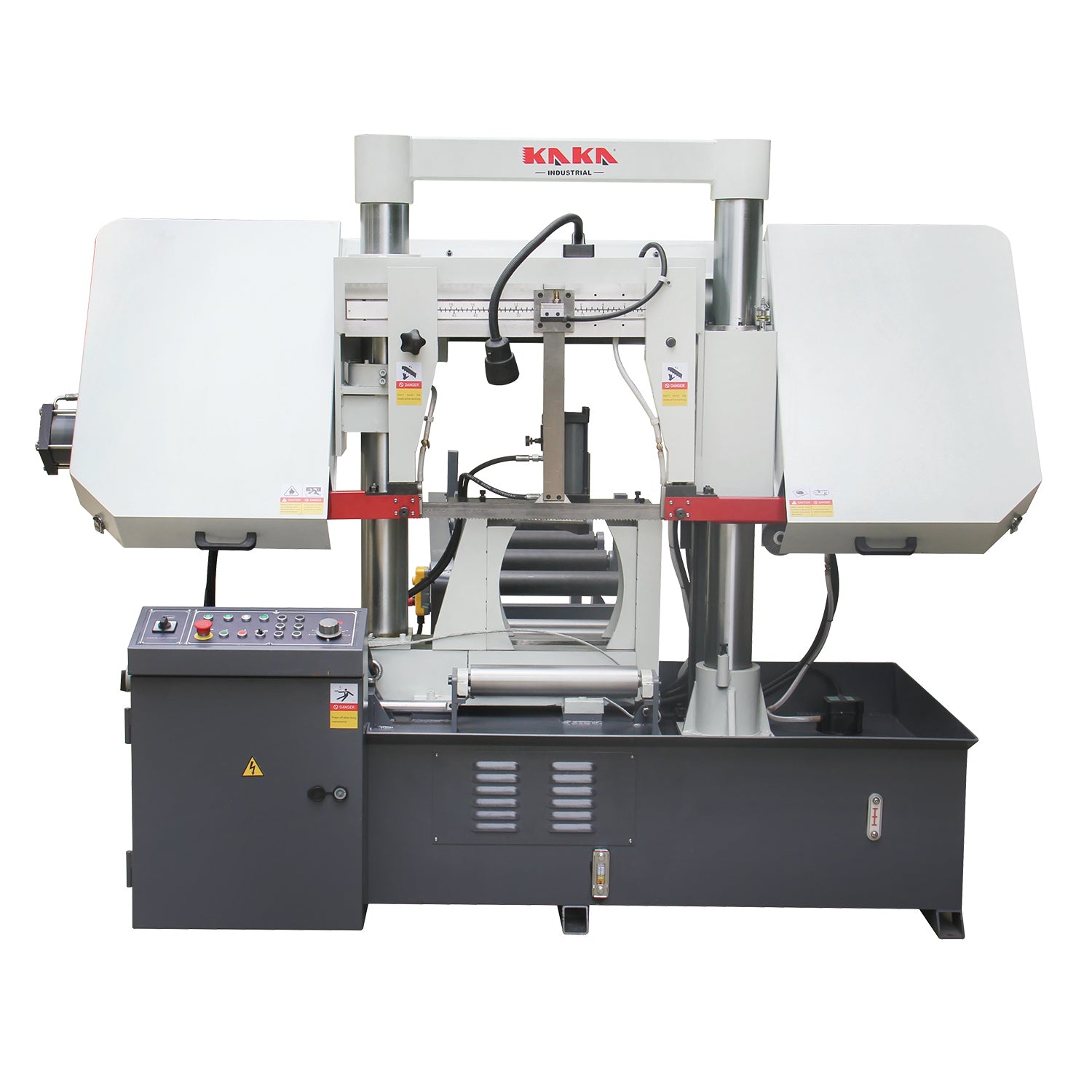

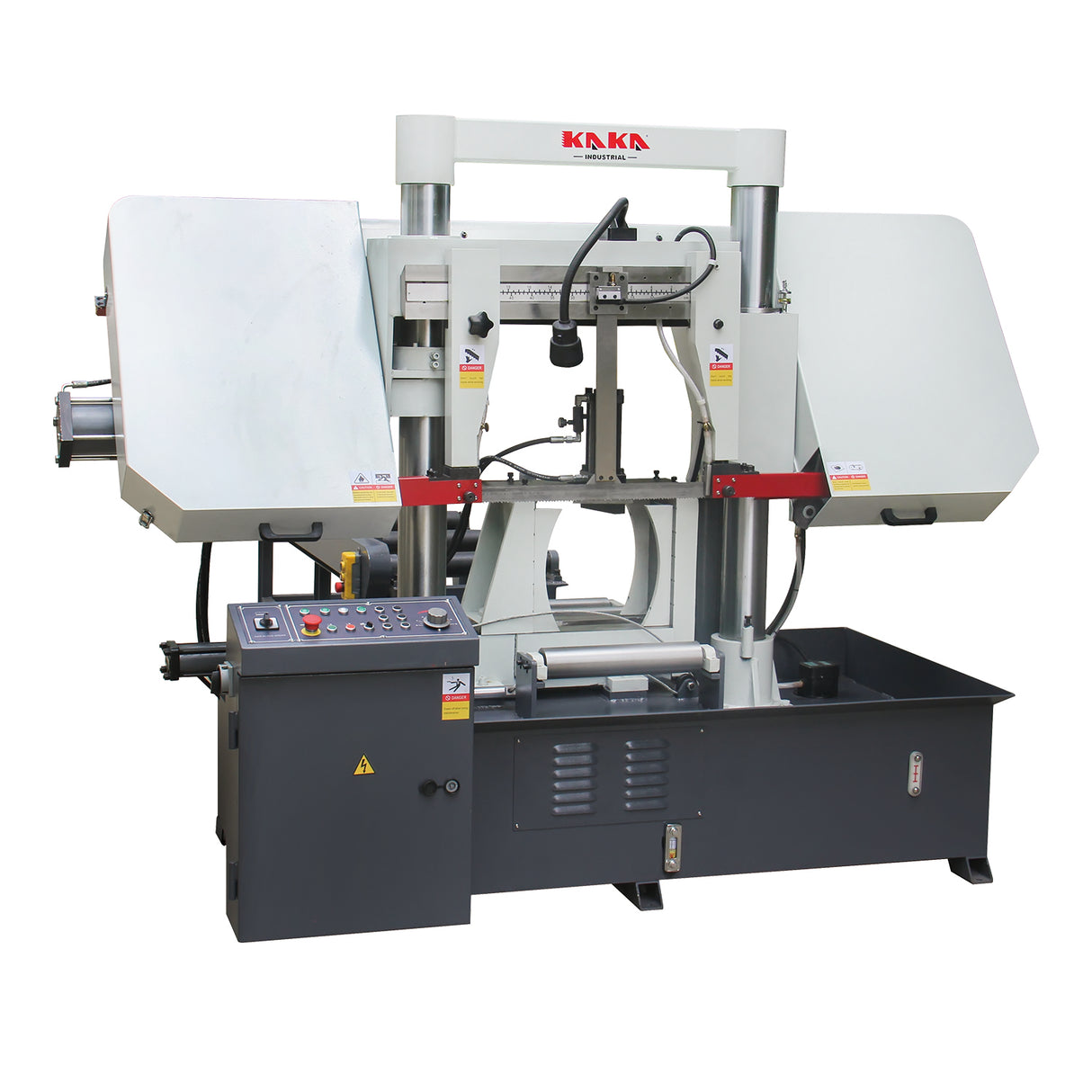

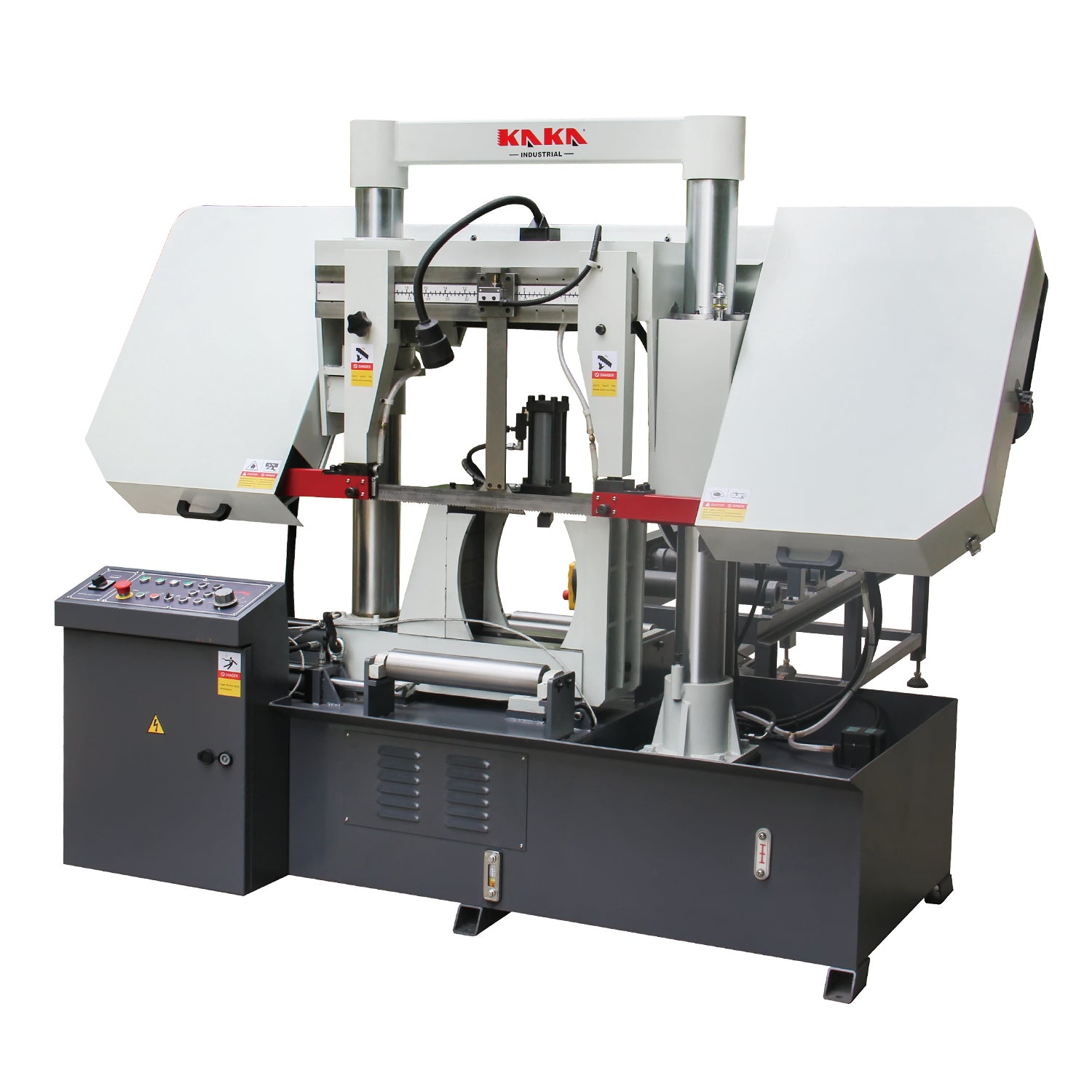

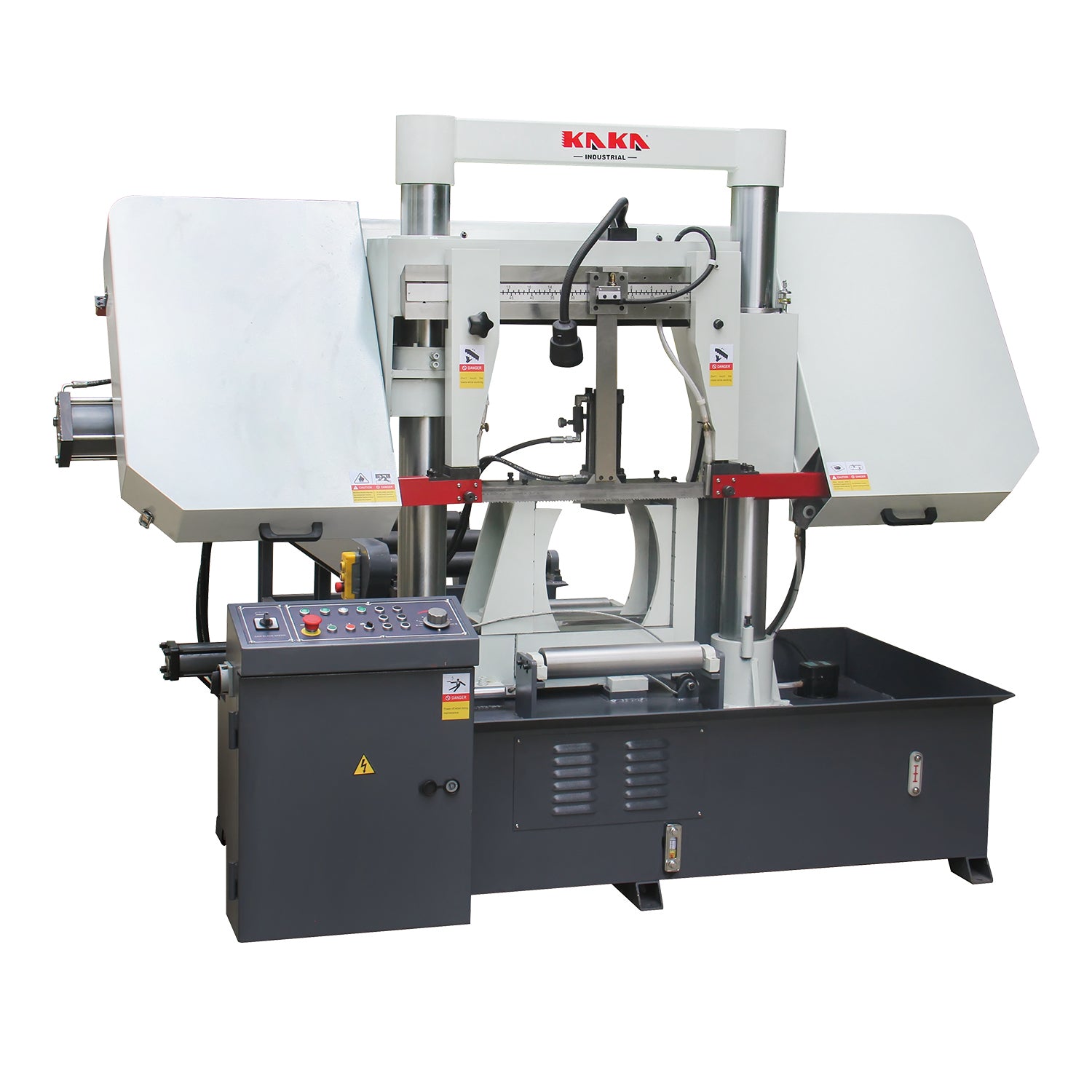

KANG Industrial TGK-16A Double Column Band Saw
The KANG TGK-16A, a semi-automatic, heavy-duty double-column bandsaw engineered for precise and efficient cutting of solid materials, profiles, pipes, especially suited for bundle metal cutting. Built with a robust cast iron frame and precisely ground column guide, this dual column band saw is designed for professional workshops, fabrication shops or manufacturing environments.
Rigid Dual-Column Design Solid steel saw frame with torsion-proof construction for minimal vibration and precise cuts on large/heavy materials. The dual columns provide excellent stability, making it ideal for bundles or awkward profiles.
Hydraulic Clamping System Both the workpiece vice and blade tensioning are fully hydraulic, ensuring secure hold-down and easy operation. The vice is designed for quick setup, with parallel jaws to minimize material deformation.

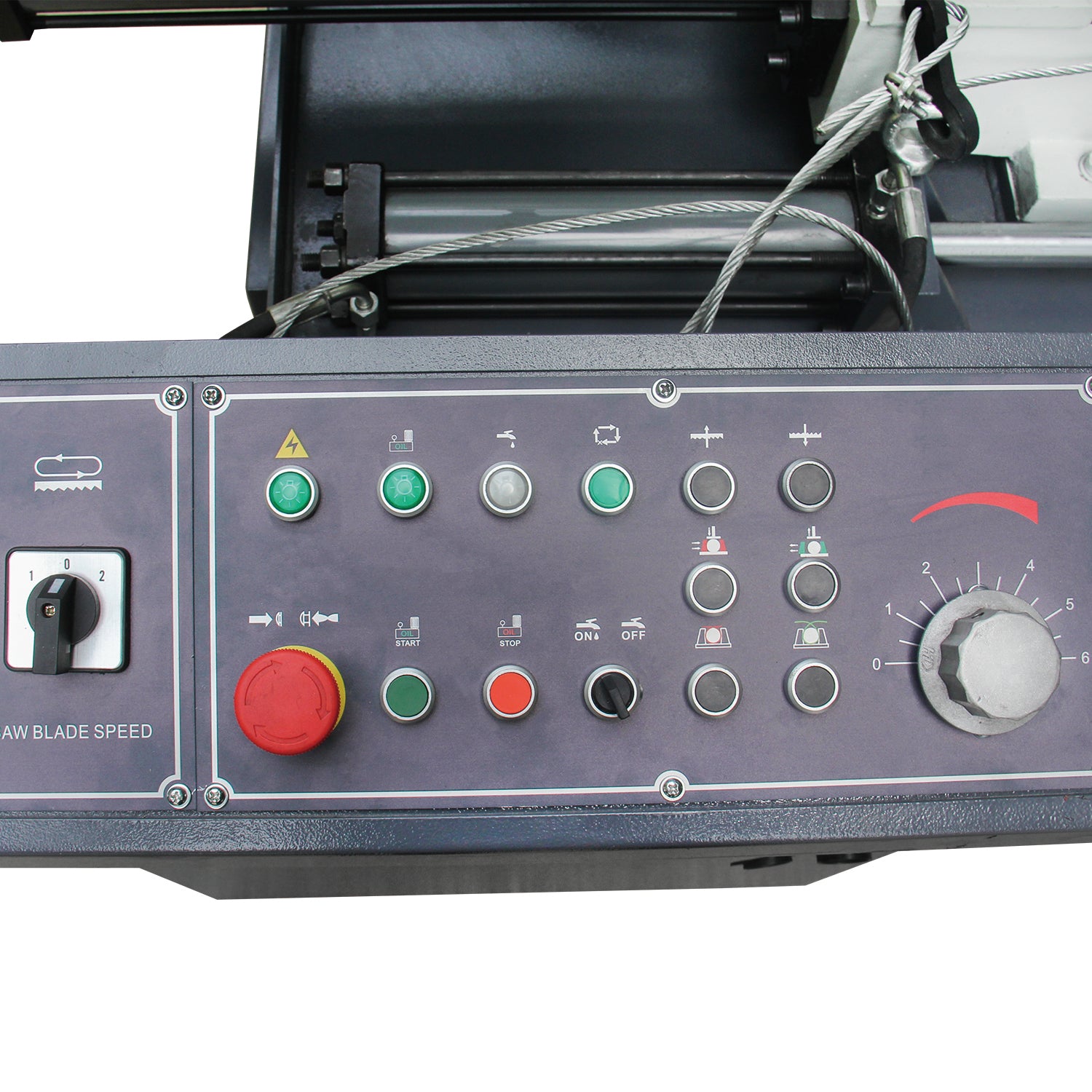

Semi-Automatic Operation Bandsaw After manual loading and length setting, the machine automatically feeds the blade, performs the cut, and returns the blade to the setting position. Includes automatic shut-off for safety.

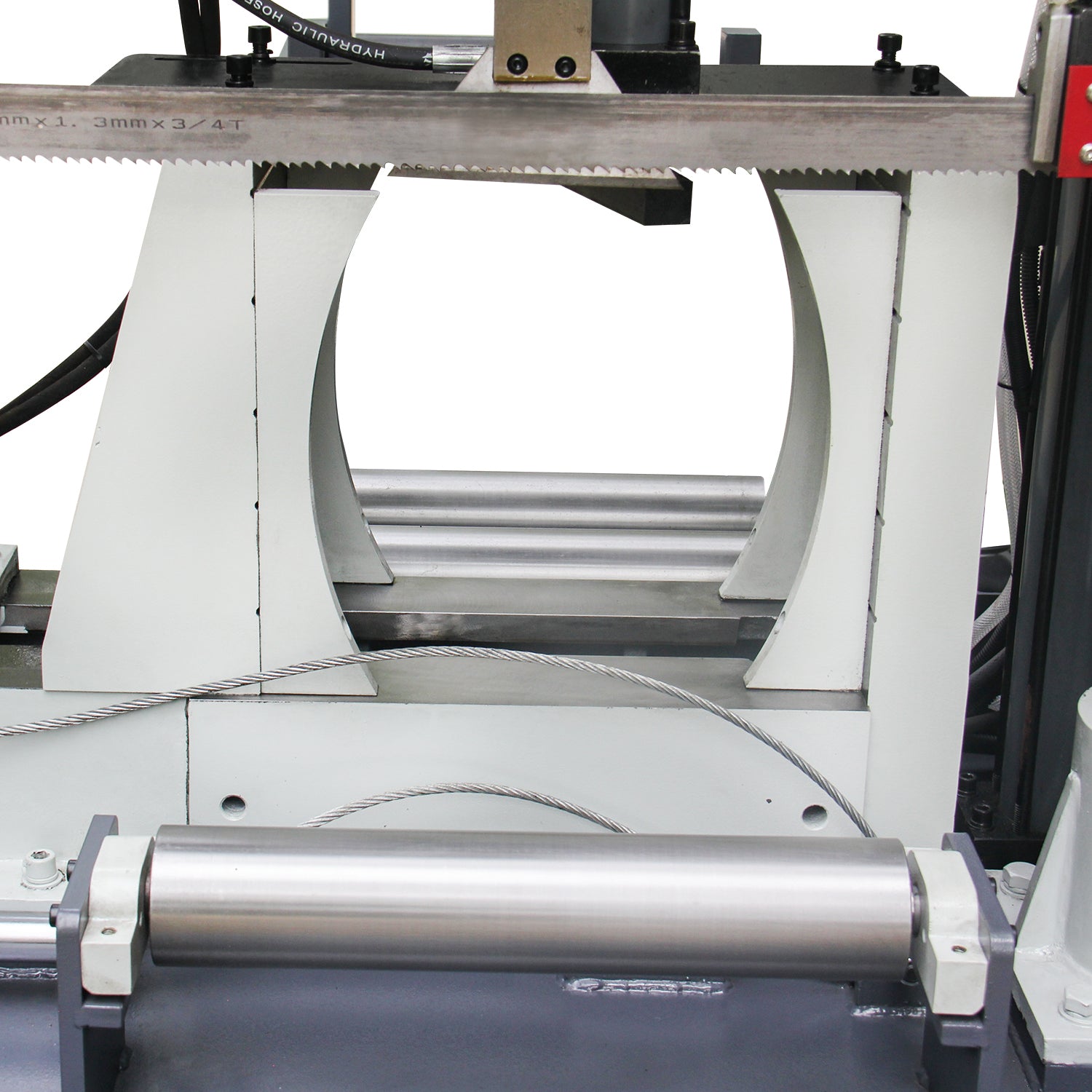

Standard with Hydraulic Bundle Clamping Vice This Bandsaw cuts multiple pieces in one cycle instead of one-by-one, increasing the productivity.
Features
Runs on 415V power, industrial-grade metal cutting band saw
Standard extra clamp for hexagonal bundle material cutting
3.0/4.0 kW double speed motor to get two saw blade speeds, 36,56 m/min

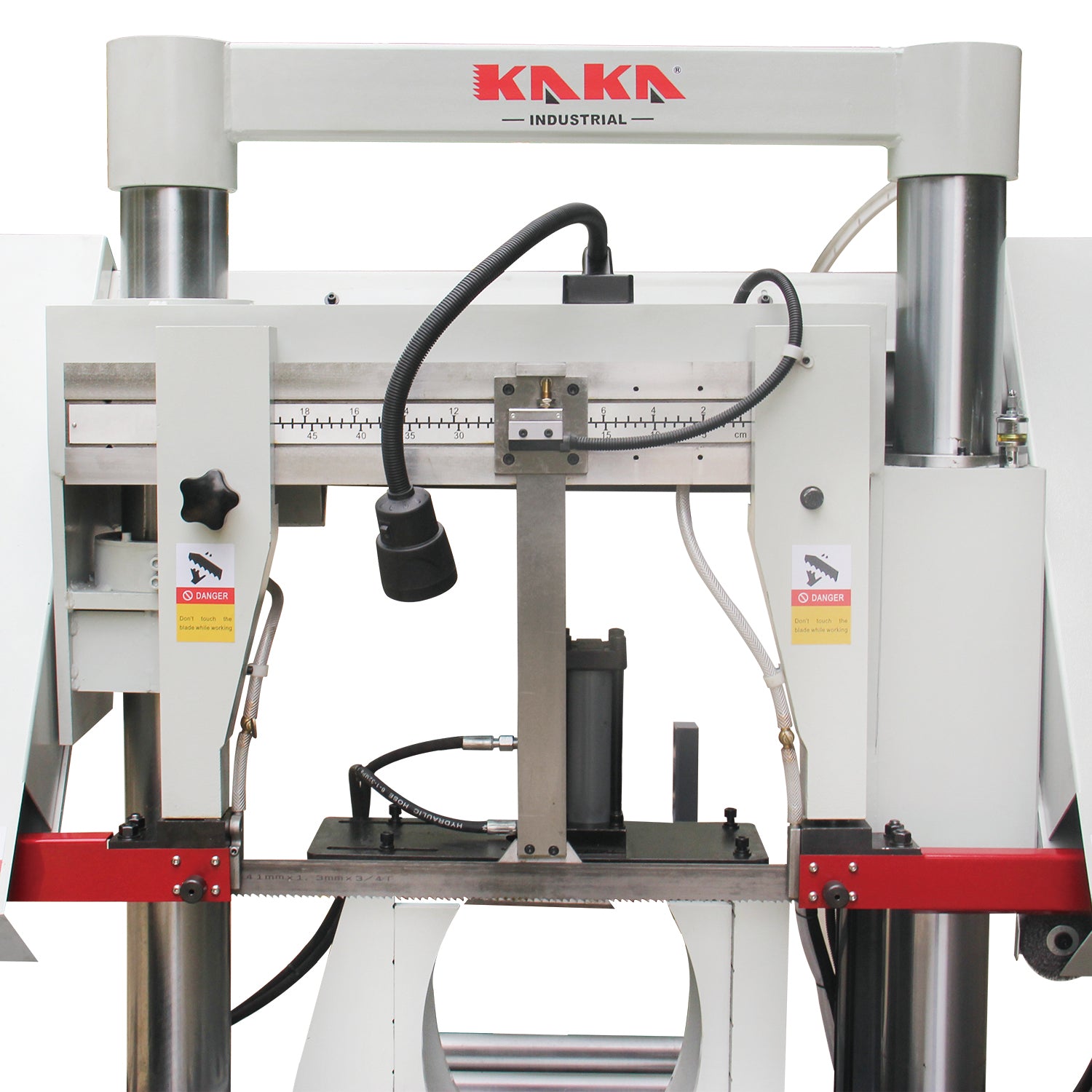

Double column structure, saw frame vertical lifting, high stability
Saw frame descent by hydraulic control, variable speed
Hydraulic clamping vice and hydraulic blade tension adjustment
Hydraulic blade tension is standard
Standard working light, cooling system and Buldle Clamping Vice
Bi-Metal Band Saw Blade (Pre-Installed, 41x1.3x5000mm, TPI 3/4)
Specifications
| SKU | 188304 |
| Model | TGK-16A |
| Max. cutting capacity | ø400-400x400 mm |
| Cutting speed | 36,56 m/min |
| Feeding speed | Hydraulic, variable speed |
| Balde size | 41x1.1x5000 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Hydraulic |
| Main motor power | 3.0/4.0 kW |
| Oil pump motor power | 0.75 kW |
| Coolant pump motor power | 0.9 kW |
| Drive | Gear |
| Packing size | 270x135x215 cm |
| N.W./G.W. | 1350/1610 kg |
