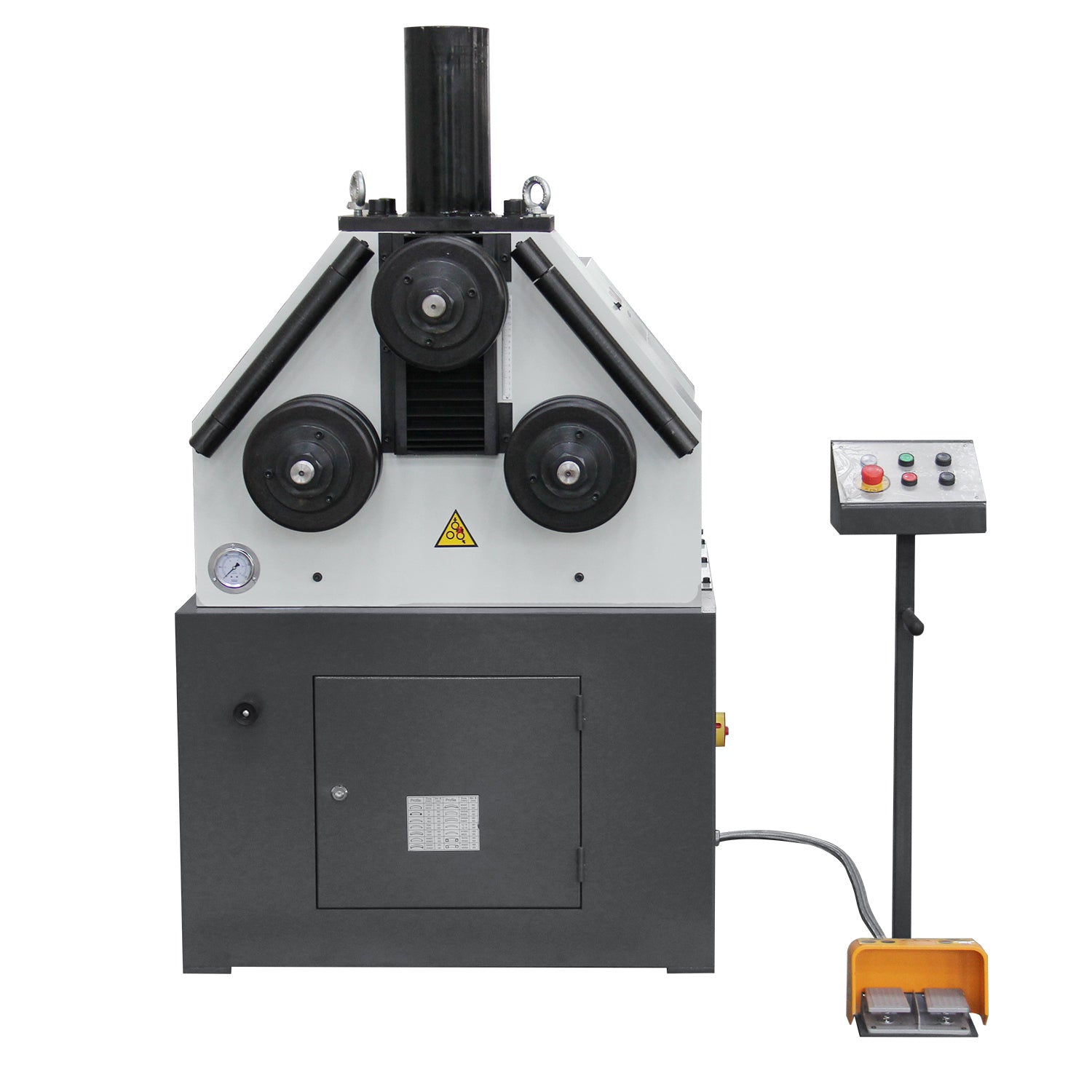

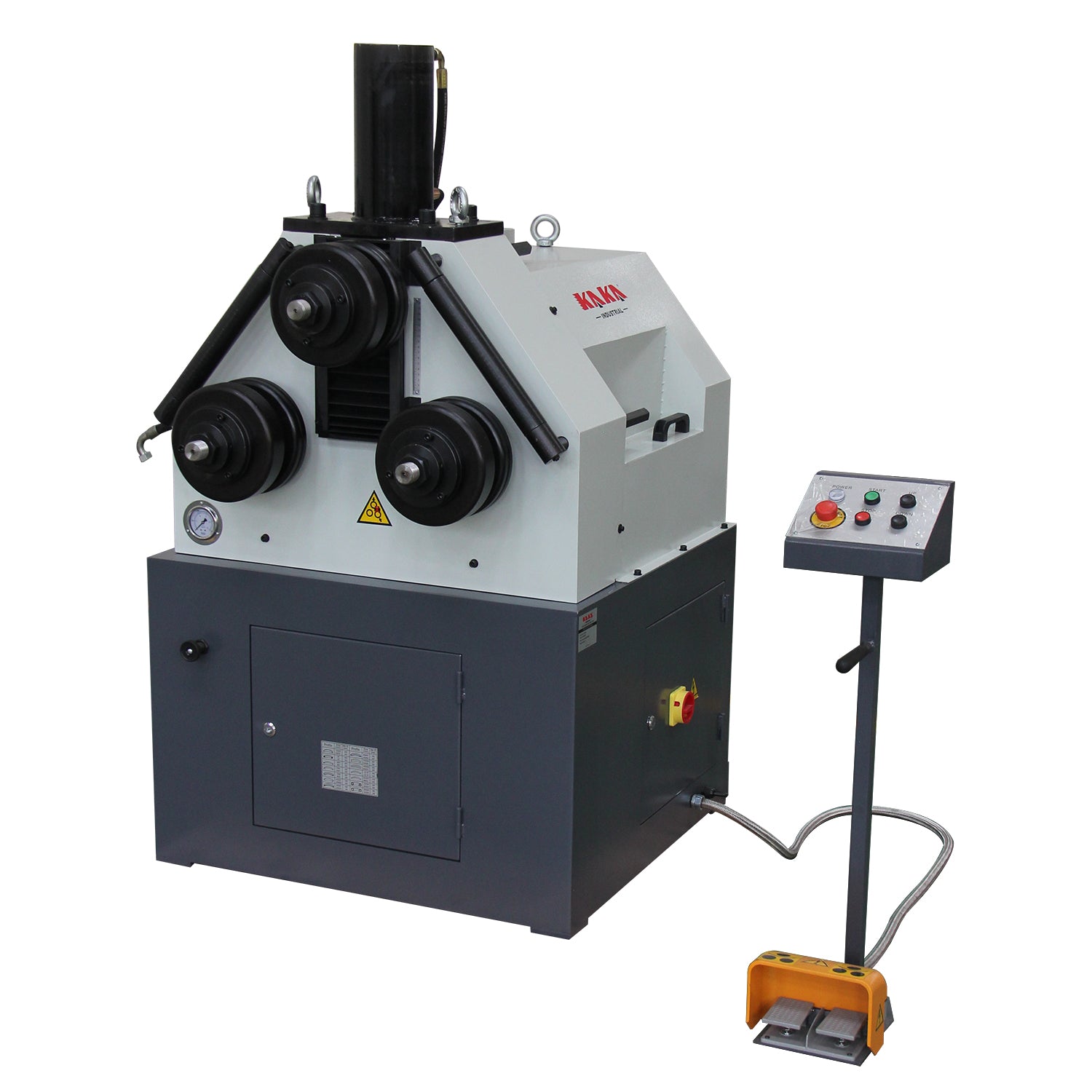

KANG Industrial Section & Profile Rolling HRBM65H

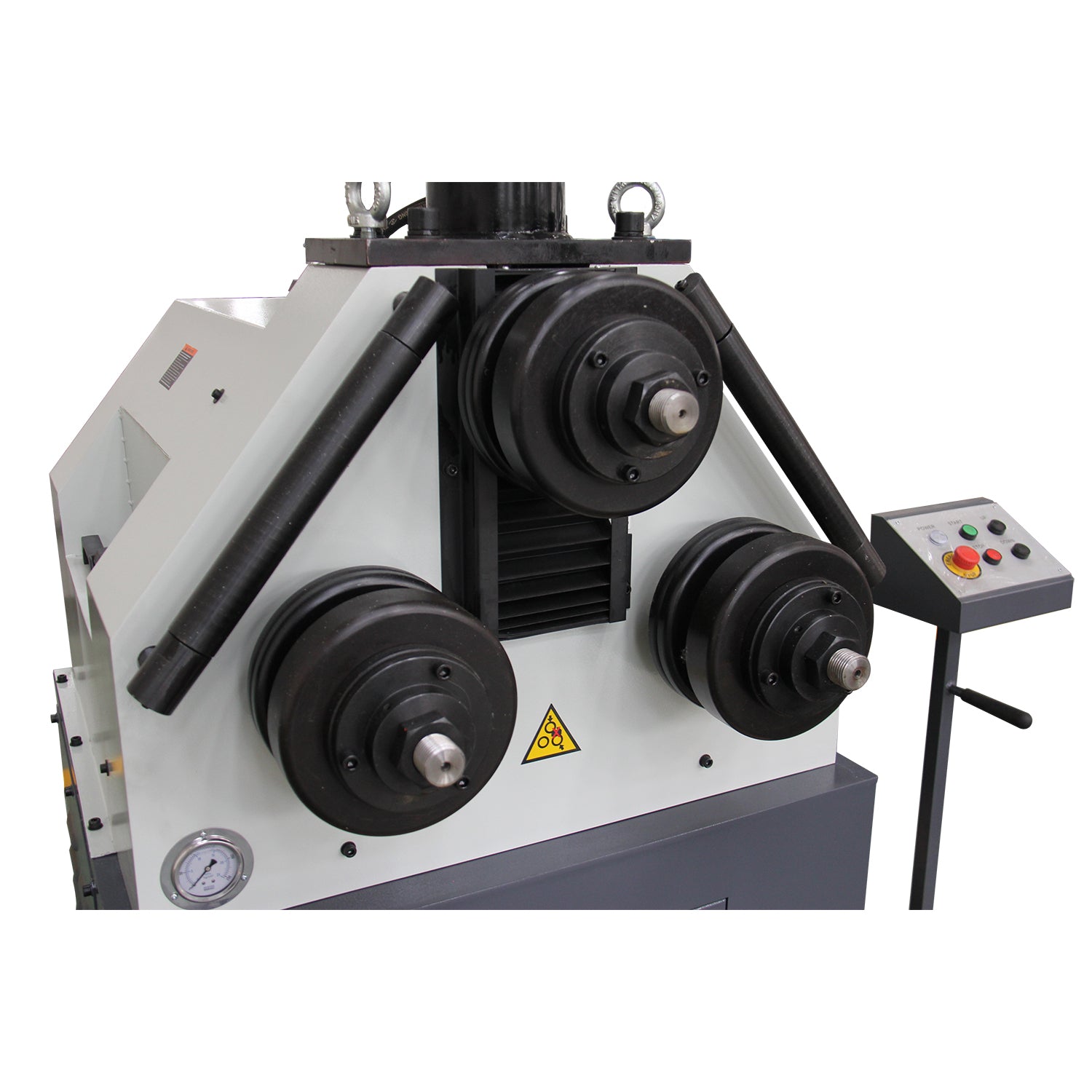

Hydraulic top bending roller, three rolls are powered
Features
Runs on 415V-50HZ-3PH power

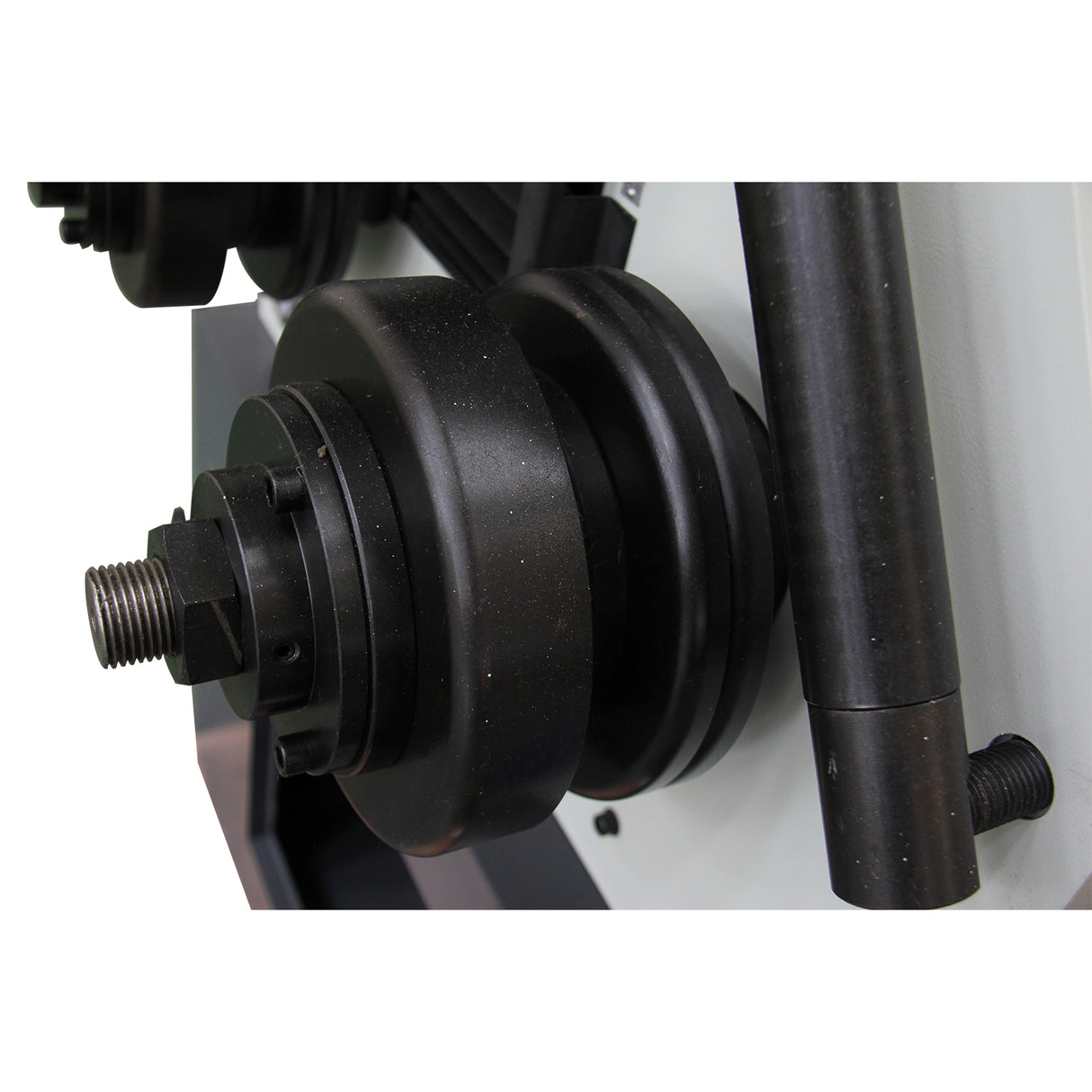

Hardened rolls, various segment rolls for different types of flat bars, angle iron, square tube, etc.
Open-face design allows you to roll full circles
Horizontal and vertical use
Gear drive and 4.0 kW powerful motor make rolling easily
Optional toolings are available for round tubes and pipes.
Specifications
| SKU | 191021 |
| Model | HRBM65H |
| Dia. of shaft | ø70 mm |
| Power | 4 kW |
| Spindle speed | 9.3 r/min |
| Packing size | 122x110x188 cm |
| N.W./G.W. | 730/910 kg |
Working capacity
| Profile | Size (mm) | Min. Dia. (mm) |
| Flat bar easy way |
120x25 50x10 |
600 400 |
| Square solid bar |
35 20 |
550 400 |
| Round solid bar |
ø35 ø20 |
550 400 |
| Angle steel toe out |
70x6 40x5 |
500 400 |
| Angle steel toe in |
70x6 40x5 |
600 500 |
| T steel toe out |
80x40x7 40x40x5 |
500 400 |
| T-steel toe out |
80x40x7 40x40x5 |
400 360 |
| T-steel toe up |
80x40x7 40x40x5 |
500 400 |
| C-channel toe out |
100x50x5 50x40x5 |
550 500 |
| C-channel toe in |
100x50x5 50x40x5 |
550 400 |
| Square tube |
70x70x3 30x30x3 |
900 500 |
| RHS X-X axis |
80x40x3 50x30x2 |
800 500 |
Profile Samples (only for the above chart, if not in the chart, may need extra dies)
