KANG Industrial Section & Profile Roller HRBM65H

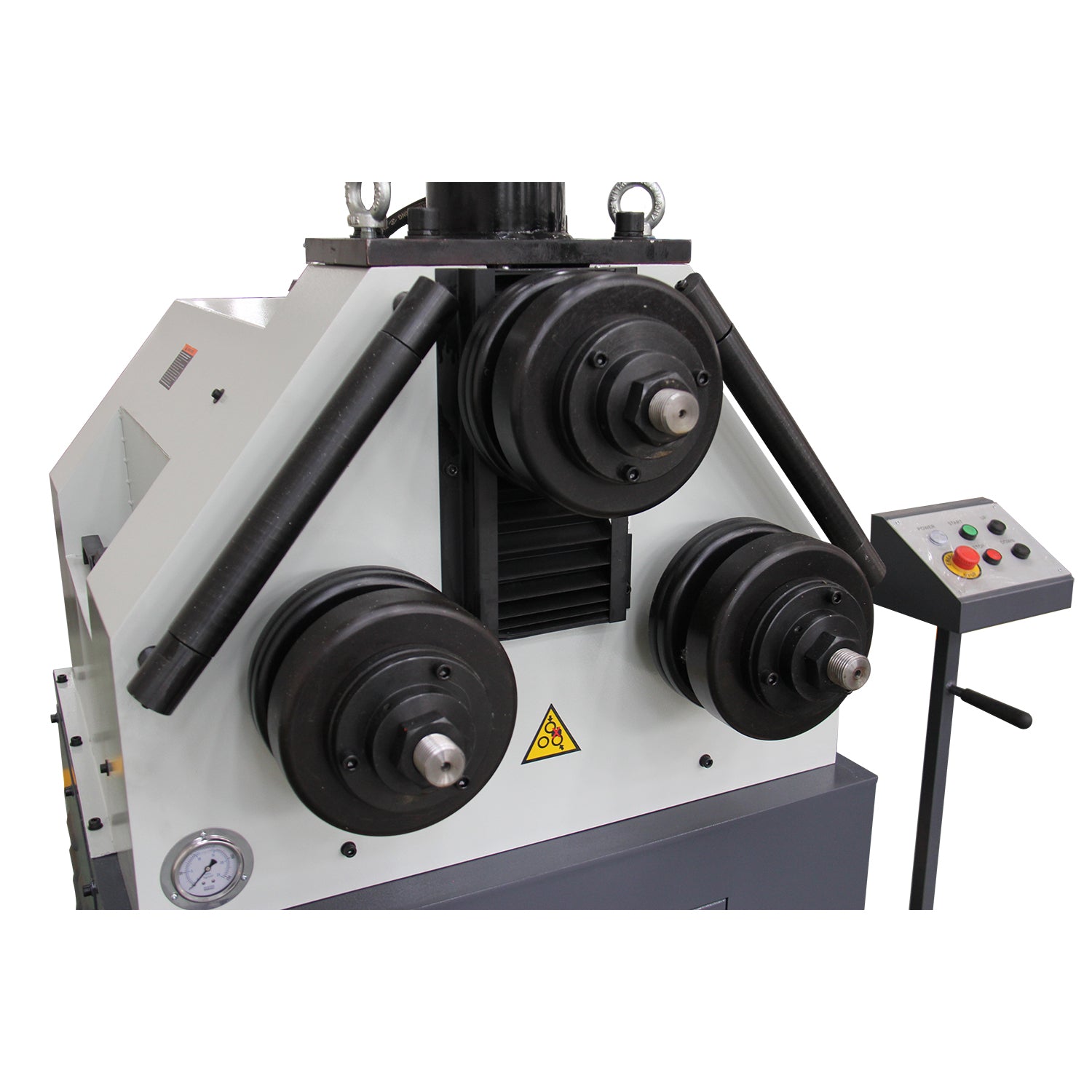

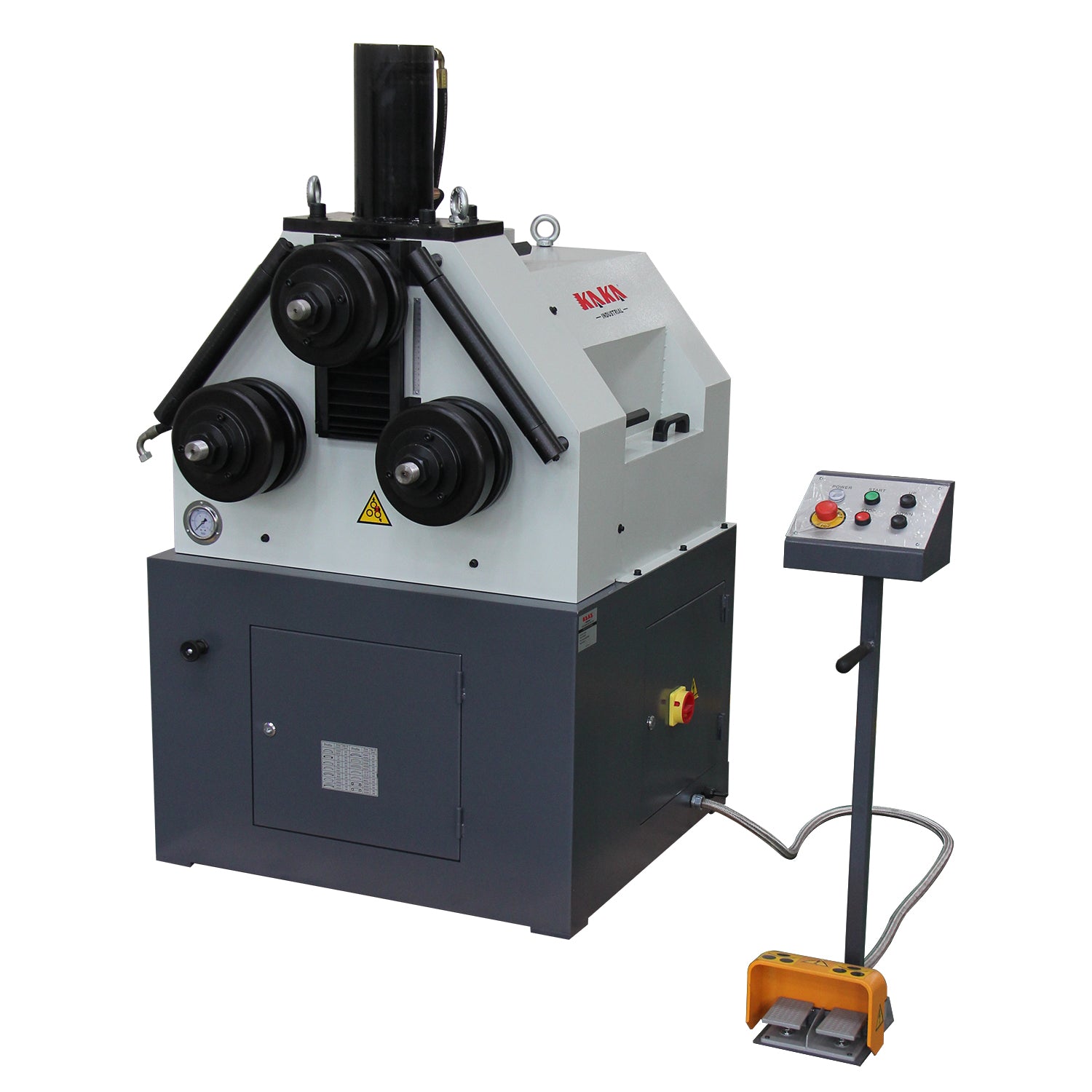

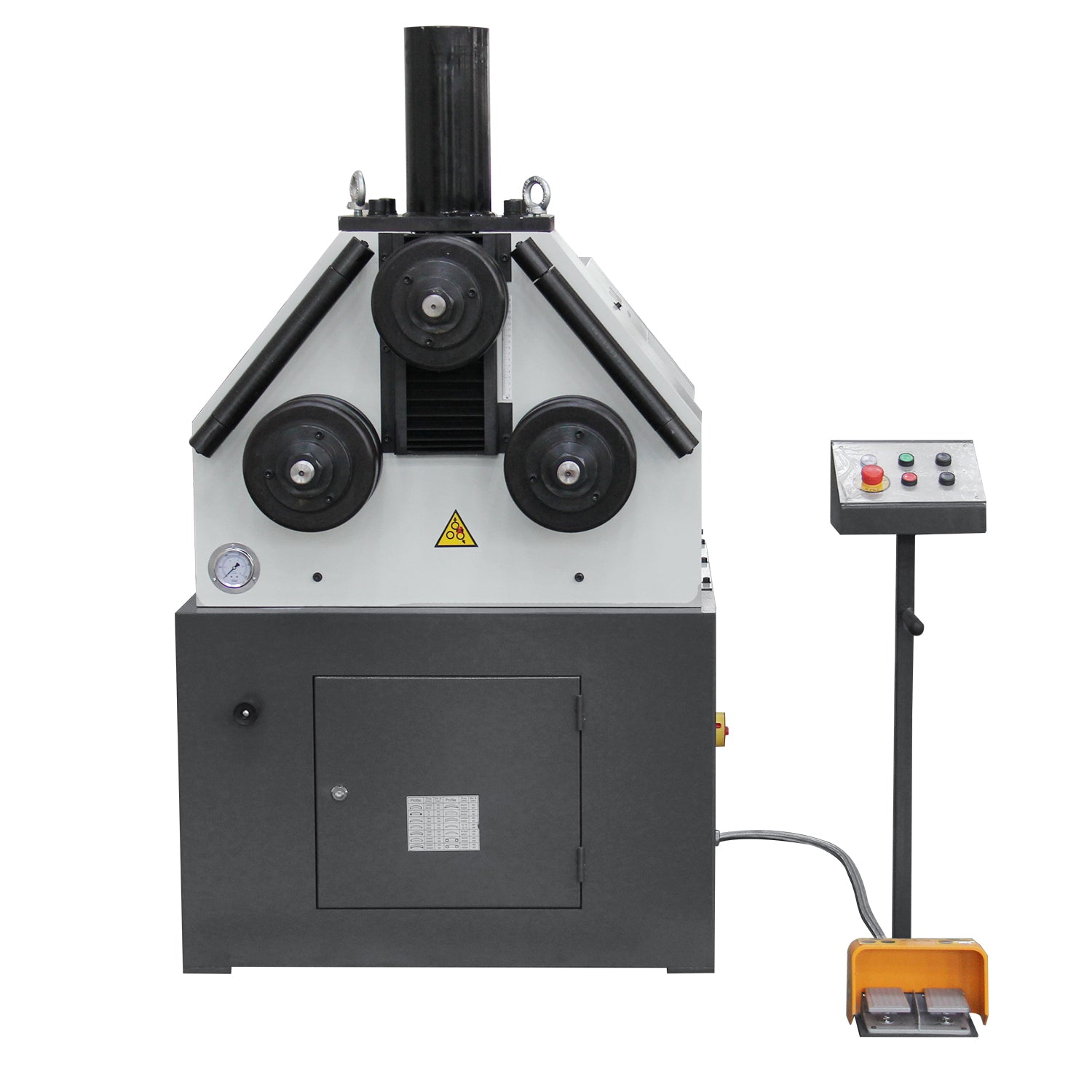

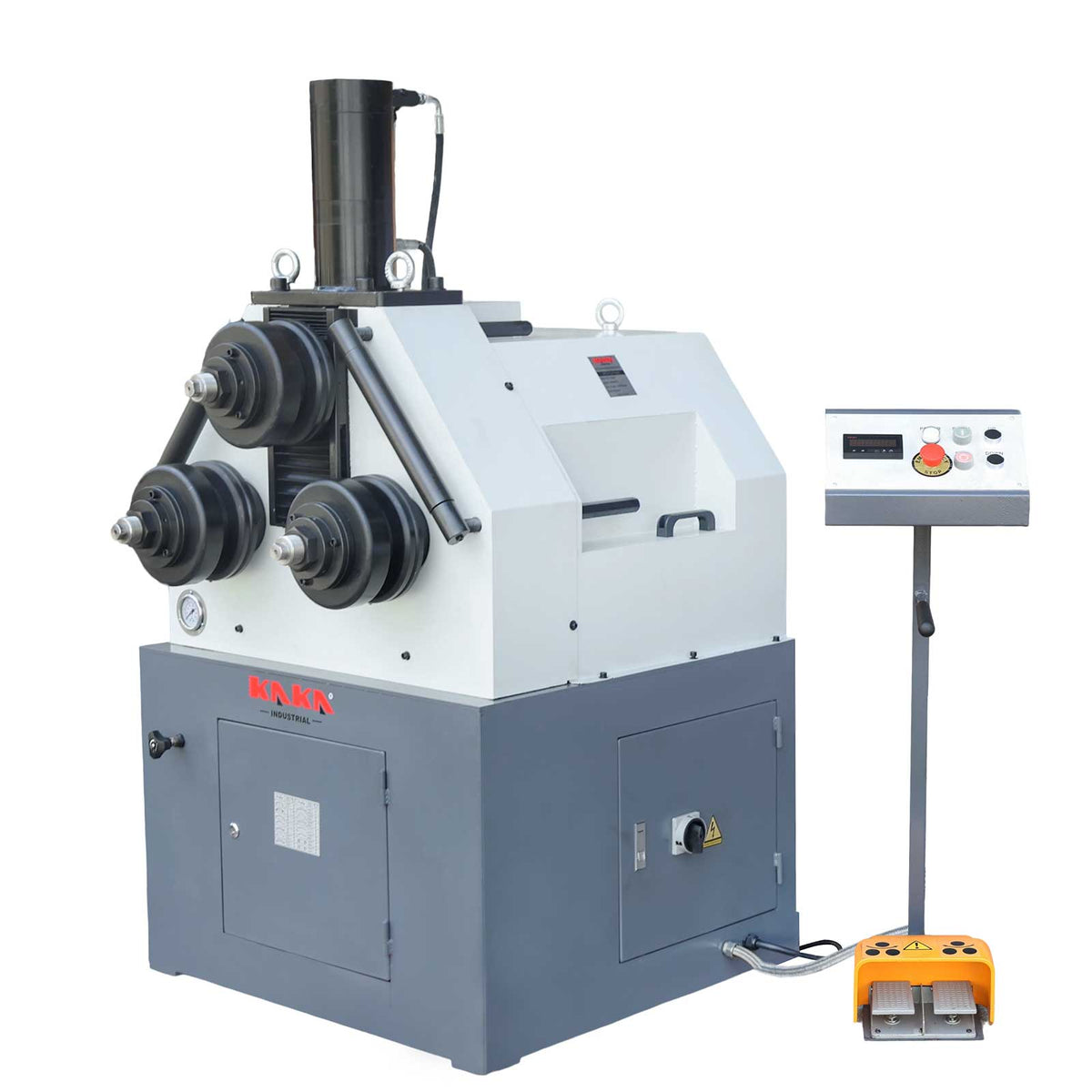

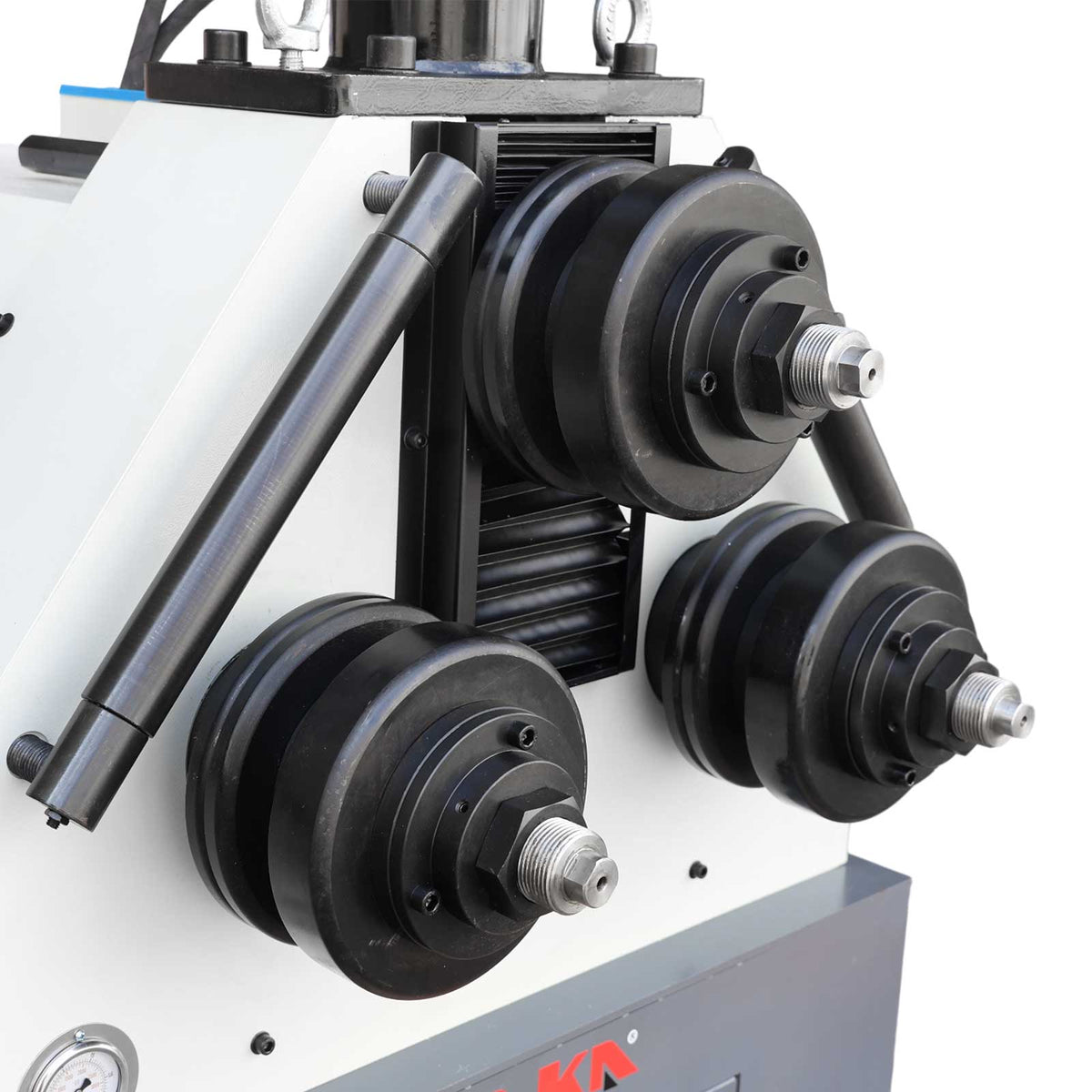

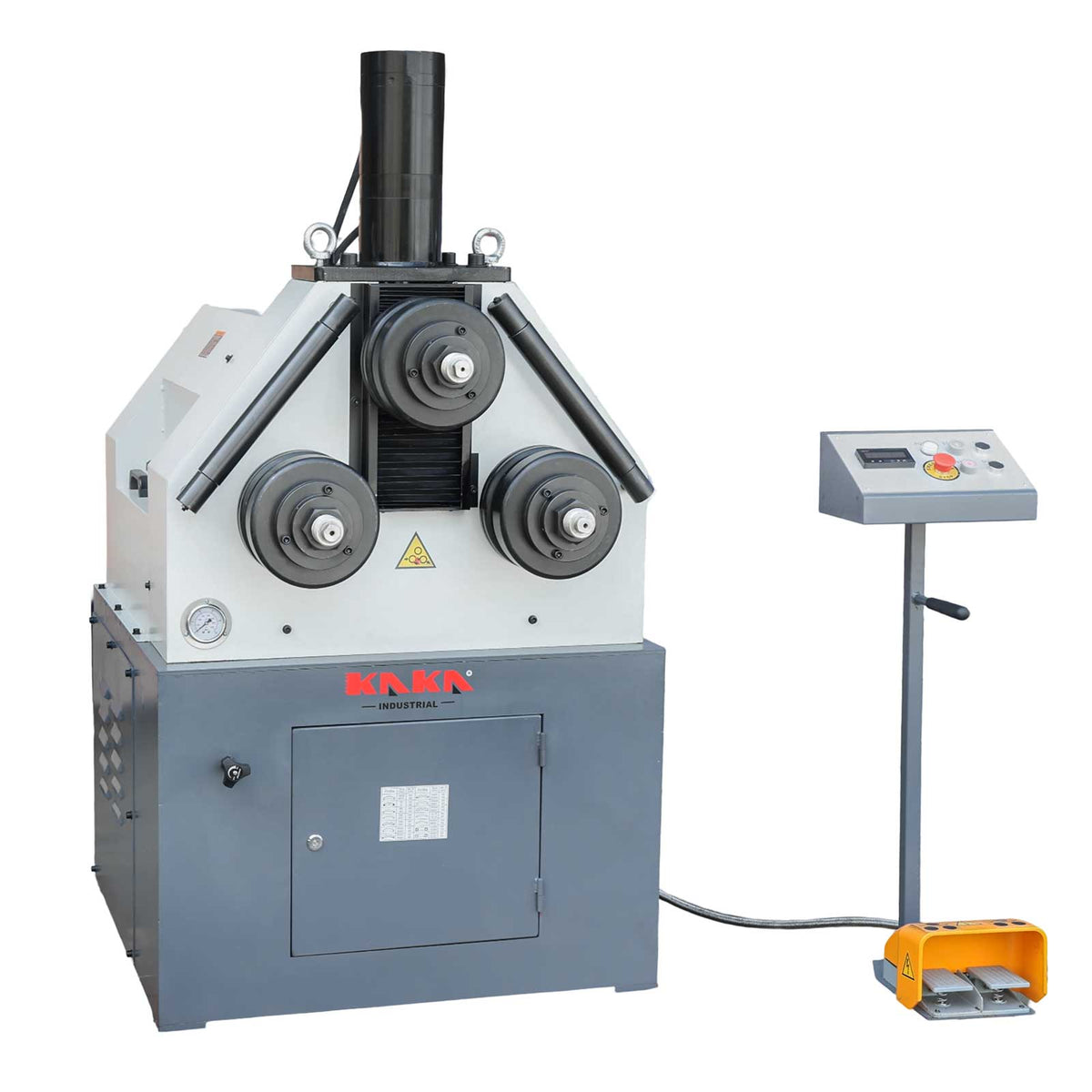

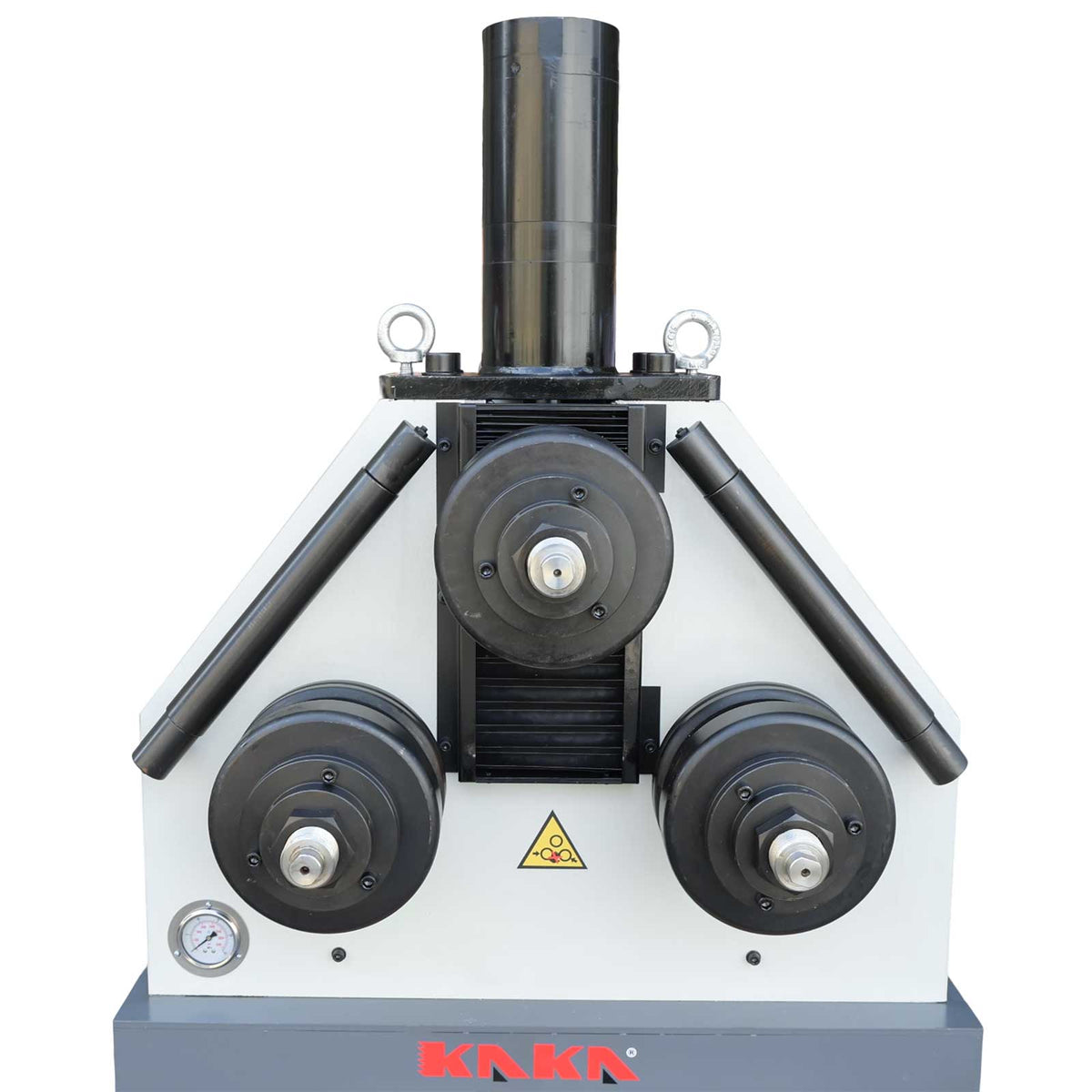

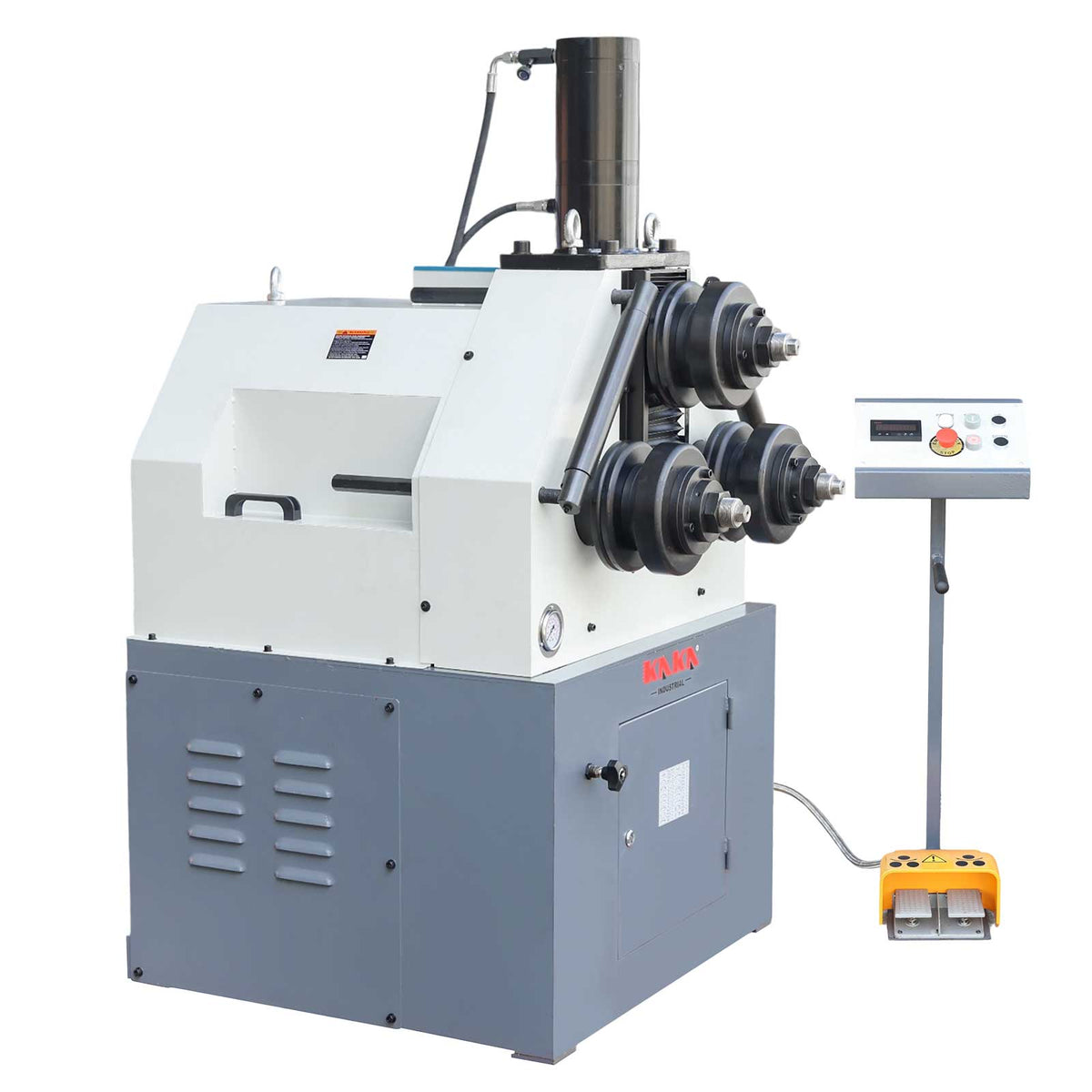

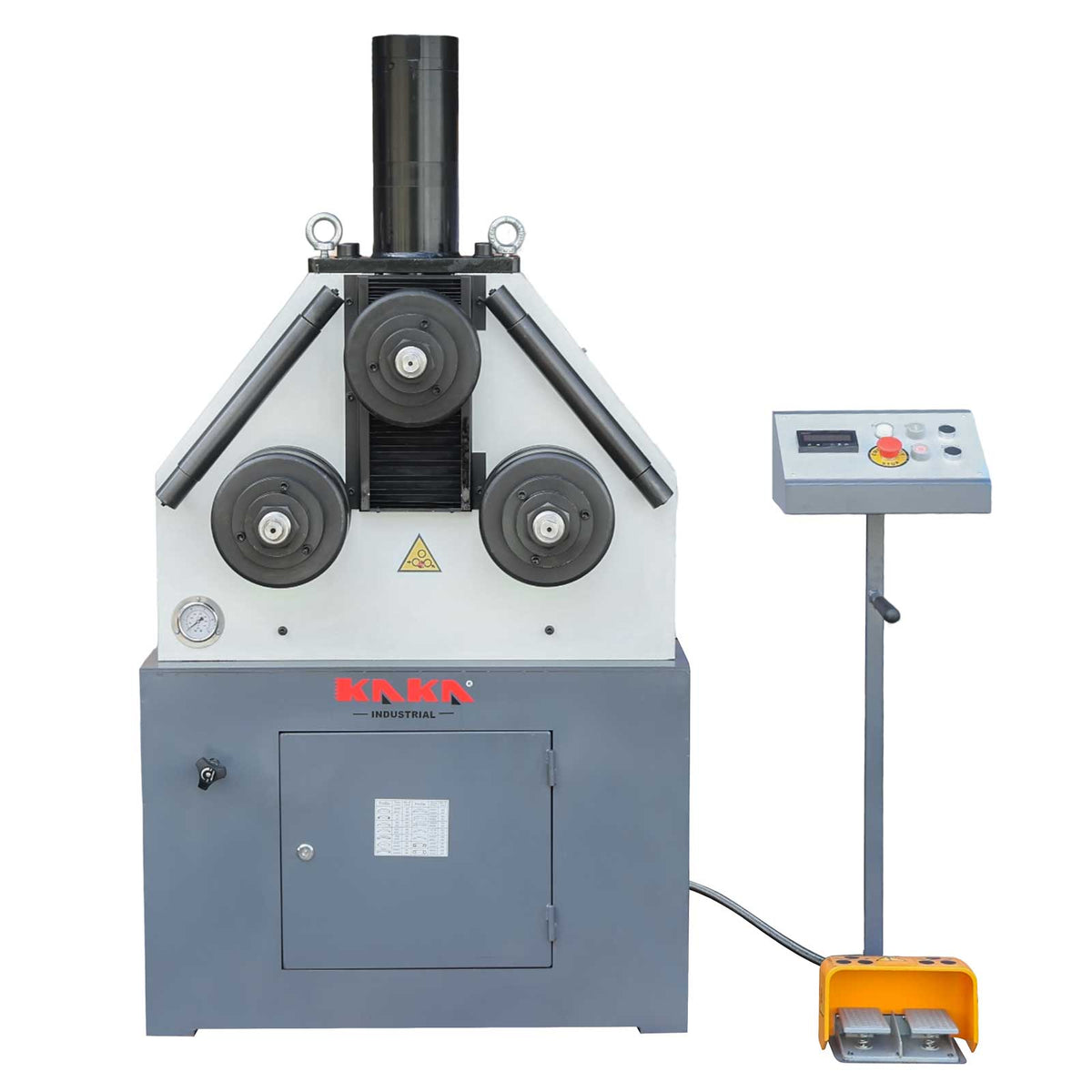

The KANG HRMB-65H Section & Pipe Roller is a heavy-duty machine ideal for metal fabrication workshops in Australia. Featuring vertical and horizontal operation modes, it includes two powered rolls with hydraulic top roll positioning controlled via a digital display for precise adjustments. Powered by a robust 4.0W / 3hp 415V motor—perfectly suited to Australian electrical standards—this roller delivers a bending speed of 9.3 m/min. It handles a wide range of materials. Built with a heavy-duty steel fabricated frame, 65mm shaft diameter, hardened drive shafts, adjustable side guide rolls, and a roving foot pedal for forward/reverse control, it ensures reliable performance and ease of use. Standard flat and angle rolls are included, with additional tooling available for specialised tasks.
Versatile Bending Capabilities Section Roller. Handles diverse materials like pipes, sections, flats, and angles with multiple capacities, reducing the need for multiple machines and saving space in workshops.

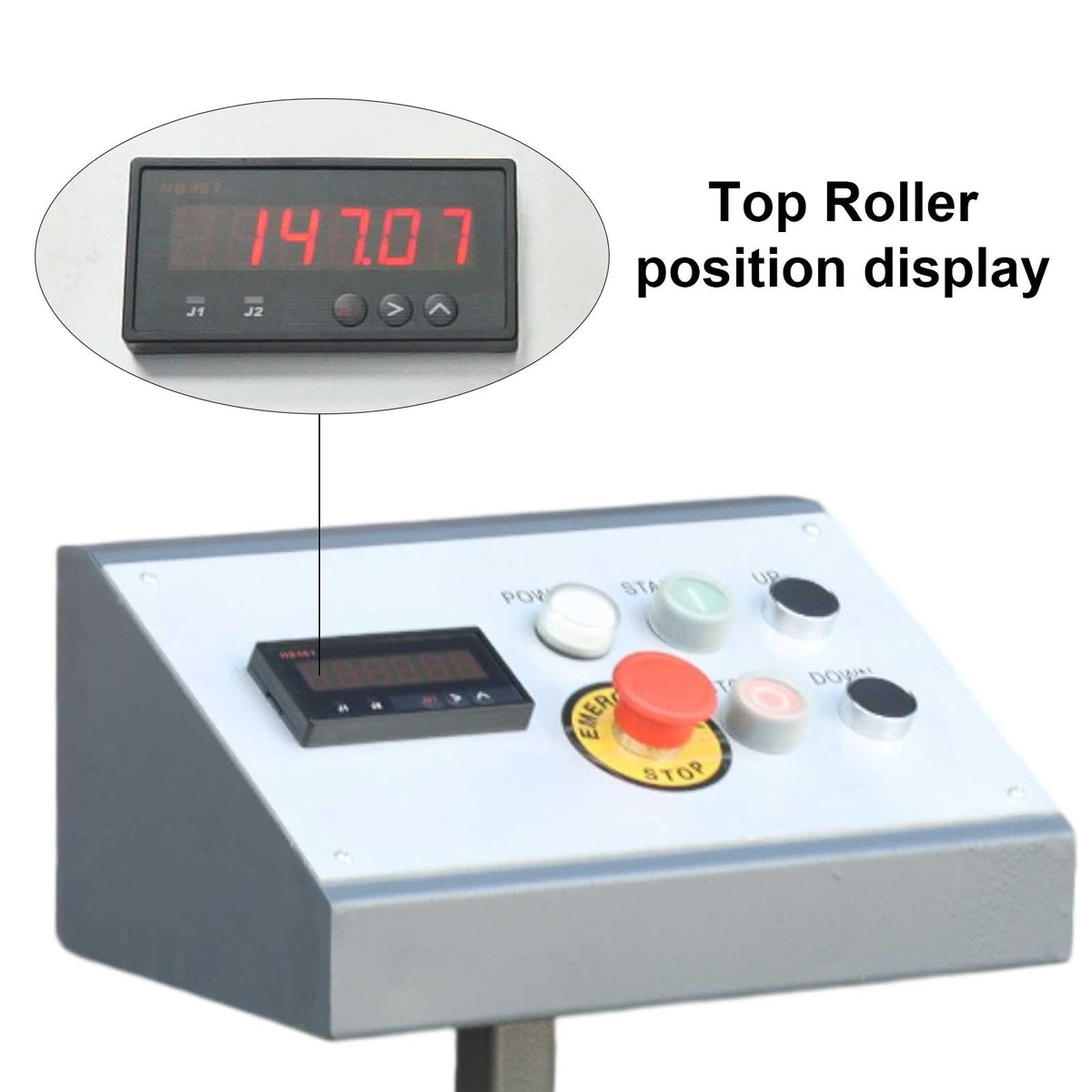

Enhanced Precision and Control. The hydraulic top roll with digital display and measuring scale allows for accurate, repeatable bends, minimising errors and waste in fabrication projects.
Improved Rolling Efficiency. Two rollers are driven for better traction and performance, combined with a high bending speed, enabling faster production times for small to medium-sized operations.
Durable Construction Roll Machine. Heavy-duty steel frame, hardened shafts, and 65mm drive shaft ensure longevity and reliability, even under heavy use in demanding Australian industrial environments.
User-Friendly Design. Vertical/horizontal flexibility, roving foot pedal, and adjustable guides make it easy to operate, reducing operator fatigue and training time.
Features
Runs on 415V-50HZ-3PH power

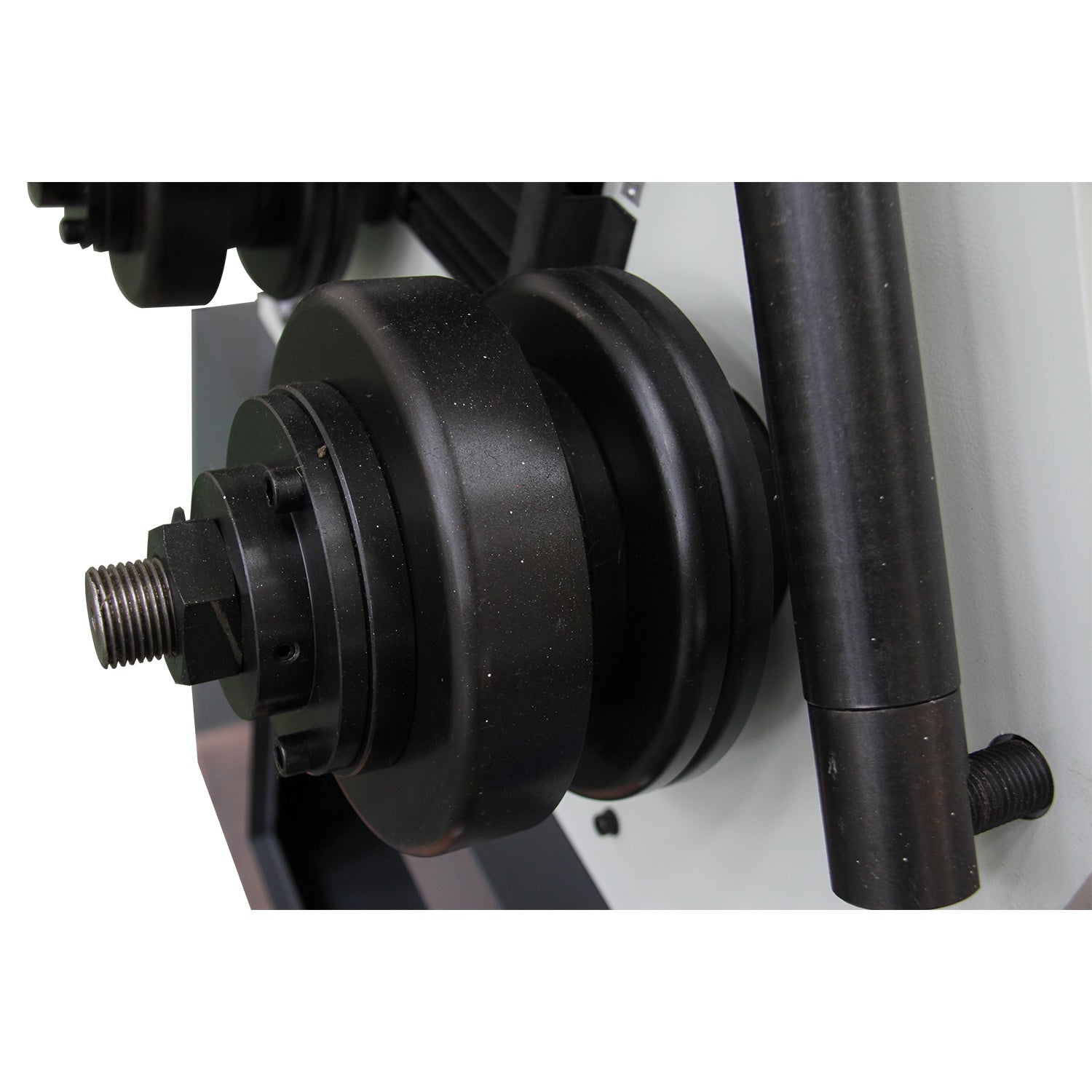

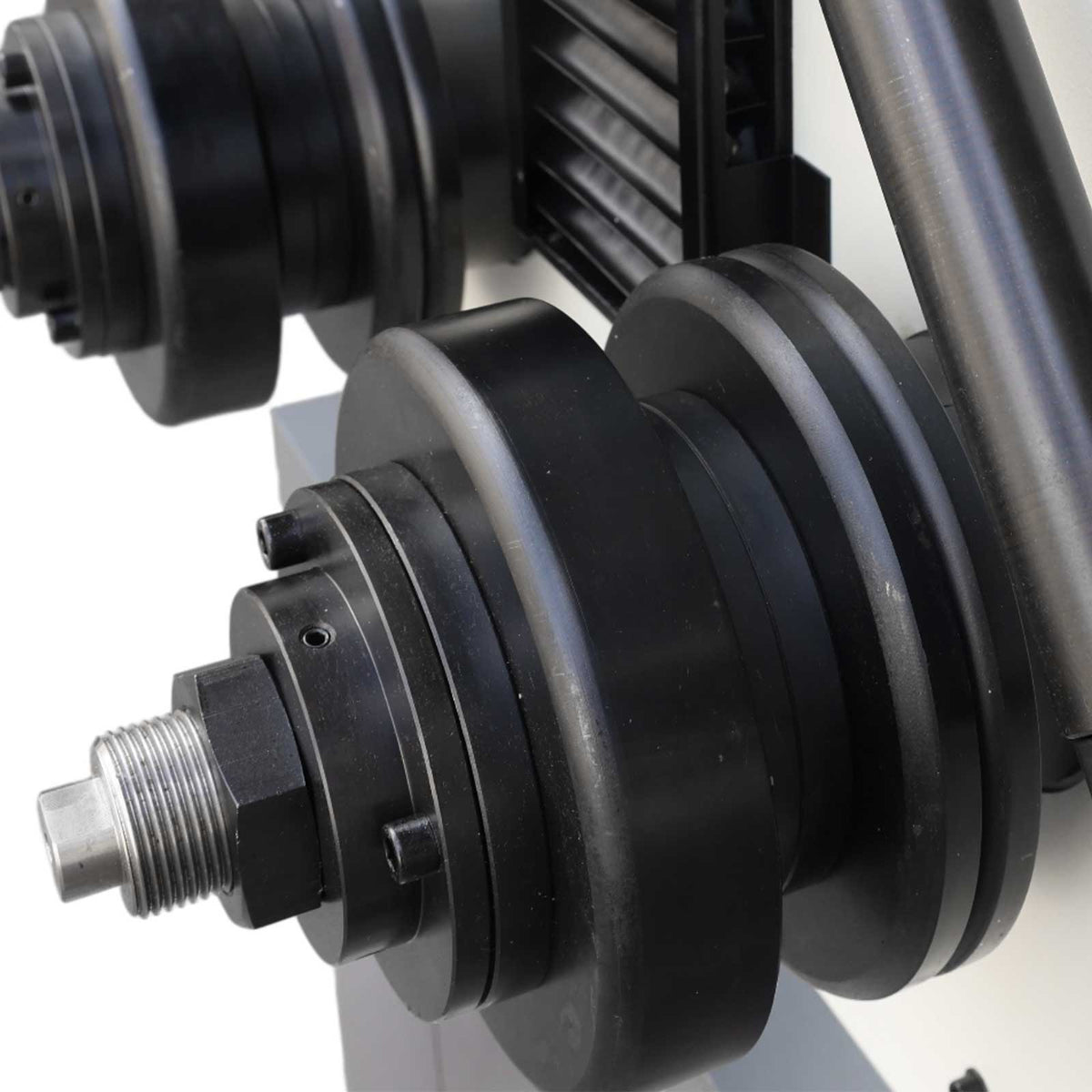

Hardened rolls, various segment rolls for different types of flat bars, angle iron, square tube, etc.
Open-face design allows you to roll full circles
Horizontal and vertical use
The gear drive and a 4.0 kW powerful motor make rolling easily
Will need fill 28L ISO32 or ISO46 hydraulic oil
Specifications
| SKU | 191021 |
| Model | HRBM65H |
| Dia. of shaft | ø70 mm |
| Power | 4 kW |
| Spindle speed | 9.3 r/min |
| Packing size | 122x110x188 cm |
| N.W./G.W. | 730/910 kg |
Working capacity
| Profile | Size (mm) | Min. Dia. (mm) |
| Flat bar easy way |
120x25 50x10 |
600 400 |
| Square solid bar |
35 20 |
550 400 |
| Round solid bar |
ø35 ø20 |
550 400 |
| Angle steel toe out |
70x6 40x5 |
500 400 |
| Angle steel toe in |
70x6 40x5 |
600 500 |
| T steel toe out |
80x40x7 40x40x5 |
500 400 |
| T-steel toe out |
80x40x7 40x40x5 |
400 360 |
| T-steel toe up |
80x40x7 40x40x5 |
500 400 |
| C-channel toe out |
100x50x5 50x40x5 |
550 500 |
| C-channel toe in |
100x50x5 50x40x5 |
550 400 |
| Square tube |
70x70x3 30x30x3 |
900 500 |
| RHS X-X axis |
80x40x3 50x30x2 |
800 500 |

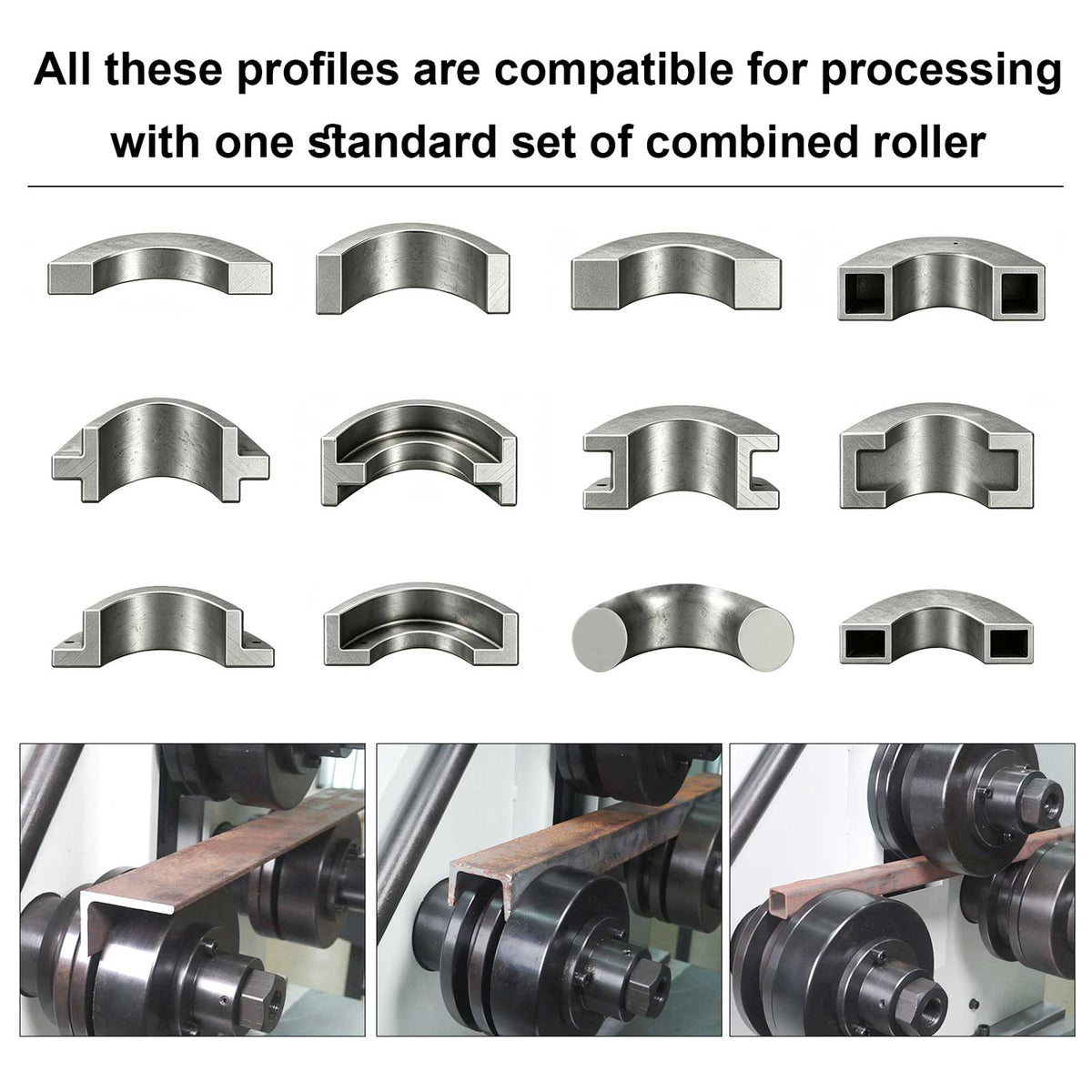

Profile Samples (only for the above chart; if not in the chart, may need extra dies)
