Comb. of Lahte, Mill/Drill CM3075

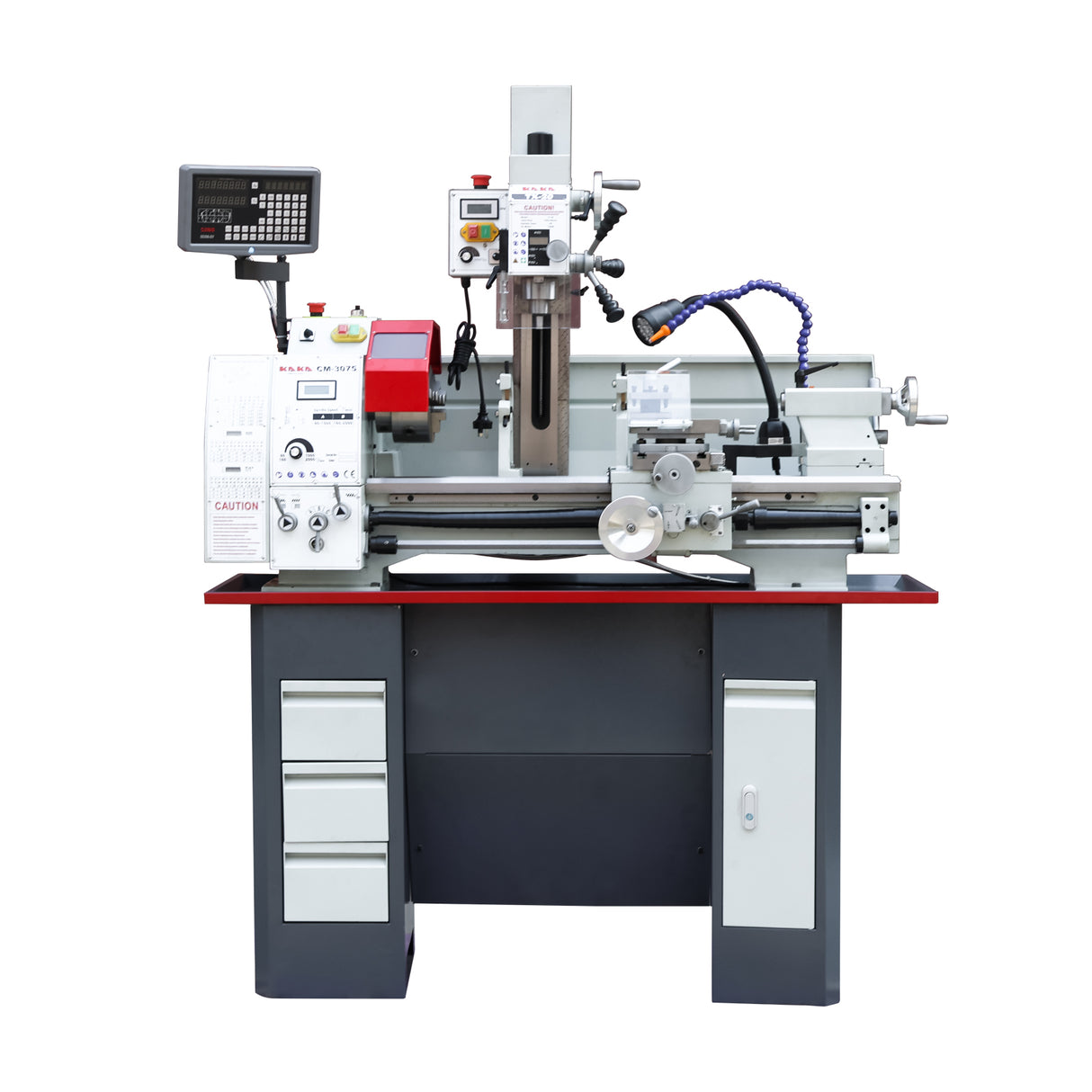

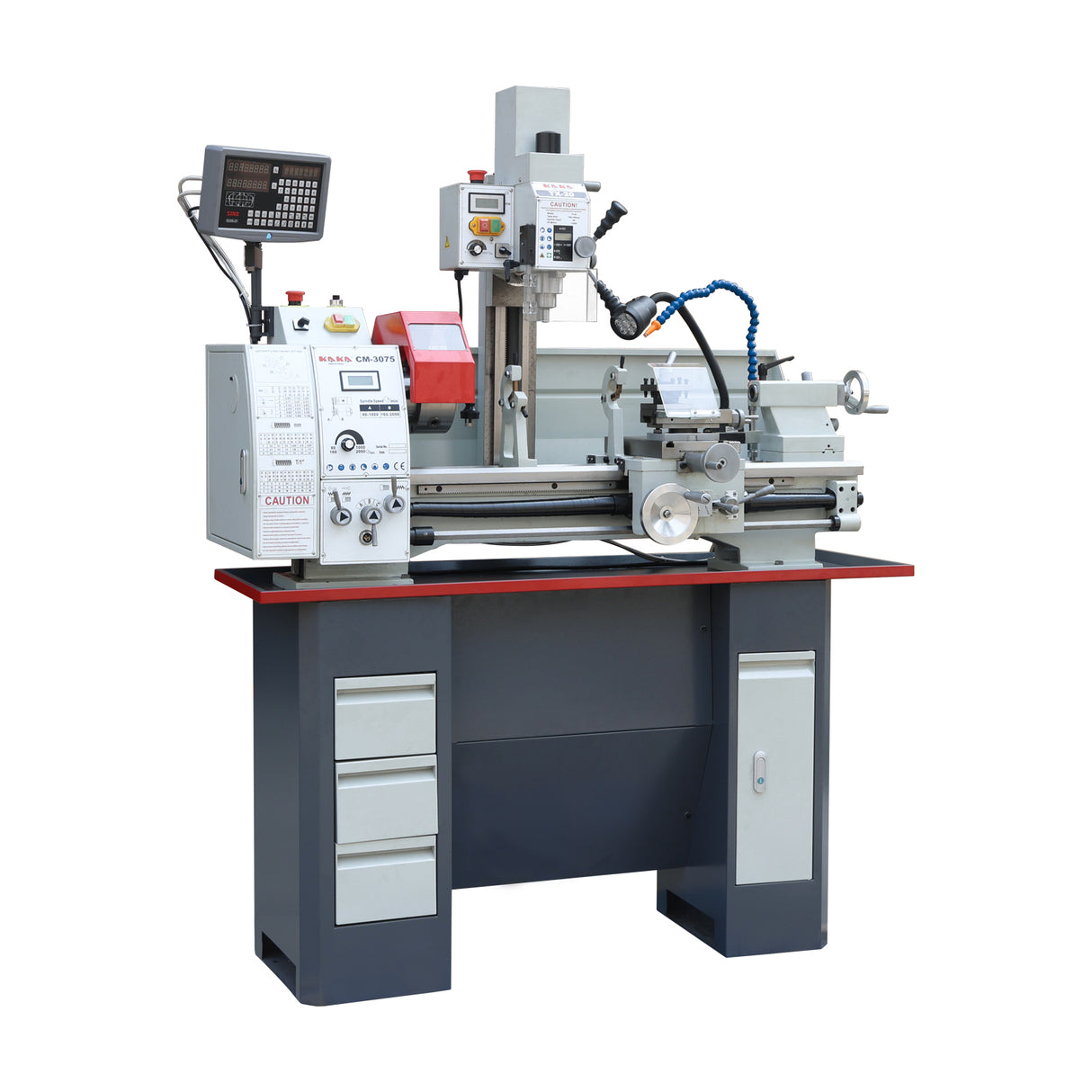

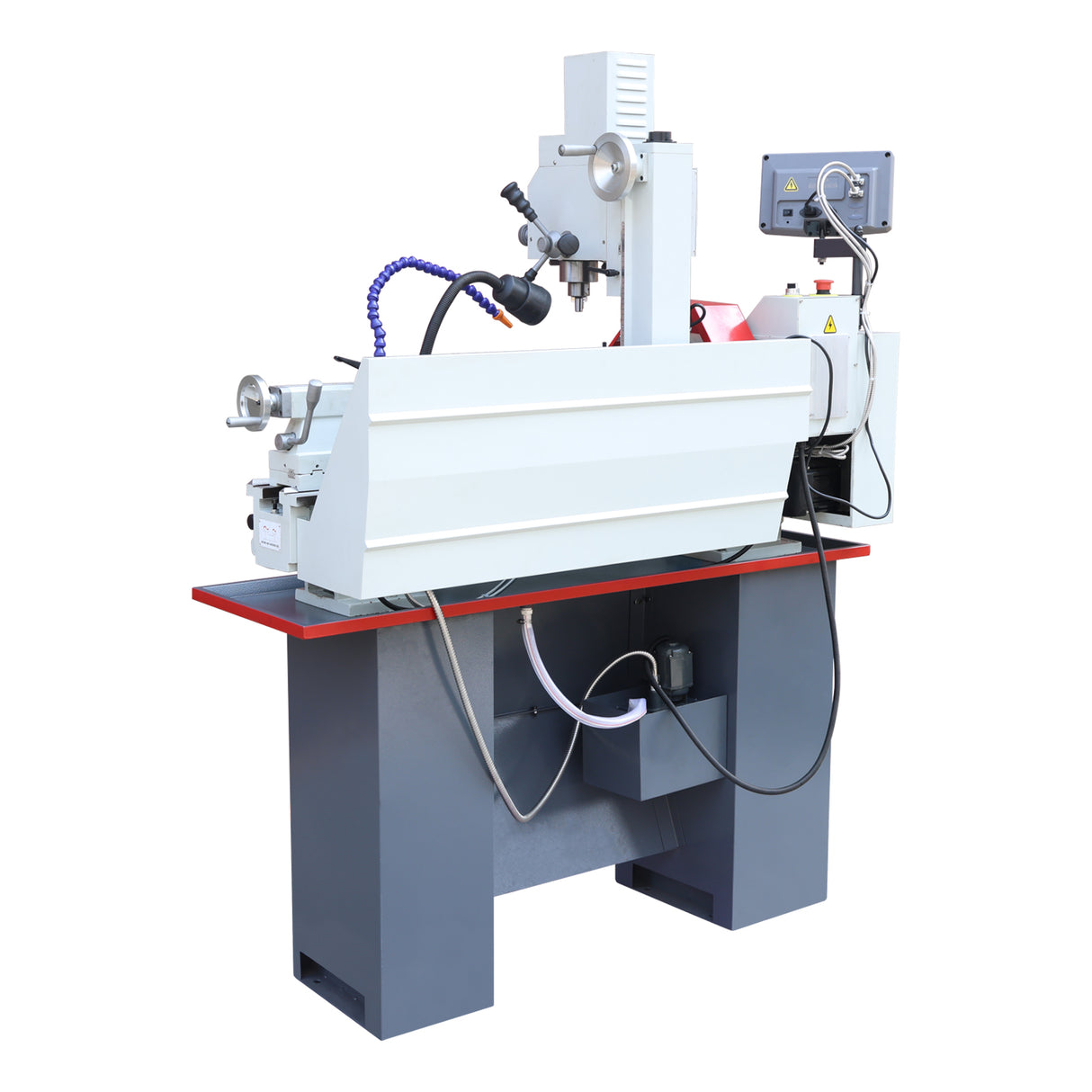

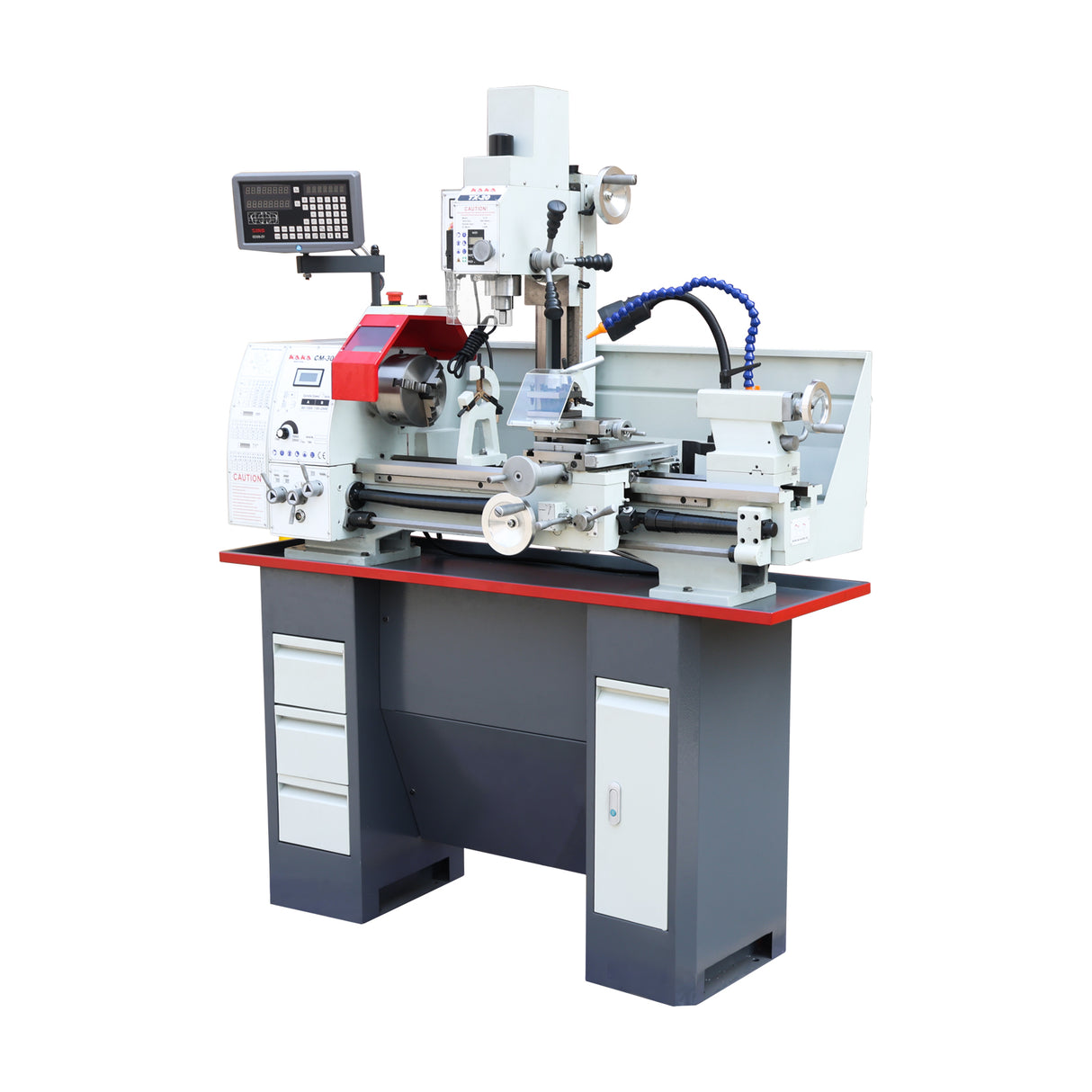

The KANG CM-3075 is a compact, professional-grade 3-in-1 Mill, Drill & Lathe Combo Machine designed for serious hobbyists, home workshops, and small fabrication businesses. It combines a precision lathe, vertical mill, and drill press into a single sturdy unit, perfect for turning, milling, drilling, and threading metal, plastics, or composites in one space-saving footprint
Massive Space & Cost Saver Comb. Machine. Three machines in one, ideal for typical garages, sheds, or small sheds where floor space is limited. No need to buy (and store) a separate lathe + mill + drill press.
Precision Lahte Mill/Drill Machine. Digital Readout (DRO) + variable speed + hardened ways give professional results on every job. Perfect for model engineering, repairs, custom parts, or small production runs.
Metric & Inch Ready Lathe. Full metric threading range (0.2–3.5 mm) alongside imperial, exactly what makers need for local projects.
Built to Last. Two separate motors mean less strain and longer life. Steady & follow rests eliminate chatter. Robust MT5/MT2 tapers handle real work, not just hobby toys.
Features
Runs on 240V single-phase power
Brushless motor

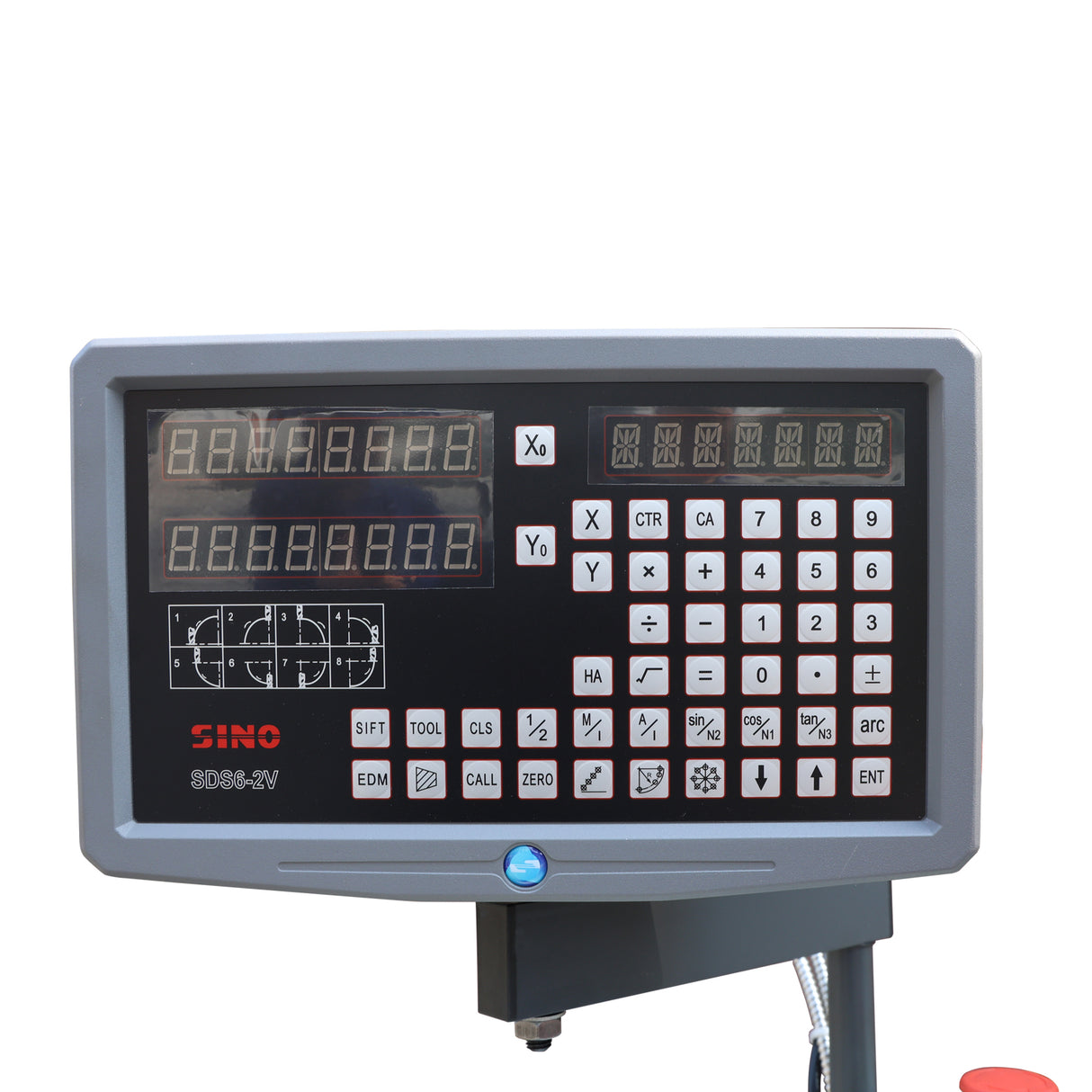

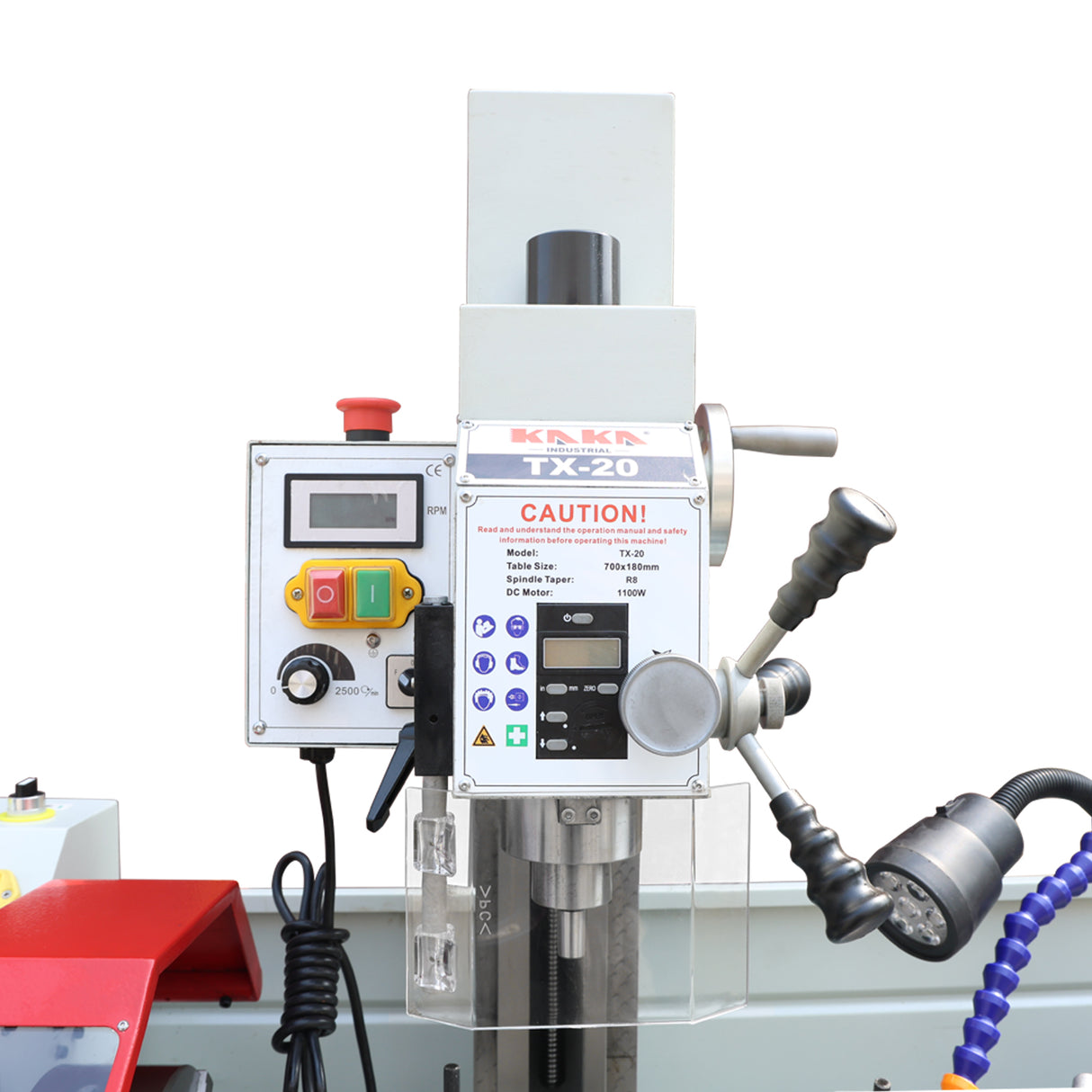

Two-axis DRO for lathe machine, and spindle speed readout for both lathe & mill/drill machines
Standard Included

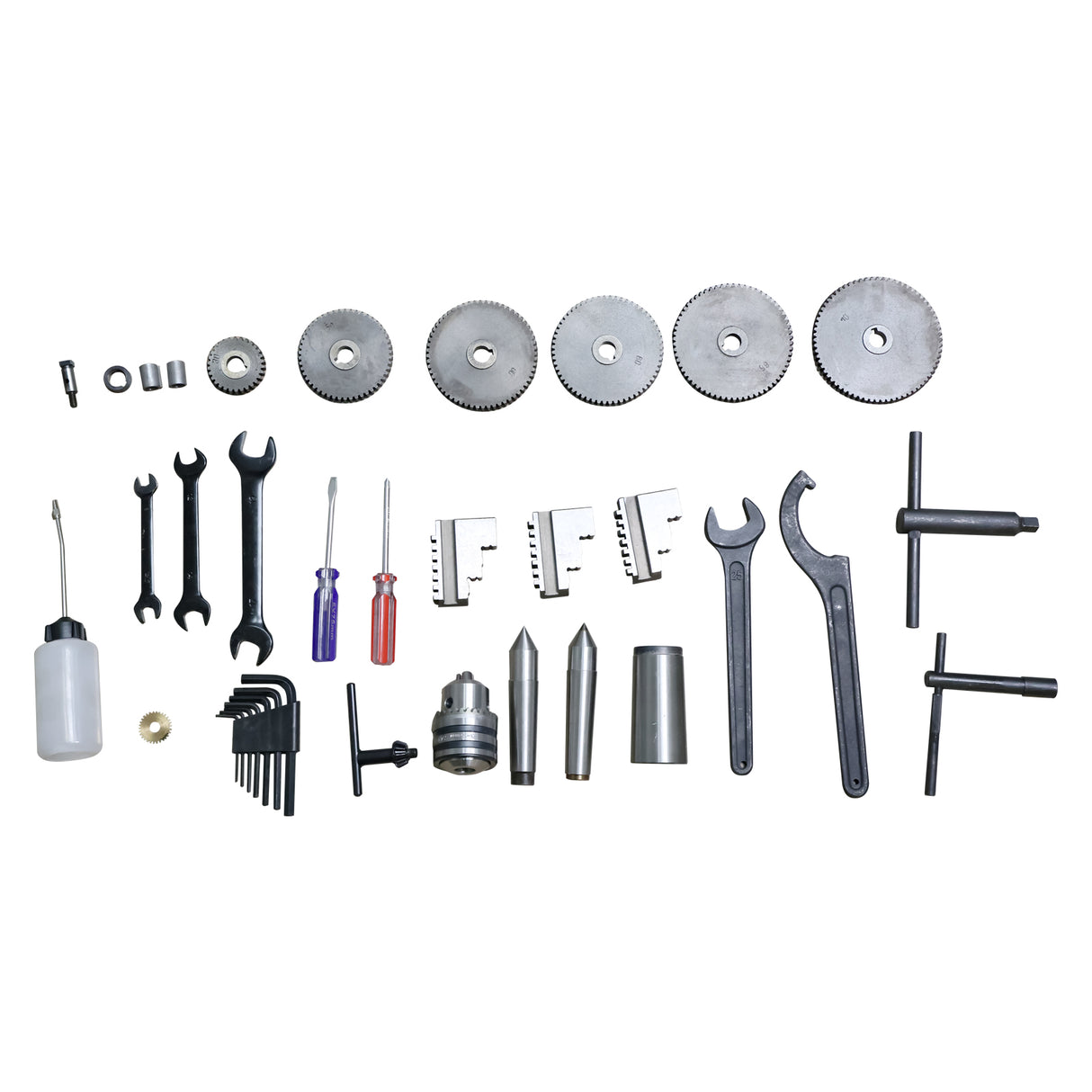

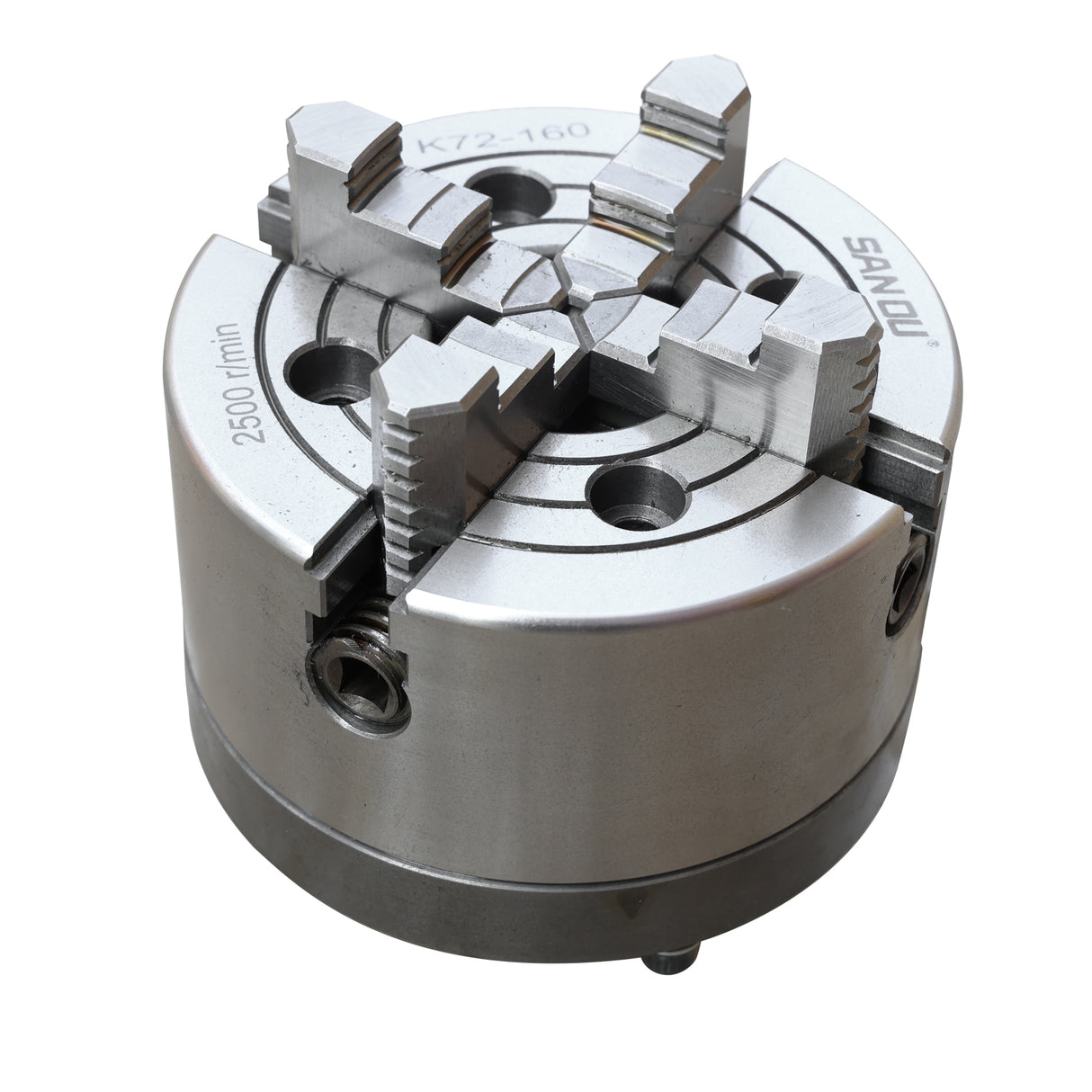

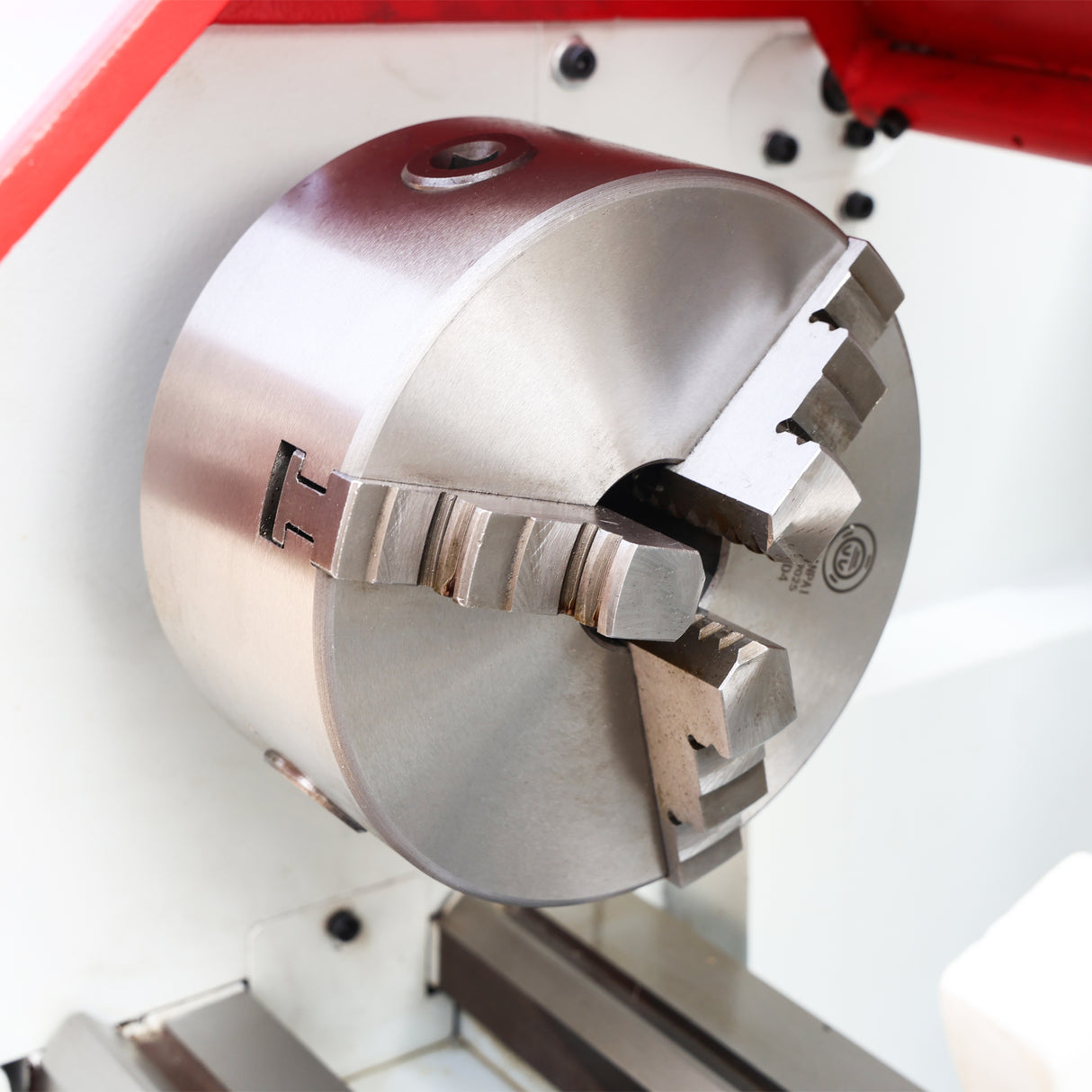

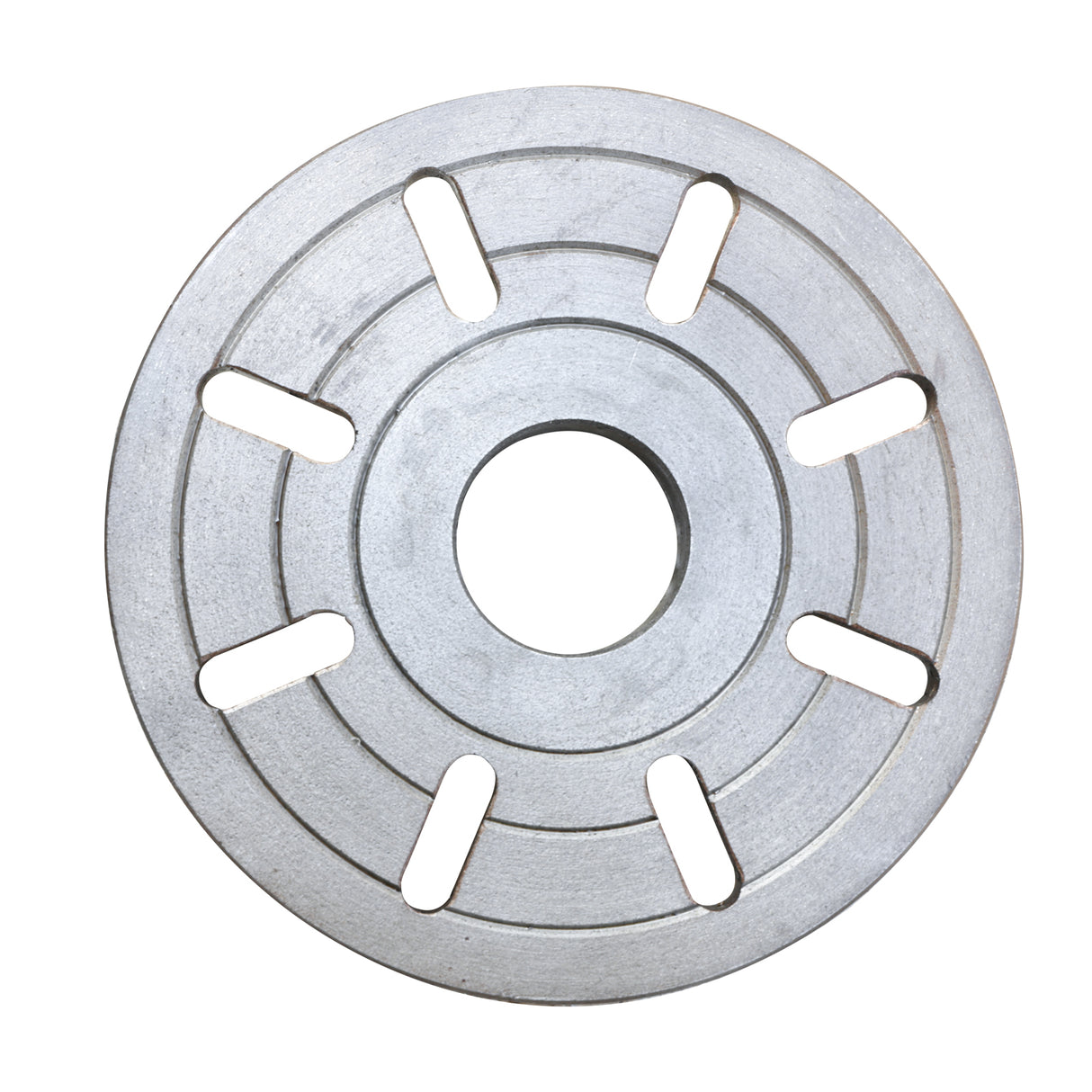

3-Jaw Chuck, 4 Jaw Chuck, Face Plate, Steady Rest, Follow Rest, Chuck Cover, Leadscrew Cover, Centers, Chip Tray, Stand, Coolant System, Working Light,
Specifications
| SKU | 160701 |
| Model | CM-3075 |
| Swing over bed | 300 mm |
| Distance between centers | 700 mm |
| Swing over the cross slide | 180 mm |
| Width of bed | 182 mm |
| Spindle bore | 38 mm |
| Spindle bore taper | MT5 |
| Spindle speed | 80-2000 rpm |

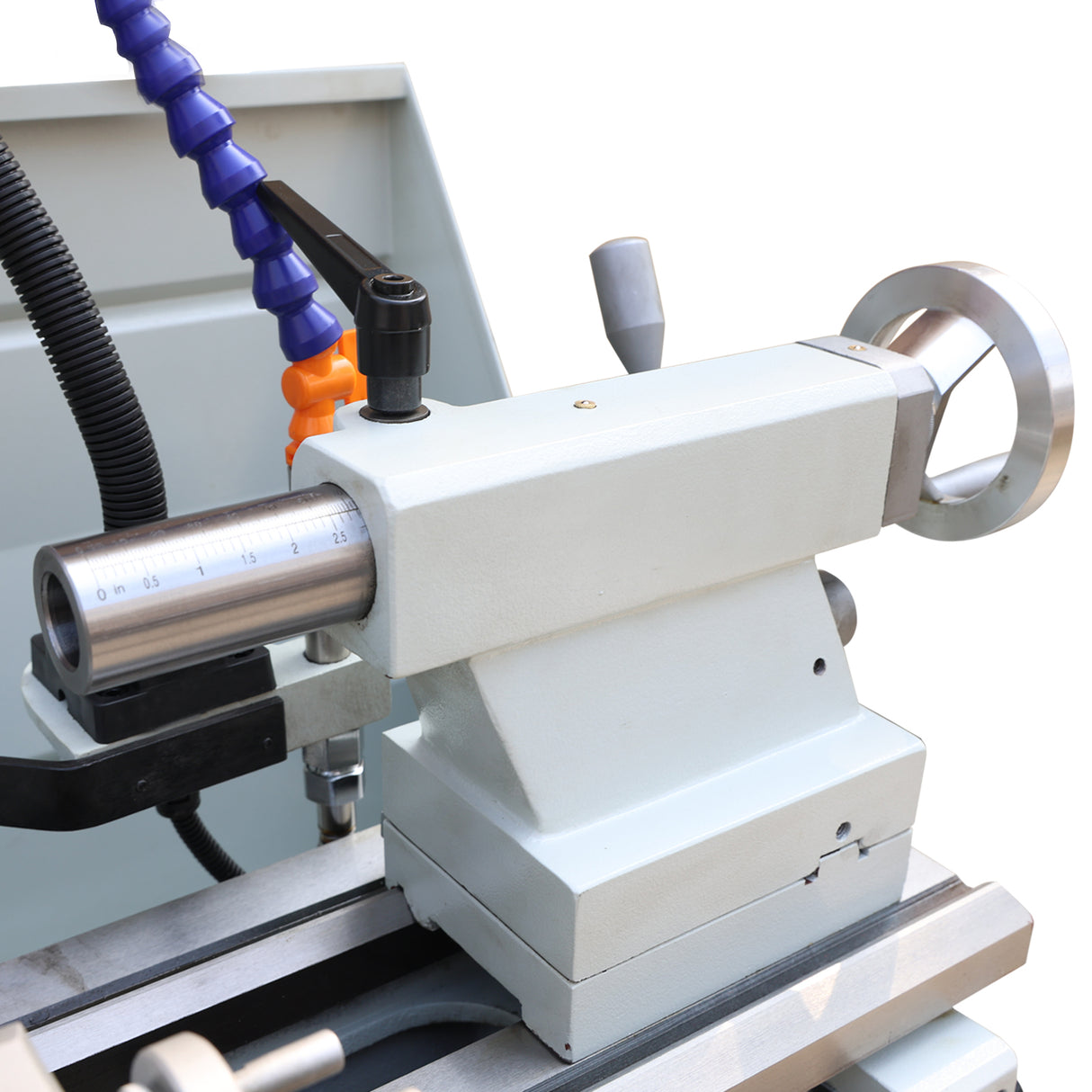

| Tailstock taper | MT3 |
| Metric threads | 0.2-3.5 mm |
| Inch threads | 8-56 TPI |
| Motor power | 1.5 kW |
| Max. drilling capacity | Max. 20mm |
| Milling cap. of cutting head | Max. 63 mm |
| Milling cap. of end mill cutter | Max. 20 mm |
| Mill spindle taper | R8 |
| Slieeve travel | 52 mm |
| T-slot | 12 mm |
| Milling spindle speed | 50-2250 mm |
| Distance of spindle to table | 380 mm |
| Milling head travel | 190 mm |
| Mill motor power | 0.75 kW |
| Packing of Body | 145x76x105cm, 390 kg |
| Packing of Stand | 81x58x55 cm, 55 kg |
