KANG INDUSTRIAL PTY LTD  |  SKU: 162012

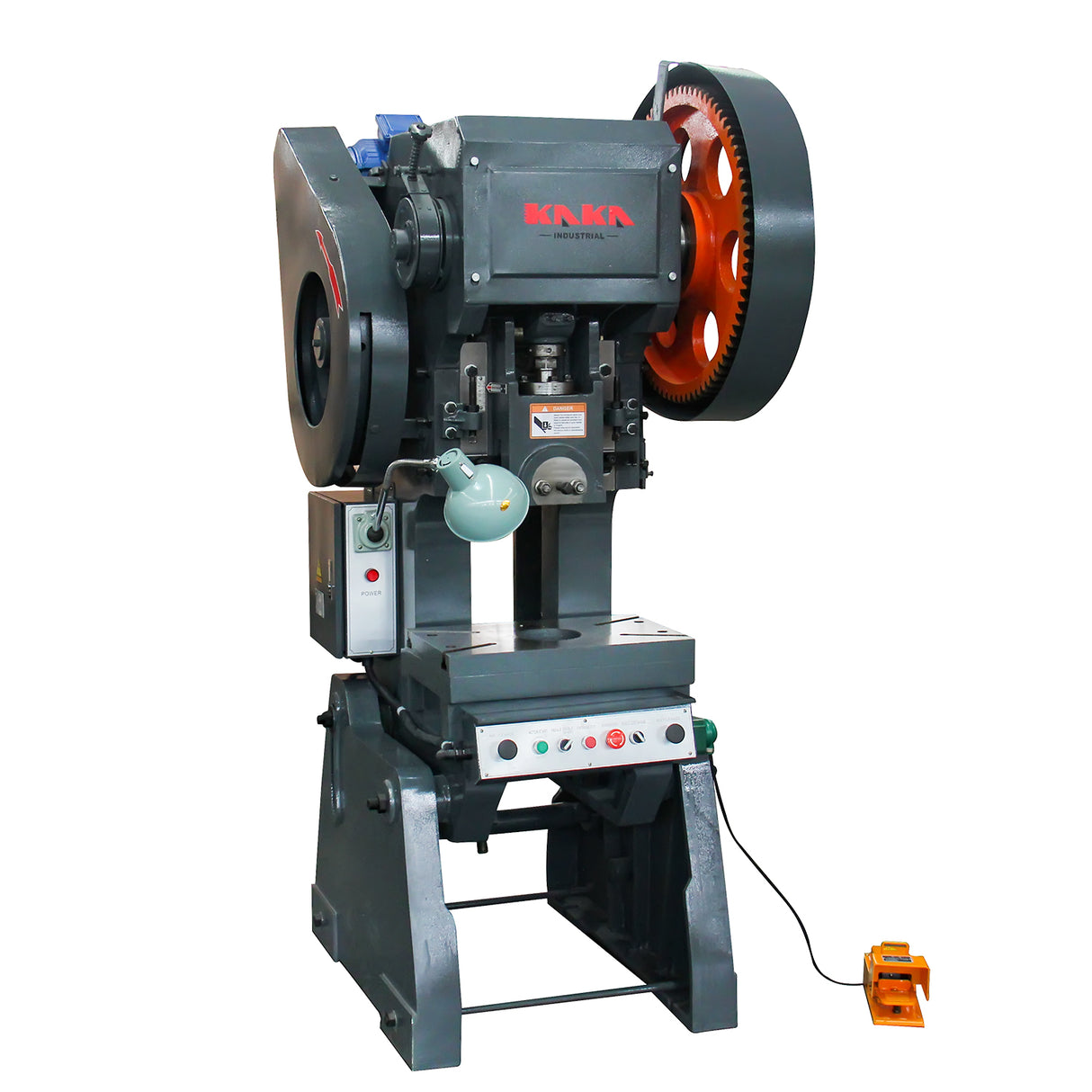

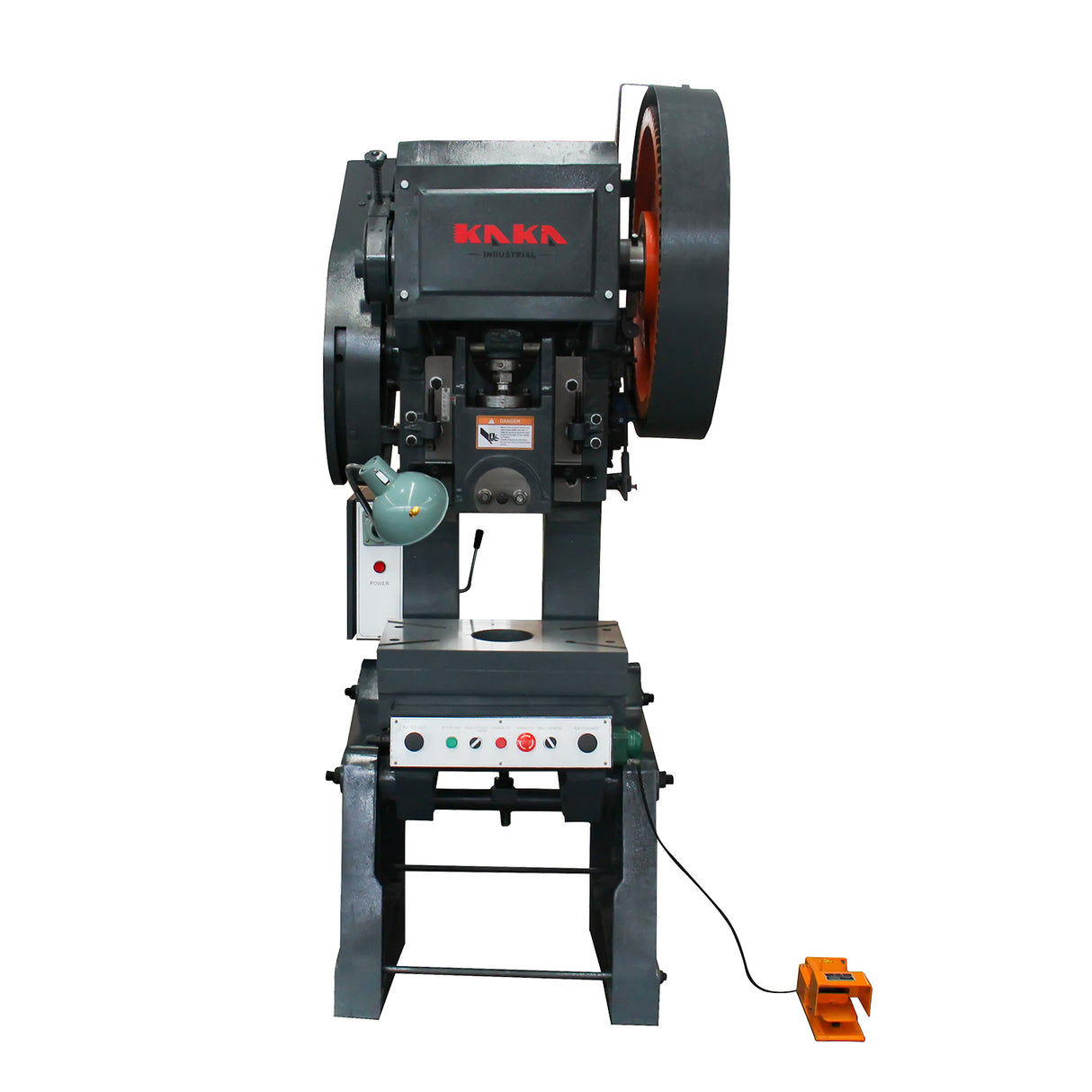

Kang Industrial JB23-25 Mechanical Press, 25 Ton C Frame Press Machine, Inclinable Punching Machine

$14,300.00
Tax included Shipping calculated at checkout.

Care information

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description
Video
Manual
Warranty
Summary of Return Policy

Kang Industrial JB23-25 Mechanical Press Machine

Economic Press Machine, 25-Ton Pressure



Features

C frame, the inclinable body can slide the material and scrap easily

Cast iron body, stable performance

Suitable for blanking, forming, curving, and flat stretching on punch & press function.

Rigid rotated bond clutch, simple structure, easy operation


Specifications

SKU 162012
Model JB23-25
Nominal force 250 KN
Nominal travel 2.5 mm
Slide travel 70 mm
Number of strokes 65 times per min.
Max. die height 200 mm
Die height adjustment 40 mm
Distance from slide block center to frame 200 mm
Table size 320x500 mm
Dimension of working table hole 120 mm
Table thickness 50 mm
Slide area 170x220 mm
Shank hole 40x60 mm
Distance between columns 240 mm
Motor Y100L-4, 3.0 KW
Max. inclinable angle 25°
Packing size 218x106x139 cm
N.W./G.W. 1650/1750 kg



!! Please Note !!

1. The following chart is Regional Australia, if your location belongs to one of them will have extra cost for the freight, please contact us for the extra freight cost payment!

State Postal code
QLD 2372,2460-2484,2486-2490,4300-4449,4550-4699,9597-9799,4450-4499,4700-4899,9920-9999
SA 2888,5200-5749
WA 6215-6797
TAS 7155-7999
NT 0800-0887


2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

1. KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

KANG INDUSTRIAL PTY LTD

Kang Industrial JB23-25 Mechanical Press, 25 Ton C Frame Press Machine, Inclinable Punching Machine

$14,300.00

Kang Industrial JB23-25 Mechanical Press Machine

Economic Press Machine, 25-Ton Pressure



Features

C frame, the inclinable body can slide the material and scrap easily

Cast iron body, stable performance

Suitable for blanking, forming, curving, and flat stretching on punch & press function.

Rigid rotated bond clutch, simple structure, easy operation


Specifications

SKU 162012
Model JB23-25
Nominal force 250 KN
Nominal travel 2.5 mm
Slide travel 70 mm
Number of strokes 65 times per min.
Max. die height 200 mm
Die height adjustment 40 mm
Distance from slide block center to frame 200 mm
Table size 320x500 mm
Dimension of working table hole 120 mm
Table thickness 50 mm
Slide area 170x220 mm
Shank hole 40x60 mm
Distance between columns 240 mm
Motor Y100L-4, 3.0 KW
Max. inclinable angle 25°
Packing size 218x106x139 cm
N.W./G.W. 1650/1750 kg



!! Please Note !!

1. The following chart is Regional Australia, if your location belongs to one of them will have extra cost for the freight, please contact us for the extra freight cost payment!

State Postal code
QLD 2372,2460-2484,2486-2490,4300-4449,4550-4699,9597-9799,4450-4499,4700-4899,9920-9999
SA 2888,5200-5749
WA 6215-6797
TAS 7155-7999
NT 0800-0887


2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.
