KANG INDUSTRIAL PTY LTD  |  SKU: 172410

Kang Industrial HNM-6 Notcher, 6mm Capacity, Fixed Angle, 250mm Notcher Size

$9,460.00
Tax included Shipping calculated at checkout.


Pre-order now to make sure you don't miss out!

As soon as it's in stock, we will ship it to you.

Subscribe to our newsletter

Get the latest updates on all our new collections, sales, offers and product arrival dates.

Highlight title

Text to highlight a key feature of your product

Description

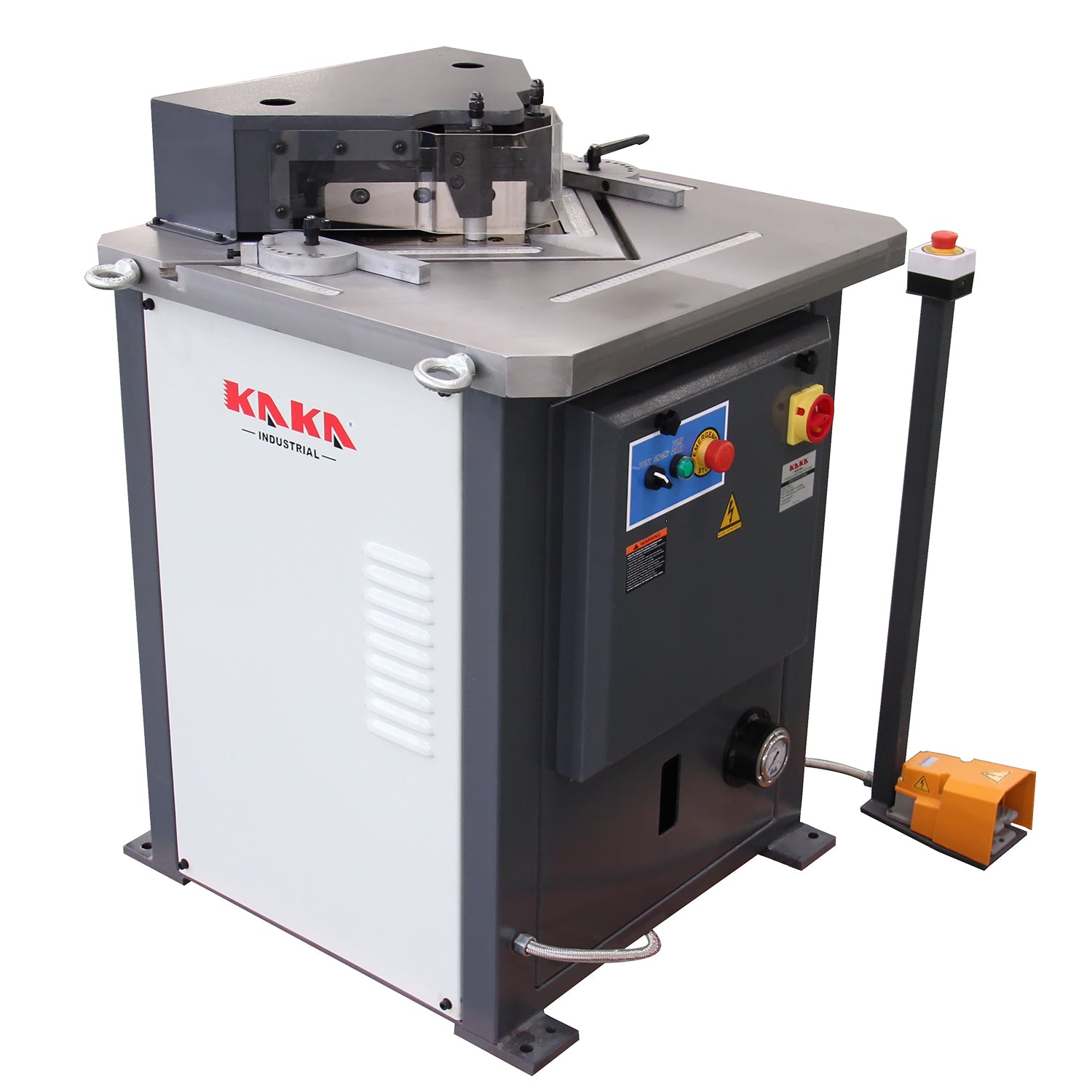

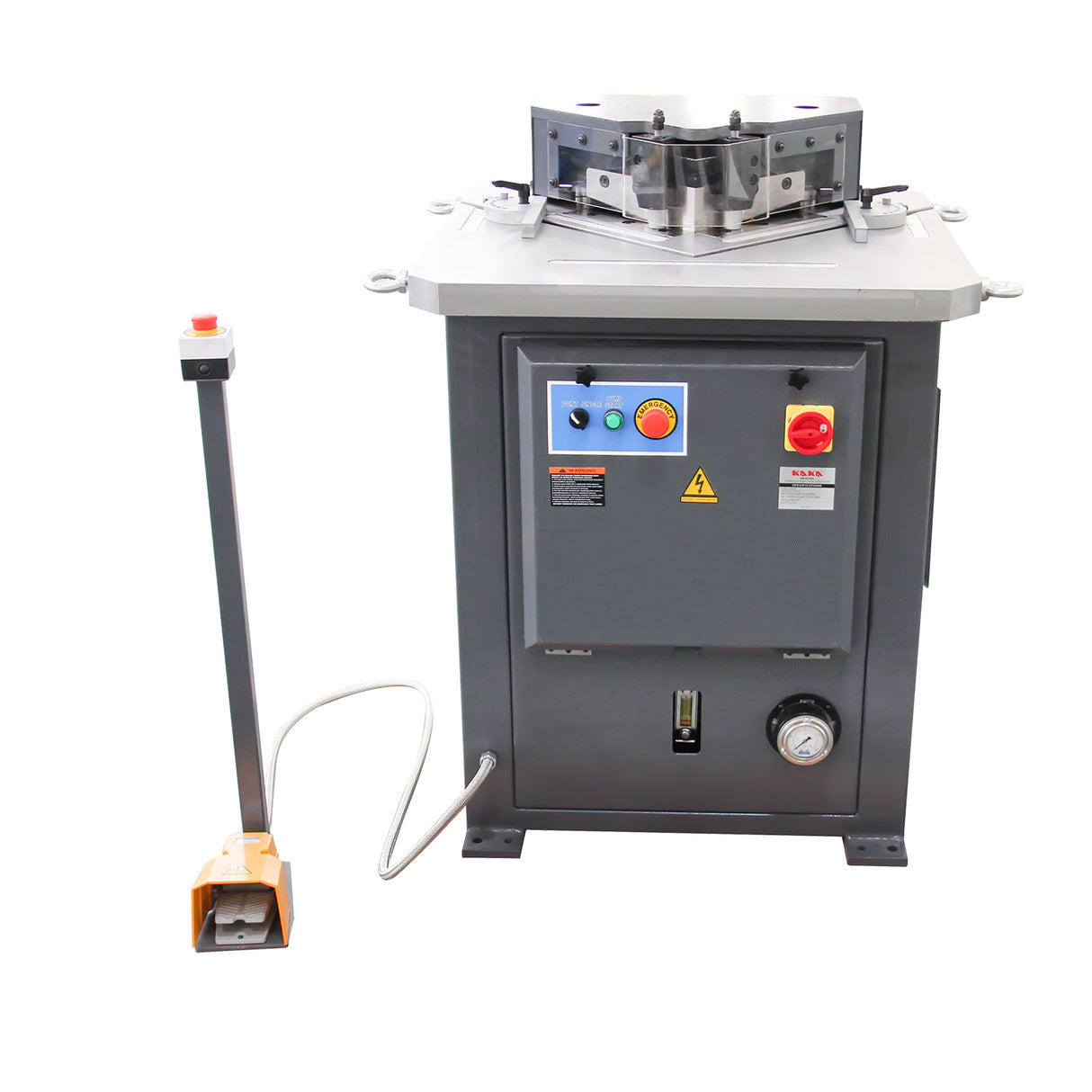

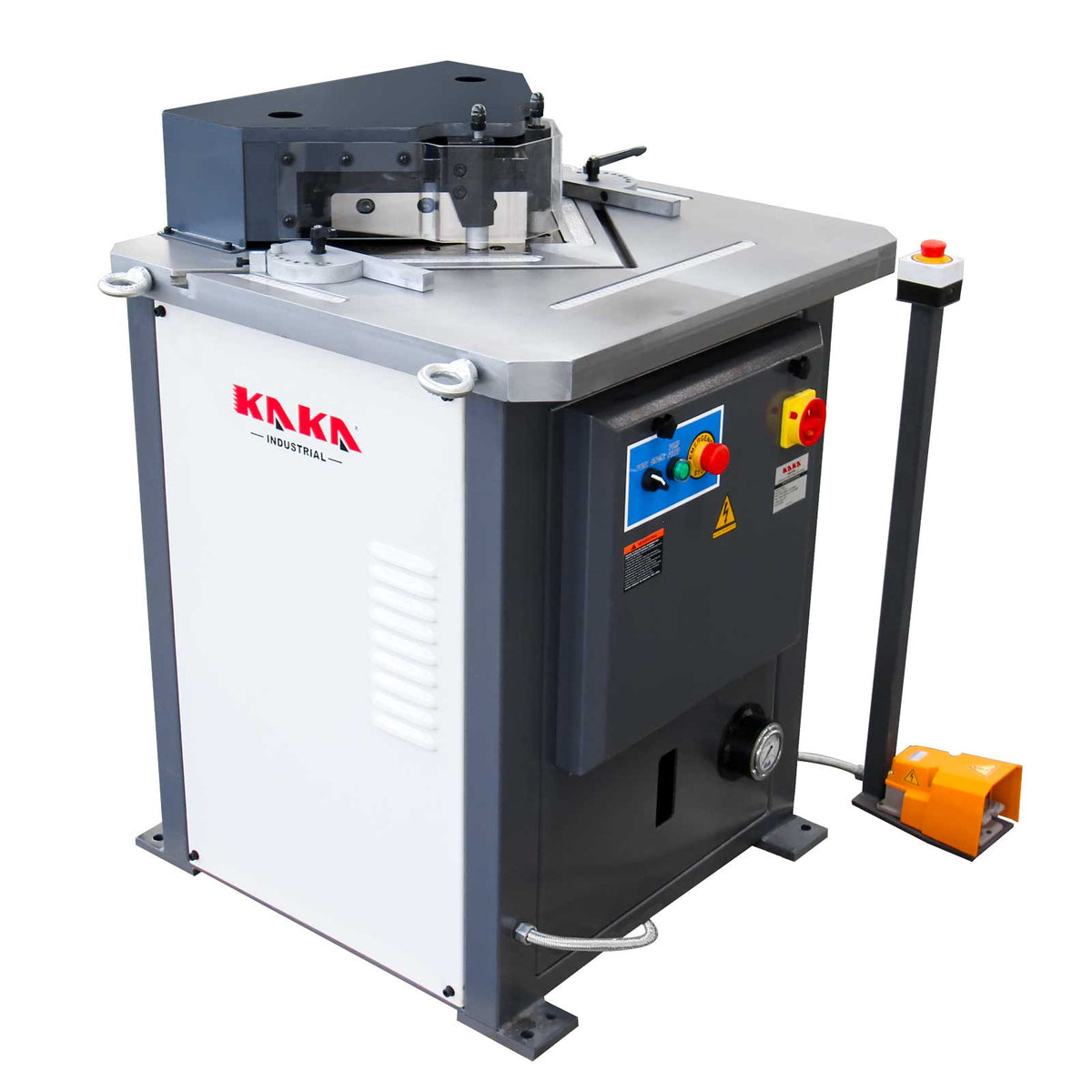

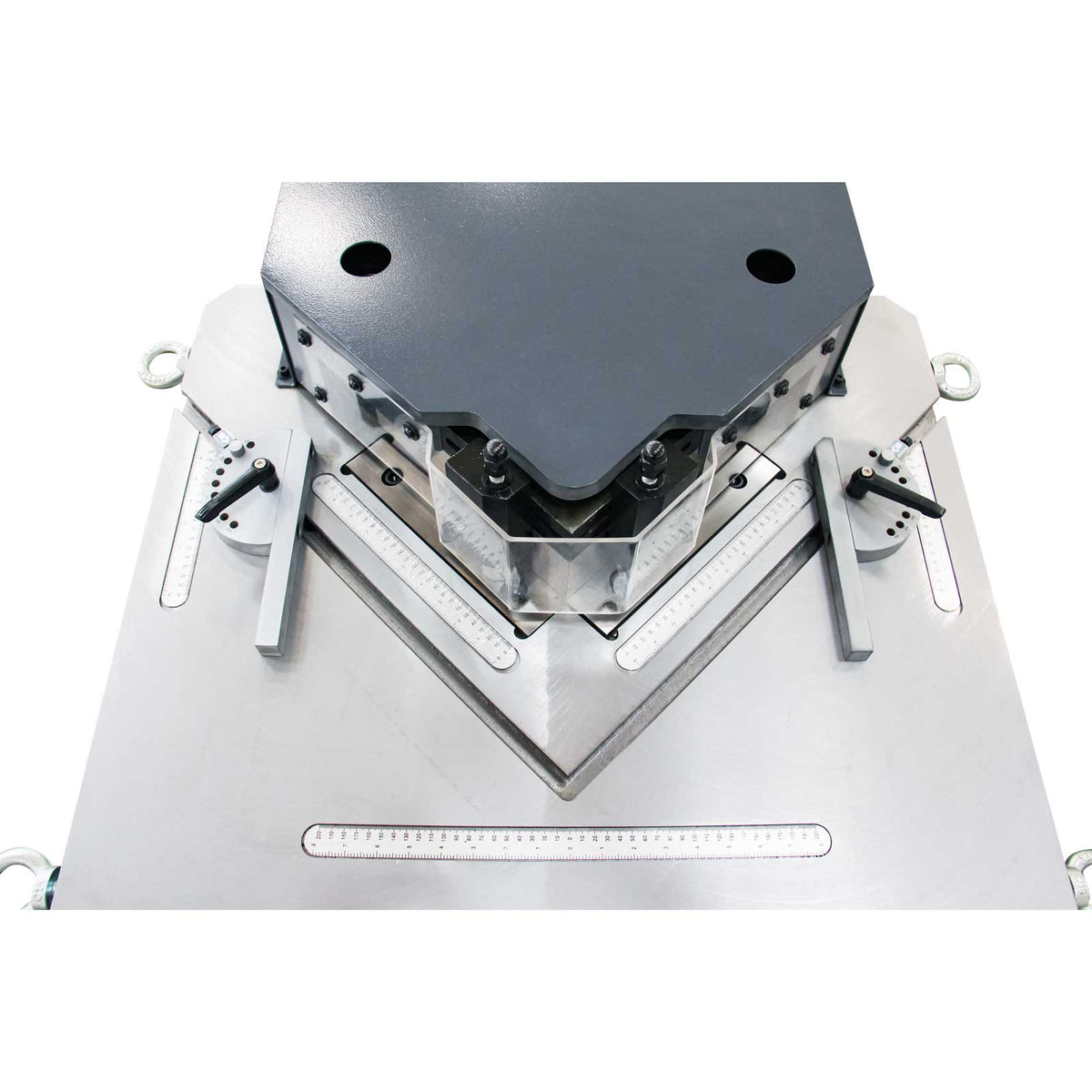

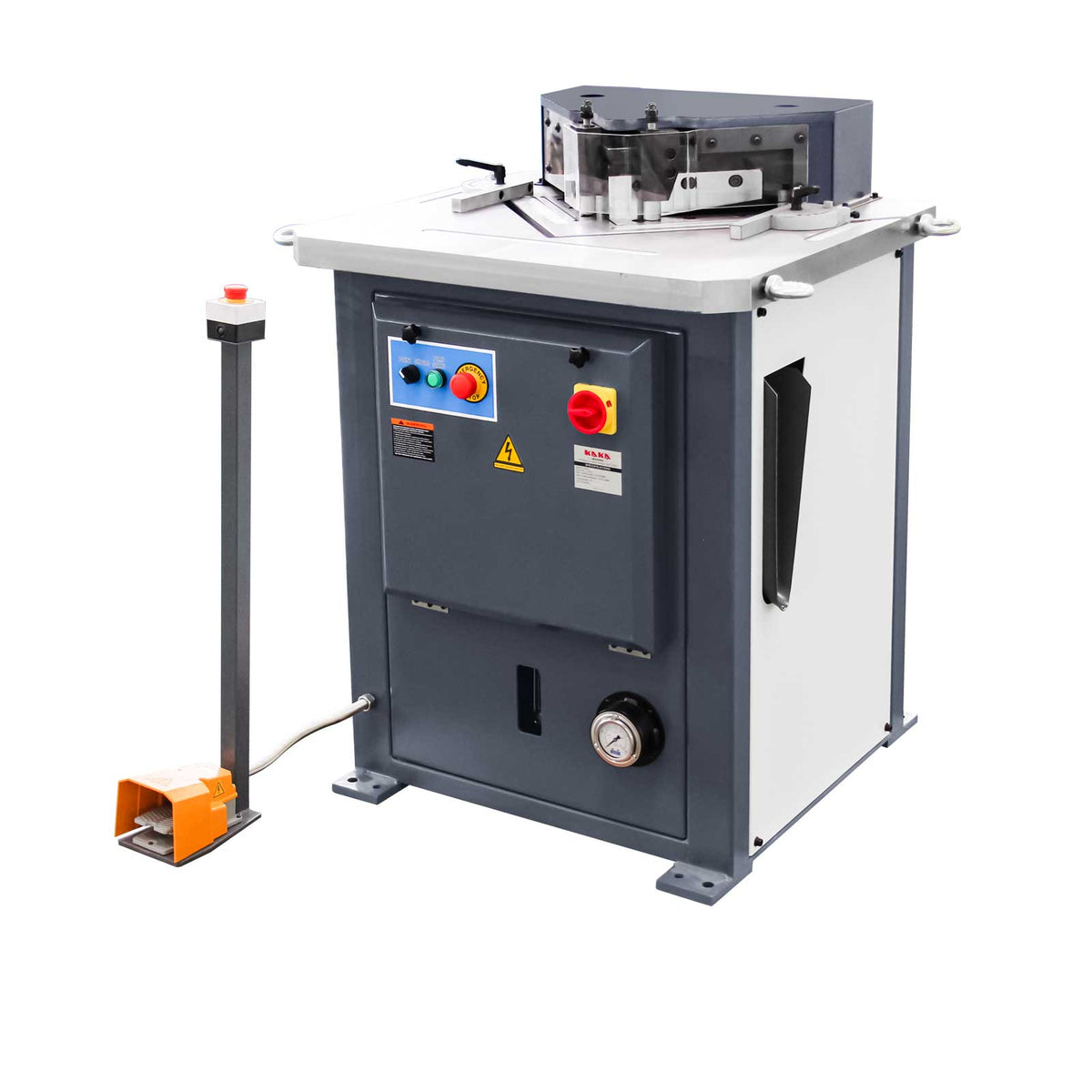

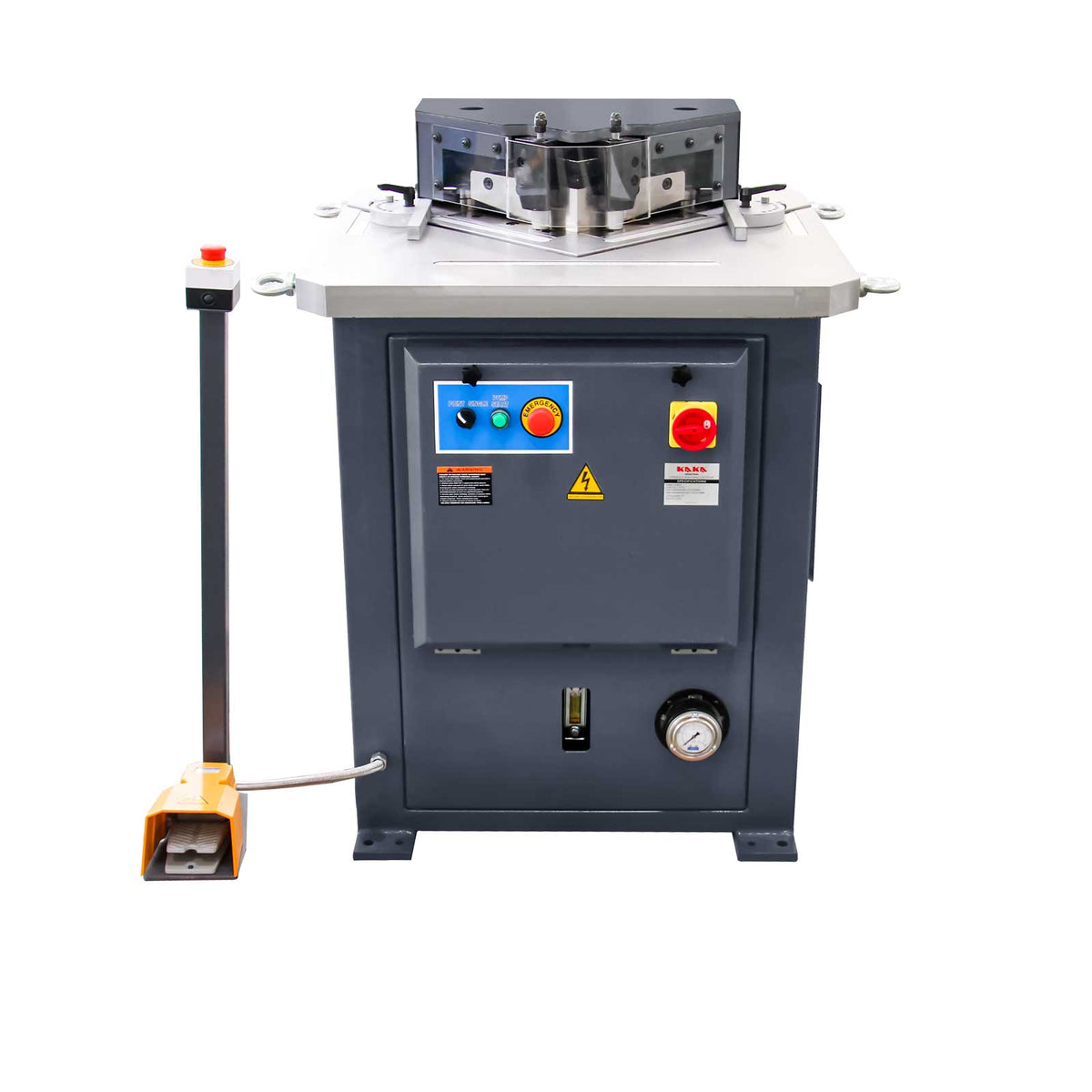

Kang Industrial Hydraulic Angle Notcher HNM-6

Fixed angle notcher, 250x6.5mm capacity



Features

Runs on 415V power, 4.0 KW motor

Up to 12 Mpa working pressure

Heavy duty angle notcher, notching up to 6.5mm plate

Blade length 250mm

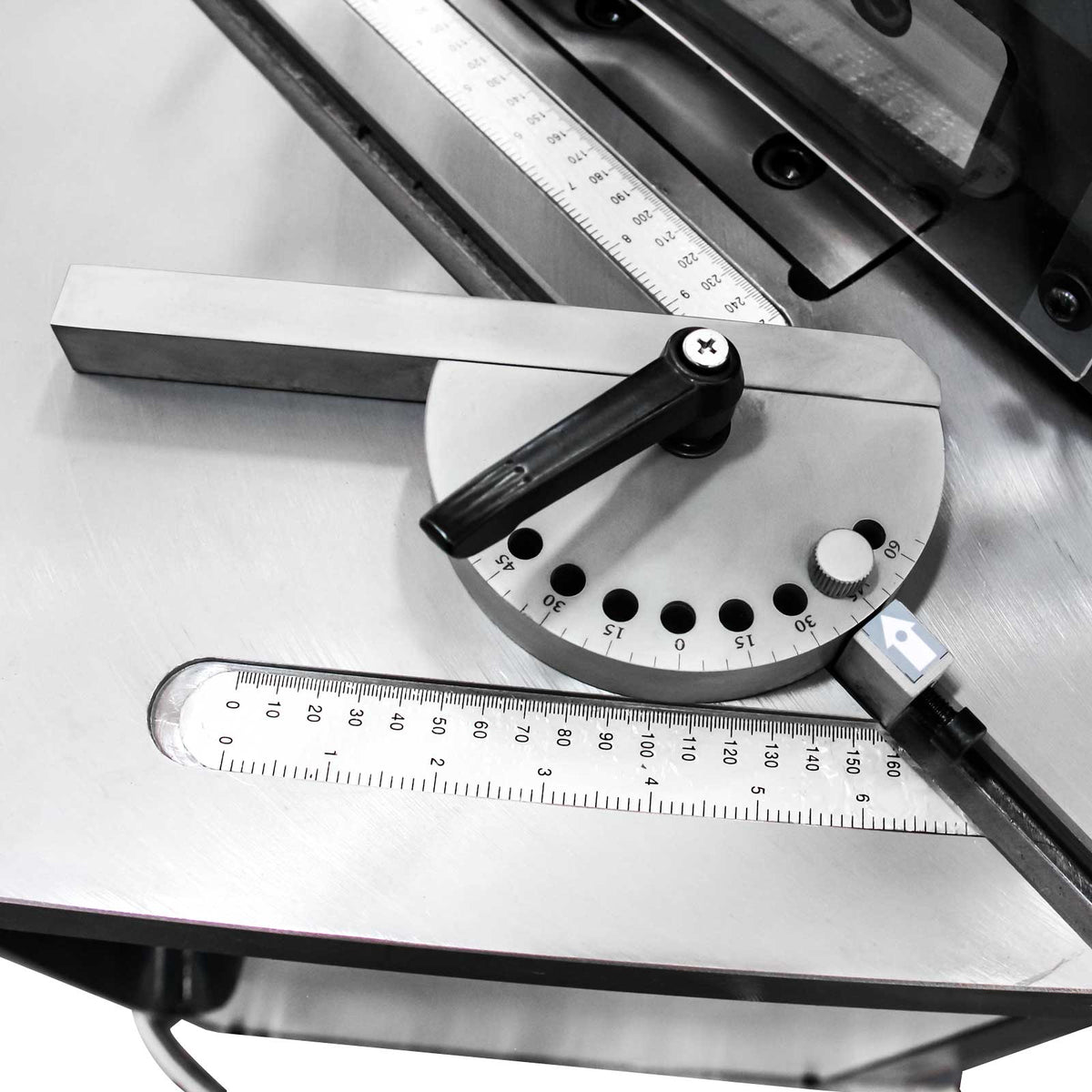

Adjustable stops with fixed handle for quick setup notcher

Plastic cover over the cutting blade for safety notching and see the cutting line

Hold down clamps to ensure the plate not moving when cutting the plate



Specifications

SKU 172410
Model HNM-6
Cutting angle 90°
Max. cutting length 250 mm
Max. cutting thickness 6.5 mm
No. of stroke 24 times per min
Table size 810x750 mm
Motor power 4 kW
Motor speed 1440 rpm
Oil tank volume 35L
Max. working pressure 12 MPA
Packing size 101x85x137 cm
N.W./G.W. 630/675 kg
