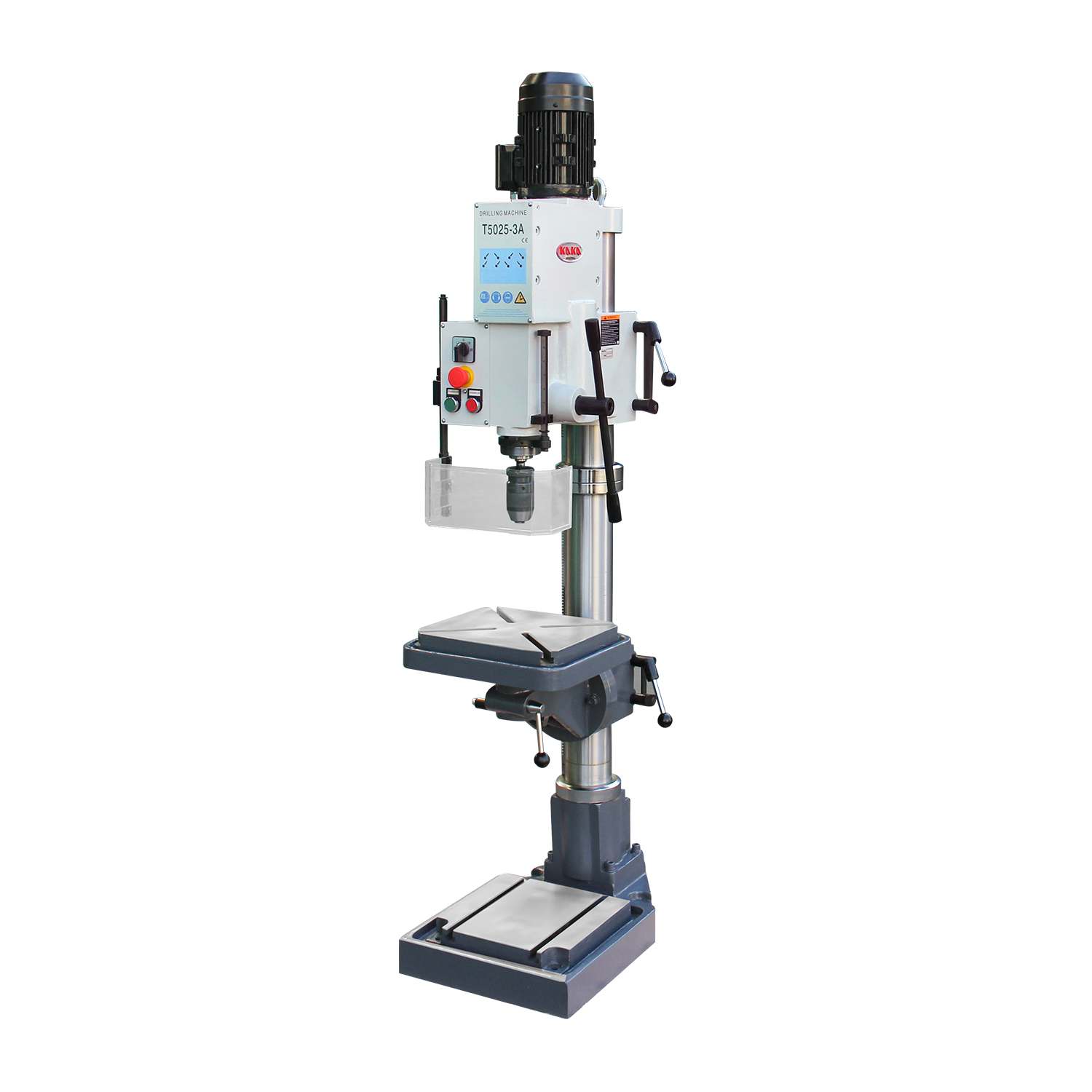

KANG INDUSTRIAL Pillar Drill Machine
MT3 spindle, gear-driven
Features
Gear drive, 8 different drilling speeds
1HP motor runs on 415V-50HZ-3PH power
Both the head and the working table lift with a fast locking device

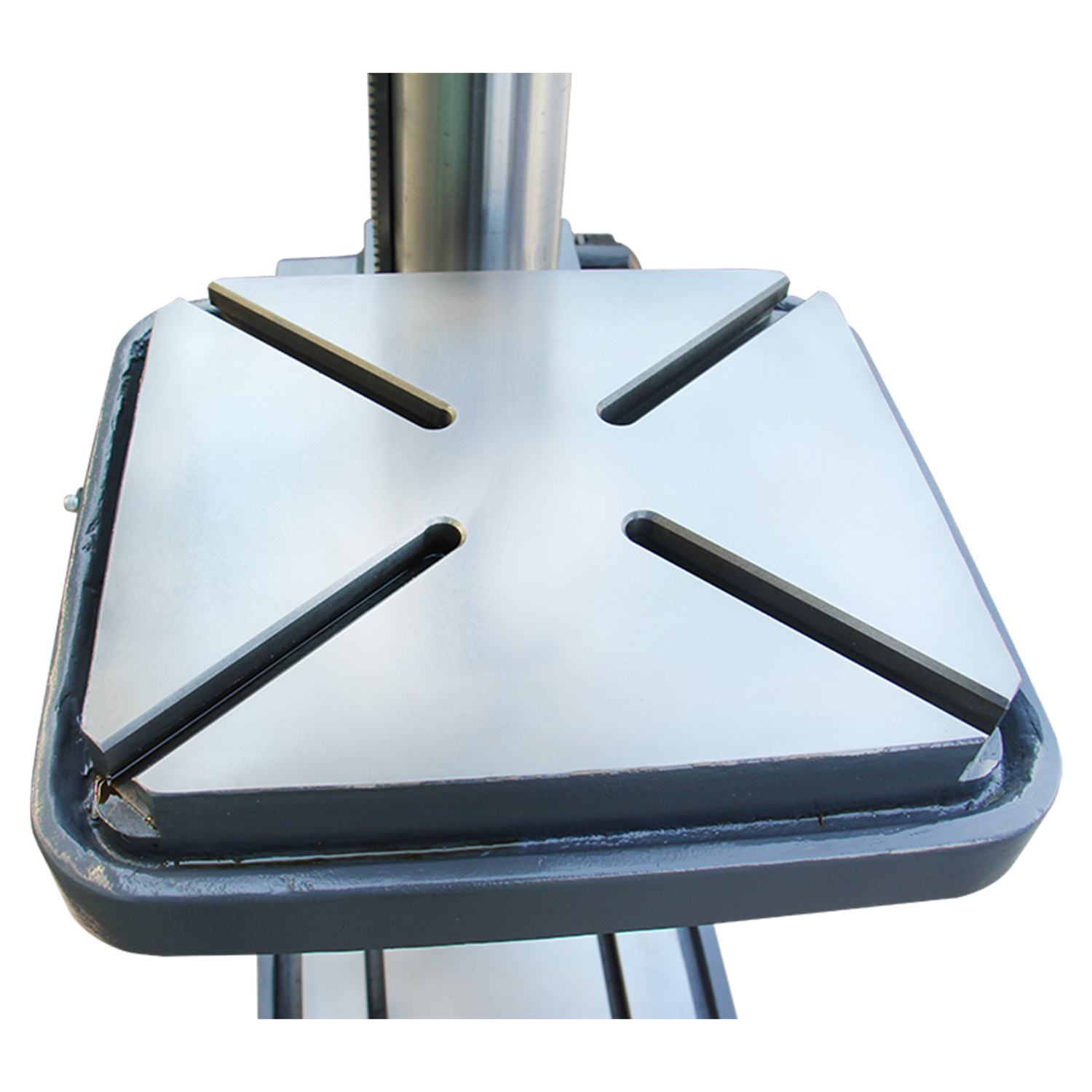

Table tilt left and right up to 50°

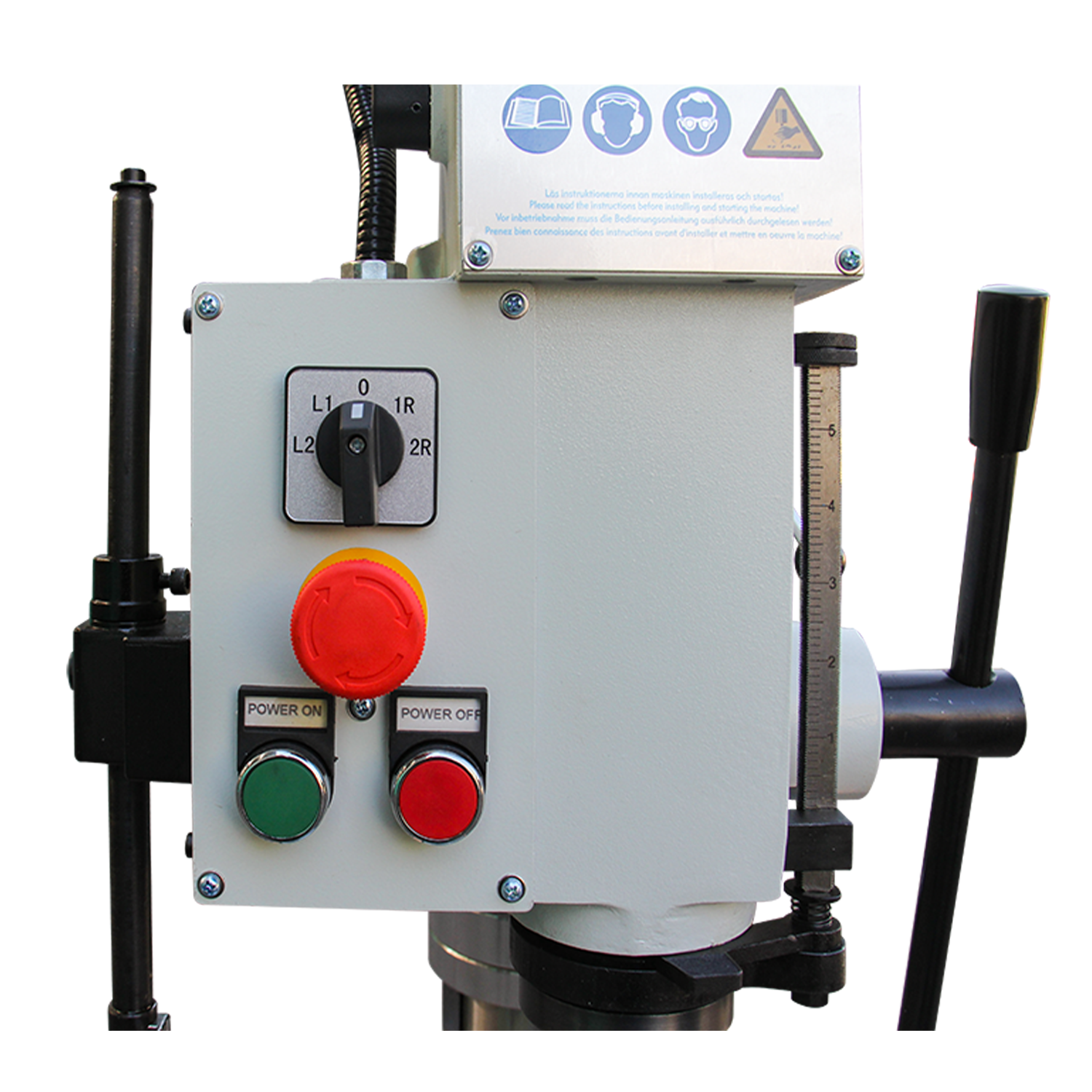

Forward / Reverse turning switch
A gauge helps set the drilling depth
Includes a protective guard around the spindle for your safety
Standard with a Key-less Drill Chuck
Specifications
| SKU | 190042 |
| Model | T5025-3A |
| Spindle speed | 100, 205, 345, 440, 690, 885, 1450, 2900 rpm |
| Max. drilling dia. | 25 mm |
| Max. spindle travel | 140 mm |
| Morse taper | MT3 |
| Motor power | 0.55/0.75 kW |
| Spindle nose to column | 225 mm |
| Spindle nose to table | 600 mm |
| Spindle nose to base | 1075 mm |
| Table size | 315x275 mm |
| Base size | 305x297 mm |
| Packing size | 166x60x46 cm |
| N.W./G. W. | 249/279 kg |
