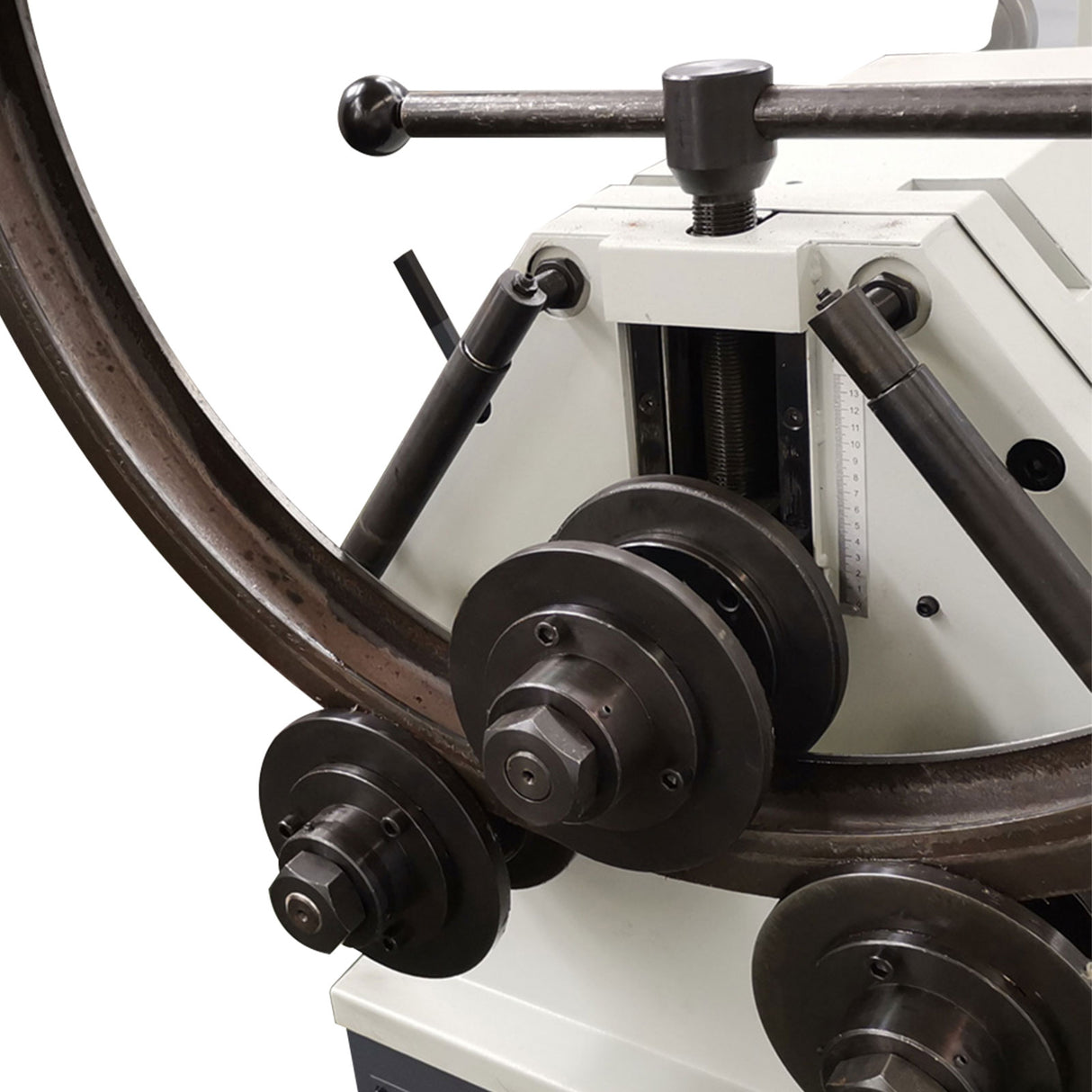

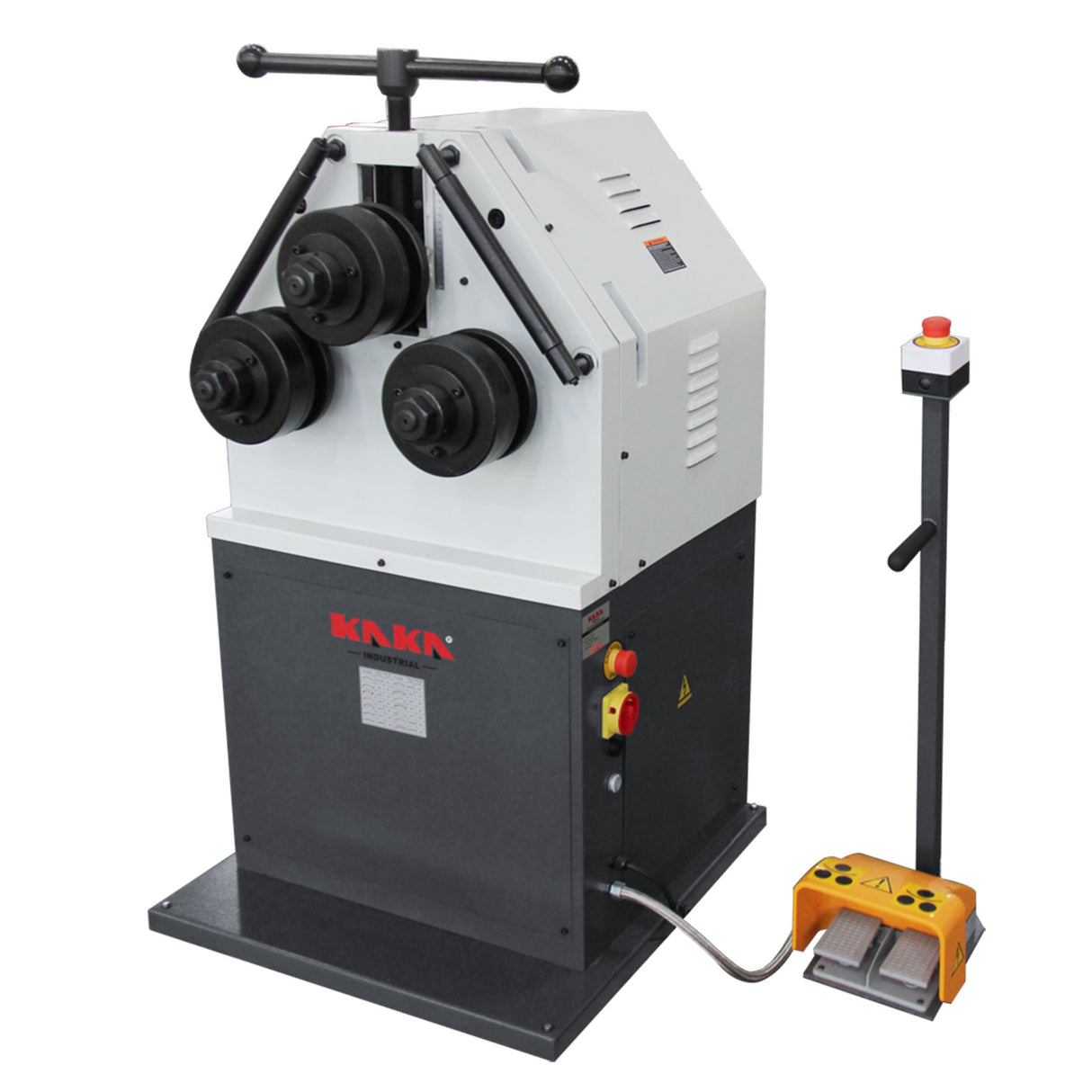

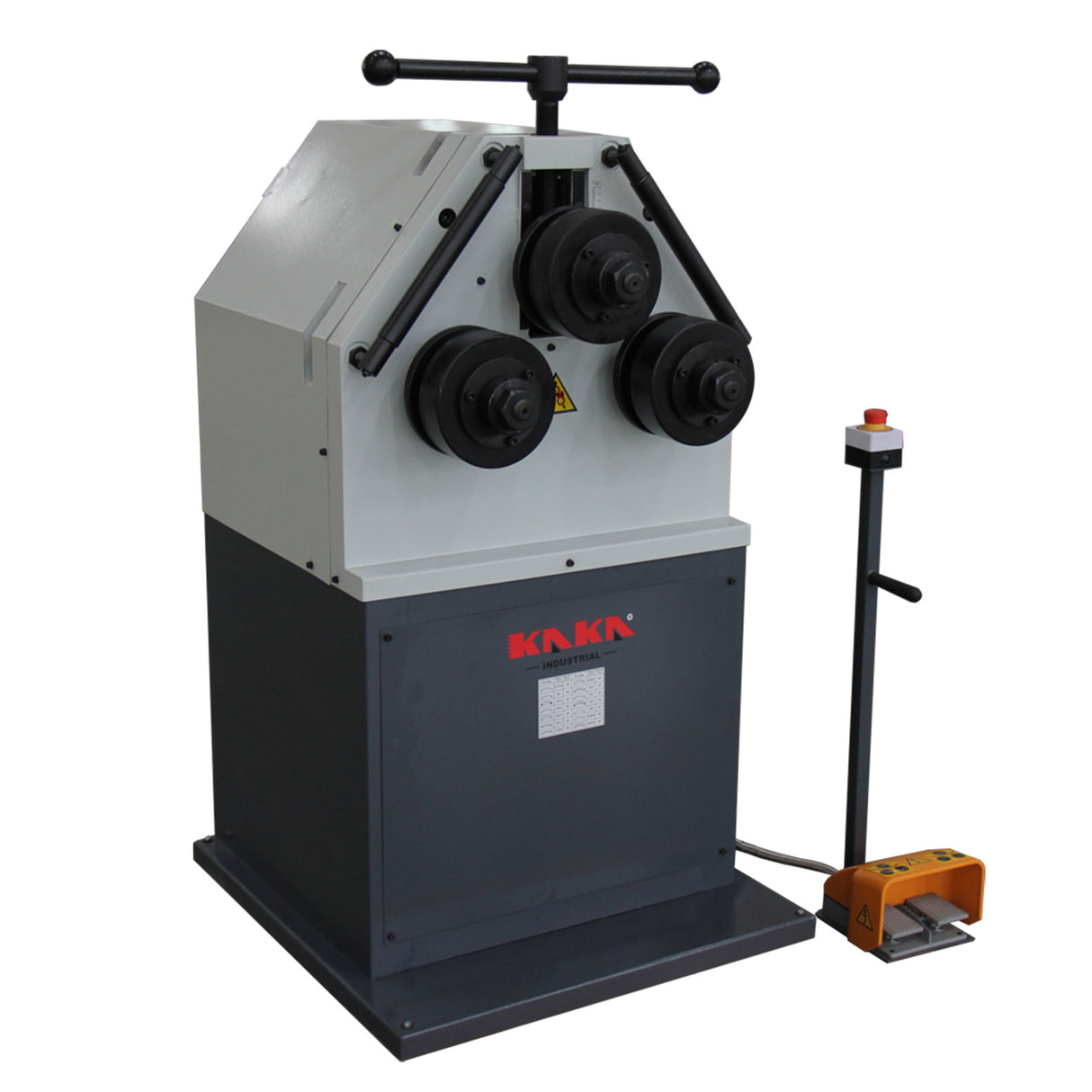

KANG Motorised Section Roller RBM-50HV
KANG Motorised Section & Pipe Rolling Machine RBM-50HV is a heavy-duty, powered ring roller designed for professional metal fabricators, auto restorers, chassis builders, artists, and workshop owners. It efficiently bends and rolls various metal profiles into precise rings, curves, hoops, and circles
Flexible Horizontal or Vertical Operation. The machine can be easily set up in either horizontal or vertical working position. This versatility gives fabricators greater flexibility in tight workshop spaces, allows for safer and more ergonomic handling of long or heavy material, and makes it easier to produce a wider variety of parts (e.g., large rings, hoops, or architectural curves).
Powerful & Efficient Performance Ring Roller. 3 HP 415V 3-phase motor with 9 RPM speed delivers smooth, consistent torque and precise bends. Foot-pedal forward/reverse control allows hands-free operation for improved safety and accuracy.
High Capacity & Versatility. Handles larger stock (up to 70mm round tube, 25mm solid square, 60x60x5mm Angles, and 15x100mmflat bars with the correct dies). Ideal for exhaust pipes, roll cages, handrails, gates, trailers, agricultural equipment, decorative metalwork, and structural components. Custom dies available for even more applications.
Features
50mm drive shaft, handened and ground for smooth running

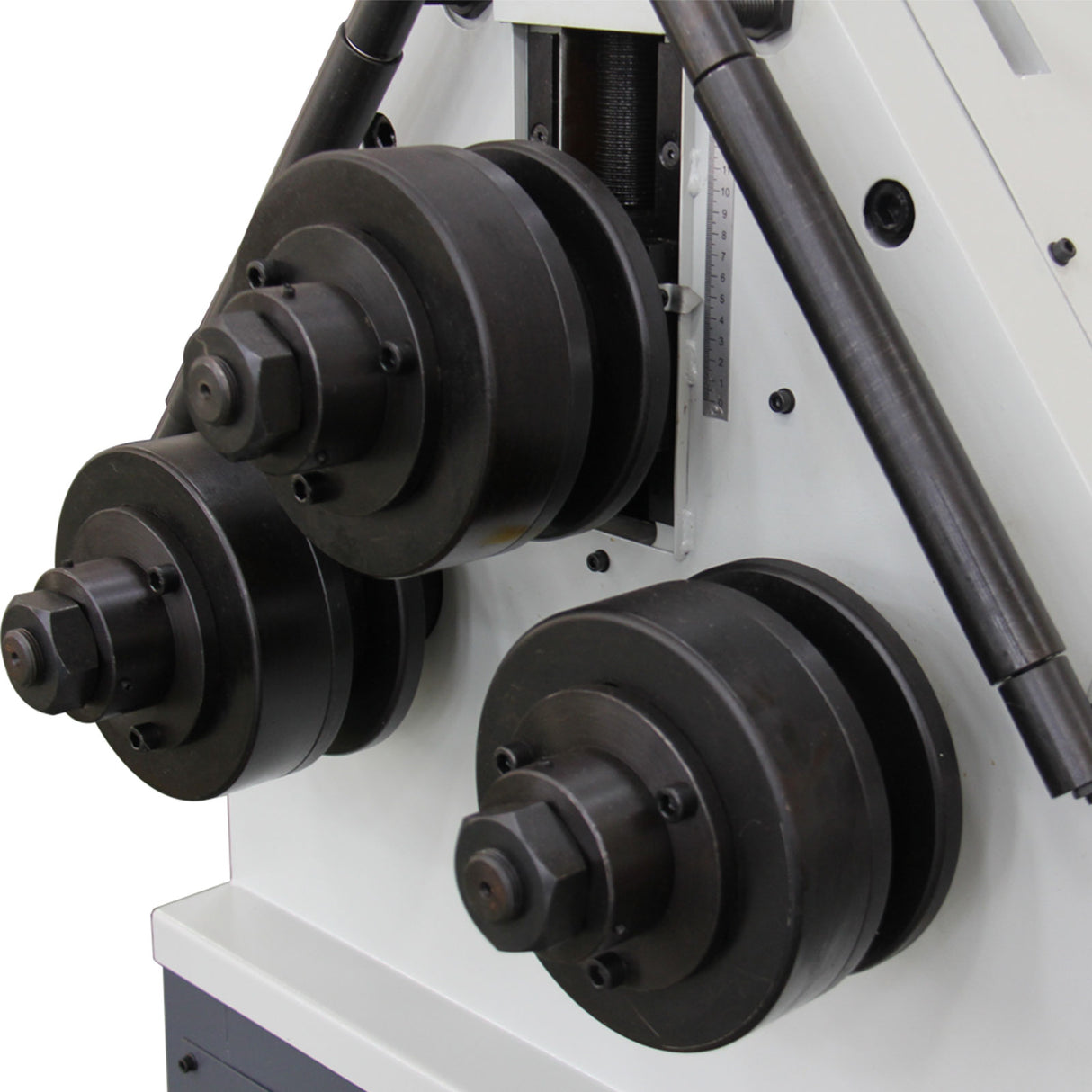

A set of hardened combination rolls, to suit different profiles, with one set of rolls
Horizontal or vertical working positions are available
Gear drive & high torque to ensure rolling heavy material easily
Foot pedal control with emergency stop
Two drive rollers
Standard with guide rolls
Specifications
| SKU | 191011 |
| Model | RBM-50HV |
| Bending Rolls | Manual Top |
| Top roll shaft dia. | 50 mm |
| Lower roll shaft dia. | |
| Top Roll dia. | |
| Lower roll dia | |
| Flat bar edge capacity (mm) | 60x10/500 |
| Flat bar capacity (mm) | 100x15/920 |
| T-steel (toe out) (mm) | 60x7/750 |
| T-steel (toe in) (mm) | 60x7/750 |
| C-Channel (toe out) (mm) | 65x40x5/550 |
| C-Channel (toe in) (mm) | 80x45x6/650 |
| Angle iron (toe out) (mm) | 60x5/500 |
| Angle iron (toe in) (mm) | 60x5/700 |
| Solid Square | 25x25/650 |
| Solid Round | OD35/600 |
| SHS | 50x50x3/550 |
| RHS | 70x50x3/1200 |
| Round Tube/Pipe | Optional at extra cost |
| Motor | 2.2 kW |
| Rolling speed | 9 R/min |
| Packing Size | 100x82x153 cm |
| N.W./G.W. | 460/537 kg |
