Description
Description

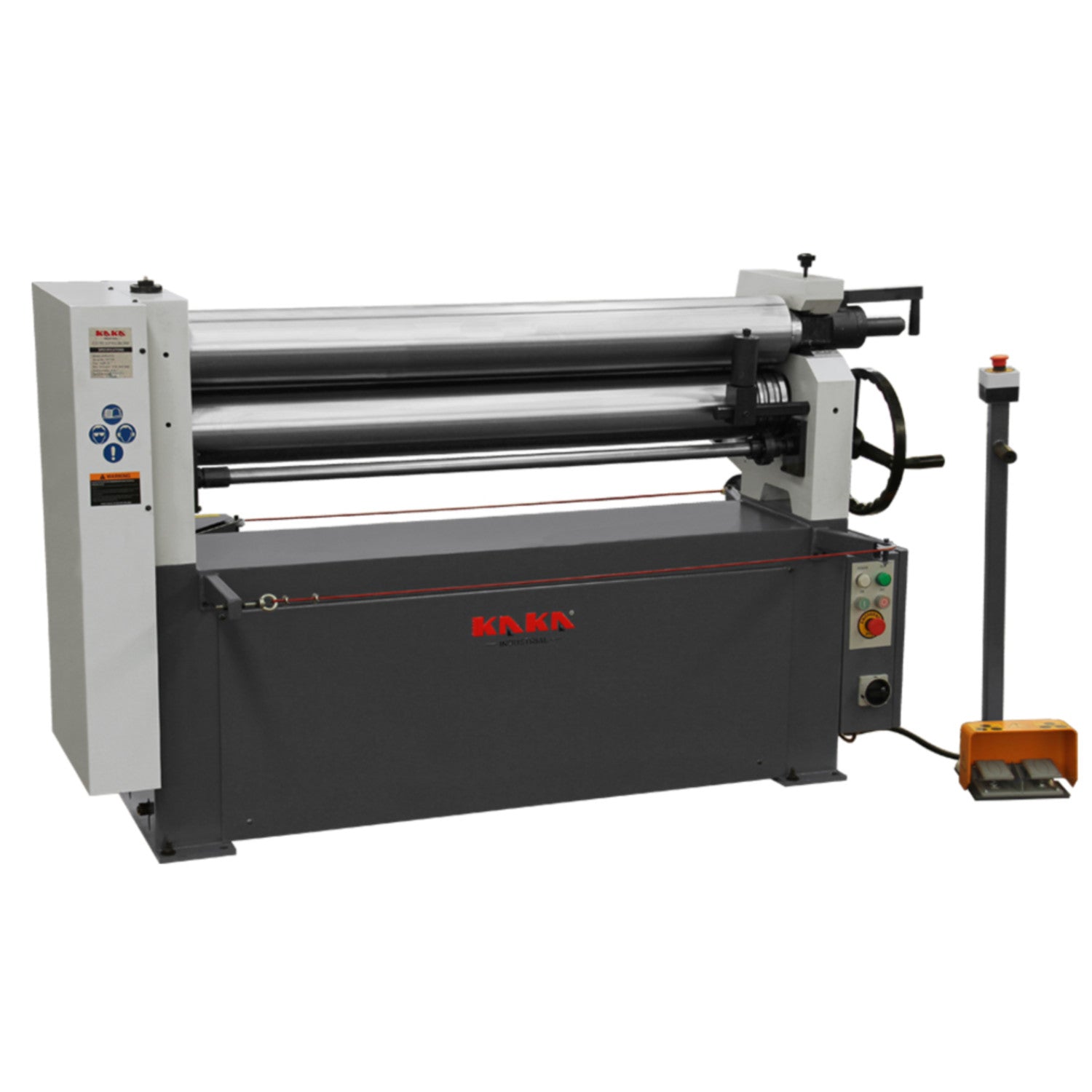

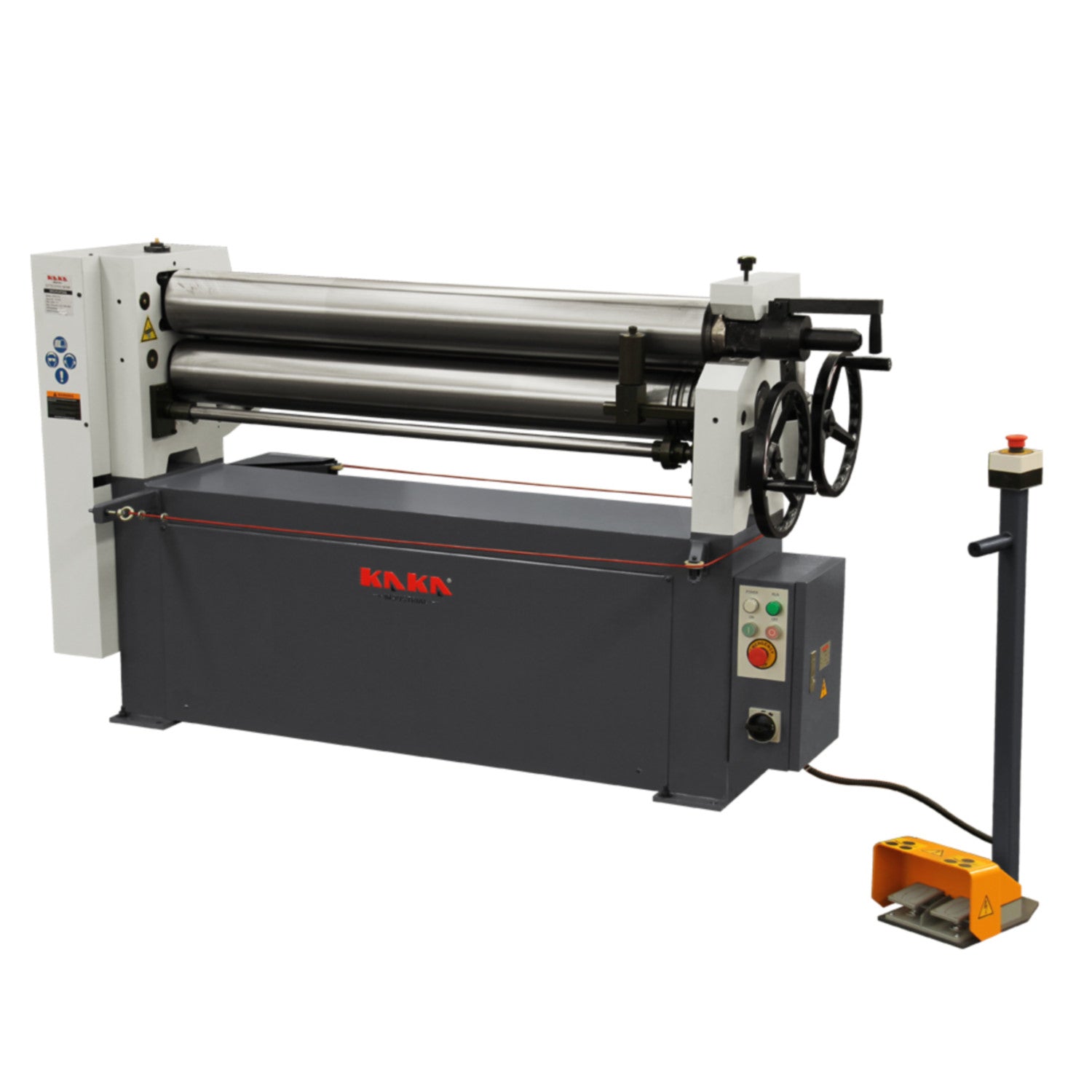

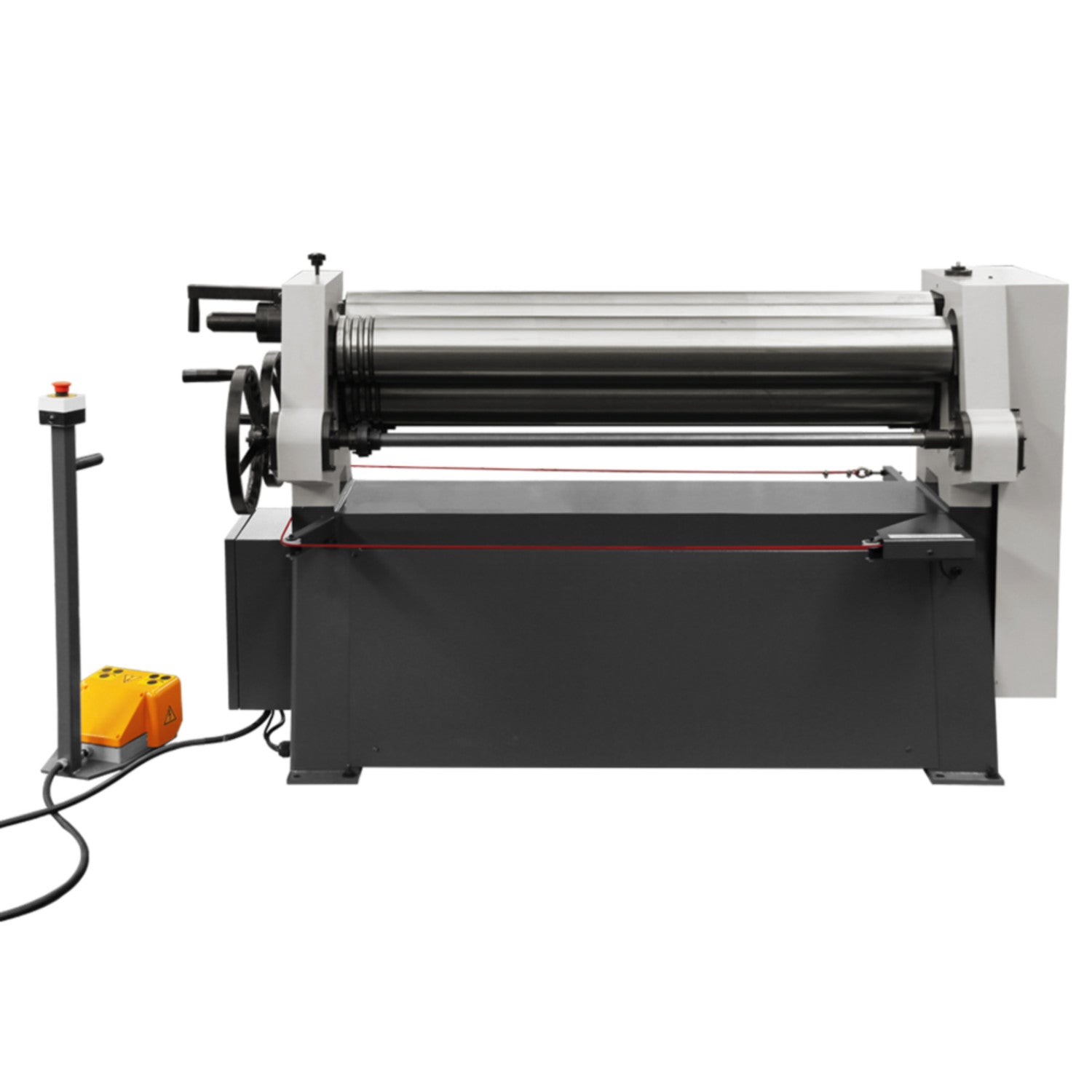

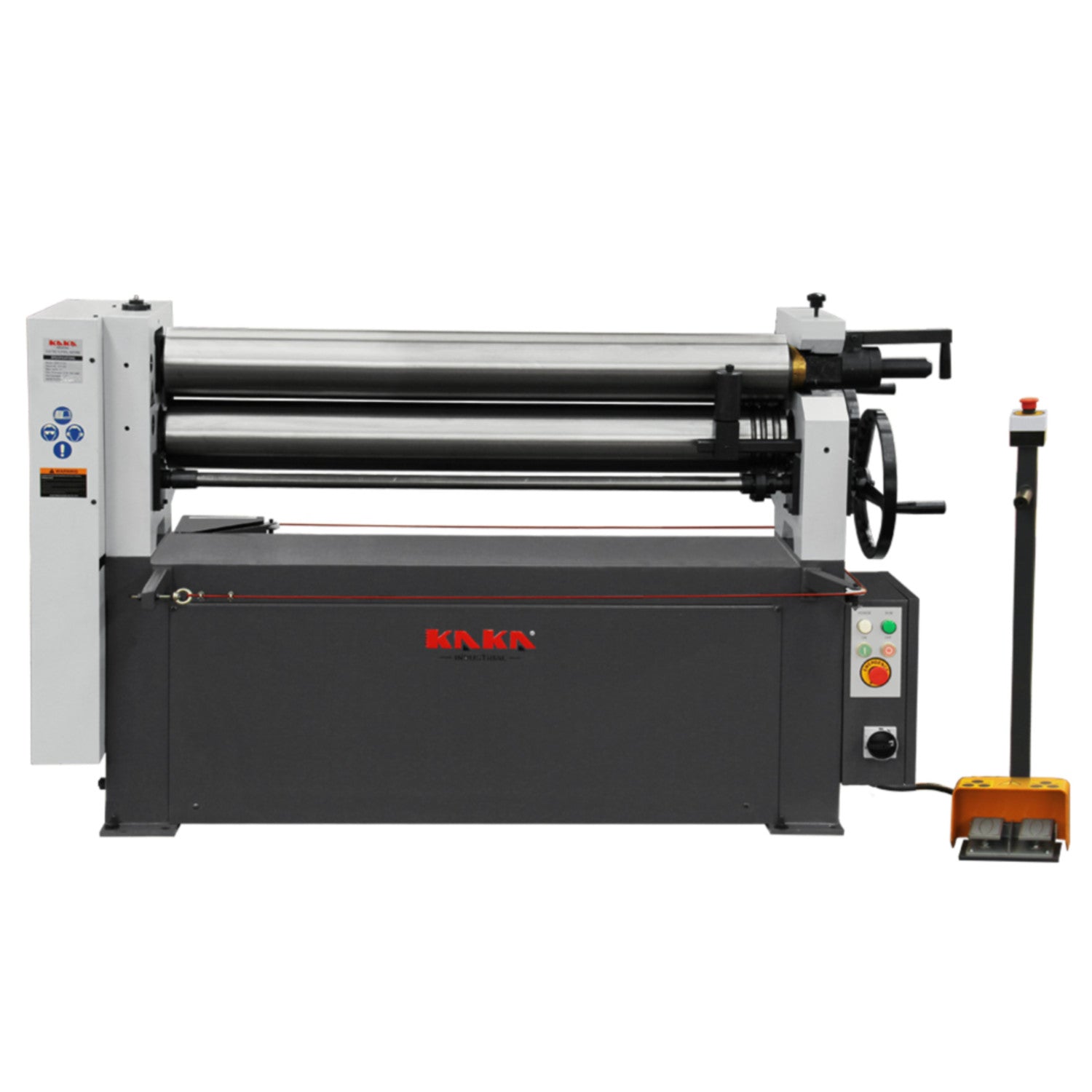

KANG Industrial ESR-5103, 6.5x1300mm motorized plate curve rolling machine
Ideal plate rolling machine for light or medium fabrication shops
Features
Runs on 415V-3PH power
Working width up to 1300mm
Could roll 6.5mm max. across the full width

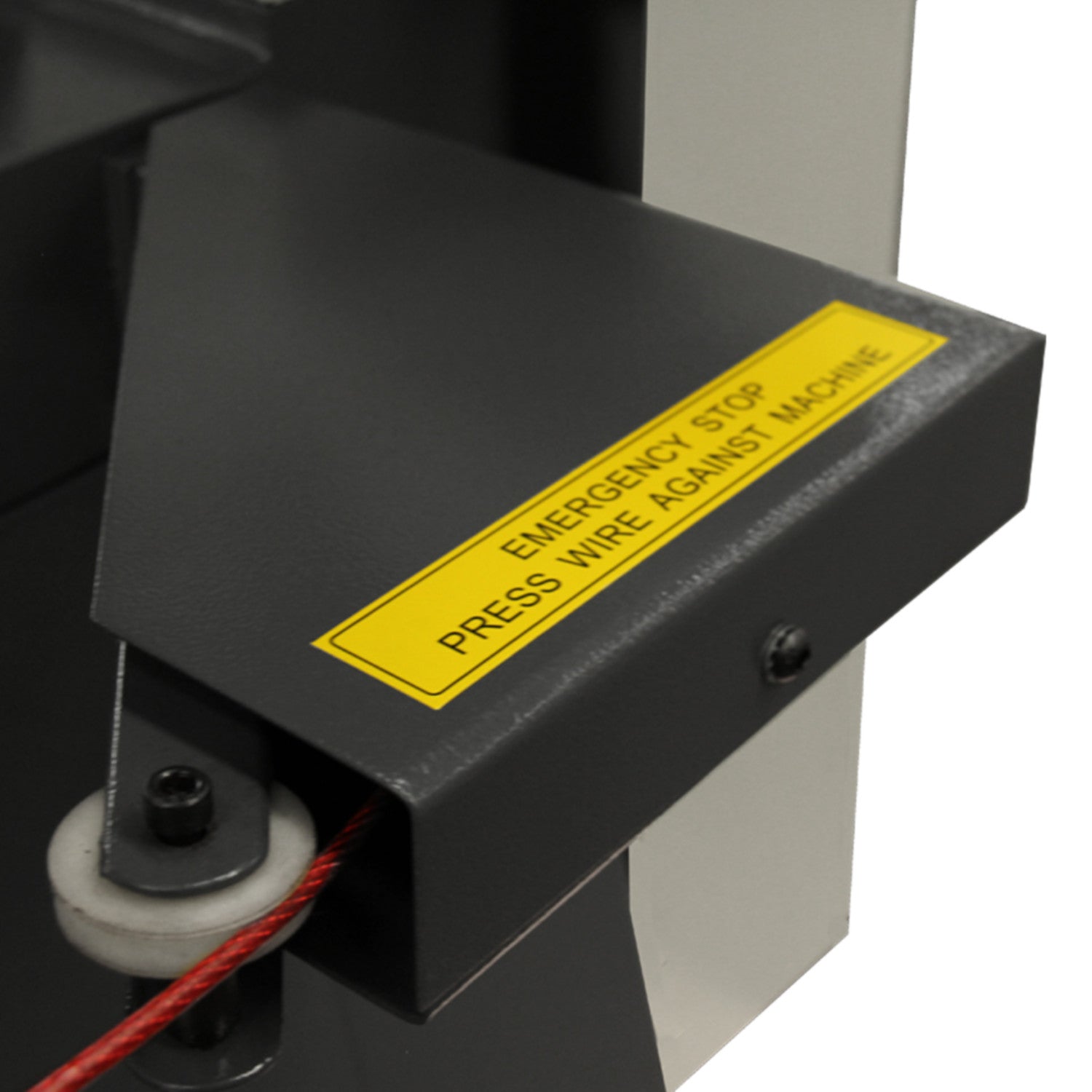

Safety line interlock system with emergency stop

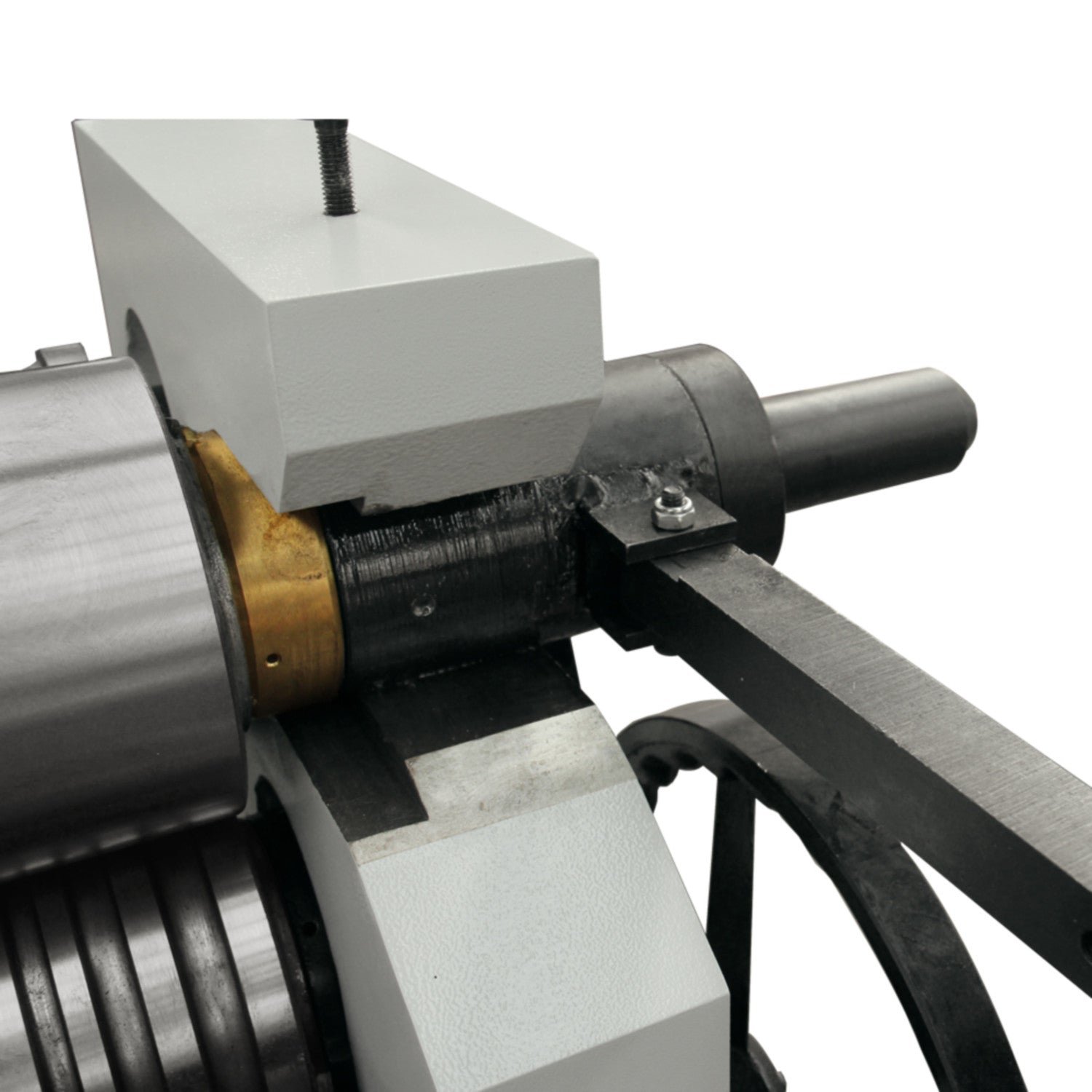

Top roll swing out across cam lock to take out the workpiece
Standard with wire core groove for wire rolling, 3 off, 10mm, 13mm & 18 mm
Specifications
SKU | 191108 |
Model | ESR-5103 |
Max. rolling thickness | 6.5 mm |
Max. rolling width | 1300 mm |
Dia. of roller | 150 mm |
Min. Rolling dia. | 170 mm |
Motor power | 3.0 kW |
Roller speed | 6.4 rpm |
Packing size | 208x80x134cm |
N.W./G.W. | 900/1000 kg |
