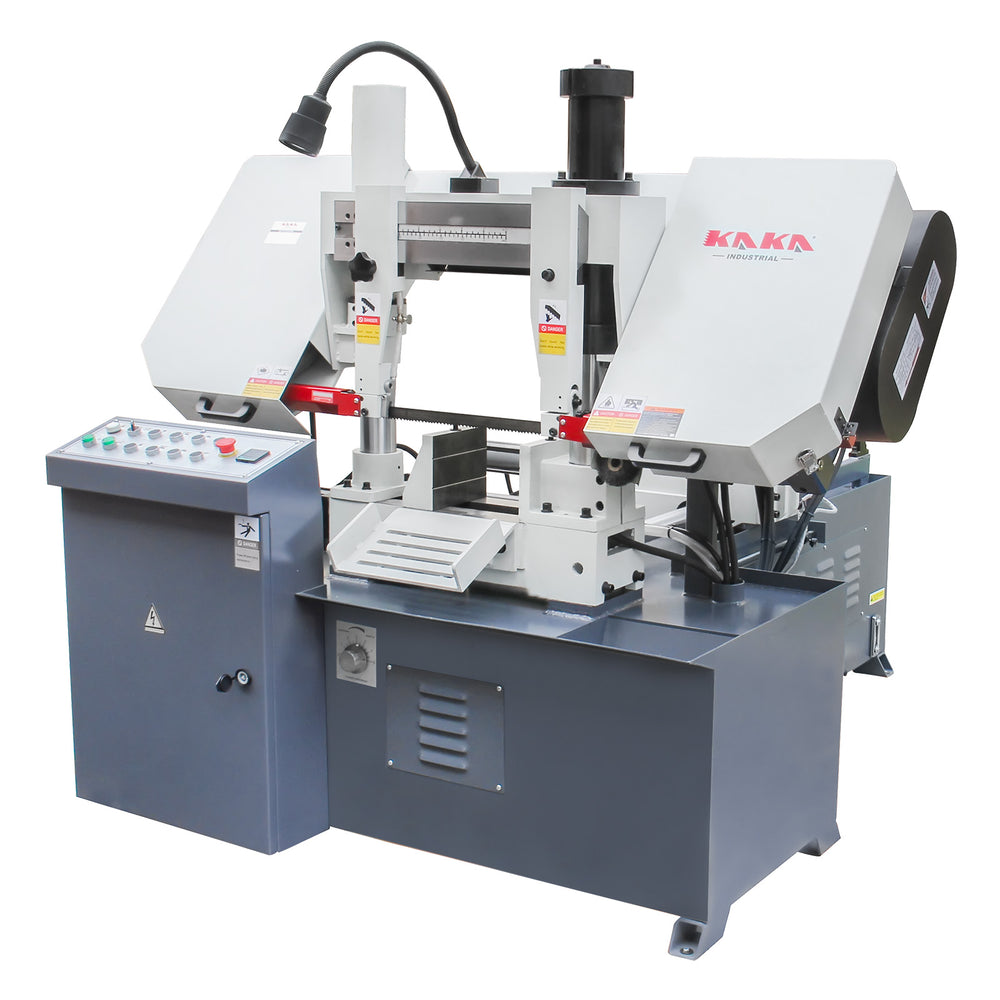

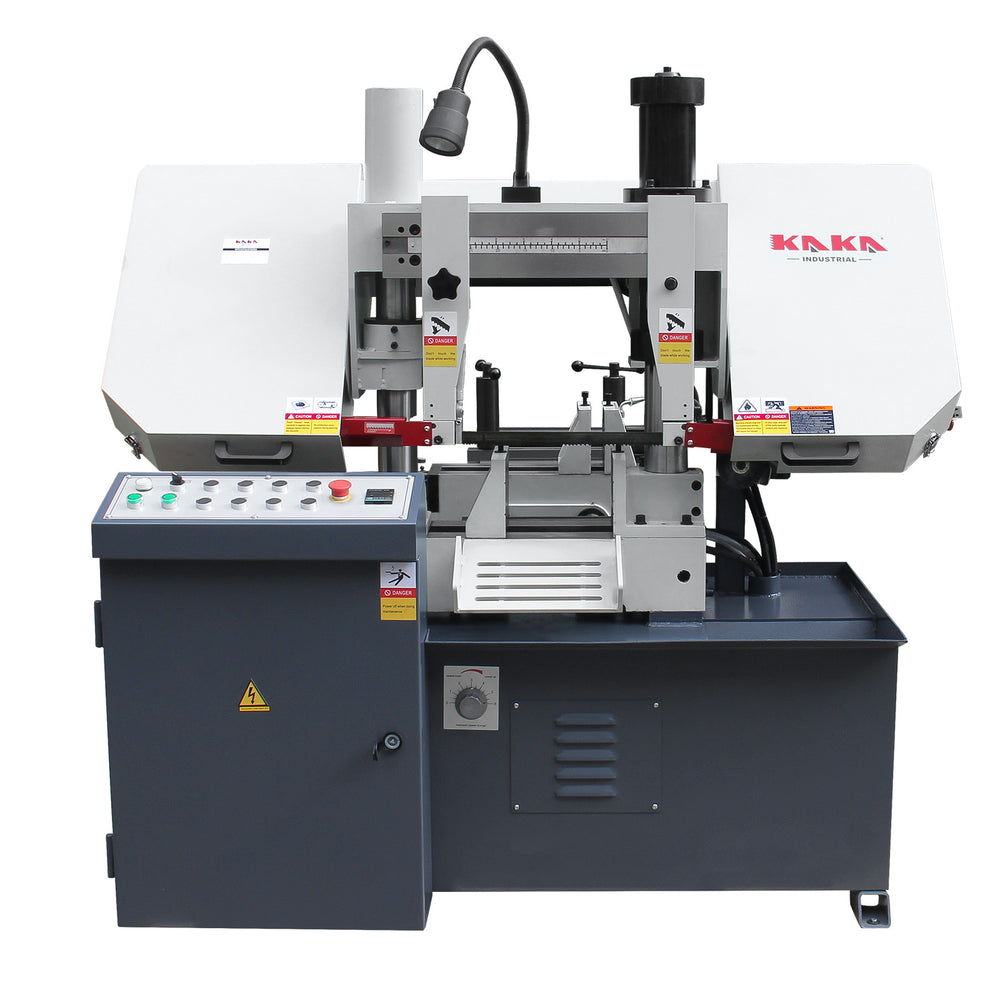

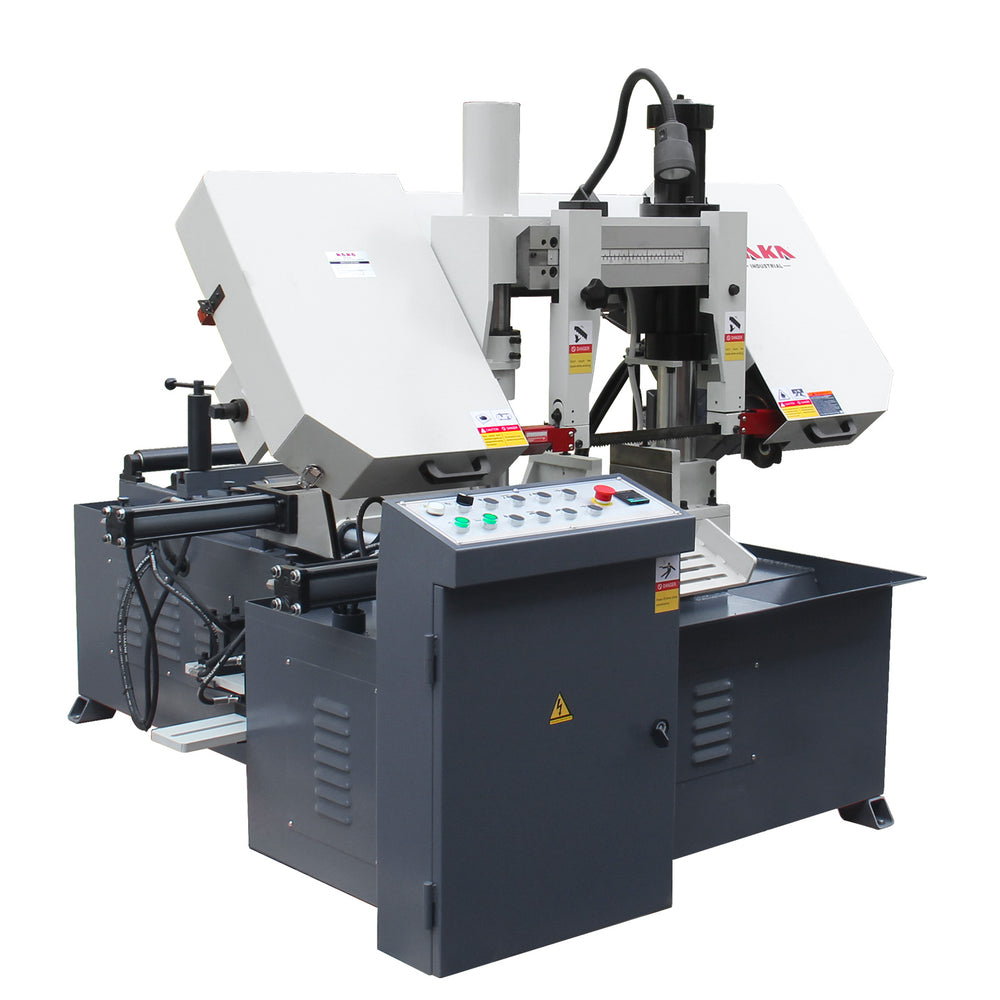

KANG INDUSTRIAL TBK-11B Double Column Band Saw

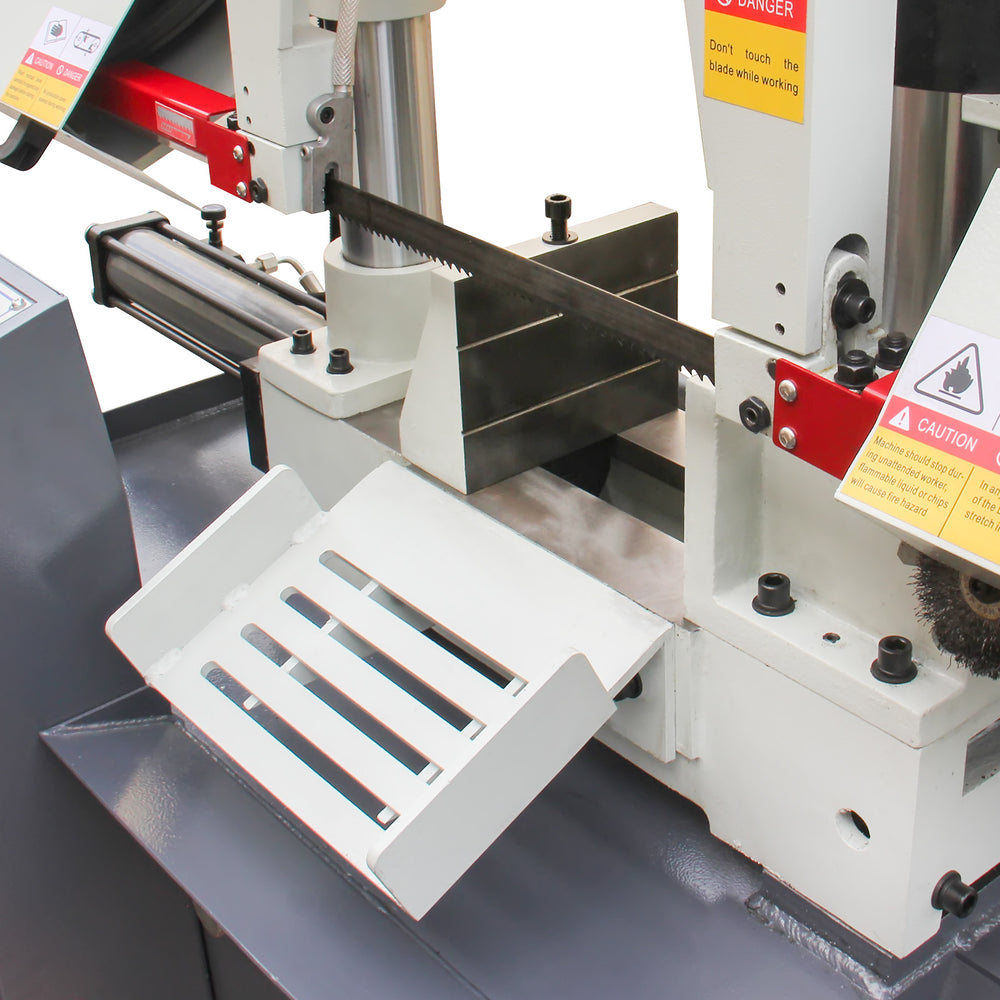

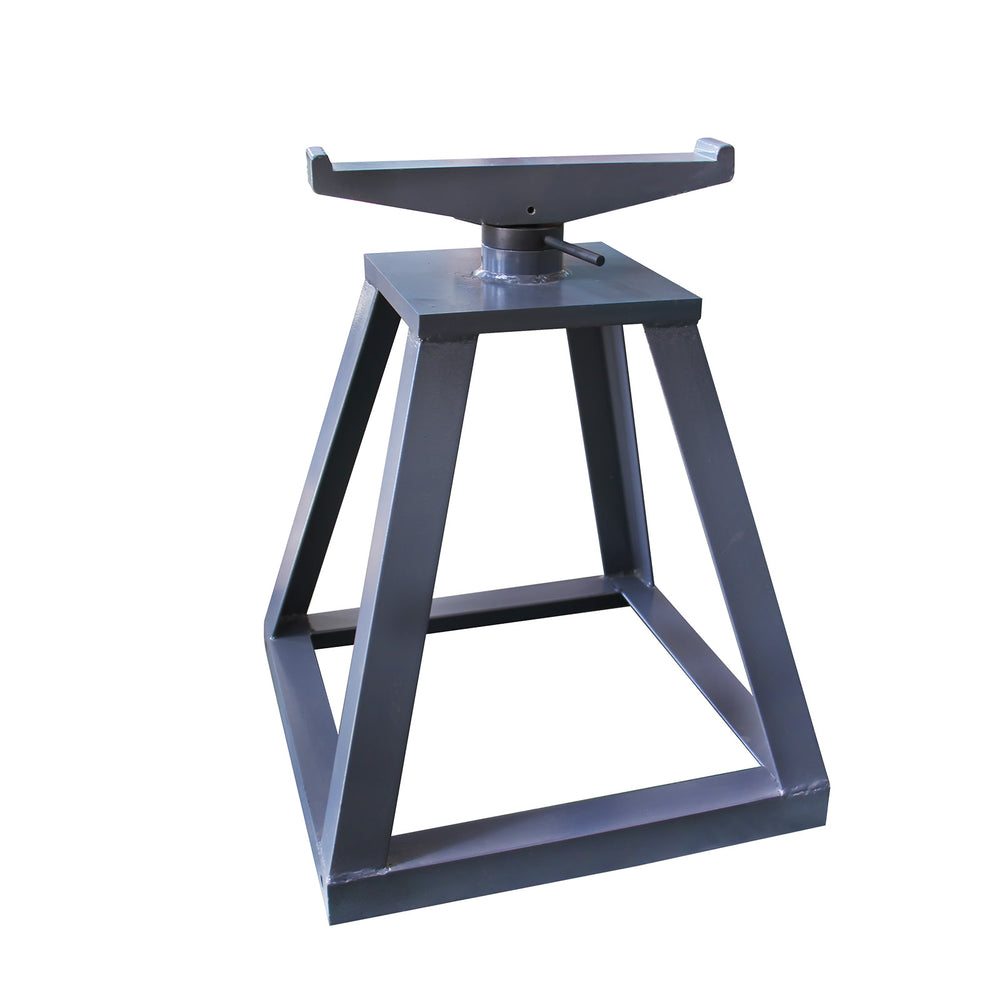

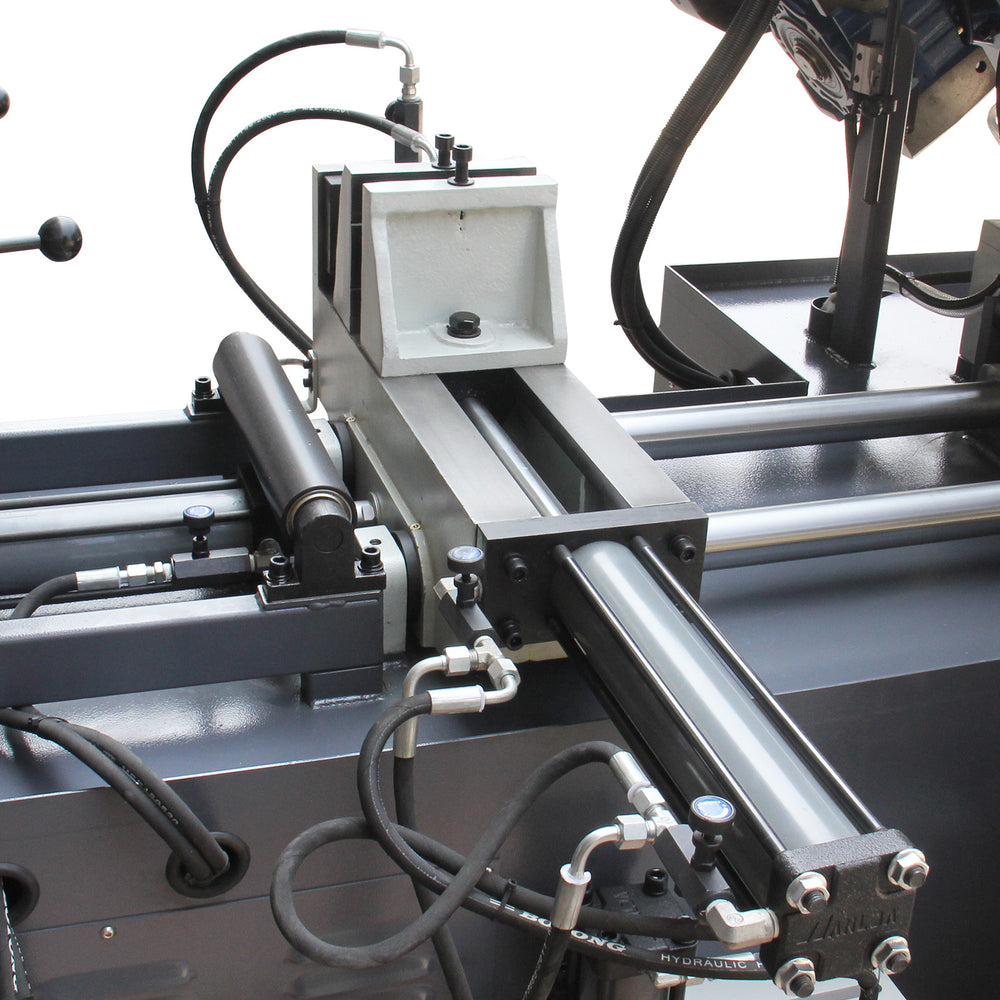

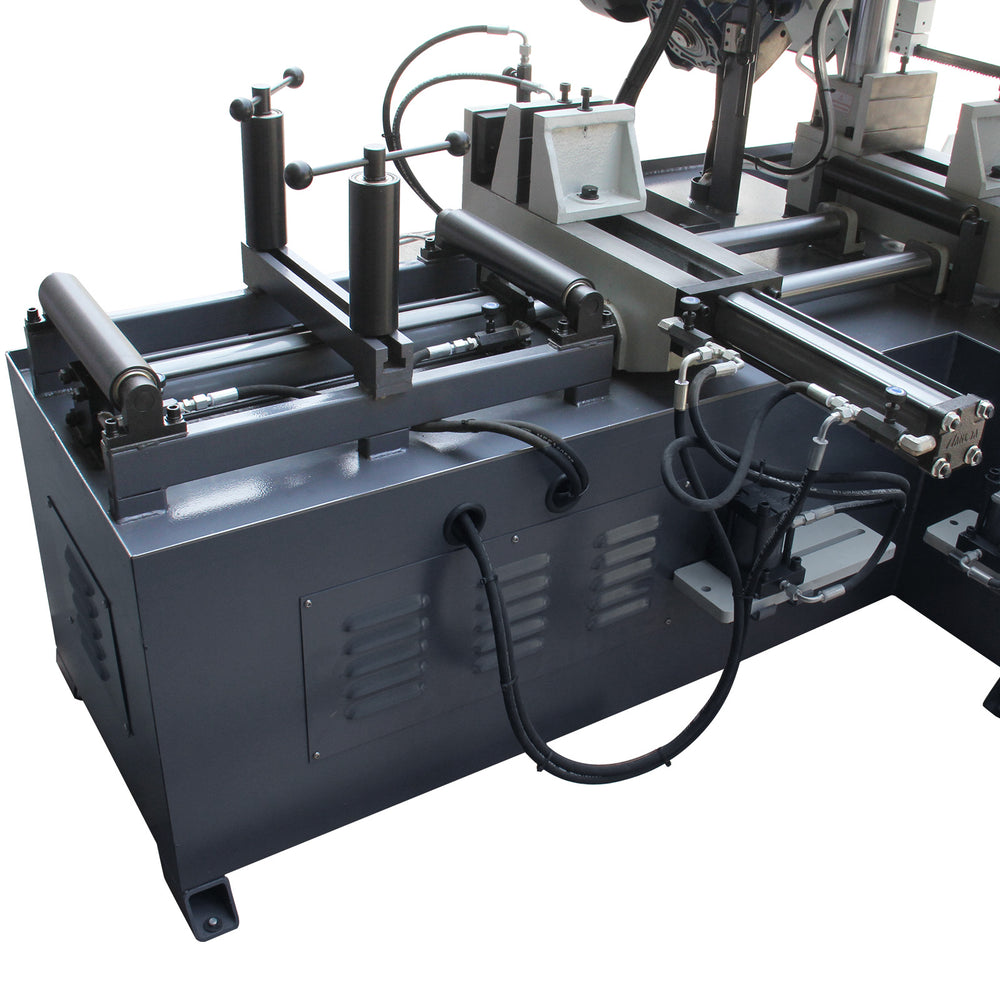

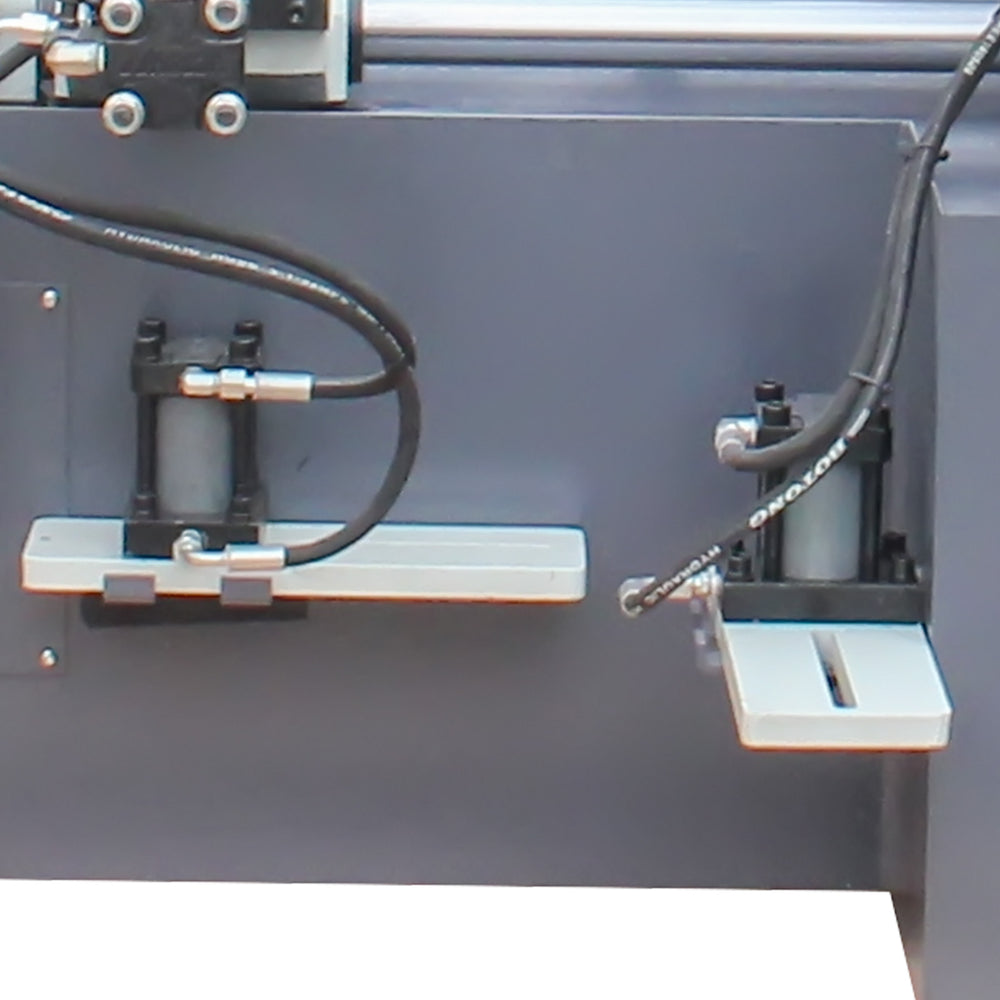

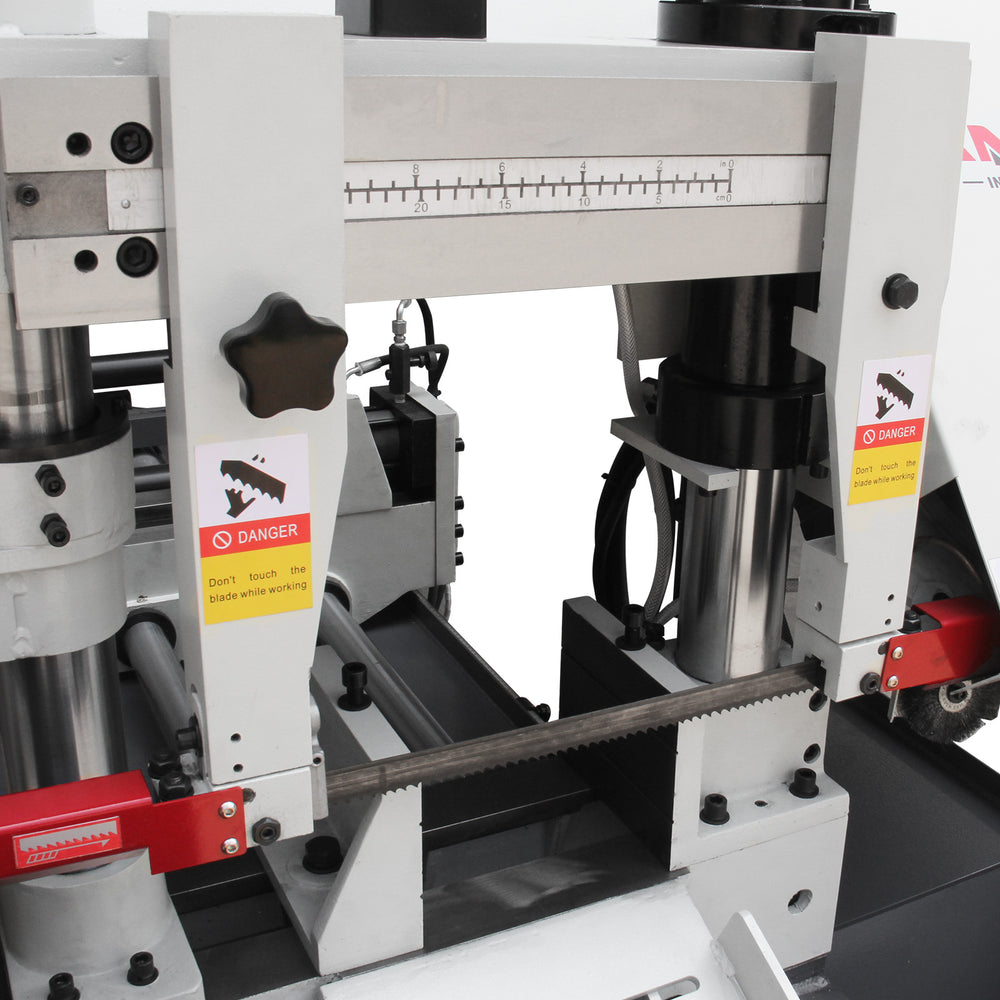

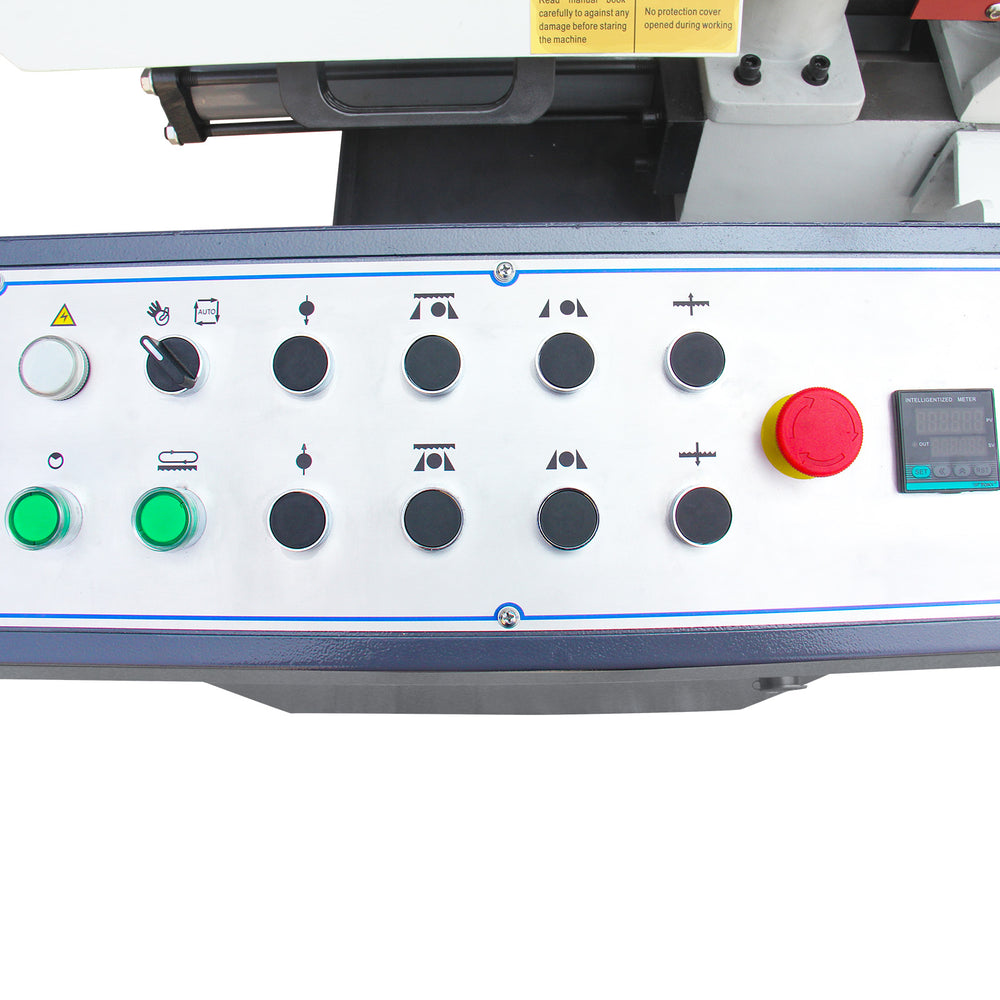

The KANG TBK-11B is a fully automatic horizontal bandsaw designed for high-precision straight cuts on larger workpieces, making it ideal for industrial metalworking applications. The bandsaw features a robust, torsion-resistant dual-column frame that minimises vibrations and ensures stable, accurate machining. The hydraulic material clamping for secure holding, hydraulic feed with an adjustable stop for controlled cutting, and a bundle vise that allows for efficient cutting of entire material bundles to specified lengths. The saw frame lowers hydraulically with infinitely variable speed control, and it automatically returns to the home position after each cut cycle. Blade speeds are adjustable in three steps (27, 45, 69 MPM) to suit different materials, and the rigid saw blade guides can be easily adjusted for various workpiece sizes. The user-friendly control panel is mounted on a cabinet for easy access and clear visibility during operation. Standard inclusions comprise a high-performance coolant system to extend blade life and improve cut quality, a mobile material support base, a work lamp, and comprehensive operator instructions.
Efficiency and Labour Savings Band Saw in High-Cost Environments. The fully automatic operation bandsaw, including hydraulic feed, clamping, and auto-return features, reduces manual intervention, allowing operators to handle more tasks simultaneously and boosting productivity in workshops or small-scale production lines.
Robust Design for Demanding. With industries like mining, construction, and metal fabrication prominent, the torsion-resistant dual-column construction and low-vibration performance ensure durability under heavy use. It can handle larger workpieces up to 280 mm, making it suitable for cutting structural materials common in projects, such as steel beams or pipes.
Versatility and Customisation Cutting Saw. Adjustable blade speeds and guides accommodate a wide range of materials, from mild steel to alloys.

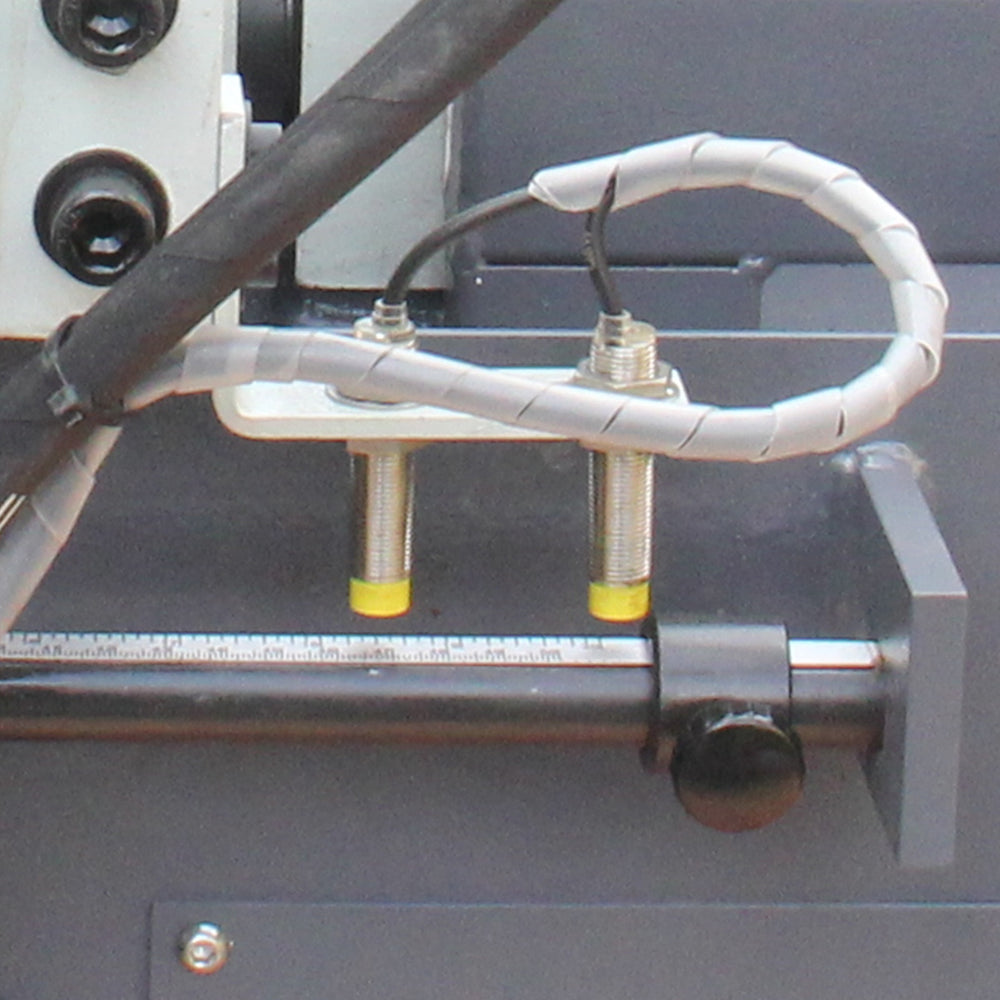

Safety and Ease of Use. Hydraulic controls and a contactless stop system minimise risks. The intuitive control panel and standard coolant system further enhance operator safety and machine longevity in hot, dusty conditions.
Features
Runs on 415V power
Max. cut 280mm OD and 280x280 square materials

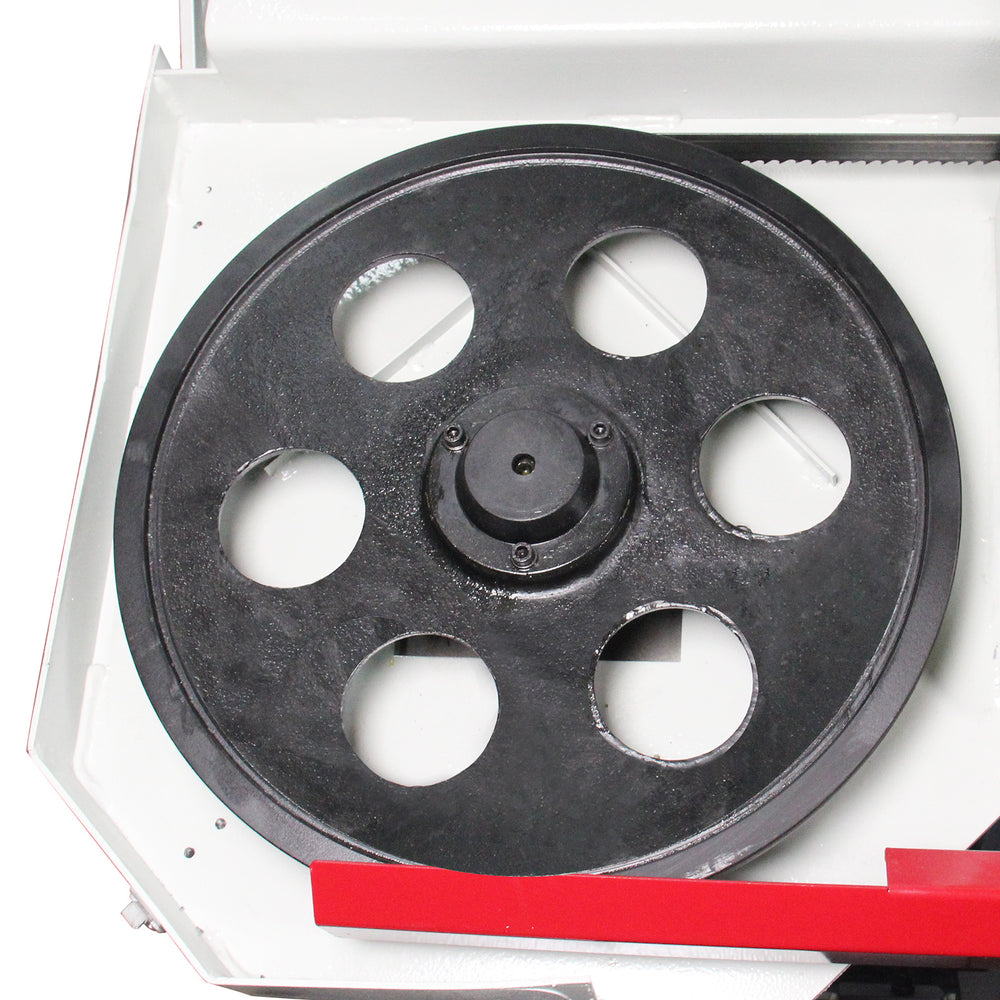

Belt drive to achieve three different cutting speeds
Auto-feeding and cutting are highly effective
Saw bow return at the pre-set position, time-saving
Mechanical blade tension adjustment
Standard Included:
Working Light
Coolant system
Bi-Metal Band Saw Blade 27x0.9x3505mm, TPI 3/4 (Pre-Installed)
Specifications
| SKU | 271212 |
| Model | TBK-11B |
| Max. cutting capacity | 280mm OD, 280x280mm square |
| Cutting speed | 27, 45, 69 m/min |
| Feeding speed | Variable Speed |
| Blade size | 27x0.9x3505 mm |
| Workpiece clamping | Hydraulic |
| Blade tension | Mechanical |
| Main motor power | 3.0 kW |
| Oil pump motor power | 0.55 kW |
| Drive | Belt |
| Packing size | 225x201x164 cm |
| N.W./G.W | 990/1160kg |
